Multiplying Matrices

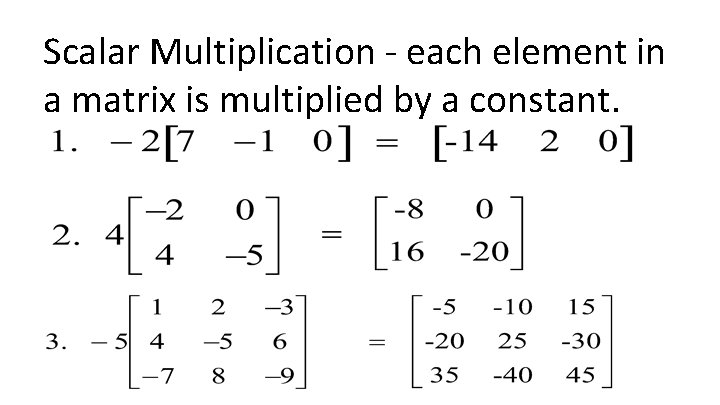

Scalar Multiplication - each element in a matrix is multiplied by a constant.

**Multiply rows times columns. **You can only multiply if the number of columns in the 1 st matrix is equal to the number of rows in the 2 nd matrix. They must match. Dimensions: 2 x 3 3 x 2 The dimensions of your answer.

Examples: 2(3) + -1(5) 3(3) + 4(5) 2(-9) + -1(7) 2(2) + -1(-6) 3(-9) + 4(7) 3(2) + 4(-6)

Dimensions: 2 x 3 2 x 2 *They don’t match so can’t be multiplied together. *

*Answer should be a 2 x 2 2 x 2 0(4) + (-1)(-2) 1(4) + 0(-2) 2 x 2 0(-3) + (-1)(5) 1(-3) +0(5)

Sigmoid function

Sigmoid function 미분

Neural Networks: Representation Non-linear hypotheses Machine Learning

Neural Networks: Representation Model representation I Machine Learning

Neuron model: Logistic unit Sigmoid (logistic) activation function. Andrew Ng

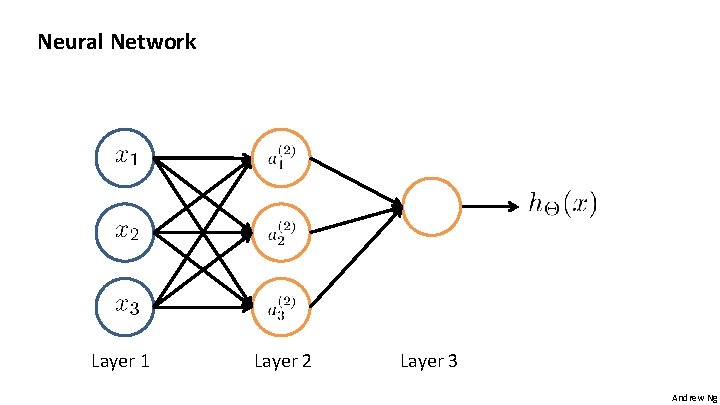

Neural Network Layer 1 Layer 2 Layer 3 Andrew Ng

Neural Network “activation” of unit in layer matrix of weights controlling function mapping from layer to layer If network has units in layer , will be of dimension . units in layer , then Andrew Ng

Neural Networks: Representation Model representation II Machine Learning

Forward propagation: Vectorized implementation Add . Andrew Ng

Neural Network learning its own features Layer 1 Layer 2 Layer 3 Andrew Ng

Other network architectures Layer 1 Layer 2 Layer 3 Layer 4 Andrew Ng

Neural Networks: Representation Examples and intuitions I Machine Learning

Non-linear classification example: XOR/XNOR , are binary (0 or 1). x 2 x 1 Andrew Ng

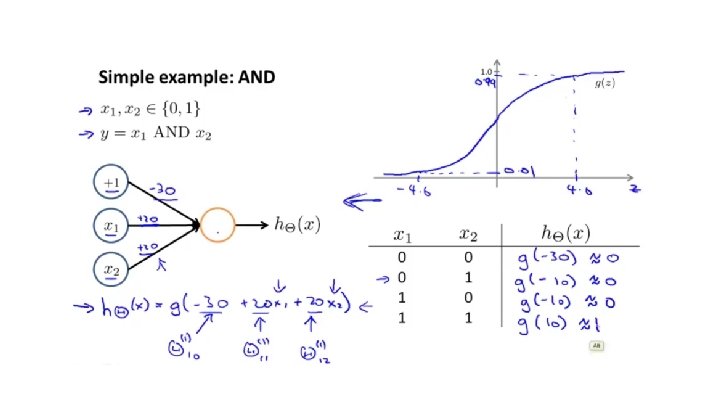

Simple example: AND 1. 0 0 0 1 1 0 1 Andrew Ng

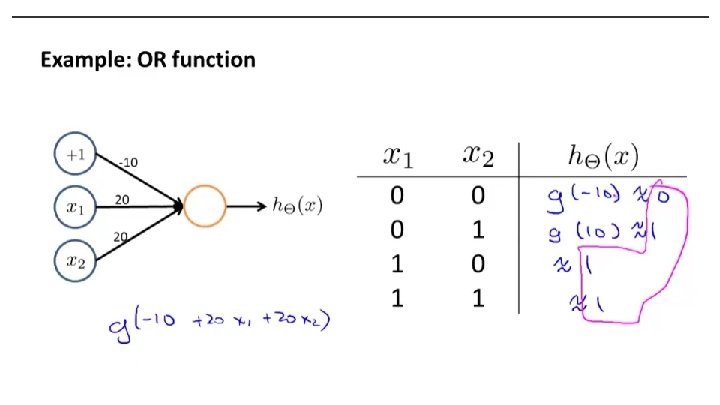

Example: OR function -10 20 20 0 0 1 1 0 1 Andrew Ng

Neural Networks: Representation Examples and intuitions II Machine Learning

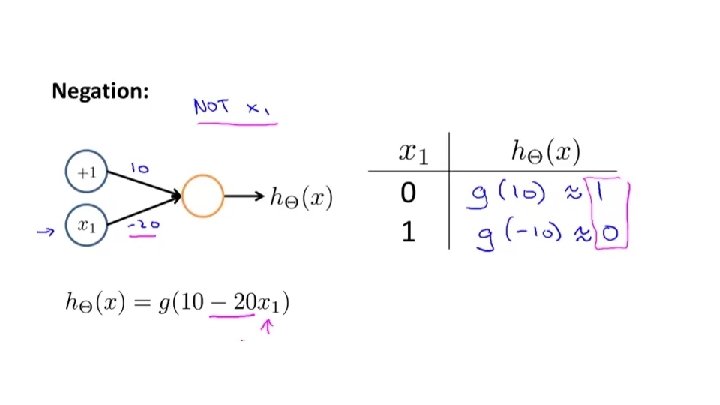

Negation: 0 1 Andrew Ng

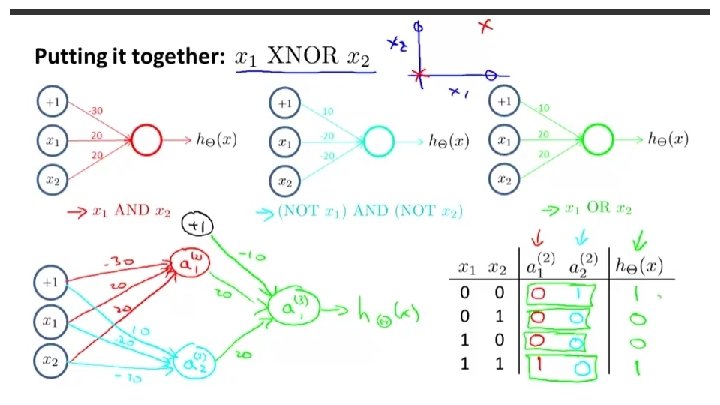

Putting it together: -30 10 -10 20 -20 20 0 0 1 1 0 1 Andrew Ng

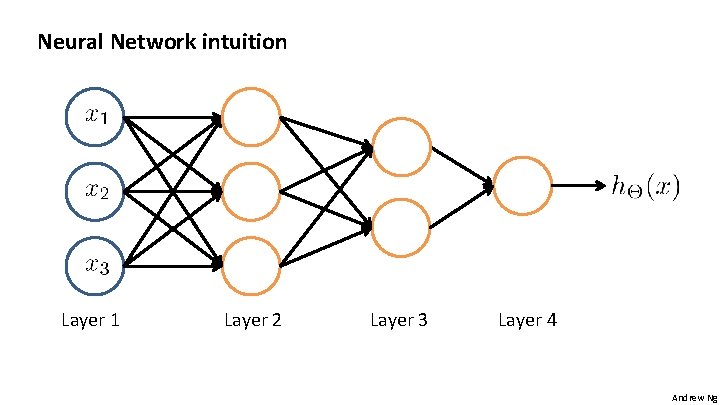

Neural Network intuition Layer 1 Layer 2 Layer 3 Layer 4 Andrew Ng

Handwritten digit classification [Courtesy of Yann Le. Cun] Andrew Ng

Neural Networks: Representation Multi-classification Machine Learning Andrew Ng

Multiple output units: One-vs-all. Pedestrian Want Car , when pedestrian Motorcycle , when car Truck , etc. when motorcycle Andrew Ng

Multiple output units: One-vs-all. Want , when pedestrian , when car , etc. when motorcycle Training set: one of , , , pedestrian car motorcycle truck Andrew Ng
