MARS TECTONICS & VOLCANOLOGY Zachary Gallegos University of New Mexico / Mars One
Mars Orbiter Laser Altimeter Map
Plate Tectonics • Lithospheric plates sliding on the asthenosphere, above the mantle • Exists on Earth • Theory proposed in the early 1900’s • Does it exist on other bodies in the solar system?
Plate Tectonics • Recycles material • Regulates the atmosphere • CO 2 sequestration and output • Linked with mantle convection • Push new material to surface at divergent boundaries • Pulls old material into the Earth at convergent boundaries
Tectonics of Earth • Picture of plates
Plate boundaries • Divergent • Spreading apart • Convergent • Moving together • Strike-slip • Sliding past
Divergent • Mid-Atlantic ridge • Oceanic • East African Rift • Continental • Rio Grand Rift • Continental
Convergent • Mariana Islands/Trench • oceanic-oceanic • Pacific Northwest • oceanic-continental • Himalayas • continental-continental
Strike-slip • San Andres fault • right lateral
Plate Tectonics of Mars
Tectonics of Mars • Mars seems to lack global, Earth-like tectonics • Too small? • Not enough water? • Large scale faulting • HUGE scale rifting
Topography • Mars’ planetary dichotomy • Not tectonic in origin • Bolide impact , water resurfacing • Slow sloping at the dichotomy • not pronounced • Earth’s dynamic lithosphere • Tectonic in origin • Steeply sloping at the margins • Continental and oceanic crust
Magnetics • Mars lacks a current magnetic field • Magnetic reversals recorded on Earth
Magnetics • Possible magnetic reversals recorded in early Martian crust
Interior of Mars • Smaller/colder • Less water
Faulting • Tectonic movement • Normal (extension) • Reverse (compression) • Strike-slip (lateral)
Faulting on Mars • Thrust faulting • Amenthes Rupes • Normal faulting • Circum-Tharsis • Strike-slip faulting? ? • Within Valles Marineris
Faulting on Mars • Circum-Tharsis • Extensional faulting
Valles Marineris • Giant tectonic fissure in the crust • Not the result of plates • Result of Tharsis uplift • Length: > 4, 000 km • Width: > 200 km • Depth: > 7 km • Largest known valley in the solar system
Valles Marineris • Nearly ¼ or the planets circumference • Nine times longer than the grand canyon
Vallis Marineris
Volcanology • Study of volcanoes • Volcanoes bring new material to the surface from below • Lava, ash, gas
Volcanology of Earth • Most of Earth’s volcanism is related to plate tectonics • Divergent and convergent boundaries
Volcanology of Mars • No planetary tectonics • Shield forming • Hot spot volcanism (e. g. Hawaii) • Mostly basaltic in compositions • From ultramafic komattiatic to dacitic
Rocks and Minerals • Mars has a different volcanic signature than Earth
Why Basalt? • Hot spot volcanism produces basalt
Volcanism and Tectonics • With no tectonics, volcanoes grow to enormous size
Montes • Mons are large shield volcanoes • Earth analogue: Hawaii • Gentle slopes < 6° Ascraeus Mons Pavonis Mons Arsia Mons
Tholi • Tholus is a term for smaller, dome shaped volcanoes • Older than Mons • Buried by later flows • Steeper flanks • Different material than Montes? • Less material than Montes?
Patera • Term given to small volcanoes with large calderas • Latin translation: shallow drinking bowl • Larger calderas than the tholi • Probably represent larger volcanoes • Buried beneath flows and sediment
Rootless Volcanoes & Pseudocraters • Show no sign of magma conduit • Analogues on Earth erupt due to a magma body flowing over a surface or subterranean water source
Martian Volcanic Provinces
Tharsis • Largest volcanic province on Mars • 25% of the planets surface • Avg. 7 -10 km above datum • Youngest flows on Mars
Tharsis Arsia Mons

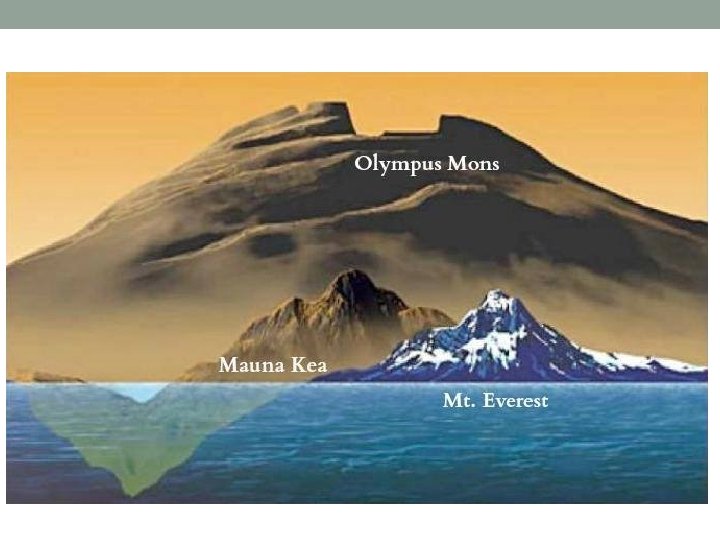

Olympus Mons • Largest mountain in the solar system • Height: > 22 km • Diameter: > 500 km • Slope: ~ 4° • 6 nested calderas • 3. 5 km deep
Alba Mons • North of Tharsis buldge • Very low slopes ~. 5° • 1600 km across • Rises 3 km above plains
Elysium • Second largest volcanic province • 1, 700 x 2, 400 km • Elysium Mons • 13 km high • Hecates Tholus • North • Albor Tholus • South
Syrtis Major • 1200 km across • 2 km high • 2 calderas • Nili Patera, Meroe Patera • Silica rich rocks • Dacite & Granite Isidis Basin
Highland Patera • Near the Hellas impact basin • Impact induced volcanism along fractures?
Arabia Terra • Low relief Patera • Structures that look like Earth’s supervolcanoes • e. g. Eden Patera
Questions?
Geography of Mars
Volcanic Provinces
Exploration Sites
