Magnetism and Electricity Review Charges 1 Charges 2
- Slides: 31
Magnetism and Electricity Review Charges 1 Charges 2 Circuits Magnets Misc. 200 200 200 400 400 400 600 600 600 800 800 800 1000 1000 FINAL JEOPARDY
Charges 1: 200 Question: This part of the atom has a negative charge. Answer: What is electron? Back
Charges 1: 400 Question: Movement of electrons from one object to another through direct contact is caused by this type of charging. Answer: What is conduction? Back
Charges 1: 600 Question: The problem with the statement “Protons with a negative charge are attracted to electrons with a positive charge” is this. Answer: What is protons have a positive charge and electrons have a negative charge? Back
Charges 1: 800 Question: Charging of an object without direct contact with another object is caused by this type of charging. Answer: What is induction? Back
Charges 1: 1000 Question: Lightening is an example of static electricity that does this. Answer: What is static discharge or electric discharge? Back
Charges 2: 200 Question: Materials that do not allow charges to move easily are these. Answer: What are insulators? Back
Charges 2: 400 Question: When static electric charges move off of an object, it is because of this. Answer: What is static discharge or electric discharge? Back
Charges 2: 600 Question: One of the following is not an insulator: Helium balloon, pine board, penny, eraser Answer: What is a penny? Back
Charges 2: 800 Question: This is the difference between an electrical conductor and an electrical insulator. Answer: What is conductors allow electrons (electricity) to flow and insulators don’t? Back
Charges 2: 1000 Question: The type of charging that occurs when two objects rub against each other. Answer: What is friction? Back
Circuits: 200 Question: The 3 required parts of a basic circuit. Answer: What is power source (battery), load (light) and wire. Back
Circuits: 400 Question: The amount of electric pathways in a series circuit. Answer: What is one? Back
Circuits: 600 Question: The type of circuit shown. Answer: What is parallel? Back

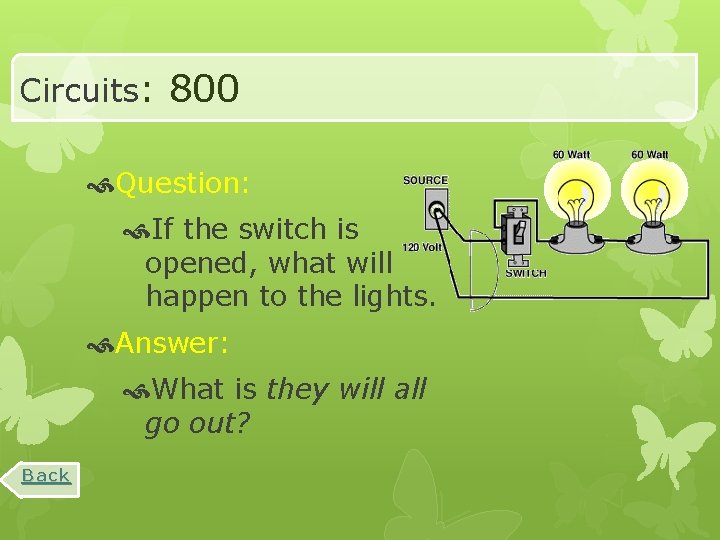

Circuits: 800 Question: If the switch is opened, what will happen to the lights. Answer: What is they will all go out? Back
Circuits: 1000 Question: If one of the switches is opened, this will happen to the remaining lights. Answer: Back What is they will stay on?
Magnets: 200 Question: A coil of wire with an iron core placed into it connected to a battery is this. Answer: What is an electromagnet? Back
Magnets: 400 Question: This happens to the magnetic field of an electromagnet when the number of coils is increased. Answer: What is increases? Back
Magnets: 600 Question: Electric currents in a wire create this. Answer: What is a magnetic field? Back
Magnets: 800 Question: What you get when a magnet is cut in half. Answer: What is two smaller magnets each with its own North and South pole? Back
Magnets: 1000 Question: The strongest magnetic fields are found here on magnets. Answer: What is at the poles? Back
Miscellaneous: 200 Question: The type of circuit shown. Answer: What is series? Back
Miscellaneous: 400 Question: The lines shown in the picture represent these. Answer: What are magnetic fields? Back
Miscellaneous: 600 Question: All lights in a series circuit go out when one goes out because of this. Answer: What is there is only one path for the electrons (electricity) to flow and the path gets broken when the light goes out? Back
Miscellaneous: 800 Question: (AC Classes) The voltage in a circuit if the current is 4 A and the resistance is 6 Ohms. Answer: What is 24 V? Back
Miscellaneous: 1000 Question: The law of conservation of charges states this. Answer: What is “no charges are created or destroyed when objects are charged. ” Back
Final Jeopardy Category: Charges Place your wager. Question: The law of electric charges states this. Answer: What is opposite charges attract and like charges repel? Back
Unknown Question Category: Unknown Question: Not sure why this slide is here. Answer: Unknown Bac k
Daily Double You can Wager All or Part of Your Points on This Question
Daily Double You can Wager All or Part of Your Points on This Question
