Electricity and Magnetism
What is electricity? • Electricity is simply the flow of electrons from an abundance to a deficit. Electrons are tiny particles that orbit the core of an atom, and they can hop from one atom to the next.
How is a magnetic field created? • A magnetic field is created by charged particles that are in motion. • The charged particles create electric current. • The interaction of electricity and magnetism produces the electromagnetic force.

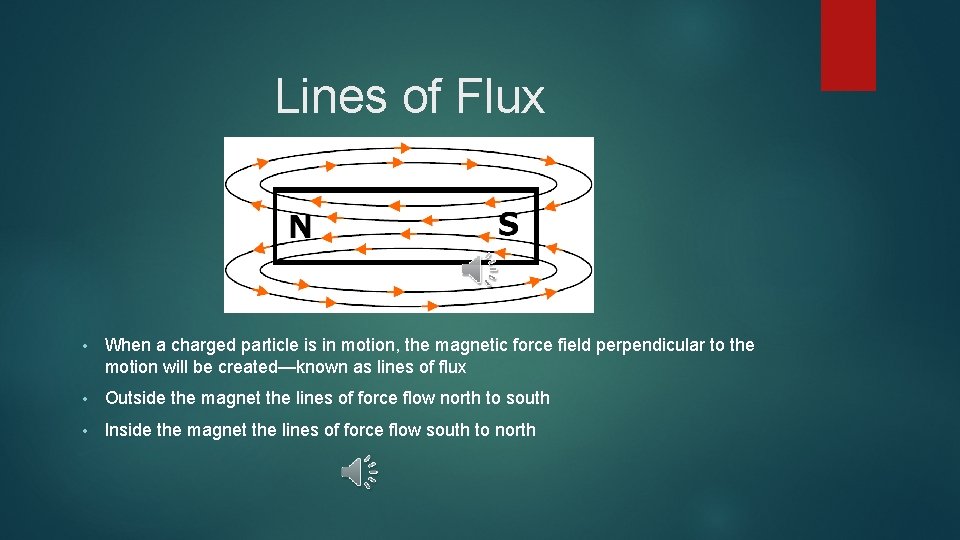

Lines of Flux • When a charged particle is in motion, the magnetic force field perpendicular to the motion will be created—known as lines of flux • Outside the magnet the lines of force flow north to south • Inside the magnet the lines of force flow south to north
When electric current is applied to certain materials, this creates an electromagnet. Here is a video that demonstrates this in action.
Fleming’s hand rules • Founded by an English scientist John Fleming. • Fleming’s rule shows the direction of induced current when a conductor moves in a magnetic field. • The right hand rule for the magnetic force. • The left hand rule is used for motor.

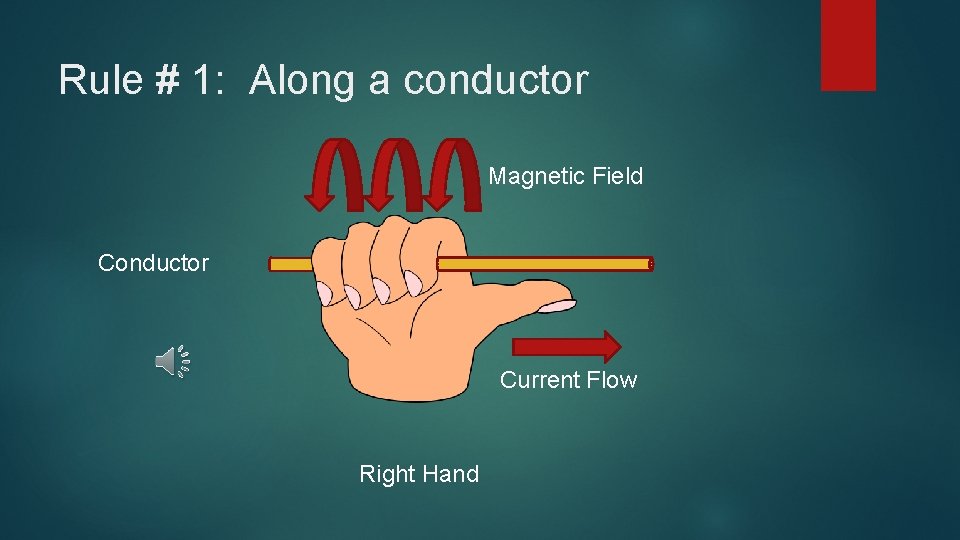

Rule # 1: Along a conductor Magnetic Field Conductor Current Flow Right Hand
Rule # 2: Solenoid and electromagnet poles Current Flow Solenoid S N Right Hand
Magnetic lines of flux Generator N N S Conductor on armature Current Flow Source of mechanical energy to rotate shaft Slip rings
Rule # 3: Generator effect Movement of conductor on armature Current flow Magnetic lines of flux Right Hand
Magnetic lines of flux Motor N N S Conductor on rotor Current Flow Slip rings Source of electrical energy Rotating shaft
Rule # 4: Motor principle Movement of conductor on rotor Magnetic lines of flux Current flow Left Hand
