Electricity and Magnetism Electricity and Magnetism What is

Electricity and Magnetism

Electricity and Magnetism • • What is a Magnet? North and South Poles of a Magnet Types of Magnets The Earth as a Magnet Electromagnets Electromagnetic Induction Motors Generators

What is a Magnet? An object that is surrounded by a magnetic field and has the property of attracting iron or steel

Where are Magnets? Magnets. . . Generate electricity Image courtesy of DOE/NREL Are in motors Image courtesy of DOE/NREL

Where are Magnets? Magnets. . . Power car windows & locks Are used in Magnetic Resonance Imaging (MRI) Image courtesy of NASA

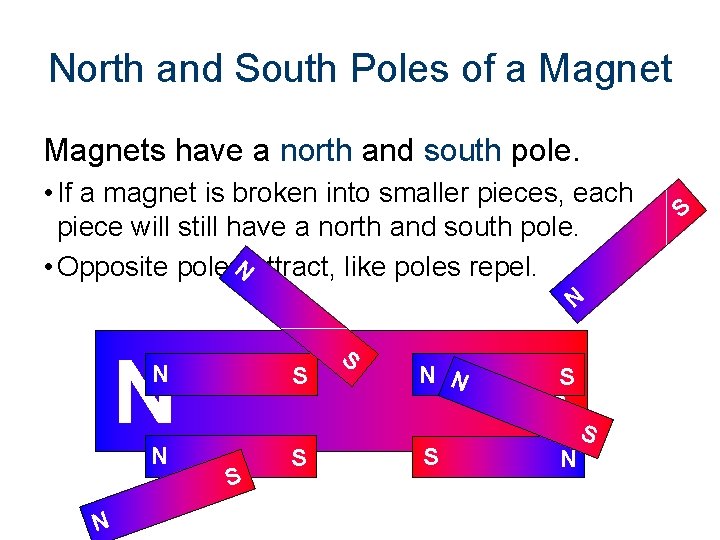

North and South Poles of a Magnets have a north and south pole. • If a magnet is broken into smaller pieces, each piece will still have a north and south pole. • Opposite poles. N attract, like poles repel. N N N S S S N S S

Types of Magnets in Nature Magnetite is a mineral that is naturally magnetic. Human-Made Magnets Some materials can be magnetized when placed near a strong magnetic field. Soft magnetic materials (Iron) Hard magnetic materials (Cobalt, Nickel) Electromagnets Magnets can be made by passing a current through a coil of wire. U. S. Geological Survey / photo by Andrew Silver

The Earth as a Magnet The Earth is a large magnet. le o th P r No le o th P u So Compasses work as a result of the Earth’s magnetic field.

Electromagnets Magnets are created by passing a current through a wire. Electromagnets are generally wire wrapped around an iron core. Electromagnets are turned on and off when the current is switched on and off.
