Learning Objectives Inheritance Virtual Function Introduction to Inheritance

Learning Objectives ¨ Inheritance ¨ Virtual Function

Introduction to Inheritance ¨ General form of class is defined ¨ Specialized class is then defined ¨ Inherit properties (data member and function member) of general class ¨ Add new data members ¨ Add new functions or modify inherited functions

Inheritance Basics ¨ Base class (parent class) ¨ "General" class from which others derive ¨ Derived class (child class) ¨ Automatically has base class’s: ¨ Member variables ¨ Member functions ¨ Can then additional member functions and variables and redefine existing functions

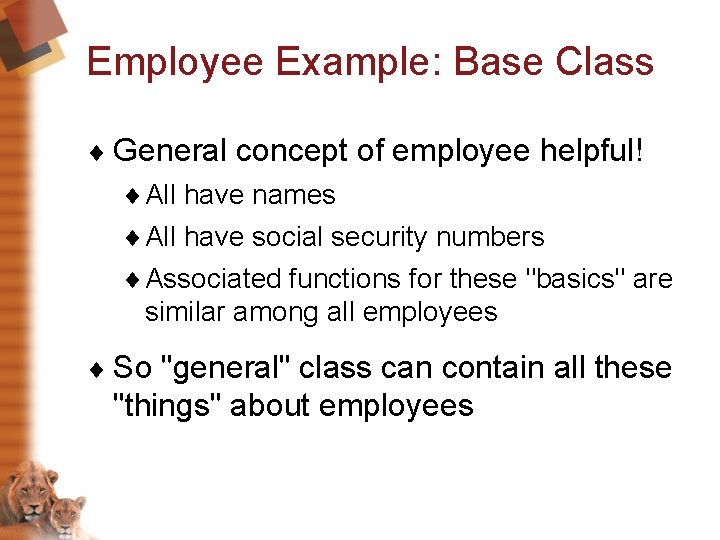

Employee Example: Base Class ¨ General concept of employee helpful! ¨ All have names ¨ All have social security numbers ¨ Associated functions for these "basics" are similar among all employees ¨ So "general" class can contain all these "things" about employees

Employee Example (base class) Class Employee { private: string name; string SSN; public: Employee (string, string); void print_check(); };

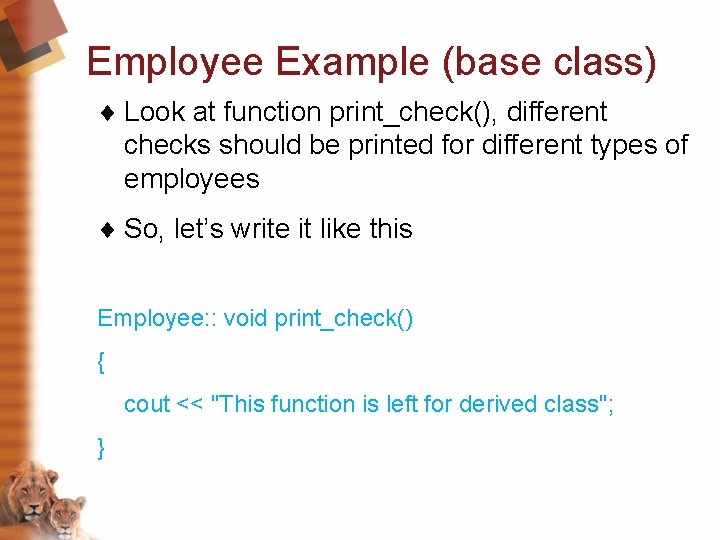

Employee Example (base class) ¨ Look at function print_check(), different checks should be printed for different types of employees ¨ So, let’s write it like this Employee: : void print_check() { cout << "This function is left for derived class"; }

Employee Example (derived class) ¨ A specific employee could be either a: ¨ Monthly employee (salary is calculated monthly) ¨ Hourly employee (salary is calculated hourly) ¨ Each is a type of employee

Public interitance ¨ class Derived. Class : public Base. Class {… //public keyword (most commonly used) //specifies "publicly inherited“ from //Employee class //other keywords (protected, private) are //rarely used …… };

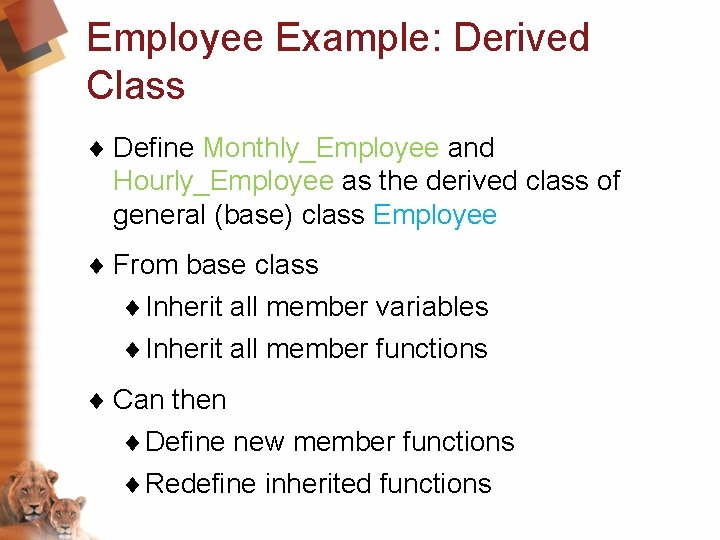

Employee Example: Derived Class ¨ Define Monthly_Employee and Hourly_Employee as the derived class of general (base) class Employee ¨ From base class ¨ Inherit all member variables ¨ Inherit all member functions ¨ Can then ¨ Define new member functions ¨ Redefine inherited functions

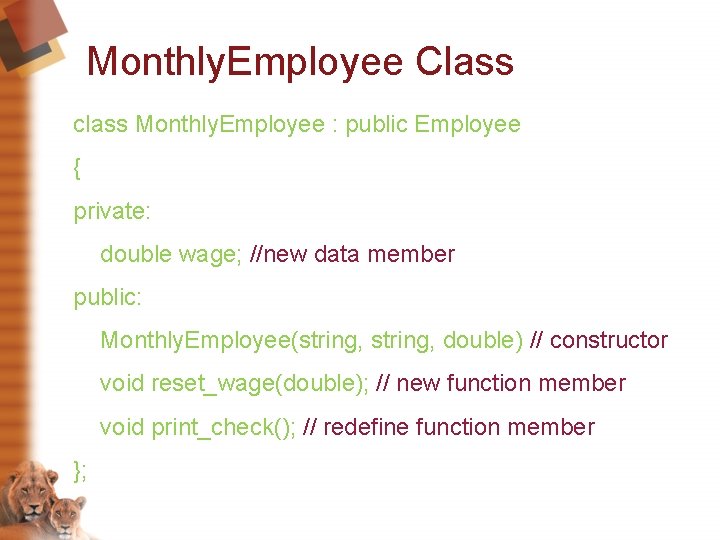

Monthly. Employee Class class Monthly. Employee : public Employee { private: double wage; //new data member public: Monthly. Employee(string, double) // constructor void reset_wage(double); // new function member void print_check(); // redefine function member };

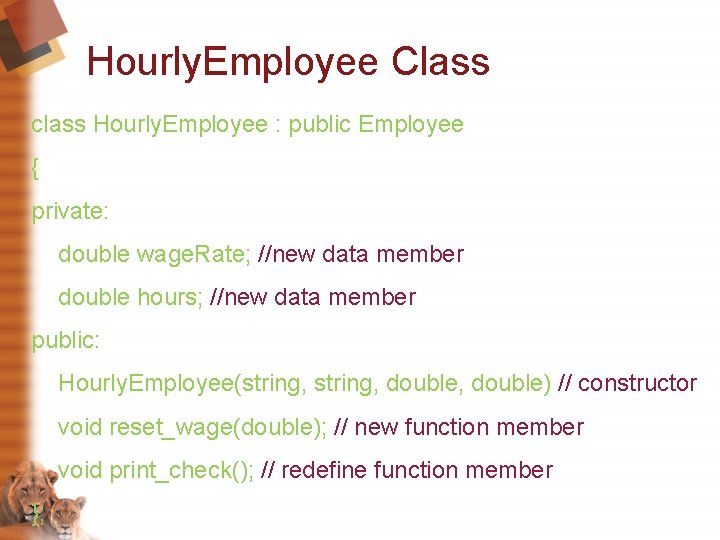

Hourly. Employee Class class Hourly. Employee : public Employee { private: double wage. Rate; //new data member double hours; //new data member public: Hourly. Employee(string, double, double) // constructor void reset_wage(double); // new function member void print_check(); // redefine function member };

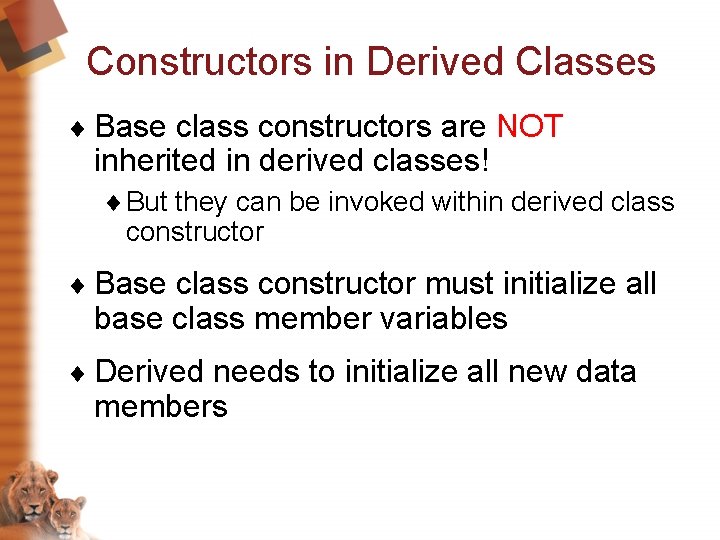

Constructors in Derived Classes ¨ Base class constructors are NOT inherited in derived classes! ¨ But they can be invoked within derived class constructor ¨ Base class constructor must initialize all base class member variables ¨ Derived needs to initialize all new data members

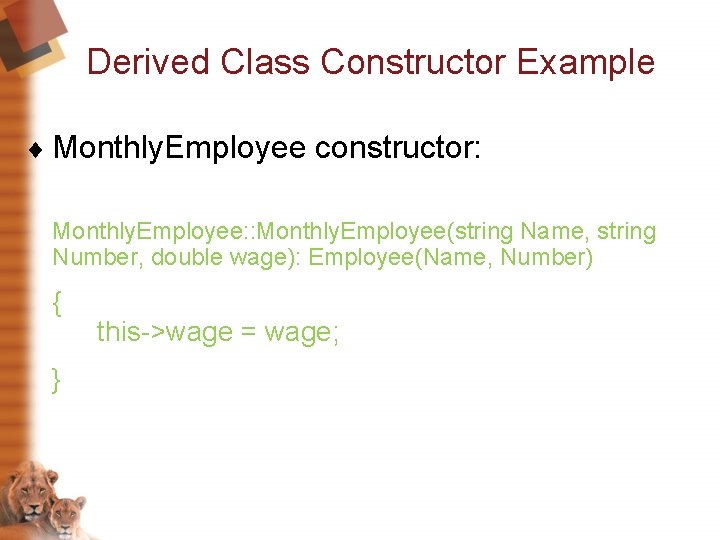

Derived Class Constructor Example ¨ Monthly. Employee constructor: Monthly. Employee: : Monthly. Employee(string Name, string Number, double wage): Employee(Name, Number) { } this->wage = wage;

Derived Class Constructor Example ¨ Hourly. Employee constructor: Hourly. Employee: : Hourly. Employee(string Name, string Number, double wage. Rate, double hours): Employee(Name, Number) { this->wage. Rate = wage. Rate; this->hours = hours; }

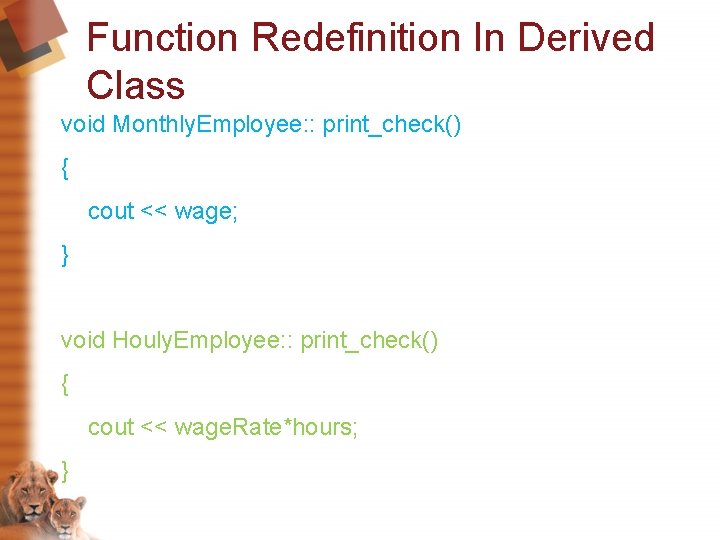

Function Redefinition In Derived Class void Monthly. Employee: : print_check() { cout << wage; } void Houly. Employee: : print_check() { cout << wage. Rate*hours; }

Redefining vs. Overloading ¨ Very different! ¨ Redefining in derived class: ¨ SAME parameter list ¨ Essentially "re-writes" same function ¨ Overloading: ¨ Defined "new" function that takes different parameters ¨ Overloaded functions must have different signatures

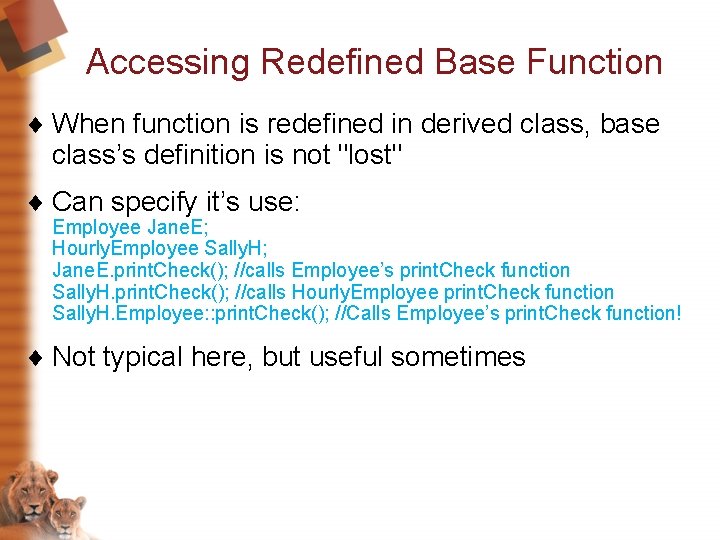

Accessing Redefined Base Function ¨ When function is redefined in derived class, base class’s definition is not "lost" ¨ Can specify it’s use: Employee Jane. E; Hourly. Employee Sally. H; Jane. E. print. Check(); //calls Employee’s print. Check function Sally. H. print. Check(); //calls Hourly. Employee print. Check function Sally. H. Employee: : print. Check(); //Calls Employee’s print. Check function! ¨ Not typical here, but useful sometimes

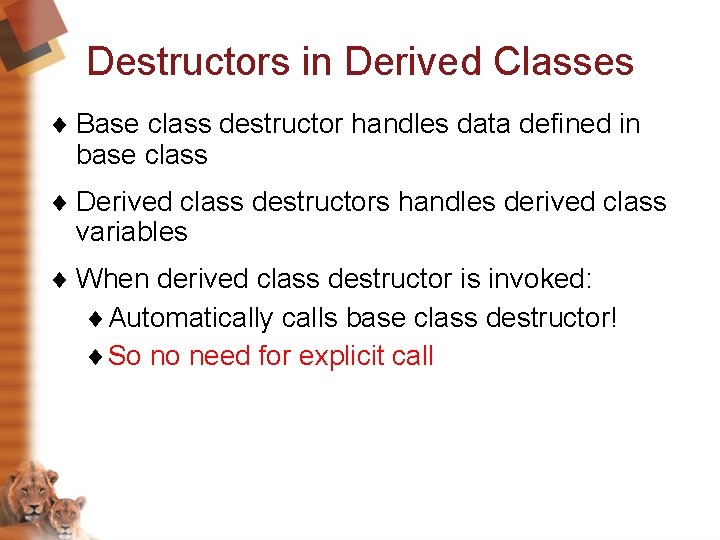

Destructors in Derived Classes ¨ Base class destructor handles data defined in base class ¨ Derived class destructors handles derived class variables ¨ When derived class destructor is invoked: ¨ Automatically calls base class destructor! ¨ So no need for explicit call

Destructor Calling Order ¨ Consider: class B derives from class A class C derives from class B ¨ When object of class C goes out of scope: ¨ Class C destructor called 1 st ¨ Then class B destructor called ¨ Finally class A destructor is called ¨ Opposite of how constructors are called ¨ Class A constructor is called ¨ Class B constructor is called ¨ Class C constructor is called

Base Class Member Qualifier class Derived. Class : public Base. Class { private: <members> public: <members> protected: <members> };

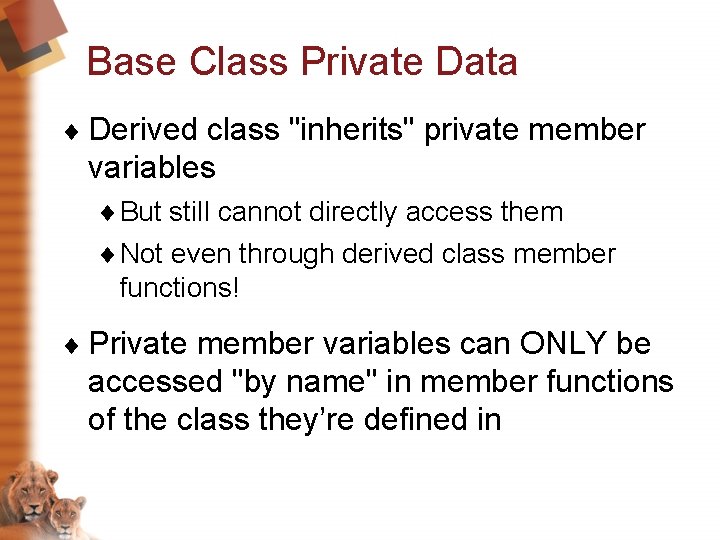

Base Class Private Data ¨ Derived class "inherits" private member variables ¨ But still cannot directly access them ¨ Not even through derived class member functions! ¨ Private member variables can ONLY be accessed "by name" in member functions of the class they’re defined in

The protected: Qualifier ¨ New classification of class members ¨ Allows access "by name" in derived class ¨ In other classes, these members act like private

Class member types Member (dada/function) type Accessible by functions in public protected private Same class Yes Yes Derived classes Yes No Other classes Yes No No

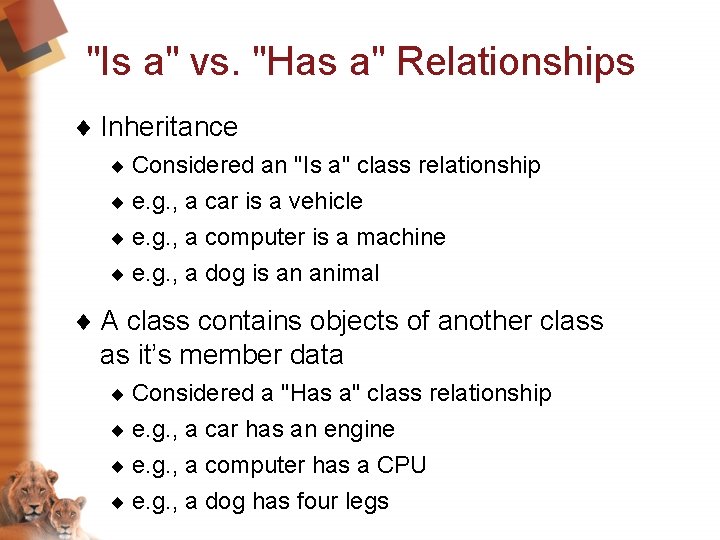

"Is a" vs. "Has a" Relationships ¨ Inheritance ¨ Considered an "Is a" class relationship ¨ e. g. , a car is a vehicle ¨ e. g. , a computer is a machine ¨ e. g. , a dog is an animal ¨ A class contains objects of another class as it’s member data ¨ Considered a "Has a" class relationship ¨ e. g. , a car has an engine ¨ e. g. , a computer has a CPU ¨ e. g. , a dog has four legs

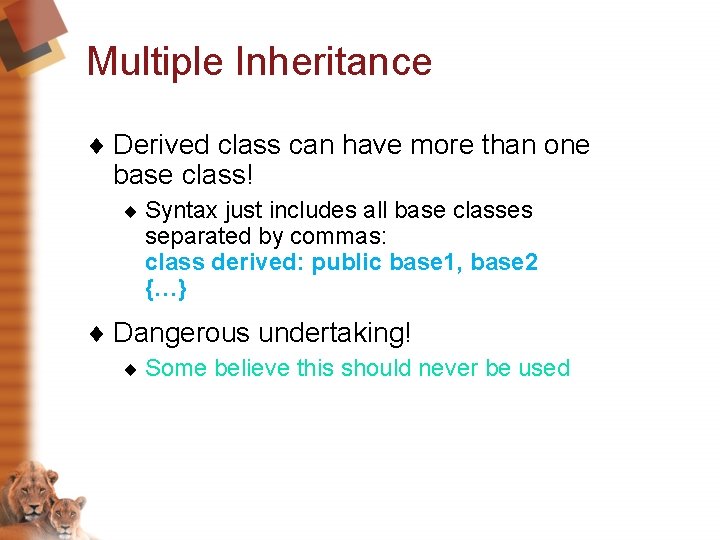

Multiple Inheritance ¨ Derived class can have more than one base class! ¨ Syntax just includes all base classes separated by commas: class derived: public base 1, base 2 {…} ¨ Dangerous undertaking! ¨ Some believe this should never be used

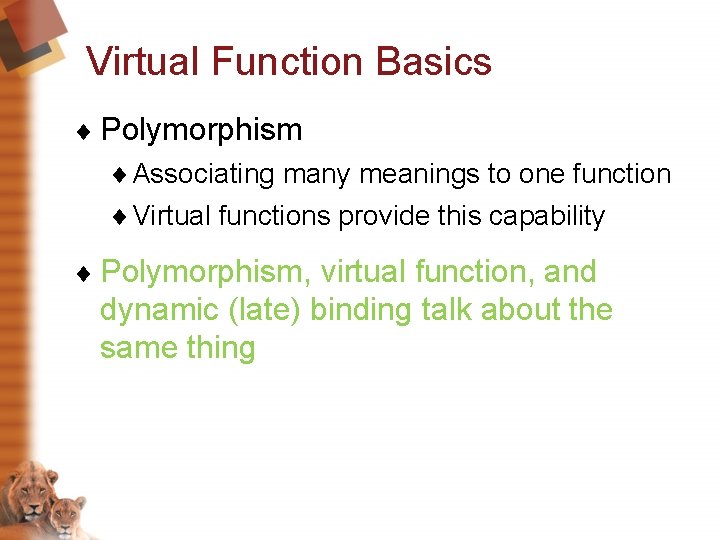

Virtual Function Basics ¨ Polymorphism ¨ Associating many meanings to one function ¨ Virtual functions provide this capability ¨ Polymorphism, virtual function, and dynamic (late) binding talk about the same thing

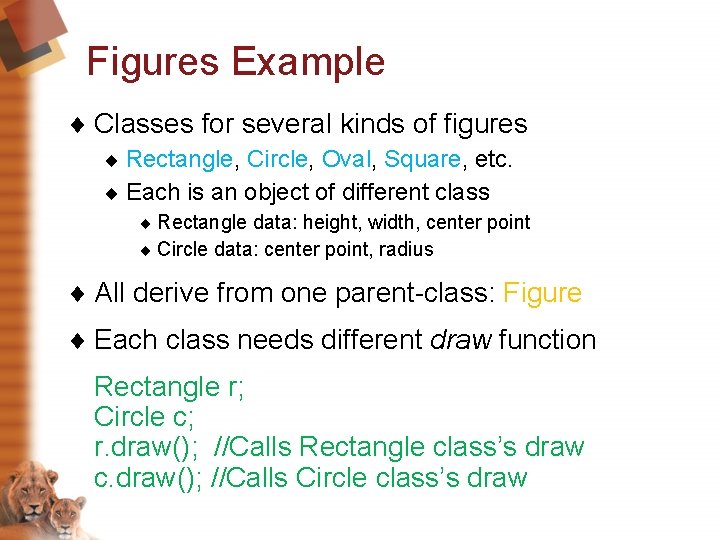

Figures Example ¨ Classes for several kinds of figures ¨ Rectangle, Circle, Oval, Square, etc. ¨ Each is an object of different class ¨ Rectangle data: height, width, center point ¨ Circle data: center point, radius ¨ All derive from one parent-class: Figure ¨ Each class needs different draw function Rectangle r; Circle c; r. draw(); //Calls Rectangle class’s draw c. draw(); //Calls Circle class’s draw

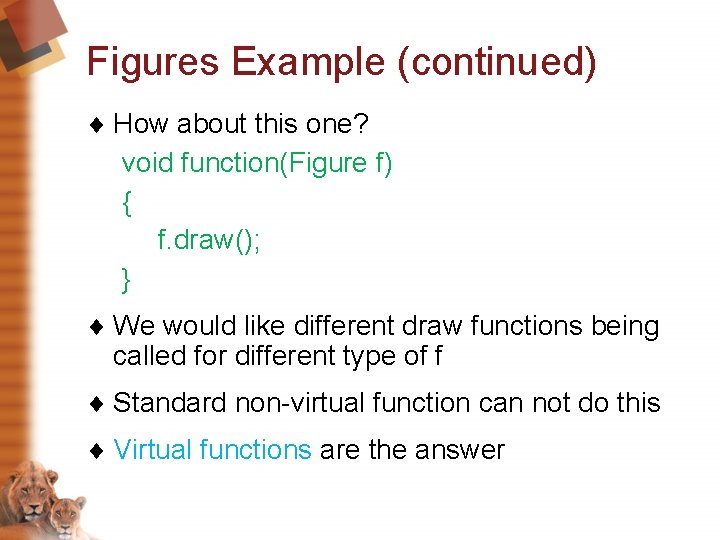

Figures Example (continued) ¨ How about this one? void function(Figure f) { f. draw(); } ¨ We would like different draw functions being called for different type of f ¨ Standard non-virtual function can not do this ¨ Virtual functions are the answer

Virtual: How? ¨ Virtual function virtual return_type function_name(parameters) ¨ Involves late binding (dynamic binding) ¨ Tells compiler to "wait" until function is used in program ¨ Decide which definition to use based on calling object at runtime

Overriding ¨ Virtual function definition changed in a derived class ¨ We say it’s been "overridden" ¨ Similar to “redefined” standard (non-virtual) functions ¨ So, in derived class: ¨ Virtual functions changed: overridden ¨ Non-virtual functions changed: redefined ¨ Seem same for the programmer, but treated differently by the compiler: early binding or late binding

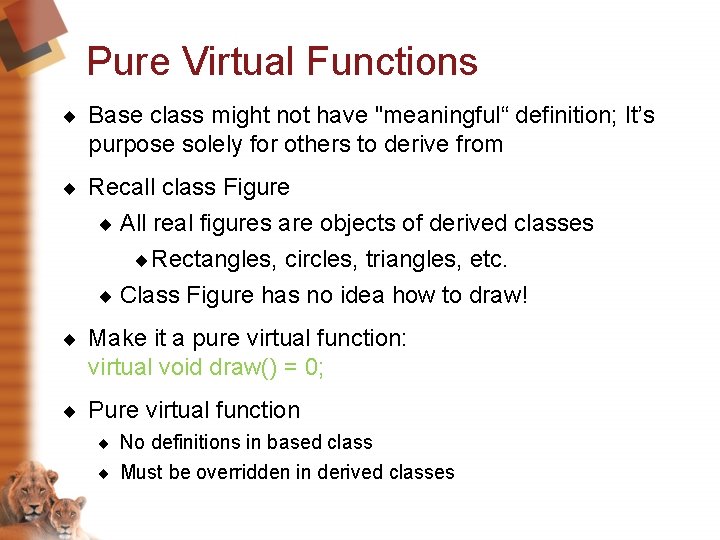

Pure Virtual Functions ¨ Base class might not have "meaningful“ definition; It’s purpose solely for others to derive from ¨ Recall class Figure ¨ All real figures are objects of derived classes ¨ Rectangles, circles, triangles, etc. ¨ Class Figure has no idea how to draw! ¨ Make it a pure virtual function: virtual void draw() = 0; ¨ Pure virtual function ¨ No definitions in based class ¨ Must be overridden in derived classes

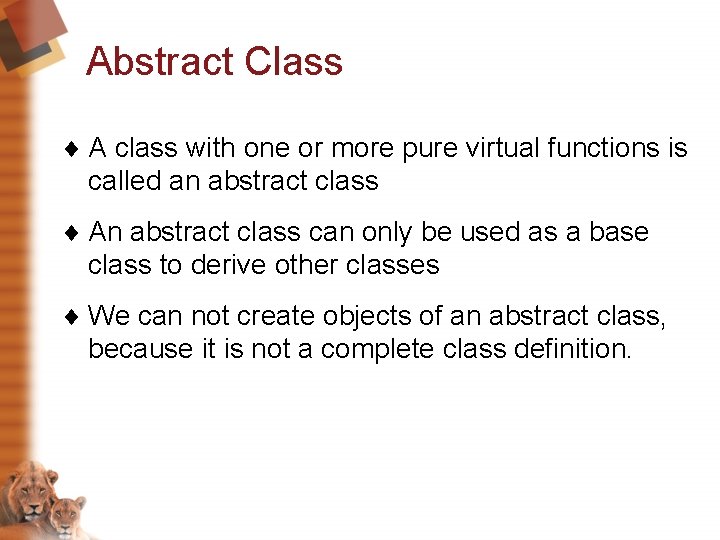

Abstract Class ¨ A class with one or more pure virtual functions is called an abstract class ¨ An abstract class can only be used as a base class to derive other classes ¨ We can not create objects of an abstract class, because it is not a complete class definition.
