Virtual Caches 4422005 Virtual Caches Virtual Address Virtual
![Virtual Caches ���� �� ����� 4422005 Virtual Caches ���� �� ����� 4422005](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-1.jpg)
![Virtual Caches Virtual Address Virtual Cache CPU Data MMU Data Physical Address Main Memory Virtual Caches Virtual Address Virtual Cache CPU Data MMU Data Physical Address Main Memory](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-2.jpg)
![Virtual Caches w Problems with Virtual Caches • Ambiguities • Aliases Virtual Caches w Problems with Virtual Caches • Ambiguities • Aliases](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-3.jpg)
![Ambiguities 0 x 0000 0 x 5000 Physical Address 1234 * * 5678 * Ambiguities 0 x 0000 0 x 5000 Physical Address 1234 * * 5678 *](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-4.jpg)
![Ambiguities Virtual Address 0 x 1000 Maps to Virtual Cache Tag Data * 0 Ambiguities Virtual Address 0 x 1000 Maps to Virtual Cache Tag Data * 0](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-5.jpg)
![Ambiguities Virtual Address 0 x 1000 Maps to Virtual Cache Tag Data * 0 Ambiguities Virtual Address 0 x 1000 Maps to Virtual Cache Tag Data * 0](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-6.jpg)
![Aliases 0 x 0000 Virtual Address Space Physical Address Space 0 x 0000 0 Aliases 0 x 0000 Virtual Address Space Physical Address Space 0 x 0000 0](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-7.jpg)
![Managing a Virtual Cache w Context Switch • Process may use the same virtual Managing a Virtual Cache w Context Switch • Process may use the same virtual](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-8.jpg)
![Managing a Virtual Cache w Fork • the child receive a complete copy of Managing a Virtual Cache w Fork • the child receive a complete copy of](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-9.jpg)
![Managing a Virtual Cache w Fork (without copy-on-write( Data Copied to Child’s Pages Parent’s Managing a Virtual Cache w Fork (without copy-on-write( Data Copied to Child’s Pages Parent’s](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-10.jpg)
![Managing a Virtual Cache w Fork • If write-through caching is used, No special Managing a Virtual Cache w Fork • If write-through caching is used, No special](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-11.jpg)
![Managing a Virtual Cache w Fork • if fork is implemented with copy-on-write • Managing a Virtual Cache w Fork • if fork is implemented with copy-on-write •](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-12.jpg)
![Managing a Virtual Cache w Exec • Discards the process’s current address space and Managing a Virtual Cache w Exec • Discards the process’s current address space and](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-13.jpg)
![Managing a Virtual Cache w Exit • Address space of process is discarded • Managing a Virtual Cache w Exit • Address space of process is discarded •](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-14.jpg)
![Managing a Virtual Cache w Brk and Sbrk • use to grow and shrink Managing a Virtual Cache w Brk and Sbrk • use to grow and shrink](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-15.jpg)
![Managing a Virtual Cache w Shared Memory and Mapped Files • no special cache Managing a Virtual Cache w Shared Memory and Mapped Files • no special cache](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-16.jpg)
![Managing a Virtual Cache w I/O Virtual Address Virtual Cache CPU Data Physical Address Managing a Virtual Cache w I/O Virtual Address Virtual Cache CPU Data Physical Address](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-17.jpg)
![Managing a Virtual Cache w I/O • Some problem occurs when using DMA • Managing a Virtual Cache w I/O • Some problem occurs when using DMA •](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-18.jpg)
![Managing a Virtual Cache w User-Kernel Data Ambiguities • to prevent cached kernel data Managing a Virtual Cache w User-Kernel Data Ambiguities • to prevent cached kernel data](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-19.jpg)
![Virtual Caches with Keys ���� �� ����� 4422005 Virtual Caches with Keys ���� �� ����� 4422005](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-20.jpg)
![Virtual Caches with Keys Current Process Key Virtual Address Virtual Cache CPU Data MMU Virtual Caches with Keys Current Process Key Virtual Address Virtual Cache CPU Data MMU](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-21.jpg)
![Managing a Virtual Cache with Keys w Context Switch • Normally no need to Managing a Virtual Cache with Keys w Context Switch • Normally no need to](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-22.jpg)
![Managing a Virtual Cache with Keys w Fork • No need to Flush • Managing a Virtual Cache with Keys w Fork • No need to Flush •](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-23.jpg)
![Managing a Virtual Cache with Keys w Fork • Some problem Key 1 - Managing a Virtual Cache with Keys w Fork • Some problem Key 1 -](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-24.jpg)
![Managing a Virtual Cache with Keys w Exec • A unique key must be Managing a Virtual Cache with Keys w Exec • A unique key must be](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-25.jpg)
![Managing a Virtual Cache with Keys w Exit • not necessary to invalidate cache Managing a Virtual Cache with Keys w Exit • not necessary to invalidate cache](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-26.jpg)
![Managing a Virtual Cache with Keys w Brk and Sbrk • Same as pure Managing a Virtual Cache with Keys w Brk and Sbrk • Same as pure](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-27.jpg)
![Managing a Virtual Cache with Keys w Shared Memory and Mapped Files • Can Managing a Virtual Cache with Keys w Shared Memory and Mapped Files • Can](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-28.jpg)
![Managing a Virtual Cache with Keys w I/O • Same as pure virtual cache Managing a Virtual Cache with Keys w I/O • Same as pure virtual cache](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-29.jpg)
![Managing a Virtual Cache with Keys w User-Kernel Data Ambiguities • Kernel process have Managing a Virtual Cache with Keys w User-Kernel Data Ambiguities • Kernel process have](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-30.jpg)
![Virtual Cache Usage in MMUs w Special-purpose cache, Translation Lookside Buffer (TLB) or Address Virtual Cache Usage in MMUs w Special-purpose cache, Translation Lookside Buffer (TLB) or Address](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-31.jpg)
![Virtual Caches with Physical Address Tags ���� �� ����� 4422005 Virtual Caches with Physical Address Tags ���� �� ����� 4422005](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-32.jpg)
![Virtual Caches with Physical Tags Virtual Address CPU Data MMU Virtual Cache with Physical Virtual Caches with Physical Tags Virtual Address CPU Data MMU Virtual Cache with Physical](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-33.jpg)
![Managing a Virtual Cache with Physical Tags w Context Switch • Normally no need Managing a Virtual Cache with Physical Tags w Context Switch • Normally no need](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-34.jpg)
![Managing a Virtual Cache with Physical Tags w Fork • No cache flushing is Managing a Virtual Cache with Physical Tags w Fork • No cache flushing is](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-35.jpg)
![Managing a Virtual Cache with Physical Tags w Exec • Address space not be Managing a Virtual Cache with Physical Tags w Exec • Address space not be](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-36.jpg)
![Managing a Virtual Cache with Physical Tags w Exit • Can be either flushed Managing a Virtual Cache with Physical Tags w Exit • Can be either flushed](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-37.jpg)
![Managing a Virtual Cache with Physical Tags w Brk and Sbrk • Like exec Managing a Virtual Cache with Physical Tags w Brk and Sbrk • Like exec](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-38.jpg)
![Managing a Virtual Cache with Physical Tags w Shared Memory and Mapped Files • Managing a Virtual Cache with Physical Tags w Shared Memory and Mapped Files •](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-39.jpg)
![Managing a Virtual Cache with Physical Tags w I/O • Same as pure virtual Managing a Virtual Cache with Physical Tags w I/O • Same as pure virtual](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-40.jpg)
![Managing a Virtual Cache with Physical Tags w User-Kernel Data Ambiguities • No ambiguities Managing a Virtual Cache with Physical Tags w User-Kernel Data Ambiguities • No ambiguities](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-41.jpg)
![The End The End](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-42.jpg)
- Slides: 42
![Virtual Caches 4422005 Virtual Caches ���� �� ����� 4422005](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-1.jpg)
Virtual Caches ���� �� ����� 4422005
![Virtual Caches Virtual Address Virtual Cache CPU Data MMU Data Physical Address Main Memory Virtual Caches Virtual Address Virtual Cache CPU Data MMU Data Physical Address Main Memory](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-2.jpg)
Virtual Caches Virtual Address Virtual Cache CPU Data MMU Data Physical Address Main Memory
![Virtual Caches w Problems with Virtual Caches Ambiguities Aliases Virtual Caches w Problems with Virtual Caches • Ambiguities • Aliases](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-3.jpg)
Virtual Caches w Problems with Virtual Caches • Ambiguities • Aliases

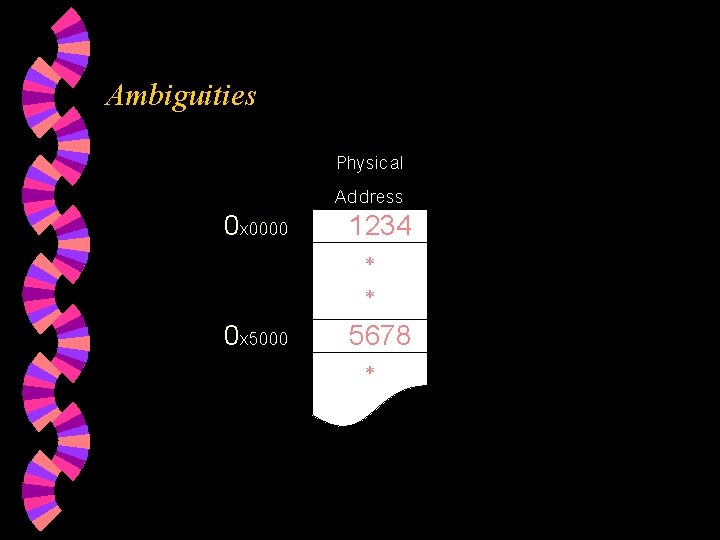

![Ambiguities 0 x 0000 0 x 5000 Physical Address 1234 5678 Ambiguities 0 x 0000 0 x 5000 Physical Address 1234 * * 5678 *](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-4.jpg)
Ambiguities 0 x 0000 0 x 5000 Physical Address 1234 * * 5678 *
![Ambiguities Virtual Address 0 x 1000 Maps to Virtual Cache Tag Data 0 Ambiguities Virtual Address 0 x 1000 Maps to Virtual Cache Tag Data * 0](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-5.jpg)
Ambiguities Virtual Address 0 x 1000 Maps to Virtual Cache Tag Data * 0 x 1000 5678 * Physical Address 0 x 5000
![Ambiguities Virtual Address 0 x 1000 Maps to Virtual Cache Tag Data 0 Ambiguities Virtual Address 0 x 1000 Maps to Virtual Cache Tag Data * 0](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-6.jpg)
Ambiguities Virtual Address 0 x 1000 Maps to Virtual Cache Tag Data * 0 x 1000 5678 * Physical Address 0 x 0000
![Aliases 0 x 0000 Virtual Address Space Physical Address Space 0 x 0000 0 Aliases 0 x 0000 Virtual Address Space Physical Address Space 0 x 0000 0](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-7.jpg)
Aliases 0 x 0000 Virtual Address Space Physical Address Space 0 x 0000 0 x 1000 0 x 2000 0 x 3000 0 x 4000 0 x 5000
![Managing a Virtual Cache w Context Switch Process may use the same virtual Managing a Virtual Cache w Context Switch • Process may use the same virtual](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-8.jpg)
Managing a Virtual Cache w Context Switch • Process may use the same virtual address to refer to different physical address before and after context switch • Kernel must flush everything the old process had cached • Flushing a virtual cache can be a time-consuming operation
![Managing a Virtual Cache w Fork the child receive a complete copy of Managing a Virtual Cache w Fork • the child receive a complete copy of](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-9.jpg)
Managing a Virtual Cache w Fork • the child receive a complete copy of the parent’s address space • Flushing during each context switch eliminates most inconsistencies between parent’s and child’s data • But must consider about during the copy operations
![Managing a Virtual Cache w Fork without copyonwrite Data Copied to Childs Pages Parents Managing a Virtual Cache w Fork (without copy-on-write( Data Copied to Child’s Pages Parent’s](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-10.jpg)
Managing a Virtual Cache w Fork (without copy-on-write( Data Copied to Child’s Pages Parent’s Virtual Address Space ****** Kernel Virtual Space Mapping to Parent’s Physical Pages Temporary Mapping to Child’s Physical Pages for Copy Operation
![Managing a Virtual Cache w Fork If writethrough caching is used No special Managing a Virtual Cache w Fork • If write-through caching is used, No special](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-11.jpg)
Managing a Virtual Cache w Fork • If write-through caching is used, No special flushing is needed during fork since at least one context switch must occur before the child executes • If write-back caching is used, Main memory must be validated before temporary mapping is removed
![Managing a Virtual Cache w Fork if fork is implemented with copyonwrite Managing a Virtual Cache w Fork • if fork is implemented with copy-on-write •](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-12.jpg)
Managing a Virtual Cache w Fork • if fork is implemented with copy-on-write • if write-through, no flushing is needed at fork time • if write-back, main memory must be validated
![Managing a Virtual Cache w Exec Discards the processs current address space and Managing a Virtual Cache w Exec • Discards the process’s current address space and](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-13.jpg)
Managing a Virtual Cache w Exec • Discards the process’s current address space and replaces it with a new one for the new program the process will run • Possible to occur ambiguities • Kernel must invalidated all user data from cache before execution begins
![Managing a Virtual Cache w Exit Address space of process is discarded Managing a Virtual Cache w Exit • Address space of process is discarded •](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-14.jpg)
Managing a Virtual Cache w Exit • Address space of process is discarded • Last step of exit is to perform context switch that flushed the cache
![Managing a Virtual Cache w Brk and Sbrk use to grow and shrink Managing a Virtual Cache w Brk and Sbrk • use to grow and shrink](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-15.jpg)
Managing a Virtual Cache w Brk and Sbrk • use to grow and shrink the process’s bss segment • growing bss causes no cache problems • shrink bss, kernel must invalidates data from cache
![Managing a Virtual Cache w Shared Memory and Mapped Files no special cache Managing a Virtual Cache w Shared Memory and Mapped Files • no special cache](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-16.jpg)
Managing a Virtual Cache w Shared Memory and Mapped Files • no special cache management is needed since the cache is flushed at each context switch • if single process attaches shared memory segment at different address?
![Managing a Virtual Cache w IO Virtual Address Virtual Cache CPU Data Physical Address Managing a Virtual Cache w I/O Virtual Address Virtual Cache CPU Data Physical Address](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-17.jpg)
Managing a Virtual Cache w I/O Virtual Address Virtual Cache CPU Data Physical Address MMU Data Main Memory I/O Data
![Managing a Virtual Cache w IO Some problem occurs when using DMA Managing a Virtual Cache w I/O • Some problem occurs when using DMA •](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-18.jpg)
Managing a Virtual Cache w I/O • Some problem occurs when using DMA • when write to device, kernel must validate main memory with cache data before DMA starts • when read from device, cache must be flushed
![Managing a Virtual Cache w UserKernel Data Ambiguities to prevent cached kernel data Managing a Virtual Cache w User-Kernel Data Ambiguities • to prevent cached kernel data](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-19.jpg)
Managing a Virtual Cache w User-Kernel Data Ambiguities • to prevent cached kernel data from user process, cache must be flushed • Apollo DN-4000, add bit indicate user or kernel mode
![Virtual Caches with Keys 4422005 Virtual Caches with Keys ���� �� ����� 4422005](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-20.jpg)
Virtual Caches with Keys ���� �� ����� 4422005
![Virtual Caches with Keys Current Process Key Virtual Address Virtual Cache CPU Data MMU Virtual Caches with Keys Current Process Key Virtual Address Virtual Cache CPU Data MMU](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-21.jpg)
Virtual Caches with Keys Current Process Key Virtual Address Virtual Cache CPU Data MMU Data Physical Address Main Memory
![Managing a Virtual Cache with Keys w Context Switch Normally no need to Managing a Virtual Cache with Keys w Context Switch • Normally no need to](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-22.jpg)
Managing a Virtual Cache with Keys w Context Switch • Normally no need to flush the cache as long as enough keys that unique can be assigned to each processes • when reassigning key, all entries tagged with affected key must be flushed
![Managing a Virtual Cache with Keys w Fork No need to Flush Managing a Virtual Cache with Keys w Fork • No need to Flush •](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-23.jpg)
Managing a Virtual Cache with Keys w Fork • No need to Flush • Some problem Key 1 Tag 0 x 100000 Data 1011970 Key 2 Tag 0 x 100000 Data 1011970
![Managing a Virtual Cache with Keys w Fork Some problem Key 1 Managing a Virtual Cache with Keys w Fork • Some problem Key 1 -](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-24.jpg)
Managing a Virtual Cache with Keys w Fork • Some problem Key 1 - Tag 0 x 100000 - Data 1011970 - Key 1 2 Tag 0 x 100000 Data 1011970
![Managing a Virtual Cache with Keys w Exec A unique key must be Managing a Virtual Cache with Keys w Exec • A unique key must be](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-25.jpg)
Managing a Virtual Cache with Keys w Exec • A unique key must be chosen for new address space • if reassigning key, all entries tagged with affected key must be flushed
![Managing a Virtual Cache with Keys w Exit not necessary to invalidate cache Managing a Virtual Cache with Keys w Exit • not necessary to invalidate cache](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-26.jpg)
Managing a Virtual Cache with Keys w Exit • not necessary to invalidate cache at exit time • cache is flushed during context switch
![Managing a Virtual Cache with Keys w Brk and Sbrk Same as pure Managing a Virtual Cache with Keys w Brk and Sbrk • Same as pure](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-27.jpg)
Managing a Virtual Cache with Keys w Brk and Sbrk • Same as pure virtual cache
![Managing a Virtual Cache with Keys w Shared Memory and Mapped Files Can Managing a Virtual Cache with Keys w Shared Memory and Mapped Files • Can](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-28.jpg)
Managing a Virtual Cache with Keys w Shared Memory and Mapped Files • Can not share data within cache Key Mod 1 M Tag 0 x 100000 Data 1011970 Key Mod 2 - Tag 0 x 100000 Data 1011970
![Managing a Virtual Cache with Keys w IO Same as pure virtual cache Managing a Virtual Cache with Keys w I/O • Same as pure virtual cache](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-29.jpg)
Managing a Virtual Cache with Keys w I/O • Same as pure virtual cache
![Managing a Virtual Cache with Keys w UserKernel Data Ambiguities Kernel process have Managing a Virtual Cache with Keys w User-Kernel Data Ambiguities • Kernel process have](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-30.jpg)
Managing a Virtual Cache with Keys w User-Kernel Data Ambiguities • Kernel process have special key • User process can not access kernel data • Kernel process can not share user data
![Virtual Cache Usage in MMUs w Specialpurpose cache Translation Lookside Buffer TLB or Address Virtual Cache Usage in MMUs w Special-purpose cache, Translation Lookside Buffer (TLB) or Address](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-31.jpg)
Virtual Cache Usage in MMUs w Special-purpose cache, Translation Lookside Buffer (TLB) or Address translation Cache (ATC( • caching most recently used page mapping • speed up virtual-to-physical address translation process • must be flush on each context switch
![Virtual Caches with Physical Address Tags 4422005 Virtual Caches with Physical Address Tags ���� �� ����� 4422005](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-32.jpg)
Virtual Caches with Physical Address Tags ���� �� ����� 4422005
![Virtual Caches with Physical Tags Virtual Address CPU Data MMU Virtual Cache with Physical Virtual Caches with Physical Tags Virtual Address CPU Data MMU Virtual Cache with Physical](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-33.jpg)
Virtual Caches with Physical Tags Virtual Address CPU Data MMU Virtual Cache with Physical Tags Physical Address Main Memory Data
![Managing a Virtual Cache with Physical Tags w Context Switch Normally no need Managing a Virtual Cache with Physical Tags w Context Switch • Normally no need](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-34.jpg)
Managing a Virtual Cache with Physical Tags w Context Switch • Normally no need to flush the cache • No keys to mange as virtual cache with keys
![Managing a Virtual Cache with Physical Tags w Fork No cache flushing is Managing a Virtual Cache with Physical Tags w Fork • No cache flushing is](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-35.jpg)
Managing a Virtual Cache with Physical Tags w Fork • No cache flushing is required fork • Data can be shared in cache • No aliases can occur
![Managing a Virtual Cache with Physical Tags w Exec Address space not be Managing a Virtual Cache with Physical Tags w Exec • Address space not be](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-36.jpg)
Managing a Virtual Cache with Physical Tags w Exec • Address space not be use by any process • exec deallocates pages, must be ensure that stale data is removed prior to allocating page to new process
![Managing a Virtual Cache with Physical Tags w Exit Can be either flushed Managing a Virtual Cache with Physical Tags w Exit • Can be either flushed](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-37.jpg)
Managing a Virtual Cache with Physical Tags w Exit • Can be either flushed at system call or postponed until physical page are reuse
![Managing a Virtual Cache with Physical Tags w Brk and Sbrk Like exec Managing a Virtual Cache with Physical Tags w Brk and Sbrk • Like exec](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-38.jpg)
Managing a Virtual Cache with Physical Tags w Brk and Sbrk • Like exec and exit • Can be either flushed at system call or postponed until physical page are reuse
![Managing a Virtual Cache with Physical Tags w Shared Memory and Mapped Files Managing a Virtual Cache with Physical Tags w Shared Memory and Mapped Files •](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-39.jpg)
Managing a Virtual Cache with Physical Tags w Shared Memory and Mapped Files • Can share data in cache • Better hit ratio for shared memory
![Managing a Virtual Cache with Physical Tags w IO Same as pure virtual Managing a Virtual Cache with Physical Tags w I/O • Same as pure virtual](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-40.jpg)
Managing a Virtual Cache with Physical Tags w I/O • Same as pure virtual cache
![Managing a Virtual Cache with Physical Tags w UserKernel Data Ambiguities No ambiguities Managing a Virtual Cache with Physical Tags w User-Kernel Data Ambiguities • No ambiguities](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-41.jpg)
Managing a Virtual Cache with Physical Tags w User-Kernel Data Ambiguities • No ambiguities between user and kernel data • Kernel can reference cached user data directly
![The End The End](https://slidetodoc.com/presentation_image_h/fbbfeea69c35aa40dc46890daaf9d0e1/image-42.jpg)
The End
