Virtual Memory Review Programs refer to virtual memory

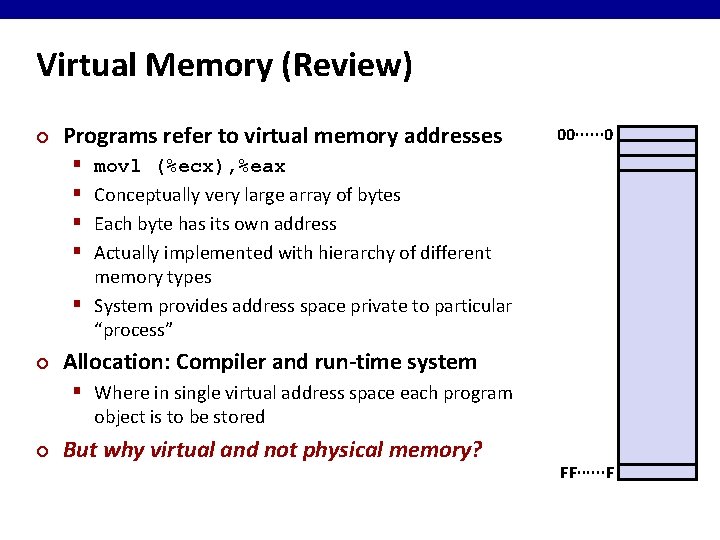

Virtual Memory (Review) ¢ Programs refer to virtual memory addresses 00∙∙∙∙∙∙ 0 § § movl (%ecx), %eax Conceptually very large array of bytes Each byte has its own address Actually implemented with hierarchy of different memory types § System provides address space private to particular “process” ¢ Allocation: Compiler and run-time system § Where in single virtual address space each program object is to be stored ¢ But why virtual and not physical memory? FF∙∙∙∙∙∙F

Problem 1: How Does Everything Fit? 64 -bit addresses: 16 Exabyte Physical main memory: Few Gigabytes ? And there are many processes ….

Problem 2: Memory Management Physical main memory Process 1 Process 2 Process 3 … Process n x stack heap. text. data … What goes where?

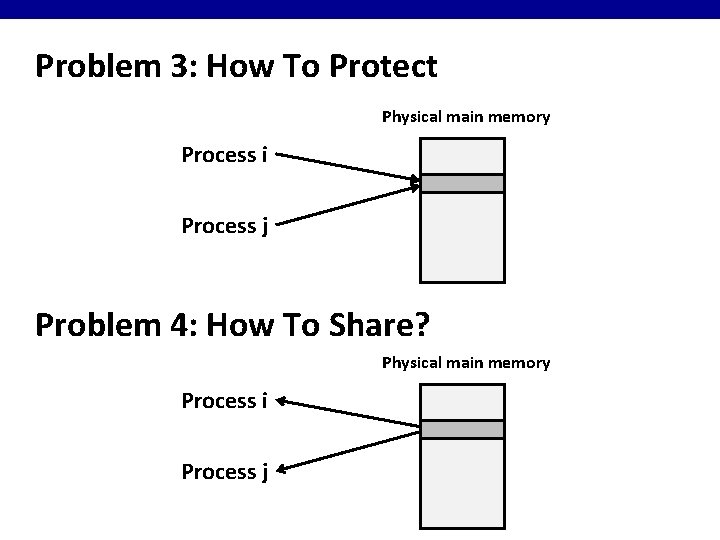

Problem 3: How To Protect Physical main memory Process i Process j Problem 4: How To Share? Physical main memory Process i Process j

Solution: Level Of Indirection Virtual memory Process 1 Physical memory mapping Virtual memory Process n ¢ ¢ Each process gets its own private memory space Solves the previous problems

Address Spaces ¢ ¢ ¢ Linear address space: Ordered set of contiguous non-negative integer addresses: {0, 1, 2, 3, … } Virtual address space: Set of N = 2 n virtual addresses {0, 1, 2, 3, …, N-1} Physical address space: Set of M = 2 m physical addresses {0, 1, 2, 3, …, M-1} Clean distinction between data (bytes) and their attributes (addresses) Each object can now have multiple addresses Every byte in main memory: § One physical address § One (or more) virtual addresses

A System Using Physical Addressing CPU Physical address (PA) . . . Main memory 0: 1: 2: 3: 4: 5: 6: 7: 8: M-1: Data word ¢ Used in “simple” systems with embedded microcontrollers § In devices such as like cars, elevators, digital picture frames, . . .

A System Using Virtual Addressing CPU Chip CPU Virtual address (VA) MMU Physical address (PA) . . . Main memory 0: 1: 2: 3: 4: 5: 6: 7: 8: M-1: Data word ¢ ¢ ¢ Used in all modern desktops, laptops, workstations One of the great ideas in computer science MMU checks the cache

Why Virtual Addressing? ¢ Simplifies memory management for programmers § Each process gets an identical, full, private, linear address space ¢ Isolates address spaces § One process can’t interfere with another’s memory Because they operate in different address spaces § User process cannot access privileged information § Different sections of address spaces have different permissions §

Why Virtual Memory? ¢ Efficient use of limited main memory (RAM) § Use RAM as a cache for the parts of a virtual address space Some non-cached parts stored on disk § Some (unallocated) non-cached parts stored nowhere § Keep only active areas of virtual address space in memory § Transfer data back and forth as needed §

VM as a Tool for Caching ¢ ¢ ¢ Virtual memory: array of N = 2 n contiguous bytes § Think of the array (allocated part) as being stored on disk Physical main memory (DRAM) = cache for allocated virtual memory Blocks are called pages; size = 2 p Virtual memory VP 0 Unallocated VP 1 Cached Disk VP 2 n-p-1 Uncached Unallocated Cached Uncached Physical memory 0 0 Empty PP 0 PP 1 Empty 2 m-1 PP 2 m-p-1 2 n-1 Virtual pages (VP's) stored on disk Physical pages (PP's) cached in DRAM

Memory Hierarchy: Core 2 Duo Not drawn to scale L 1/L 2 cache: 64 B blocks L 1 I-cache 32 KB CPU Reg L 1 D-cache Throughput: 16 B/cycle Latency: 3 cycles ~4 MB ~4 GB L 2 unified cache Main Memory 8 B/cycle 14 cycles 2 B/cycle 100 cycles ~500 GB 1 B/30 cycles millions Miss penalty (latency): 30 x Miss penalty (latency): 10, 000 x Disk

DRAM Cache Organization ¢ DRAM cache organization driven by the enormous miss penalty § DRAM is about 10 x slower than SRAM § Disk is about 10, 000 x slower than DRAM § ¢ For first byte, faster for next byte Consequences § Large page (block) size: typically 4 -8 KB, sometimes 4 MB § Fully associative Any VP can be placed in any PP § Requires a “large” mapping function – different from CPU caches § Highly sophisticated, expensive replacement algorithms § Too complicated and open-ended to be implemented in hardware § Write-back rather than write-through §

Address Translation: Page Tables ¢ A page table is an array of page table entries (PTEs) that maps virtual pages to physical pages. Here: 8 VPs § Per-process kernel data structure in DRAM Physical page number or Valid disk address PTE 0 0 null 1 1 0 0 PTE 7 1 null Physical memory (DRAM) VP 1 VP 2 VP 7 VP 4 Virtual memory (disk) VP 1 Memory resident page table (DRAM) VP 2 VP 3 VP 4 VP 6 VP 7 PP 0 PP 3

Address Translation With a Page Table Page table base register (PTBR) Page table address for process Virtual address Virtual page number (VPN) Virtual page offset (VPO) Page table Valid Physical page number (PPN) Valid bit = 0: page not in memory (page fault) Physical page number (PPN) Physical address Physical page offset (PPO)

Page Hit ¢ Page hit: reference to VM word that is in physical memory Virtual address Physical page number or Valid disk address PTE 0 0 null 1 1 0 0 PTE 7 1 null Physical memory (DRAM) VP 1 VP 2 VP 7 VP 4 Virtual memory (disk) VP 1 Memory resident page table (DRAM) VP 2 VP 3 VP 4 VP 6 VP 7 PP 0 PP 3

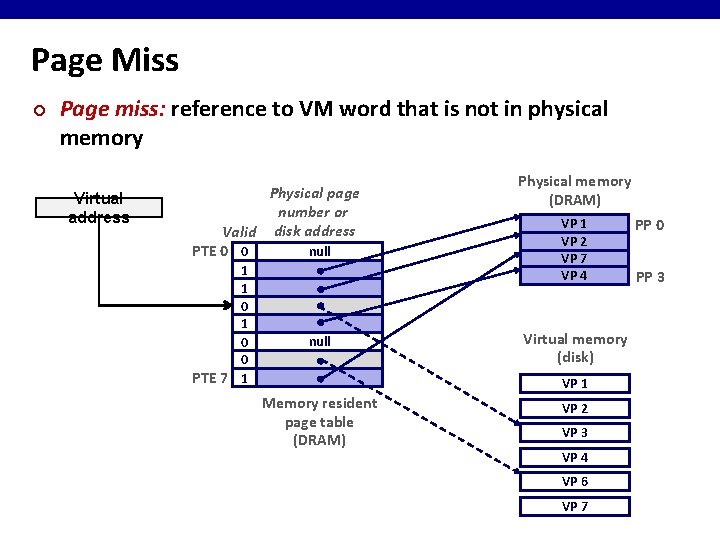

Page Miss ¢ Page miss: reference to VM word that is not in physical memory Virtual address Physical page number or Valid disk address PTE 0 0 null 1 1 0 0 PTE 7 1 null Physical memory (DRAM) VP 1 VP 2 VP 7 VP 4 Virtual memory (disk) VP 1 Memory resident page table (DRAM) VP 2 VP 3 VP 4 VP 6 VP 7 PP 0 PP 3

Handling Page Fault ¢ Page miss causes page fault (an exception) Virtual address Physical page number or Valid disk address PTE 0 0 null 1 1 0 0 PTE 7 1 null Physical memory (DRAM) VP 1 VP 2 VP 7 VP 4 Virtual memory (disk) VP 1 Memory resident page table (DRAM) VP 2 VP 3 VP 4 VP 6 VP 7 PP 0 PP 3

Handling Page Fault ¢ ¢ Page miss causes page fault (an exception) Page fault handler selects a victim to be evicted (here VP 4) Virtual address Physical page number or Valid disk address PTE 0 0 null 1 1 0 0 PTE 7 1 null Physical memory (DRAM) VP 1 VP 2 VP 7 VP 4 Virtual memory (disk) VP 1 Memory resident page table (DRAM) VP 2 VP 3 VP 4 VP 6 VP 7 PP 0 PP 3

Handling Page Fault ¢ ¢ Page miss causes page fault (an exception) Page fault handler selects a victim to be evicted (here VP 4) Virtual address Physical page number or Valid disk address PTE 0 0 null 1 1 1 0 0 0 PTE 7 1 null Physical memory (DRAM) VP 1 VP 2 VP 7 VP 3 Virtual memory (disk) VP 1 Memory resident page table (DRAM) VP 2 VP 3 VP 4 VP 6 VP 7 PP 0 PP 3

Handling Page Fault ¢ ¢ ¢ Page miss causes page fault (an exception) Page fault handler selects a victim to be evicted (here VP 4) Offending instruction is restarted: page hit! Virtual address Physical page number or Valid disk address PTE 0 0 null 1 1 1 0 0 0 PTE 7 1 null Physical memory (DRAM) VP 1 VP 2 VP 7 VP 3 Virtual memory (disk) VP 1 Memory resident page table (DRAM) VP 2 VP 3 VP 4 VP 6 VP 7 PP 0 PP 3

Why does it work? Locality ¢ ¢ Virtual memory works because of locality At any point in time, programs tend to access a set of active virtual pages called the working set § Programs with better temporal locality will have smaller working sets ¢ If (working set size < main memory size) § Good performance for one process after compulsory misses ¢ If ( SUM(working set sizes) > main memory size ) § Thrashing: Performance meltdown where pages are swapped (copied) in and out continuously

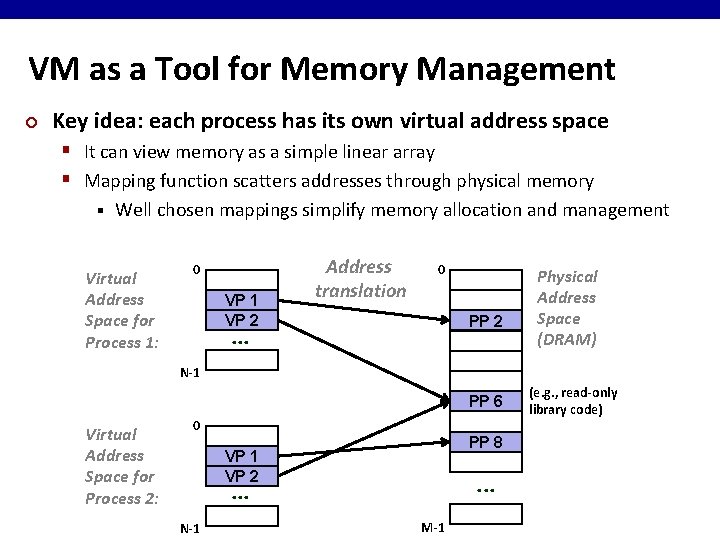

VM as a Tool for Memory Management ¢ Key idea: each process has its own virtual address space § It can view memory as a simple linear array § Mapping function scatters addresses through physical memory § Well chosen mappings simplify memory allocation and management Virtual Address Space for Process 1: 0 VP 1 VP 2 Address translation 0 PP 2 . . . Physical Address Space (DRAM) N-1 PP 6 Virtual Address Space for Process 2: 0 PP 8 VP 1 VP 2 . . . N-1 M-1 (e. g. , read-only library code)

VM as a Tool for Memory Management ¢ Memory allocation § Each virtual page can be mapped to any physical page § A virtual page can be stored in different physical pages at different times ¢ Sharing code and data among processes § Map virtual pages to the same physical page (here: PP 6) Virtual Address Space for Process 1: 0 VP 1 VP 2 Address translation 0 PP 2 . . . Physical Address Space (DRAM) N-1 PP 6 Virtual Address Space for Process 2: 0 PP 8 VP 1 VP 2 . . . N-1 M-1 (e. g. , read-only library code)

Simplifying Linking and Loading Kernel virtual memory ¢ Linking 0 xc 0000000 § Each program has similar virtual User stack (created at runtime) address space § Code, stack, and shared libraries always start at the same address Memory invisible to user code %esp (stack pointer) Memory-mapped region for shared libraries 0 x 40000000 ¢ Loading § execve() allocates virtual pages for. text and. data sections = creates PTEs marked as invalid § The. text and. data sections are copied, page by page, on demand by the virtual memory system Run-time heap (created by malloc) Read/write segment (. data, . bss) Read-only segment (. init, . text, . rodata) 0 x 08048000 0 Unused brk Loaded from the executable file

VM as a Tool for Memory Protection ¢ ¢ Extend PTEs with permission bits Page fault handler checks these before remapping § If violated, send process SIGSEGV (segmentation fault) Process i: SUP VP 0: VP 1: VP 2: No No Yes READ WRITE Yes Yes No Yes • • • Address PP 6 PP 4 PP 2 Physical Address Space PP 2 PP 4 PP 6 Process j: SUP VP 0: VP 1: VP 2: No Yes No READ WRITE Yes Yes No Yes Address PP 9 PP 6 PP 11 PP 8 PP 9 PP 11

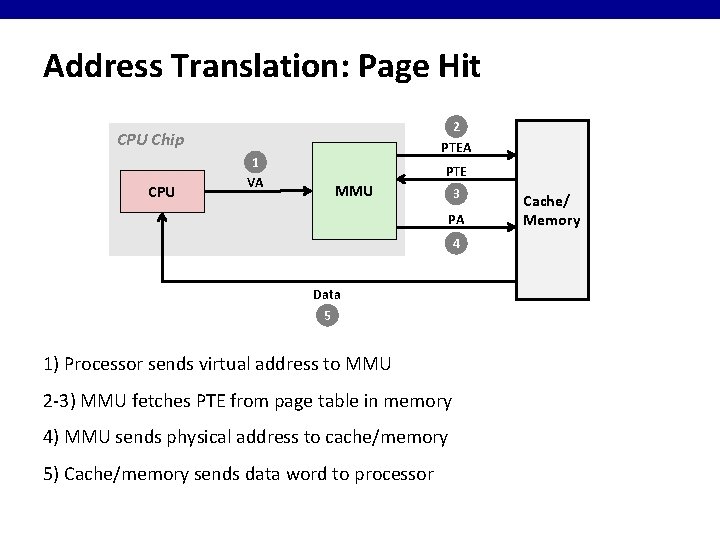

Address Translation: Page Hit 2 PTEA CPU Chip CPU 1 VA PTE MMU 3 PA 4 Data 5 1) Processor sends virtual address to MMU 2 -3) MMU fetches PTE from page table in memory 4) MMU sends physical address to cache/memory 5) Cache/memory sends data word to processor Cache/ Memory

Address Translation: Page Fault Exception 4 2 PTEA CPU Chip CPU 1 VA 7 Page fault handler MMU PTE 3 Victim page Cache/ Memory 5 Disk New page 6 1) Processor sends virtual address to MMU 2 -3) MMU fetches PTE from page table in memory 4) Valid bit is zero, so MMU triggers page fault exception 5) Handler identifies victim (and, if dirty, pages it out to disk) 6) Handler pages in new page and updates PTE in memory 7) Handler returns to original process, restarting faulting instruction

Speeding up Translation with a TLB ¢ Page table entries (PTEs) are cached in L 1/L 2 like any other memory word § PTEs may be evicted by other data references § PTE hit still requires a 1 -cycle delay ¢ Solution: Translation Lookaside Buffer (TLB) § Small & fast hardware cache in MMU § Maps virtual page numbers to physical page numbers § Contains complete page table entries for small number of pages

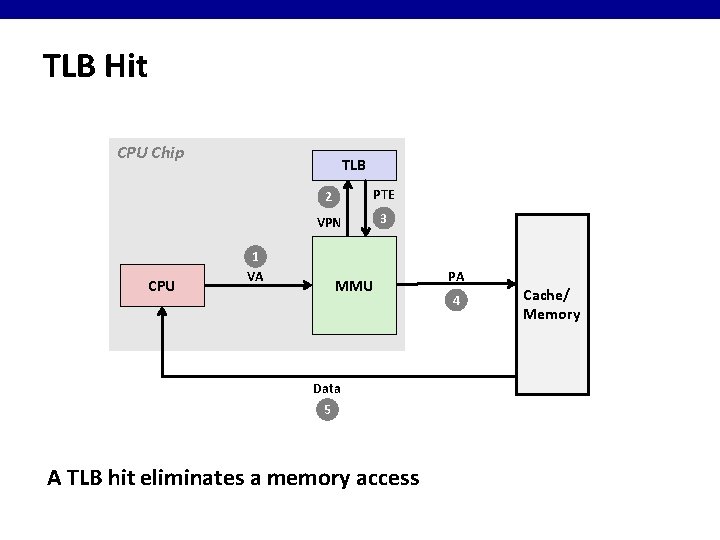

TLB Hit CPU Chip CPU TLB 2 PTE VPN 3 1 VA MMU Data 5 A TLB hit eliminates a memory access PA 4 Cache/ Memory

TLB Miss CPU Chip TLB 2 4 PTE VPN CPU 1 VA MMU 3 PTEA PA Cache/ Memory 5 Data 6 A TLB miss incurs an add’l memory access (the PTE) Fortunately, TLB misses are rare (WHY? )

From virtual address to memory location • Translation Lookaside Buffer (TLB) is a special fast cache just for the page table. • Can be fully associative. CPU hit Virtual address cache miss TLB miss hit Physical address Main memory (page table)

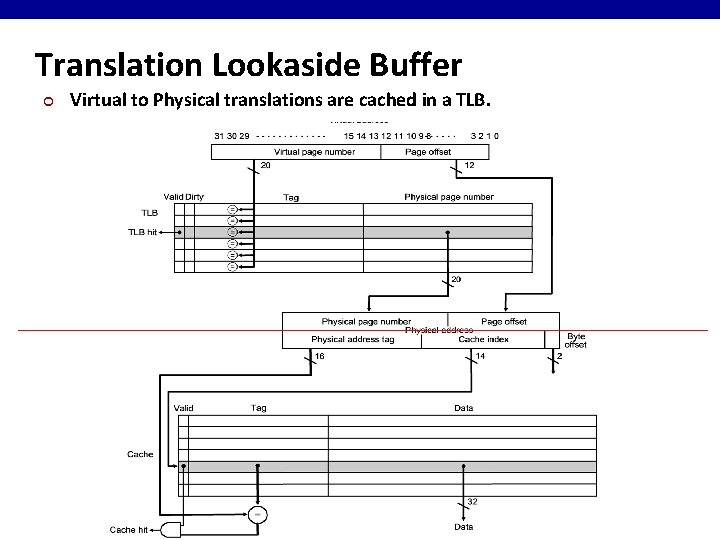

Translation Lookaside Buffer ¢ Virtual to Physical translations are cached in a TLB.

What Happens on a Context Switch? ¢ ¢ Page table is per process So is TLB flush TLB tagging

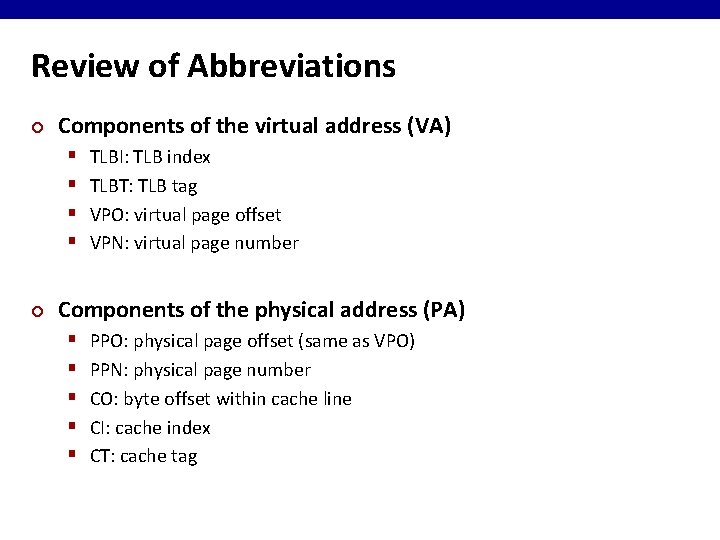

Review of Abbreviations ¢ Components of the virtual address (VA) § § ¢ TLBI: TLB index TLBT: TLB tag VPO: virtual page offset VPN: virtual page number Components of the physical address (PA) § § § PPO: physical page offset (same as VPO) PPN: physical page number CO: byte offset within cache line CI: cache index CT: cache tag

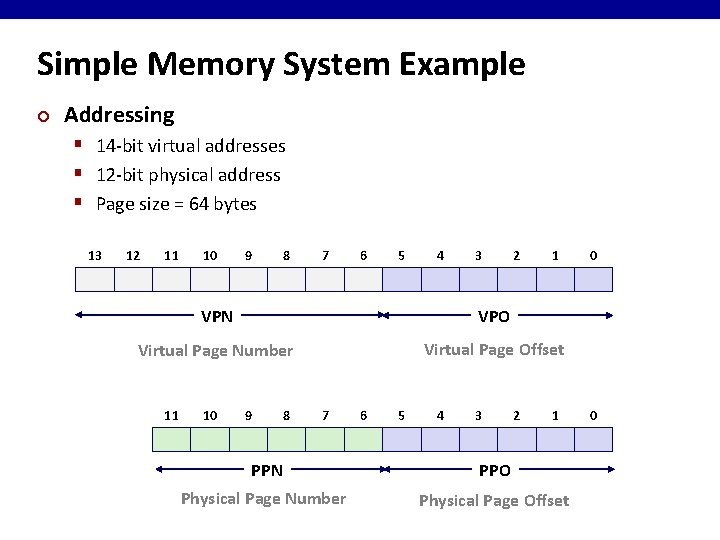

Simple Memory System Example ¢ Addressing § 14 -bit virtual addresses § 12 -bit physical address § Page size = 64 bytes 13 12 11 10 9 8 7 6 5 4 3 2 1 VPN VPO Virtual Page Number Virtual Page Offset 11 10 9 8 7 6 5 4 3 2 1 PPN PPO Physical Page Number Physical Page Offset 0 0

Simple Memory System Page Table Only show first 16 entries (out of 256) VPN PPN Valid 00 28 1 08 13 1 01 – 0 09 17 1 02 33 1 0 A 09 1 03 02 1 0 B – 0 04 – 0 0 C – 0 05 16 1 0 D 2 D 1 06 – 0 0 E 11 1 07 – 0 0 F 0 D 1

Simple Memory System TLB ¢ ¢ 16 entries 4 -way associative TLBT 13 12 11 10 TLBI 9 8 7 6 5 4 3 2 1 0 VPO VPN Set Tag PPN Valid 0 03 – 0 09 0 D 1 00 – 0 07 02 1 1 03 2 D 1 02 – 0 04 – 0 0 A – 0 2 02 – 0 08 – 0 06 – 0 03 – 0 3 07 – 0 03 0 D 1 0 A 34 1 02 – 0

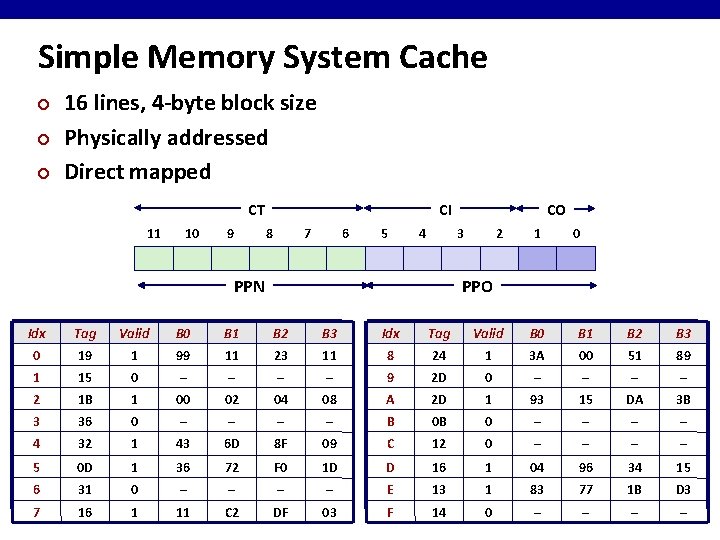

Simple Memory System Cache ¢ ¢ ¢ 16 lines, 4 -byte block size Physically addressed Direct mapped CT 11 10 9 CI 8 7 6 5 4 CO 3 PPN 2 1 0 PPO Idx Tag Valid B 0 B 1 B 2 B 3 0 19 1 99 11 23 11 8 24 1 3 A 00 51 89 1 15 0 – – 9 2 D 0 – – 2 1 B 1 00 02 04 08 A 2 D 1 93 15 DA 3 B 3 36 0 – – B 0 B 0 – – 4 32 1 43 6 D 8 F 09 C 12 0 – – 5 0 D 1 36 72 F 0 1 D D 16 1 04 96 34 15 6 31 0 – – E 13 1 83 77 1 B D 3 7 16 1 11 C 2 DF 03 F 14 0 – –

Address Translation Example #1 Virtual Address: 0 x 03 D 4 TLBT TLBI 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 1 1 0 1 0 0 VPN 0 x 0 F ___ 3 TLBI ___ VPO Y TLB Hit? __ 0 x 03 TLBT ____ N Page Fault? __ PPN: 0 x 0 D ____ Physical Address CI CT 11 10 9 8 7 6 5 4 3 2 1 0 0 0 1 1 0 1 0 0 PPN 0 CO ___ CO 0 x 5 CI___ 0 x 0 D CT ____ PPO Y Hit? __ 0 x 36 Byte: ____

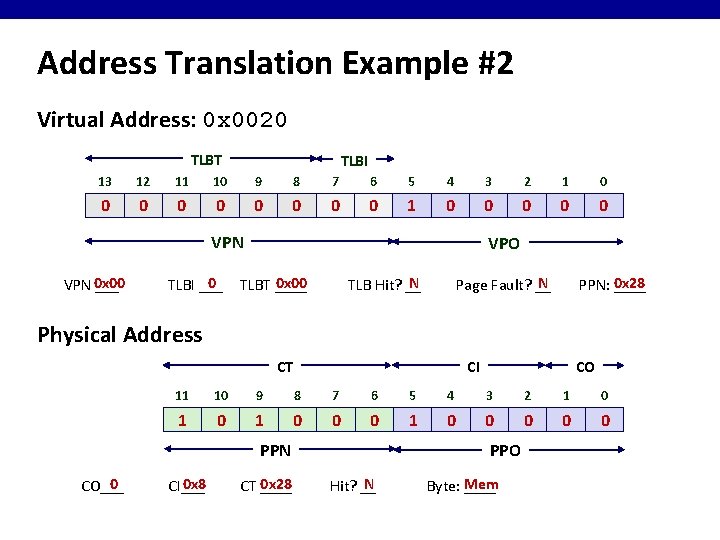

Address Translation Example #2 Virtual Address: 0 x 0020 TLBT TLBI 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 1 0 0 0 VPN 0 x 00 ___ 0 TLBI ___ VPO N TLB Hit? __ 0 x 00 TLBT ____ N Page Fault? __ PPN: 0 x 28 ____ Physical Address CI CT 11 10 9 8 7 6 5 4 3 2 1 0 1 0 0 0 0 0 PPN 0 CO___ CO 0 x 8 CI___ 0 x 28 CT ____ PPO N Hit? __ Mem Byte: ____

Address Translation Example #3 Virtual Address: 0 x 0 B 8 F TLBT TLBI 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 1 1 VPN 0 x 2 E ___ 2 TLBI ___ VPO N TLB Hit? __ 0 x 0 B TLBT ____ Y Page Fault? __ TBD PPN: ____ Physical Address CI CT 11 10 9 8 7 6 PPN CO ___ CI___ CT ____ 5 4 CO 3 PPO Hit? __ Byte: ____ 2 1 0

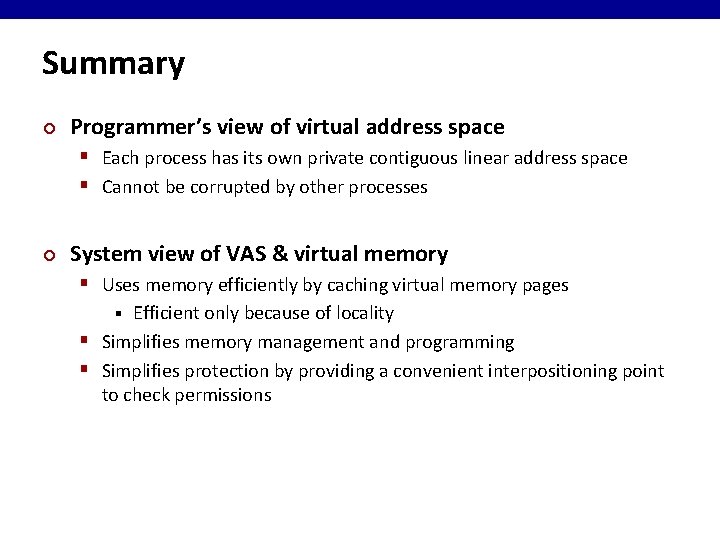

Summary ¢ Programmer’s view of virtual address space § Each process has its own private contiguous linear address space § Cannot be corrupted by other processes ¢ System view of VAS & virtual memory § Uses memory efficiently by caching virtual memory pages Efficient only because of locality § Simplifies memory management and programming § Simplifies protection by providing a convenient interpositioning point to check permissions §

Allocating Virtual Pages ¢ Example: Allocating VP 5 Physical page number or Valid disk address PTE 0 0 null 1 1 1 0 0 0 PTE 7 1 null Physical memory (DRAM) VP 1 VP 2 VP 7 VP 3 Virtual memory (disk) VP 1 Memory resident page table (DRAM) VP 2 VP 3 VP 4 VP 6 VP 7 PP 0 PP 3

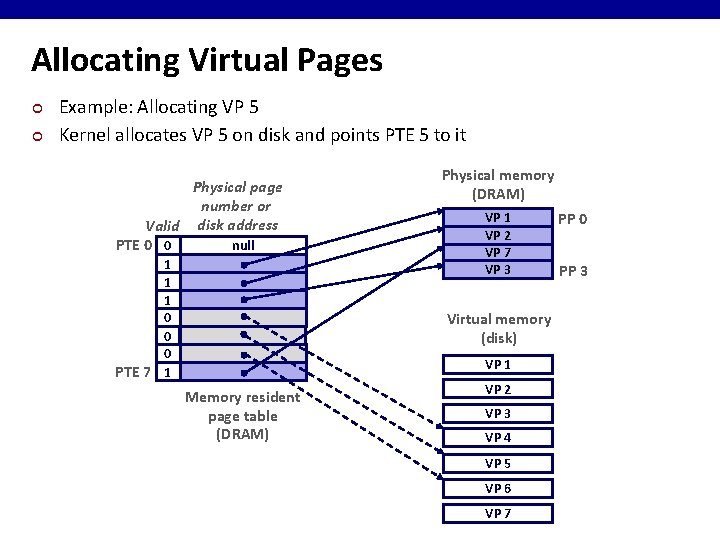

Allocating Virtual Pages ¢ ¢ Example: Allocating VP 5 Kernel allocates VP 5 on disk and points PTE 5 to it Physical page number or Valid disk address PTE 0 0 null 1 1 1 0 0 0 PTE 7 1 Physical memory (DRAM) VP 1 VP 2 VP 7 VP 3 Virtual memory (disk) VP 1 Memory resident page table (DRAM) VP 2 VP 3 VP 4 VP 5 VP 6 VP 7 PP 0 PP 3

Page Tables Size ¢ ¢ Given: § 4 KB (212) page size § 48 -bit address space § 4 -byte PTE How big is the page table?

Multi-Level Page Tables ¢ ¢ Problem: § Would need a 256 GB page table! § 248 * 2 -12 * 22 = 238 bytes Common solution § Multi-level page tables § Example: 2 -level page table § Level 1 table: each PTE points to a page table § Level 2 table: each PTE points to a page (paged in and out like other data) § Level 1 table stays in memory § Level 2 tables paged in and out Level 1 Table. . . ¢ Level 2 Tables Given: § 4 KB (212) page size § 48 -bit address space § 4 -byte PTE . . .

A Two-Level Page Table Hierarchy Level 1 page table Level 2 page tables Virtual address space VP 0 PTE 1 . . . PTE 2 (null) PTE 1023 PTE 3 (null) PTE 0 PTE 5 (null) . . . PTE 6 (null) PTE 1023 VP 1024 2 K allocated VM pages for code and data . . . Gap PTE 7 (null) (1 K - 9) null PTEs . . . VP 2047 PTE 4 (null) PTE 8 0 6 K unallocated VM pages 1023 null PTEs PTE 1023 unallocated pages VP 9215 1023 unallocated pages 1 allocated VM page for the stack . . .

Translating with a k-level Page Table Virtual Address n-1 p-1 VPN 2 Level 2 page table Level 1 page table . . . VPN k. . . 0 VPO Level k page table PPN m-1 p-1 PPN Physical Address 0 PPO

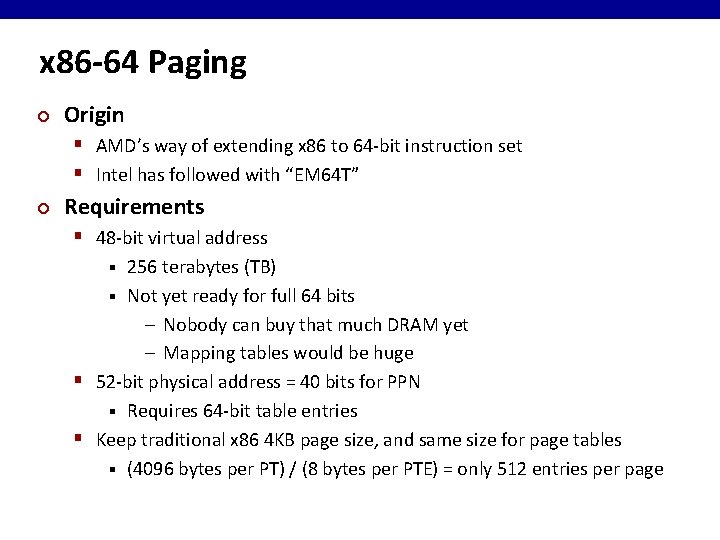

x 86 -64 Paging ¢ Origin § AMD’s way of extending x 86 to 64 -bit instruction set § Intel has followed with “EM 64 T” ¢ Requirements § 48 -bit virtual address 256 terabytes (TB) § Not yet ready for full 64 bits – Nobody can buy that much DRAM yet – Mapping tables would be huge § 52 -bit physical address = 40 bits for PPN § Requires 64 -bit table entries § Keep traditional x 86 4 KB page size, and same size for page tables § (4096 bytes per PT) / (8 bytes per PTE) = only 512 entries per page §

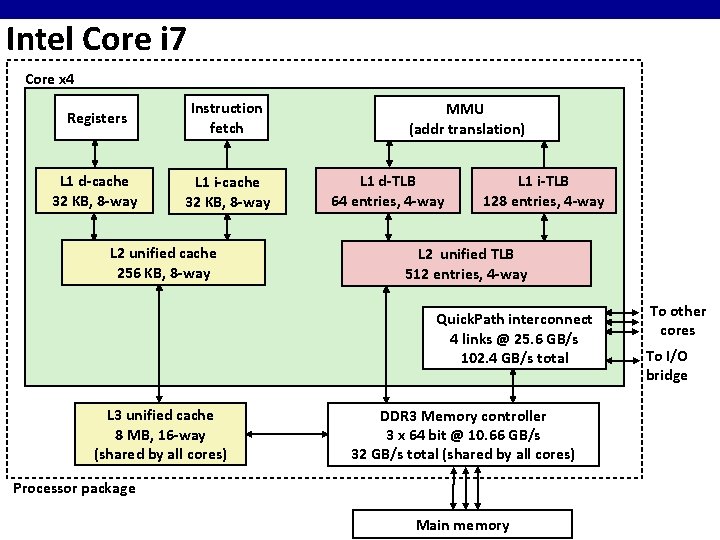

Intel Core i 7 Core x 4 Registers Instruction fetch L 1 d-cache 32 KB, 8 -way L 1 i-cache 32 KB, 8 -way L 2 unified cache 256 KB, 8 -way MMU (addr translation) L 1 d-TLB 64 entries, 4 -way L 1 i-TLB 128 entries, 4 -way L 2 unified TLB 512 entries, 4 -way Quick. Path interconnect 4 links @ 25. 6 GB/s 102. 4 GB/s total L 3 unified cache 8 MB, 16 -way (shared by all cores) DDR 3 Memory controller 3 x 64 bit @ 10. 66 GB/s 32 GB/s total (shared by all cores) Processor package Main memory To other cores To I/O bridge

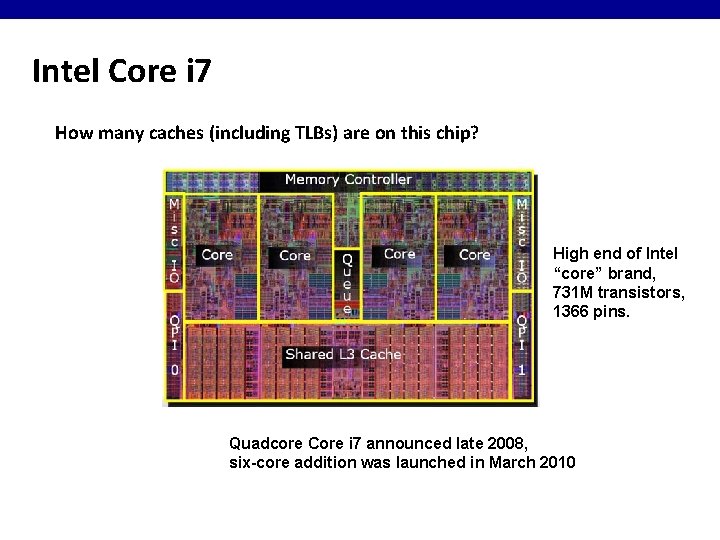

Intel Core i 7 How many caches (including TLBs) are on this chip? High end of Intel “core” brand, 731 M transistors, 1366 pins. Quadcore Core i 7 announced late 2008, six-core addition was launched in March 2010

Review of Abbreviations ¢ Components of the virtual address (VA) § § ¢ TLBI: TLB index TLBT: TLB tag VPO: virtual page offset VPN: virtual page number Components of the physical address (PA) § § § PPO: physical page offset (same as VPO) PPN: physical page number CO: byte offset within cache line CI: cache index CT: cache tag

Overview of Core i 7 Address Translation 32/64 result CPU 36 VPN 32 TLBT L 2, L 3 and main memory Virtual address (VA) 12 VPO L 1 miss L 1 hit 4 TLBI TLB miss . . . L 1 d-cache (64 sets, 8 lines/set) TLB hit . . . L 1 TLB (16 sets, 4 entries/set) 9 9 VPN 1 VPN 2 VPN 3 VPN 4 CR 3 PTE PTE Page tables PTE 40 PPN 40 CT 12 PPO Physical address (PA) 6 6 CI CO

TLB Translation 1. Partition VPN into TLBT and TLBI. CPU 2. Is the PTE for VPN cached in set TLBI? 3. Yes: Check permissions, build physical address 12 virtual address VPO 36 VPN 32 TLBT 4 TLBI TLB miss 1 2 PTE partial TLB hit . . . page table translation PTE TLB hit 3 40 PPN 4 12 PPO physical address 4. No: Read PTE (and others as necessary) from memory and build physical address

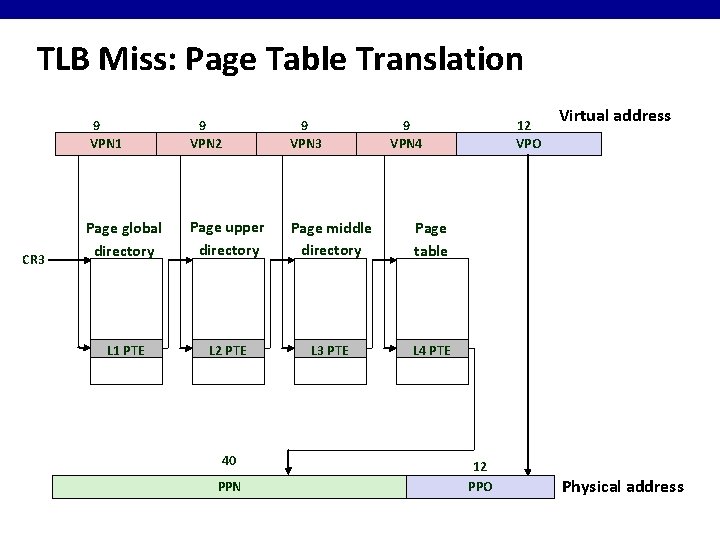

TLB Miss: Page Table Translation CR 3 9 VPN 1 9 VPN 2 9 VPN 3 Page global directory Page upper directory Page middle directory Page table L 1 PTE L 2 PTE L 3 PTE L 4 PTE 40 PPN 9 VPN 4 12 VPO 12 PPO Virtual address Physical address

BONUS SLIDES

PTE Formats 63 62 XD 52 51 12 11 Page table physical base addr Unused 9 Unused 8 7 G PS 6 5 A 4 3 2 1 CD WT U/S R/W P=1 Available for OS (page table location on disk) Level 4 PTE XD 52 51 Unused P=0 P: Page table is present in memory R/W: read-only or read+write U/S: user or supervisor mode access WT: write-through or write-back cache policy for this page table CD: cache disabled or enabled A: accessed (set by MMU on reads and writes, cleared by OS) D: dirty (set by MMU on writes, cleared by OS) PS: page size 4 K (0) or 4 MB (1), For level 1 PTE only G: global page (don’t evict from TLB on task switch) Page table physical base address: 40 most significant bits of physical page table address XD: disable or enable instruction fetches from this page Level 1 -3 PTE 63 62 0 12 11 Page physical base address Available for OS (page location on disk) Unused 9 8 7 6 5 G 0 D A 4 3 2 1 0 CD WT U/S R/W P=1 P=0

L 1 Cache Access 32/64 data L 2, L 3 and main memory ¢ L 1 miss ¢ L 1 hit L 1 d-cache (64 sets, 8 lines/set) ¢ . . . physical address (PA) ¢ 40 CT 6 6 CI CO Partition physical address: CO, CI, and CT Use CT to determine if line containing word at address PA is cached in set CI No: check L 2 Yes: extract word at byte offset CO and return to processor

Speeding Up L 1 Access: A “Neat Trick” Tag Check 40 CT 6 6 CI CO PPN PPO Physical address (PA) Address Translation Virtual address (VA) ¢ Observation § § § No Change VPN VPO 36 12 CI Bits that determine CI identical in virtual and physical address Can index into cache while address translation taking place Generally we hit in TLB, so PPN bits (CT bits) available quickly “Virtually indexed, physically tagged” Cache carefully sized to make this possible

Linux VM “Areas” task_struct vm_area_struct mm pgd mmap vm_end vm_start vm_prot vm_flags vm_next ¢ ¢ § Address of level 1 page table vm_end vm_start vm_prot vm_flags vm_prot: vm_next pgd: § Read/write permissions for all pages in this area ¢ vm_flags § Shared/private status of all pages in this area process virtual memory shared libraries 0 x 40000000 data 0 x 0804 a 020 text vm_end vm_start vm_prot vm_flags vm_next 0 x 08048000 0

Linux Page Fault Handling vm_area_struct process virtual memory ¢ § i. e. , Is it in area defined vm_end vm_start vm_prot vm_flags vm_next vm_end vm_start vm_prot vm_flags by a vm_area_struct? § If not (#1), then signal segmentation violation shared libraries 1 read data 3 read ¢ Is the operation legal? § i. e. , Can the process read/write this area? § If not (#2), then signal protection violation 2 write vm_next text vm_end vm_start vm_prot vm_flags vm_next Is the VA legal? ¢ Otherwise § Valid address (#3): handle fault

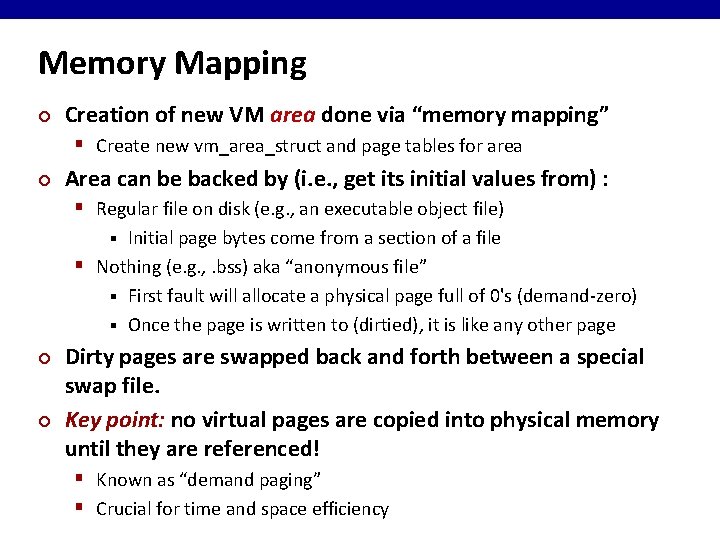

Memory Mapping ¢ Creation of new VM area done via “memory mapping” § Create new vm_area_struct and page tables for area ¢ Area can be backed by (i. e. , get its initial values from) : § Regular file on disk (e. g. , an executable object file) Initial page bytes come from a section of a file § Nothing (e. g. , . bss) aka “anonymous file” § First fault will allocate a physical page full of 0's (demand-zero) § Once the page is written to (dirtied), it is like any other page § ¢ ¢ Dirty pages are swapped back and forth between a special swap file. Key point: no virtual pages are copied into physical memory until they are referenced! § Known as “demand paging” § Crucial for time and space efficiency

User-Level Memory Mapping void *mmap(void *start, int len, int prot, int flags, int fd, int offset) start len bytes offset (bytes) len bytes Disk file specified by file descriptor fd Process virtual memory (or address chosen by kernel)

User-Level Memory Mapping void *mmap(void *start, int len, int prot, int flags, int fd, int offset) ¢ Map len bytes starting at offset of the file specified by file description fd, preferably at address start § start: may be 0 for “pick an address” § prot: PROT_READ, PROT_WRITE, . . . § flags: MAP_PRIVATE, MAP_SHARED, . . . ¢ Return a pointer to start of mapped area (may not be start) ¢ Example: fast file-copy § Useful for applications like Web servers that need to quickly copy files. § mmap()allows file transfers without copying into user space.

mmap() Example: Fast File Copy #include #include <unistd. h> <sys/mman. h> <sys/types. h> <sys/stat. h> <fcntl. h> int main() { struct stat; int i, fd, size; char *bufp; /* open the file & get its size */ fd = open(". /input. txt", O_RDONLY); fstat(fd, &stat); size = stat. st_size; /* * a program that uses mmap to copy * the file input. txt to stdout */ /* map the file to a new VM area */ bufp = mmap(0, size, PROT_READ, MAP_PRIVATE, fd, 0); } /* write the VM area to stdout */ write(1, bufp, size); exit(0);

Exec() Revisited To run a new program p in the current process using exec(): process-specific data structures (page tables, task and mm structs) ¢ physical memory same for each process kernel code/data/stack 0 xc 0… %esp stack Memory mapped region for shared libraries kernel VM demand-zero process VM ¢ . data. text brk 0 uninitialized data (. bss) initialized data (. data) program text (. text) forbidden ¢ demand-zero. data. text p Create new vm_area_struct’s and page tables for new areas § Stack, BSS, data, text, shared libs. § Text and data backed by ELF executable object file § BSS and stack initialized to zero libc. so runtime heap (via malloc) Free vm_area_struct’s and page tables for old areas Set PC to entry point in. text § Linux will fault in code, data pages as needed

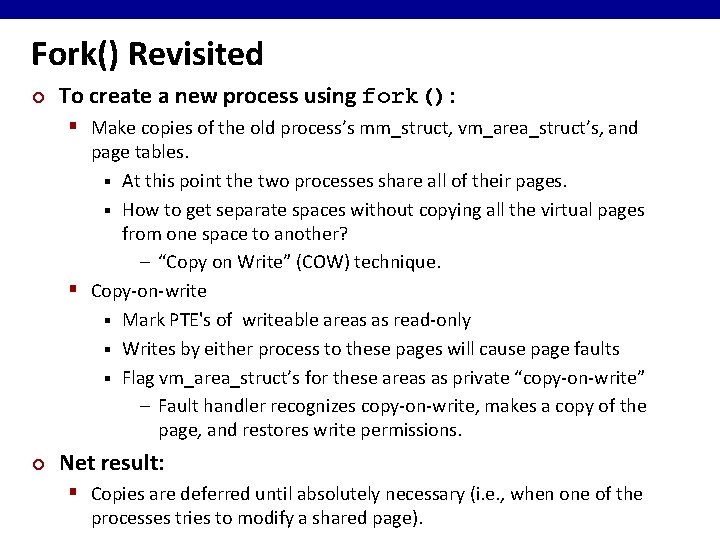

Fork() Revisited ¢ To create a new process using fork(): § Make copies of the old process’s mm_struct, vm_area_struct’s, and page tables. § At this point the two processes share all of their pages. § How to get separate spaces without copying all the virtual pages from one space to another? – “Copy on Write” (COW) technique. § Copy-on-write § Mark PTE's of writeable areas as read-only § Writes by either process to these pages will cause page faults § Flag vm_area_struct’s for these areas as private “copy-on-write” – Fault handler recognizes copy-on-write, makes a copy of the page, and restores write permissions. ¢ Net result: § Copies are deferred until absolutely necessary (i. e. , when one of the processes tries to modify a shared page).

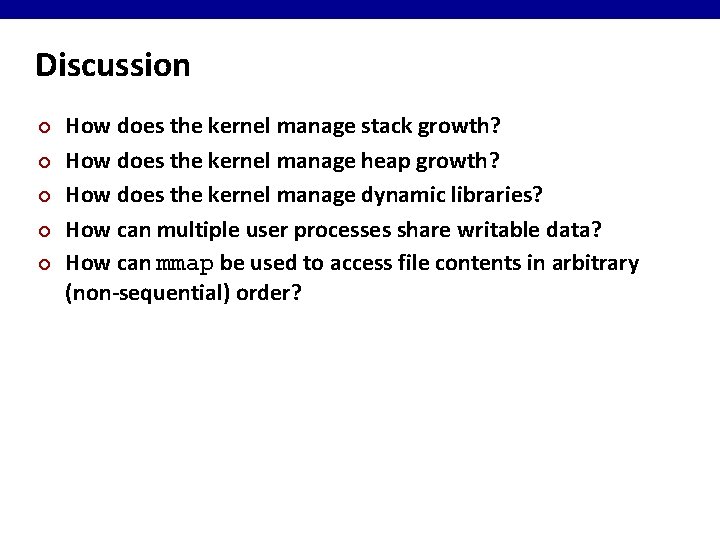

Discussion ¢ ¢ ¢ How does the kernel manage stack growth? How does the kernel manage heap growth? How does the kernel manage dynamic libraries? How can multiple user processes share writable data? How can mmap be used to access file contents in arbitrary (non-sequential) order?

9. 9: Dynamic Memory Allocation ¢ Motivation § Size of data structures may be known only at runtime ¢ Essentials § Heap: demand-zero memory immediately after bss area, grows upward § Allocator manages heap as collection of variable sized blocks. ¢ Two styles of allocators: § Explicit: allocation and freeing both explicit C (malloc and free), C++ (new and free) § Implicit: allocation explicit, freeing implicit § Java, Lisp, ML § Garbage collection: automatically freeing unused blocks § Tradeoffs: ease of (correct) use, runtime overhead §

Heap Management kernel virtual memory protected from user code stack %esp Allocators request additional heap memory from the kernel using the sbrk() function: the “brk” ptr run-time heap (via malloc) error = sbrk(amt_more) uninitialized data (. bss) initialized data (. data) program text (. text) 0

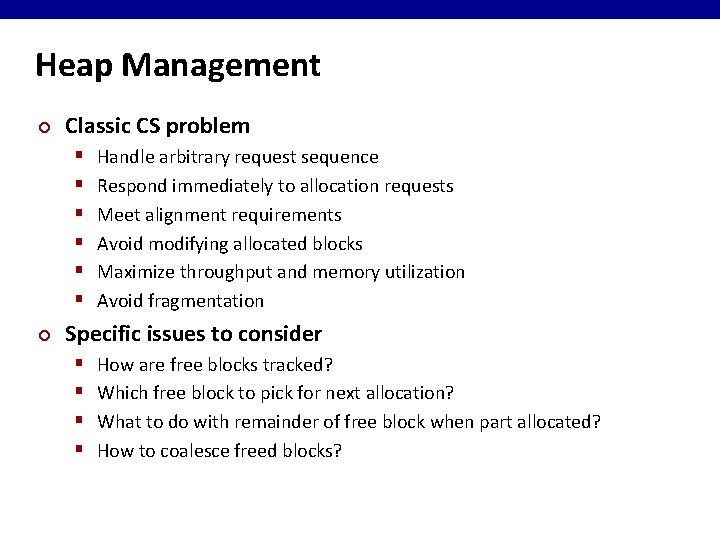

Heap Management ¢ Classic CS problem § § § ¢ Handle arbitrary request sequence Respond immediately to allocation requests Meet alignment requirements Avoid modifying allocated blocks Maximize throughput and memory utilization Avoid fragmentation Specific issues to consider § § How are free blocks tracked? Which free block to pick for next allocation? What to do with remainder of free block when part allocated? How to coalesce freed blocks?

Heap Management Block format n n Allocators typically maintain header, optional padding Stepping beyond block bounds can really mess up allocator header Format of allocated and free blocks size payload a a = 1: allocated block a = 0: free block size: block size payload: application data (allocated blocks only) optional padding

9. 10: Garbage Collection ¢ Related to dynamic memory allocation § Garbage collection: automatically reclaiming allocated blocks that are no longer used § Need arises when blocks are not explicitly freed § Also a classic CS problem

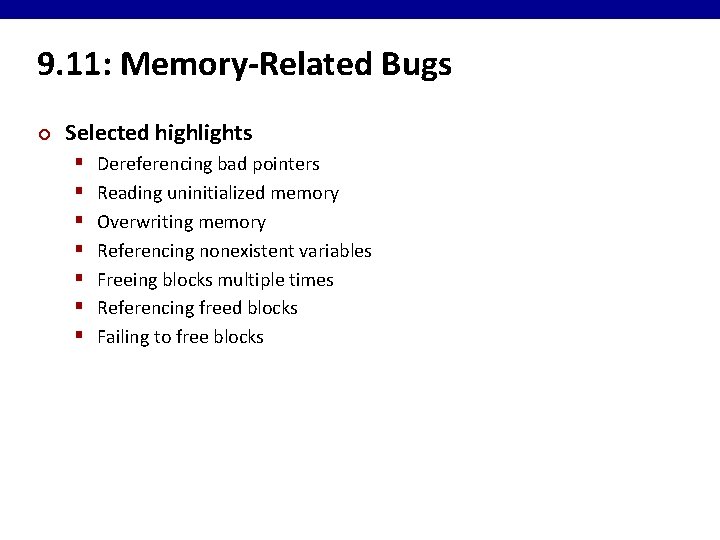

9. 11: Memory-Related Bugs ¢ Selected highlights § § § § Dereferencing bad pointers Reading uninitialized memory Overwriting memory Referencing nonexistent variables Freeing blocks multiple times Referencing freed blocks Failing to free blocks

Dereferencing Bad Pointers ¢ The classic scanf bug scanf(“%d”, val);

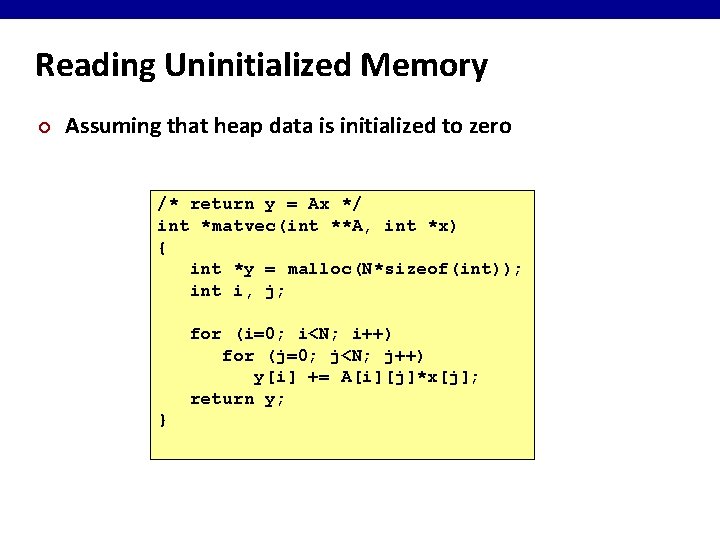

Reading Uninitialized Memory ¢ Assuming that heap data is initialized to zero /* return y = Ax */ int *matvec(int **A, int *x) { int *y = malloc(N*sizeof(int)); int i, j; for (i=0; i<N; i++) for (j=0; j<N; j++) y[i] += A[i][j]*x[j]; return y; }

Overwriting Memory ¢ Allocating the (possibly) wrong sized object int **p; p = malloc(N*sizeof(int)); for (i=0; i<N; i++) { p[i] = malloc(M*sizeof(int)); }

Overwriting Memory ¢ Off-by-one error int **p; p = malloc(N*sizeof(int *)); for (i=0; i<=N; i++) { p[i] = malloc(M*sizeof(int)); }

Overwriting Memory ¢ Not checking the max string size char s[8]; int i; gets(s); ¢ /* reads “ 123456789” from stdin */ Basis for classic buffer overflow attacks § 1988 Internet worm § Modern attacks on Web servers § AOL/Microsoft IM war

Overwriting Memory ¢ Referencing a pointer instead of the object it points to § Code below intended to remove first item in a binary heap of *size items, then reheapify the remaining items. int *Binheap. Delete(int **binheap, int *size) { int *packet; packet = binheap[0]; binheap[0] = binheap[*size - 1]; *size--; Heapify(binheap, *size, 0); return(packet); } § Problem: * and -- have equal precedence, associate r to l Programmer intended (*size)-§ Compiler interprets as *(size--) §

Other Pointer Pitfalls ¢ Misunderstanding pointer arithmetic § Code below intended to scan array of ints and return a pointer to the first occurrence of val. int *search(int *p, int val) { while (*p && *p != val) p += sizeof(int); return p; }

Referencing Nonexistent Variables ¢ Forgetting that local variables disappear when a function returns int *foo () { int val; return &val; }

Freeing Blocks Multiple Times ¢ Nasty! x = malloc(N*sizeof(int)); /* do some stuff with x */ free(x); y = malloc(M*sizeof(int)); /* do some stuff with y */ free(x);

Referencing Freed Blocks ¢ Evil! x = malloc(N*sizeof(int)); /* do some stuff with x */ free(x); . . . y = malloc(M*sizeof(int)); for (i=0; i<M; i++) y[i] = x[i]++;

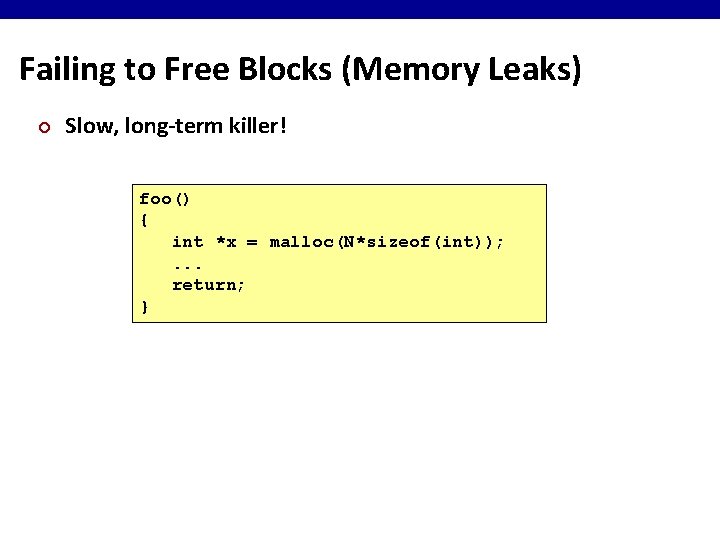

Failing to Free Blocks (Memory Leaks) ¢ Slow, long-term killer! foo() { int *x = malloc(N*sizeof(int)); . . . return; }

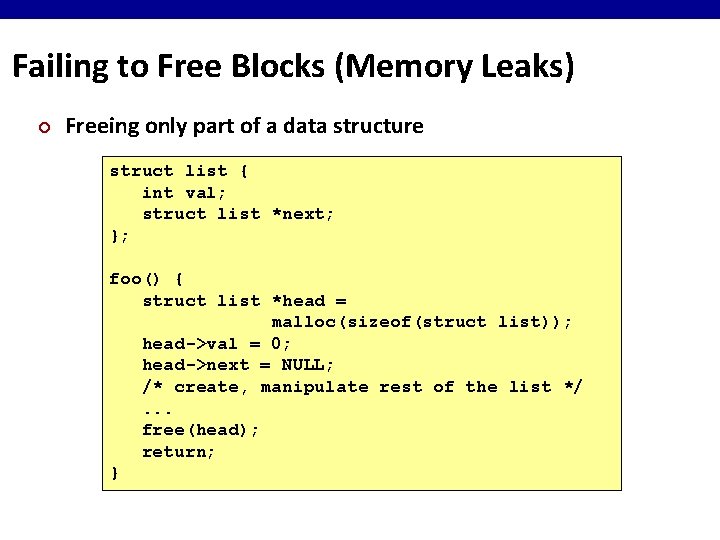

Failing to Free Blocks (Memory Leaks) ¢ Freeing only part of a data structure struct list { int val; struct list *next; }; foo() { struct list *head = malloc(sizeof(struct list)); head->val = 0; head->next = NULL; /* create, manipulate rest of the list */. . . free(head); return; }

Before You Sell Book Back… ¢ Consider useful content of remaining chapters ¢ Chapter 10: System level I/O § § § § Unix file I/O Opening and closing files Reading and writing files Reading file metadata Sharing files I/O redirection Standard I/O

Chapter 11 ¢ Network programming § § § Client-server programming model Networks Global IP internet: IP addresses, domain names, DNS servers Sockets Web servers

Chapter 12 ¢ Concurrent programming § CP with processes (e. g. , fork, exec, waitpid) § CP with I/O multiplexing Ask kernel to suspend process, returning control when certain I/O events have occurred § CP with threads, shared variables, semaphores for synchronization §

Class Wrap-up ¢ Final exam in testing center: both days of finals § § § ¢ Check testing center hours, days! 50 multiple choice questions Covers all chapters (4 -7 questions each from chapters 2 -9) 3 hour time limit: but unlikely to use all of it Review midterm solutions, chapter review questions Remember: § Final exam score replaces lower midterm scores § 4 low quizzes will be dropped in computing overall quiz score Assignments § Deadline for late labs is tomorrow (15 June). § Notify instructor immediately if you are still working on a lab § All submissions from here on out: send instructor an email

Reminder + Request ¢ From class syllabus: § Must complete all labs to receive passing grade in class § Must receive passing grade on final to pass class ¢ Please double check all scores on Blackboard § Contact TA for problems with labs, homework § Contact instructor for problems with posted exam or quiz scores

Parting Thought Again and again I admonish my students both in Europe and in America: “Don’t aim at success – the more you aim at it and make it a target, the more you are going to miss it. For success, like happiness, cannot be pursued; it must ensue, and it only does so as the unintended side-effect of one’s personal dedication to a cause greater than oneself or as the by-product of one’s surrender to a person other than oneself. Happiness must happen, and the same holds for success: you have to let it happen by not caring about it. I want you to listen to what your conscience commands you to do and go on to carry it out to the best of your knowledge. Then you will live to see that in the long run – in the long run, I say! – success will follow you precisely because you had forgotten to think of it. ” Viktor Frankl
