Lateral Earth Pressure. Introduction We calculate vertical effective stress using the effective stress equations

Lateral Earth Pressure. Introduction We calculate vertical effective stress using the effective stress equations and principles we have previously discussed In many cases we need to consider the horizontal (or lateral) pressures that a soil mass places on a wall, a pile, a braced cut or other structure

Coefficient of lateral earth pressure, k We use the term k to refer to

Coefficient of lateral earth pressure, k We use the term k to refer to the ratio of lateral to vertical earth pressure. K = σhorizontal / σvertical (Do not confuse this k with the term for hydraulic conductivity)

K is a function of several factors, primarily l The ability of the structural

K is a function of several factors, primarily l The ability of the structural member to move toward or away from the soil mass, and l The shear strength properties of the soil

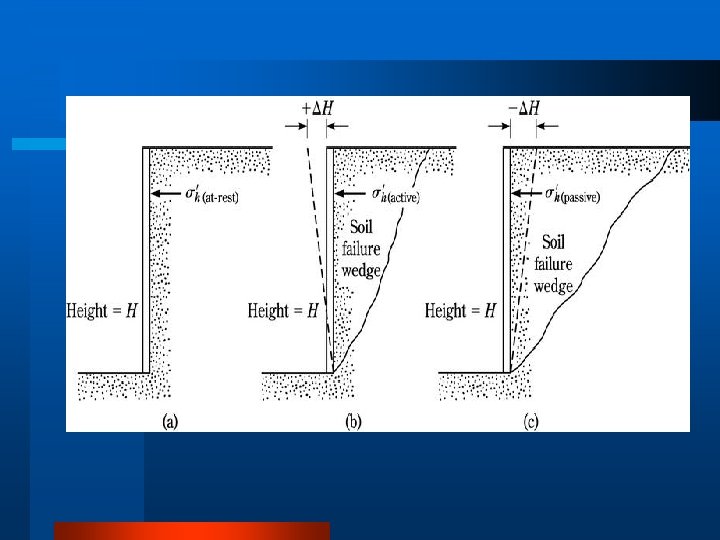

We refer to the three different cases as l Ko for the at-rest condition,

We refer to the three different cases as l Ko for the at-rest condition, where there is no or insufficient movement l Ka for the active case where the structure can move or flex away from the soil mass l Kp for the passive case where the soil moves toward the structure (or vise versa)

At-rest pressure

At-rest pressure

At-rest lateral earth pressure σv = γz + q σh = ko σv +

At-rest lateral earth pressure σv = γz + q σh = ko σv + u where σv = the vertical overburden q = the surcharge pressure ko = the at-rest earth pressure coefficient, and u = the pore water pressure

At-rest lateral earth pressure For most normally consolidated soils: ko = ~ 1 -

At-rest lateral earth pressure For most normally consolidated soils: ko = ~ 1 - sinØ For normally consolidated clays: ko = ~ 0. 95 - sinØ For overconsolidated clays: ko (overconsonsol) = ko(norm consol) (OCR) -2

Active Earth Pressure - Rankine

Active Earth Pressure - Rankine

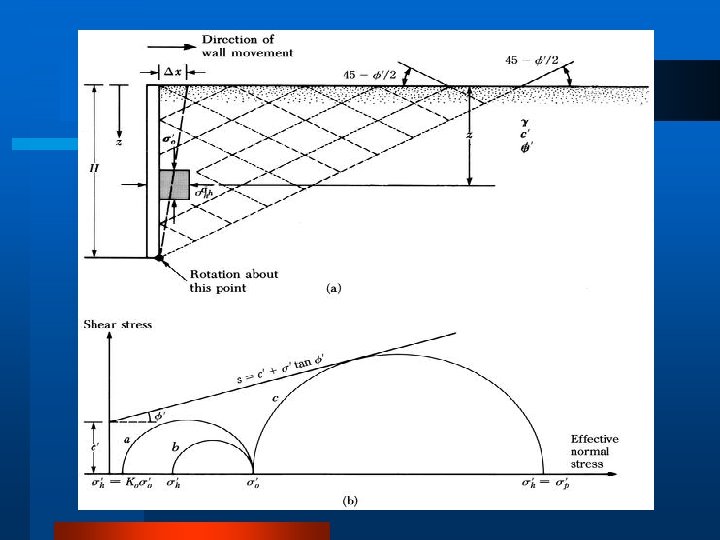

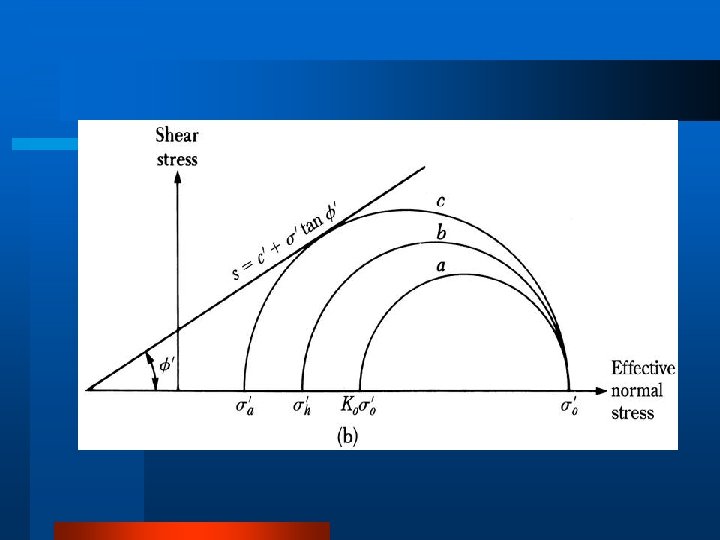

Active Earth Pressure - Rankine Use ka equations in Das Sec. 7. 3 Note

Active Earth Pressure - Rankine Use ka equations in Das Sec. 7. 3 Note that ka is only a function of the friction angle but the lateral earth pressure includes the effect of cohesion on the structure

Passive Earth Pressure - Rankine l Use Relationships in Das 7. 7

Passive Earth Pressure - Rankine l Use Relationships in Das 7. 7

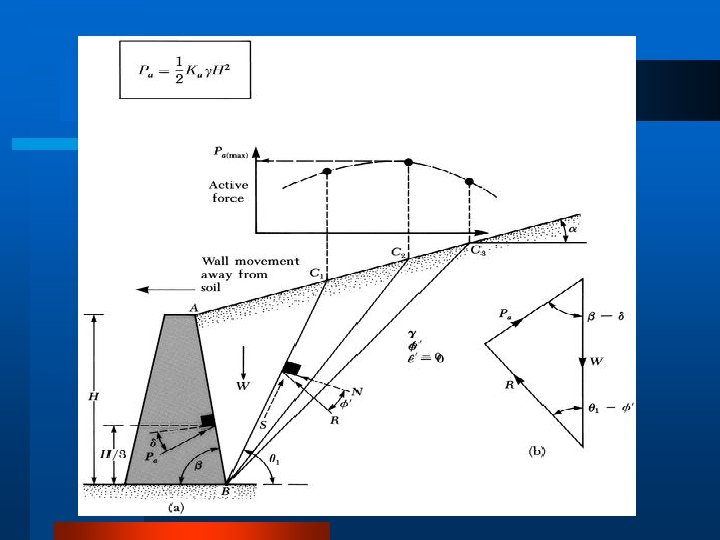

Lateral Earth Pressure - Coloumb l Coloumb developed a set of theories for lateral

Lateral Earth Pressure - Coloumb l Coloumb developed a set of theories for lateral earth pressure that presume a failure surface to then consider wedges l Coloumb also assumed no friction force between the wall and the soil mass behind it

Rankine and Coloumb’s theories are remarkably similar l They result in similar resultant pressures

Rankine and Coloumb’s theories are remarkably similar l They result in similar resultant pressures l They have the ability to include inclined backfill l Rankine is simpler and is probably more commonly used for that reason l The same deflections to mobilize the earth forces are used

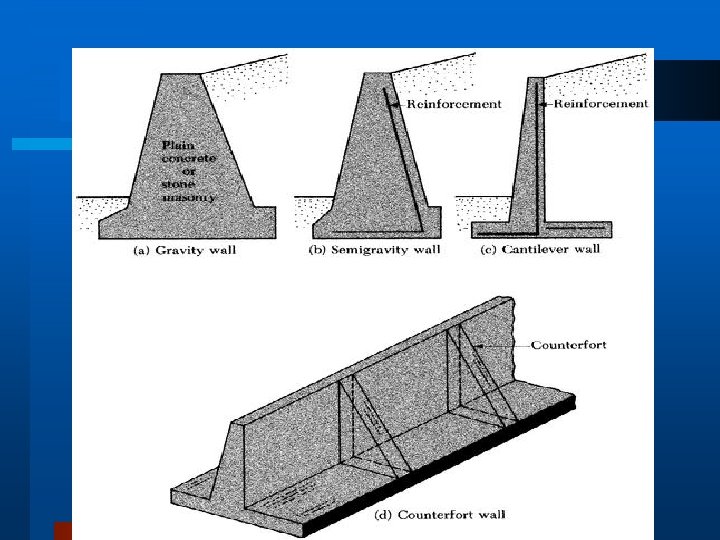

Stability Analyses on Retaining Walls l Overtuning l Sliding l Bearing Capacity Failure l

Stability Analyses on Retaining Walls l Overtuning l Sliding l Bearing Capacity Failure l Deep Shear Failure l Settlement

Check For Overturning

Check For Overturning

Check For Sliding

Check For Sliding

If the FS against sliding is too low

If the FS against sliding is too low

Check Against BC Failure

Check Against BC Failure
