L’argent est le nerf de la guerre Filomeno Martina
Scope • To compare the cost of a part made by WAAM vs traditional machined from solid • To assess the sensitivity of cost to changes in key cost drivers / process parameters: – Deposition rate – Buy to fly ratio – Material cost – Machine cost – Capacity utilisation – Material removal rate
Machining from solid • Cost model terms: – Mass of initial forging or billet cost of initial forging – Buy to fly ratio material to be removed – Material removal rate machining time
WAAM • Cost model terms: – Mass of substrate cost of substrate – Buy to fly ratio material to be deposited, and to be removed – Deposition rate + Starts&Stops deposition time – Material removal rate machining time
Assumptions • General: – No tooling / setup considered – No post processing, non-destr. testing, on-line monit. – 1 operator for 1 machine • Machining: – One type of operation – If WAAM machine cost > £ 250 k Hourly rate mach = hourly rate WAAM • WAAM: – Starts&Stops: 1. 1; if If WAAM machine cost > £ 250 k SS = 1. 5 to include rolling – Plate £/kg = Billet £/kg – Only 1 type of machining operation

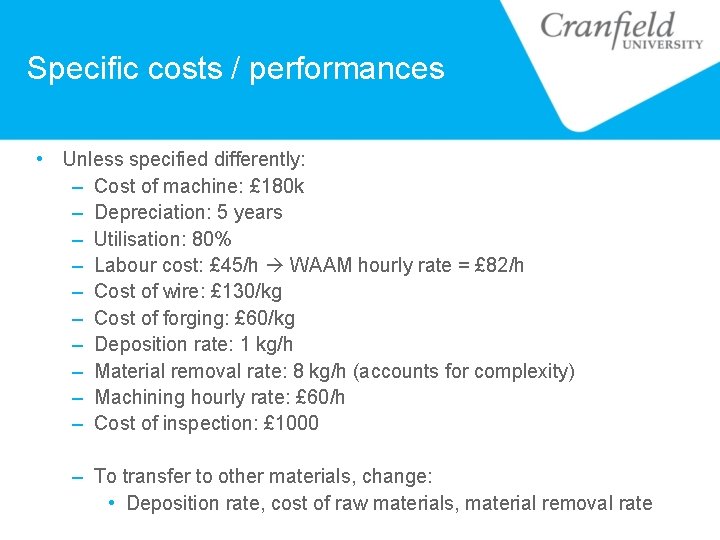

Specific costs / performances • Unless specified differently: – Cost of machine: £ 180 k – Depreciation: 5 years – Utilisation: 80% – Labour cost: £ 45/h WAAM hourly rate = £ 82/h – Cost of wire: £ 130/kg – Cost of forging: £ 60/kg – Deposition rate: 1 kg/h – Material removal rate: 8 kg/h (accounts for complexity) – Machining hourly rate: £ 60/h – Cost of inspection: £ 1000 – To transfer to other materials, change: • Deposition rate, cost of raw materials, material removal rate
RESULTS
Part cost f(BTF, mass)
Part cost f(BTF, mass)
Part cost f(BTF, mass)
Part cost f(BTF, mass)
Part cost f(BTF, mass)
Specific cost of deposition f(deposition rate, BTF)
Specific cost of deposition f(deposition rate, machine cost) • • Depreciation: 5 years BTF: 1. 5
Specific cost of deposition f(deposition rate, utilisation) • • Depreciation: 5 years BTF: 1. 5
30 kg part cost f(material removal rate, BTF)
Specific cost of deposition f(wire cost, BTF)
Specific cost of deposition f(wire cost, machine cost) • BTF: 1. 5
Specific cost of deposition (WAAM vs high DR wire process) • • WAAM: – HR: £ 82/h – DR: 1 kg/h Process 1: – HR: £ 360/h – DR: 7 kg/h Process 2: – HR: £ 170/h – DR: 7 kg/h Typical BTF of High dep. Rate is 10
Specific cost of deposition (WAAM vs high DR wire process) • • WAAM: – HR: £ 82/h – DR: 1 kg/h Process 1: – HR: £ 360/h – DR: 7 kg/h Process 2: – HR: £ 170/h – DR: 7 kg/h Typical BTF of High dep. Rate is 10
Specific cost of deposition (WAAM vs high DR wire process) • • • WAAM: – HR: £ 82/h – DR: 1 kg/h Process 1: – HR: £ 360/h – DR: 7 kg/h Process 2: – HR: £ 170/h – DR: 7 kg/h Typical BTF of High dep. Rate is 10 This makes them break even for very high BTF (machined from solid)
Specific cost of deposition (WAAM vs high DR wire process) • • • WAAM: – HR: £ 82/h – DR: 1 kg/h Process 1: – HR: £ 360/h – DR: 7 kg/h Process 2: – HR: £ 170/h – DR: 7 kg/h Typical BTF of High dep. Rate is 10 This makes them break even for very high BTF (machined from solid) WAAM’s BTF is <2
Specific cost of deposition (WAAM vs high DR wire process) • • WAAM: – HR: £ 82/h – DR: 1 kg/h Process 1: – HR: £ 360/h – DR: 7 kg/h Process 2: – HR: £ 170/h – DR: 7 kg/h Typical BTF of High dep. Rate is 10 This makes them break even for very high BTF (machined from solid) WAAM’s BTF is <2 Lots of room to be cheaper than machining
The problem of powder-bed processes • • • Machine cost: £ 500 k DR: 0. 1 kg/h 100% powder utilisation 50% beam-on time No post-proc.
CASE STUDIES
Case studies BAE Systems spar Design option Mass (kg) BTF Cost (£k) Cost red. Original, machined 17 6. 5 7. 2 - Original, WAAM 17 2. 2 5. 1 29%
Case studies Bombardier rib Design option Mass (kg) BTF Cost (£k) Cost red. Original, machined 20 12 16. 2 - Original, WAAM 20 2. 3 5 69%
Case studies Bombardier rib (steel) Design option Mass (kg) BTF Cost (£k) Cost red. Original, machined 36 12 1. 6 - Original, WAAM 36 2. 3 0. 7 55%
Case studies A pylon mount Design option Mass (kg) BTF Cost (£k) Cost red. Original, machined 7. 6 5. 1 2. 5 - Original, WAAM 7. 6 1. 5 2. 4 4% Topologically optimised, machined 3. 9 6 1. 5 39% Topologically optimised, WAAM 3. 9 1. 5 1. 1 55%
Case studies 15 kg aluminium wing rib (DR = 1 kg/h) Design option (MRR = 65 kg/h) CAD: BTF Cost (£k) Cost red. Machined from solid 45 4. 9 - WAAM option 1 2. 9 1. 7 65% WAAM option 2 12. 3 2 58% Design option (MRR = 323 kg/h) BTF Cost (£k) Cost red. Machined from solid 45 4. 4 - WAAM option 1 2. 9 1. 7 61% WAAM option 2 12. 3 1. 9 56% Option 1: Option 2:
Case studies Titanium wing frame Design option (MRR = 65 kg/h) BTF Cost (£k) Cost red. Machined from solid 69 4. 9 - WAAM option 1 (thin substrate) 7 2. 6 67% WAAM option 2 (thick substrate) 8 2. 4 69%
Example part 1 • Non-recurring cost of tooling and programming: £ 1500 WAAM Hi. DR process Saving by using WAAM Deposition BTF 3 10 - Substrate BTF 12 12 - Overall BTF ratio 8 11 - Cost of part machined from solid £ 12155 (BTF = 60) - Cost of AM part £ 3189 £ 4389 27% Finished product mass 3 kg - Deposited mass 4 kg 13 kg 69% Cost reduction 74% 64% -
Example part 2 • Non-recurring cost of tooling and programming: £ 1500 WAAM Hi. DR process Saving by using WAAM Deposition BTF 2 10 - Substrate BTF 3 3 - Overall BTF ratio 3 5 - Cost of part machined from solid Cost of AM part £ 16184 (BTF = 30) - £ 3258 £ 6179 48% Finished product mass 8 kg - Deposited mass 5 kg 32 kg 84% Cost reduction 80% 62% -
Conclusions • A cost model to compare WAAM vs Machining was defined • Sensitivity analyses were carried out and it was demonstrated that: – Increasing the deposition rate above 1 kg/h has no economic benefit (for a robot-based cell) – Higher capital cost higher hourly rates; increasing deposition rate reduce specific cost – The material removal rate does not really matter – Given the current conditions, WAAM always cheaper than machining – Increasing deposition rate is useless if also BTF increases – Powder-bed processes must build their cases on freedom of design, until cheaper and faster machines become available Thanks for your attention! Questions?
