KNX - the standard

Content ● KNX history ● KNX association Schneider Electric - IS&C – Aug. 2008 2

KNX history ● 1984 - Increasing demands made on the flexibility and convenience of electrical installations, combined with the demand to minimize energy requirements, have led to first developments of building management systems. ● 1987 - The awareness that manufacturer specific and proprietary systems would hinder a broad market penetration guided the leading manufacturers in electrical installation techniques to the constitution of the INSTABUSresearch and development organization. ● (Founding members: Merten, Berker, Gira, Jung and Siemens) ●Target => Creating a standard that grants compatibility and interoperation of devices and systems from different manufacturers through all crafts and building applications. Schneider Electric - IS&C – Aug. 2008 3

KNX history ● 1990 - Constitution of the EIBA (European Installation Bus Association) based in Brussels to define technical guidelines, certification and awarding of the EIB trademark, preparing of European and international standards (DIN VDE 0829 and EN 50090) and coordination of the EIBA-member activities. ● 1991 - First standardised products have been offered to the market ● 1993 - Constitution of EIBA-country groups Schneider Electric - IS&C – Aug. 2008 4

KNX history ● 1999 - Members of the following associations have founded the Konnex Association: ● Bati. BUS Club International (BCI) ● European Installation Bus Association (EIBA) ● European Home Systems Association (EHSA) ●Objective => Promoting the newly defined “one-single-standard” for field bus applications in homes and buildings. This standard, called KNX, is based on the well-established technology of EIB and enlarged with the configuration mechanisms and physical media from Bati. BUS and EHS. Schneider Electric - IS&C – Aug. 2008 5

KNX history ●Today => KNX-offer consists of more than 6000 product groups with a multiple on KNX-certified products from more than 130 registered manufacturers. ● Nowadays KNX is the first open world-standard for home and building automation meeting European and International standards. ● Europe: CENELEC EN 50090 + CEN EN 13321 ● International: ISO/IEC 14543 + GB/Z 20965 Chinese Standard + ANSI/ASHRAE 135 US Standard Schneider Electric - IS&C – Aug. 2008 6

KNX association ● KNX Association is the keeper of the KNX technology ●KNX technology is the world’s only open standard for all applications in home and building control, ranging from: ● Lighting and shutter control ● Various security systems, ● Heating, ventilation and air conditioning, ● Monitoring, alarming, ● Water control, ● Energy management ● Household applications ● Audio etc. => One Organisation, one standard, one tool Schneider Electric - IS&C – Aug. 2008 7

KNX association ● Main tasks / objective ● Driving standardization, ISO, EN, Chinese std. ● Multi vendor market ● Evolving technology ● Common system marketing ● Common system platform ● Common tools ● One logo (product inter working, standard addressing / registration) Schneider Electric - IS&C – Aug. 2008 8

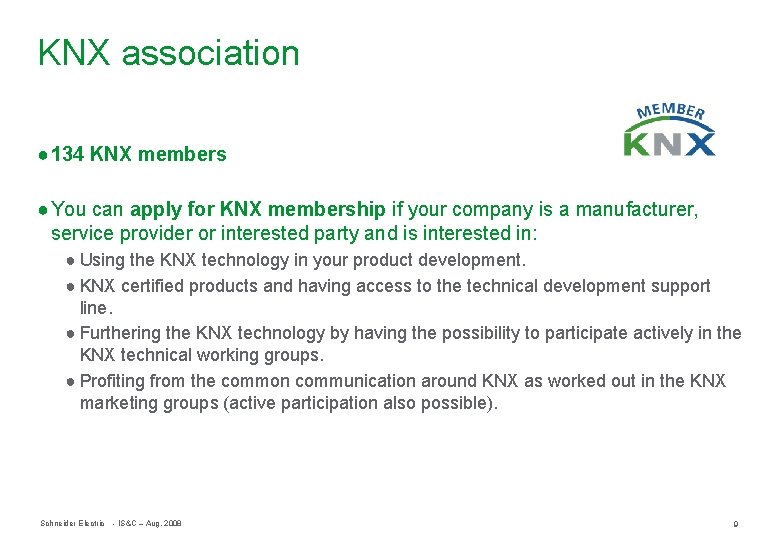

KNX association ● 134 KNX members ● You can apply for KNX membership if your company is a manufacturer, service provider or interested party and is interested in: ● Using the KNX technology in your product development. ● KNX certified products and having access to the technical development support line. ● Furthering the KNX technology by having the possibility to participate actively in the KNX technical working groups. ● Profiting from the common communication around KNX as worked out in the KNX marketing groups (active participation also possible). Schneider Electric - IS&C – Aug. 2008 9

KNX association Schneider Electric - IS&C – Aug. 2008 10

KNX association ● 20 National KNX Groups ● 14 in the European Community, others in Europe, Middle and Far East (incl. Russia & China) ● In new member states the establishment of such groups will be supported ● Main tasks of the groups: create awareness for the KNX technology and the standards ISO/ IEC 14543 / EN 50090 as the solution for home and building controls in their markets by promoting the use of the KNX standard in: ●products of local manufacturers ●the use of KNX solutions by local (electrical) contractors and planners in local projects, according to national practice ●local training institutes to take over KNX into their respective training programs ● KNX Association provides information material (brochures, press releases, . . . ) in the local language and takes part in national fairs Schneider Electric - IS&C – Aug. 2008 11

KNX association ● 11 700 KNX partners (in about 78 countries) ● To join as a KNX partner, following steps grant the qualification: ● You should have attended a KNX basic course (duration: 40 hours) at a KNX certified training center. ● Passing the practical and theoretical exams will grant you the right to become a certified KNX Partner. ● Top 5 Countries according to the KNX growth strategy (Aug 2008): Germany 6714 Schneider Electric - IS&C – Aug. 2008 Spain 1584 Austria 620 Poland 373 Greece 364 12

KNX association ● 8 KNX USER Clubs ● Austria ● Belgium ● Germany ● Hungary ● Poland ● Spain ● Sweden ● The Netherlands ● Main mission of User Club: ● spread and share information and experience Schneider Electric - IS&C – Aug. 2008 13

KNX association ● 50 KNX training centres ● To grant a qualified training of prospective KNX partners minimum requirements have to be fulfilled to become registered as a certified training centre: ● Media equipment ● Training equipment incl. devices and components shall be available to realize the following functions : ● Switching ● Dimming ● Shutter Control ● Coupling of two TP 1 lines ● For tutor aptitude: At least one (internal or external) tutor shall be in the possession of a tutor certificate. ● Certified training centres will be put in an international database that can be consulted via the KNX web pages. Schneider Electric - IS&C – Aug. 2008 14

KNX association ● 57 scientific KNX partners (in about 18 countries) ● Technical Universities or technical institutes receive access to the KNX specifications & tools ● They do continuous research on KNX related applications ● Universities can be involved in projects together with KNX Members (e. g. development of KNX products) or students at these KNX Scientific Members can choose KNX as the topic of their end (Ph. D. ) projects. ● Yearly arrange of a Scientific conference to show the State-of-the-Art Schneider Electric - IS&C – Aug. 2008 15

KNX association ● 3 associated KNX partners ● KNX-friendly associations and organisations ● BACnet Interest Group Europe BACnet is the data Communication Protocol for Building Automation and Control Networks. ● CABA, "Continental Automated Buildings Association", promotes advanced technologies for the automation of homes and buildings in North America. ● CECED, "Conseil Européen de la Construction d'appareils Domestiques", represents the household appliance industry in Europe. Schneider Electric - IS&C – Aug. 2008 16

KNX association ● 4 accredited test laboratories ● Test labs location: DIAL (DE), Siemens (DE), LCIE (FR), IMQ (Italy) ● The KNX/EIB certification guarantees a high level of product quality and interoperability ● Manufacturer independent certification and interworking tests mainly on new applications and communication media ● For SW testing, KNX accredited test labs are authorised to carry out third party KNX system and interworking testing. For HW testing, use testing facilities at own premises or take assign a KNX test laboratory. Emphasis is put on testing of uncertified parts only. ● A uniform test tool enables the manufacturer to prepare much of the software test campaign at own premises and provides this preparation as input for third party testing. ● When KNX certification dep. has received all test report, system & interworking conformity together with the CE declaration for the HW, a certificate is issued for use of the trademark on the tested product ● On registration and certification the entry of the product data in the central database of the ETS follows Schneider Electric - IS&C – Aug. 2008 17

KNX: The World`s Only Open Standard for Home and Building Control Make the most of your energy! Schneider Electric - IS&C – Aug. 2008 18
