JI Quick Reference Guide AirpowerFrom the Ground Up
- Slides: 28
JI Quick Reference Guide “Airpower…From the Ground Up!” 1

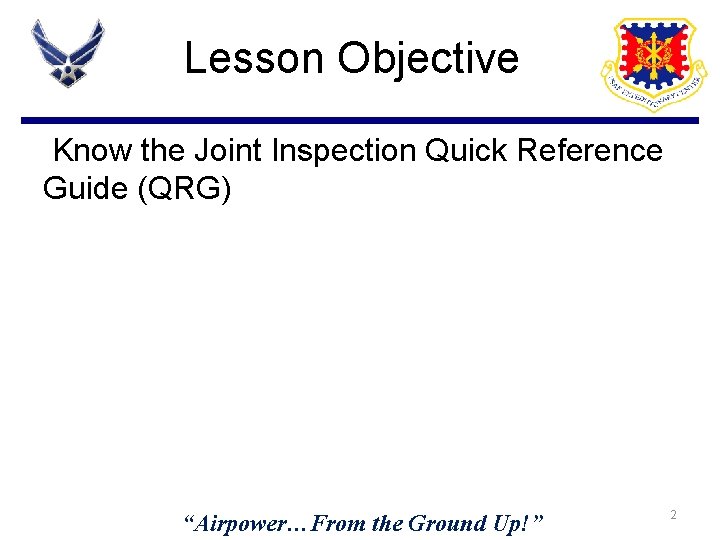

Lesson Objective Know the Joint Inspection Quick Reference Guide (QRG) “Airpower…From the Ground Up!” 2

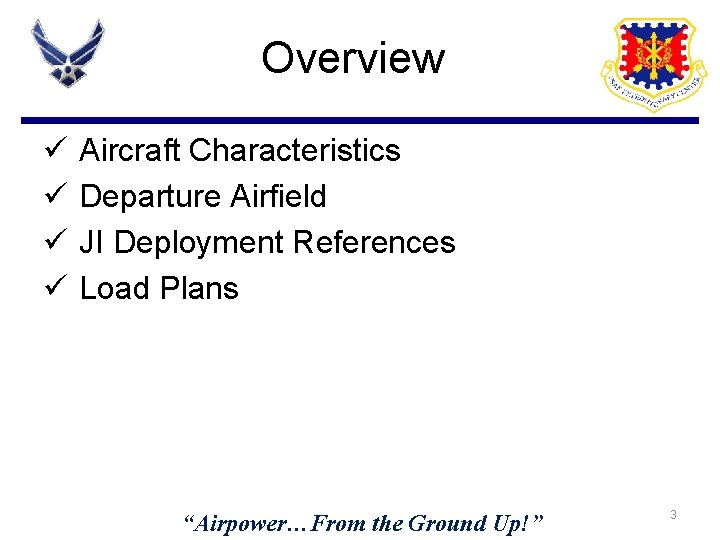

Overview ü ü Aircraft Characteristics Departure Airfield JI Deployment References Load Plans “Airpower…From the Ground Up!” 3
Military Aircraft “Airpower…From the Ground Up!” 4
C-130 E/H/J Hercules STATISTICS CONFIGURATIONS ─ C-1 Maxslick cargo floor weight: 25, 000 lbs ─ C-2 Maxmax cargo pallets, height: no 96” pax ─ CP-1 Max passengers 44 side seats, (over baggage land): pallet 90 ─ Max passengers (over water): 74 ─ Max cargo Pallets: 6 “Airpower…From the Ground Up!” 5
C-130 J Stretch C-130 J-30 Stretch CONFIGURATIONS STATISTICS ─ Max cargo weight: 35, 000 lbs ─ floor ─ C-1 Maxslick cargo height: 96” ─ pallets, no paxland): 138 ─ C-2 Maxmax passengers (over ─ 48 side seats, baggage ─ CP-1 Max passengers (over water): pallet 138 ─ Max cargo Pallets: 8 “Airpower…From the Ground Up!” 6
C-5 A/B Galaxy STATISTICS CONFIGURATIONS ─ CP-1 Max cargo max pallets weight: 150, 000 lbs ─ CP-2 Max cargo slick floor height foraft rolling loading: stock 112” ─ CP-3 Max cargo combination height front CP-1 loading: & CP-2 156” ─ Max passengers (over land): 73 ─ Max passengers (over water): 73 ─ Max cargo Pallets: 36 “Airpower…From the Ground Up!” 7
C-17 A Globemaster III CONFIGURATIONS STATISTICS ─ C-1 Max 11 cargo pallets weight: ADS & 54 90, 000 pax lbs ─ C-2 Maxslick cargo floor height: & 54 pax 142” or 156” ─ C-3 Max 18 passengers pallets LRS (side): no pax 54 ─ CP-1 Max passengers # seats based (total): on # pallets 102 ─ Max cargo pallets (ADS): 11 ─ Max cargo pallets (LRS): 18 ─ Max ramp weight: 40, 000 lbs “Airpower…From the Ground Up!” 8
KC-10 A Extender STATISTICS CONFIGURATIONS ─ Code Max cargo B: 10 weight: Pax & 22 pallets 80, 000 lbs ─ Code Max cargo D: 69 height Pax &2 -12: 16 pallets 96” ─ Max cargo pallets: 22 ─ Max cargo weight 2 -6, 12: 6, 500 ─ Max cargo weight 7 -11: 10, 000 “Airpower…From the Ground Up!” 9

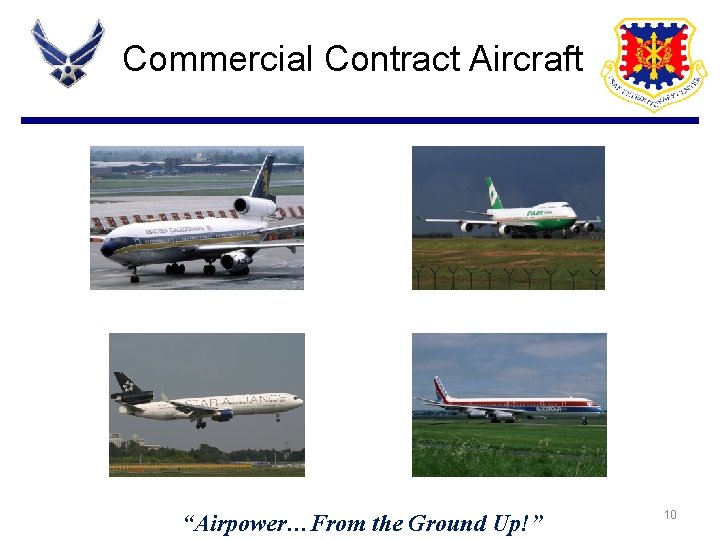

Commercial Contract Aircraft “Airpower…From the Ground Up!” 10

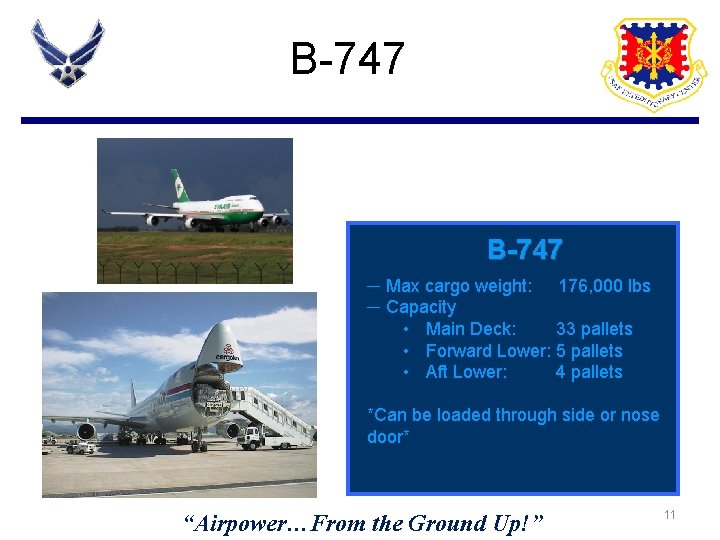

B-747 ─ Max cargo weight: 176, 000 lbs ─ Capacity • Main Deck: 33 pallets • Forward Lower: 5 pallets • Aft Lower: 4 pallets *Can be loaded through side or nose door* “Airpower…From the Ground Up!” 11
DC-10 ─ Max cargo weight: 180, 000 lbs ─ Capacity • Main Deck: 30 pallets • Forward Lower: 5 pallets • Aft Lower: Reserved *Cargo must be sub floored and contoured* “Airpower…From the Ground Up!” 12
MD-11 ─ Max cargo weight: 170, 000 lbs ─ Capacity • Main Deck: 35 pallets • Forward Lower: 6 pallets • Aft Lower: 4 pallets *Cargo must be sub floored* “Airpower…From the Ground Up!” 13
DC-8 ─ Max cargo weight: ─ Capacity • Main Deck: 82, 000 lbs 18 pallets *Cargo must be sub floored and contoured along with a 5, 000 pound ballast prior to loading* “Airpower…From the Ground Up!” 14

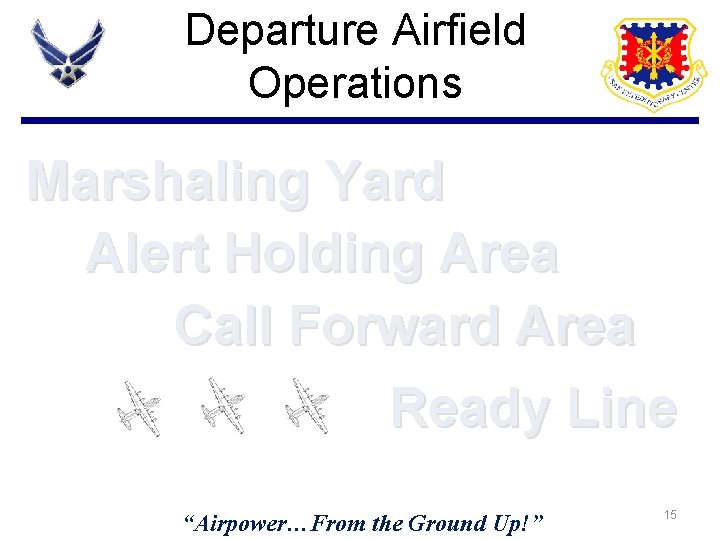

Departure Airfield Operations Marshaling Yard Alert Holding Area Call Forward Area Ready Line “Airpower…From the Ground Up!” 15

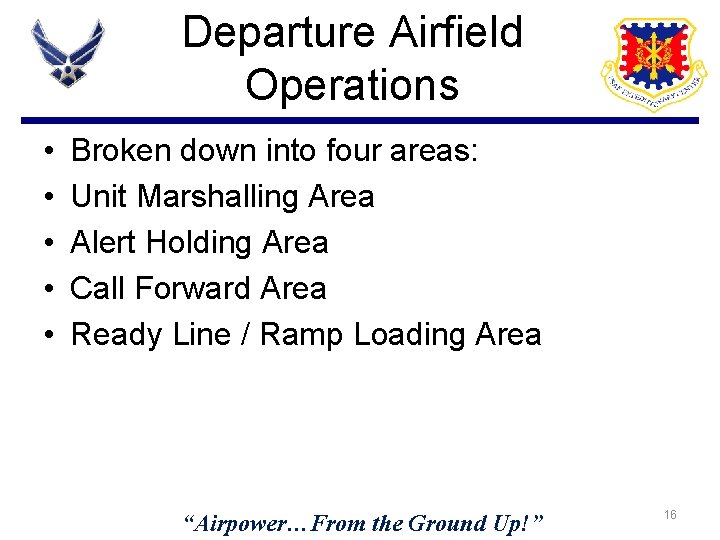

Departure Airfield Operations • • • Broken down into four areas: Unit Marshalling Area Alert Holding Area Call Forward Area Ready Line / Ramp Loading Area “Airpower…From the Ground Up!” 16

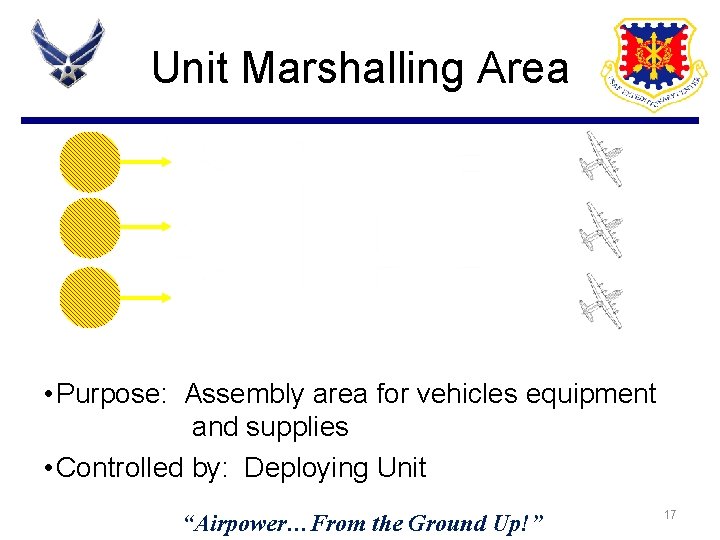

Unit Marshalling Area • Purpose: Assembly area for vehicles equipment and supplies • Controlled by: Deploying Unit “Airpower…From the Ground Up!” 17

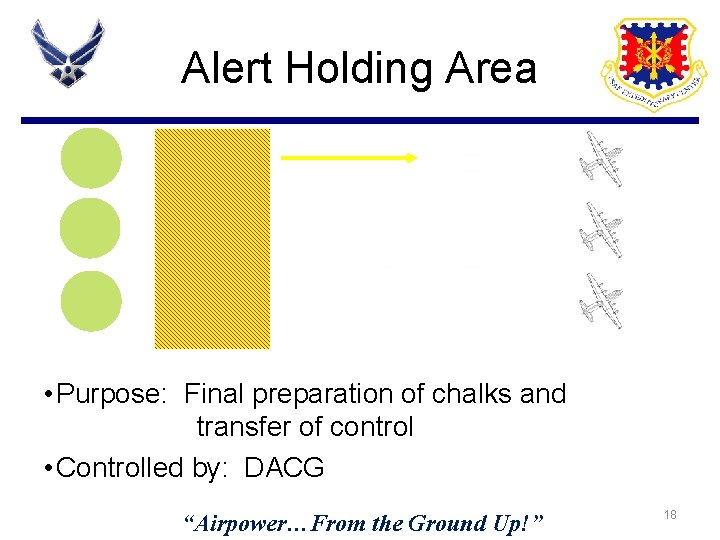

Alert Holding Area • Purpose: Final preparation of chalks and transfer of control • Controlled by: DACG “Airpower…From the Ground Up!” 18

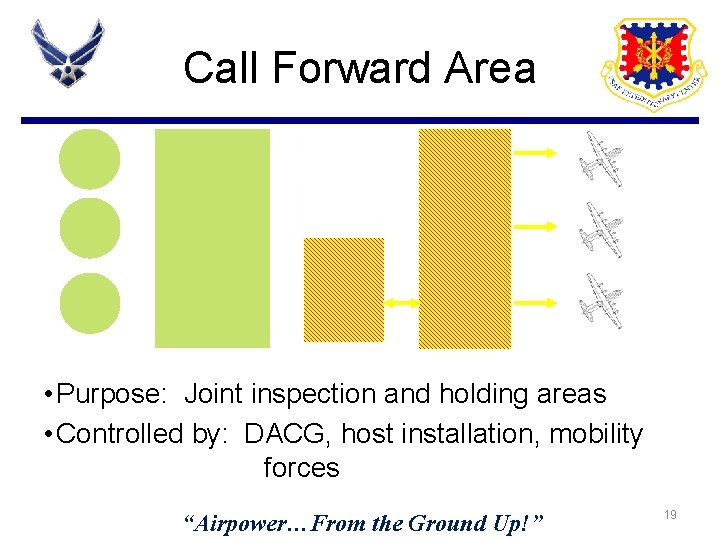

Call Forward Area • Purpose: Joint inspection and holding areas • Controlled by: DACG, host installation, mobility forces “Airpower…From the Ground Up!” 19
Ready line/Loading Ramp Area • Purpose: Aircraft loading • Controlled by: Mobility forces “Airpower…From the Ground Up!” 20
Responsibilities • Call Forward Area – Deploying Unit – DACG – Mobility Force “Airpower…From the Ground Up!” 21
JI Deployment References “Airpower…From the Ground Up!” 22
Mobility TCN Construction FJRT 104$G 108150 XX Positions Position 15: 16 -17: Positions 9 -10: 11 -14: Positions 2 -8: Position 1: Positions Split/Partial Shipment TCN Indicator Reserved code Service. ULN/UIC Code Shipment Number • • • One shipment: XX A - Army • • 0 service indicates that the # • For use • Must be 7 digits AF uses increment F - Air • Force • is. Split Shipment: XA cargoused using a • Normally for Use $ for shorter N - Navy • Partial mobility TCN Shipment: AX echelon codes deployment M - Marines 23 “Airpower…From the Ground Up!”

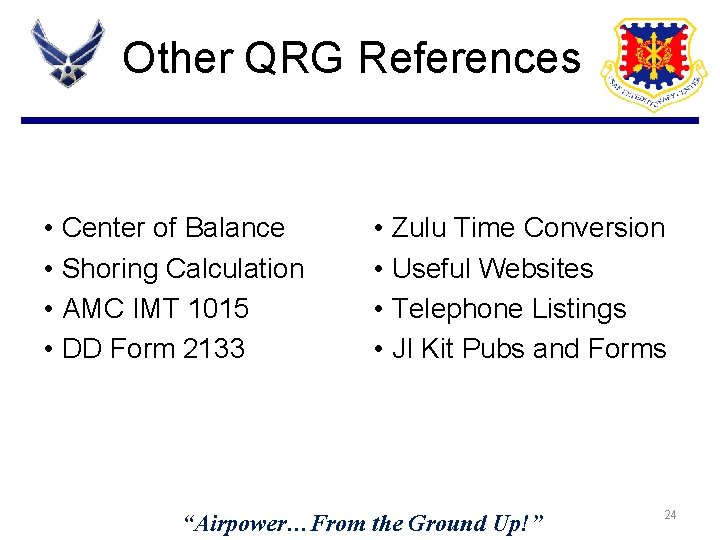

Other QRG References • Center of Balance • Shoring Calculation • AMC IMT 1015 • DD Form 2133 • Zulu Time Conversion • Useful Websites • Telephone Listings • JI Kit Pubs and Forms “Airpower…From the Ground Up!” 24
ICODES • Integrated Computerized Deployment System • Header Information • Schematic of Aircraft • Load Information • Load Summary • Signatures “Airpower…From the Ground Up!” 25
DD Form 2130 Series • • • Manual Load Plan Header Information Schematic of Aircraft Load Information Signatures Reverse “Airpower…From the Ground Up!” 26
Lesson Objective • Know the Joint Inspection Quick Reference Guide (QRG) “Airpower…From the Ground Up!” 27

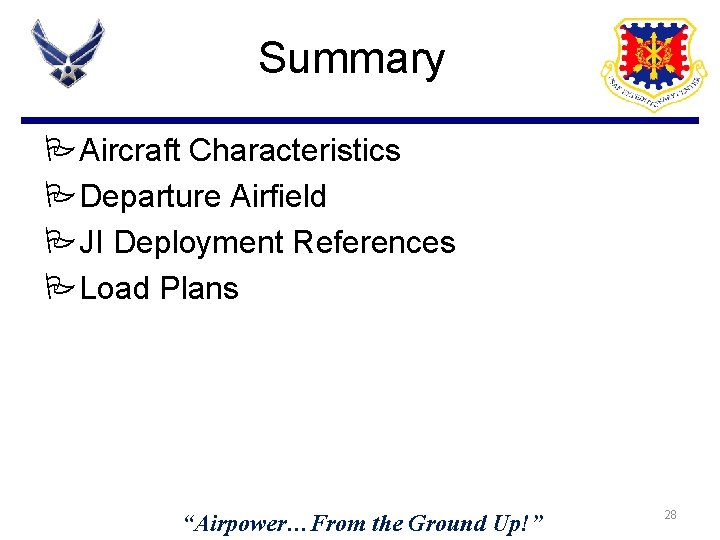

Summary PAircraft Characteristics PDeparture Airfield PJI Deployment References PLoad Plans “Airpower…From the Ground Up!” 28
