skin expansion in forehead reconstruction resurfacing of large congenital defects. the patient, a one-year old girl, presented with a giant congenital nevus. three forehead and scalp expanders were implanted simultaneously for in situ forehead flap growth. the follow-up photograph shows the girl at age three the initial defect was excised and resurfaced with expanded forehead and scalp flaps. growing skin 4

skin expansion in forehead reconstruction resurfacing of large congenital defects. the patient, a one-year boy, presented with a giant congenital nevus. simultaneous forehead, cheek, and scalp expanders were implanted for in situ skin growth. this technique allows to resurface large anatomical areas with skin of similar color, quality, and texture. the follow-up photograph shows the boy at age three after forehead reconstruction. growing skin 5

tissue expanders in reconstructive surgery typical applications are birth defect correction, scar revision in burn injuries, and breast reconstruction after tumor removal. devices are available in different shapes and sizes, circular, square, rectangular, and crescent-shaped. they consist of a silicone elastomer inflatable expander with a reinforced base for directional expansion, and a remote silicone elastomer injection dome. mentor worldwide llc. growing skin 6

schematic sequence of tissue expansion reference configuration loaded configuration grown configuration unloaded configuration at biological equilibrium, the skin is in a physiological state of resting tension. a tissue expander is implanted subcutaneously between the skin and the hypodermis. when the expander is inflated, mechanical stretch induces cell proliferation causing the skin to growth restores the state of resting tension. expander deflation reveals residual stresses in the skin layer. growing skin 7

langer‘s lines - orientation of collagen fibers carl ritter von langer [1819 -1887] modeling skin

collagen fibers - hierarchical microstructure glycin hydroxyprolin amino acids about 1000 amino acids form collagen chain three chains form collagen triple helix collagen fibrils form collagen fiber modeling skin

wormlike chain model kuhn [1936], [1938], porod [1949], kratky, porod [1949], treolar [1958], flory [1969], bustamante, smith, marko, siggia [1994], marko, siggia [1995], rief [1997], holzapfel [2000], bischoff, arruda, grosh [2000], [2002], miehe, göktepe, lulei [2004], kuhl, garikipati, arruda, grosh [2005], böl, reese [2008] modeling skin

nonlinear, anisotropic, locking eight wormlike chains unit cell bulk eight-chain model transversely isotropic eight chain model. individual chains are modeled as wormlike chains. eight chains are assembled in a transversely isotropic unit cell. the energy of each unit cell consists of the bulk energy, the energy of the eight individual chains, and their repulsive contributions. modeling skin 11

nonlinear, anisotropic, locking nominal stress [N/cm 2] 2. 0 || Langer’s lines 1. 6 1. 2 0. 8 0. 4 0. 0 1. 00 1. 25 1. 50 1. 75 2. 00 stretch [-] uniaxial tension test. transversely isotropic wormlike-chain based eight chain model. dots represent experiments of rabbit skin tested parallel and perpendicular to langer's lines, lanir & fung [1974]. lines represent the corresponding computational simulation. the model nicely captures the characteristic features of skin, including the strong non-linearity, the anisotropy, and the locking stretches. modeling skin 12

kinematics of finite growth illustration of covariant spatial metric g, deformation tensors C and Ce, stress tensors S, P, Pe and , and mappings F = Fe · Fg and F-t = Fe-t · Fg-t between tangent spaces TB and cotangent spaces TB* in the material configuration, the intermediate configuration, and the spatial configuration. modeling skin 13

stretch-induced area growth deformation gradient with volume change with area change with growth tensor lee [1969], rodriguez, hoger, mc culloch [1994], taber [1995], epstein, maugin [2000], lubarda, hoger [2002], ambrosi, mollica [2002], himpel, kuhl, menzel, steinmann [2005], goriely, ben amar [2005], menzel [2005], kuhl, maas, himpel, menzel [2007], garikipati [2009], goktepe, abilez, kuhl [2010] modeling skin 14

stretch-induced area growth tensor area growth weighting function growth criterion himpel, kuhl, menzel, steinmann [2005], kuhl, maas, himpel, menzel [2007], goktepe, abilez, parker, kuhl [2010], goktepe, abilez, kuhl [2010], schmid, pauli, paulus, kuhl [2011], buganza tepole, ploch, wong, gosain, kuhl [2011], buganza tepole, gosain, kuhl [2011] modeling skin 15

relaxation & creep area stretch [-] 5. 0 4. 0 area stretch [-] u u 5. 0 u u F F constant total stretch 4. 0 3. 0 2. 0 F F constant elastic stretch 1. 0 0. 00 0. 24 0. 48 0. 72 0. 96 normalized time [-] temporal evolution of total area stretch, reversible elastic area stretch, and irreversible growth area stretch for displacement- and force-controlled skin expansion. displacement control induces relaxation, a decrease in elastic stretch, while the growth stretch increases at a constant total stretch. force control induces creep, a gradual increase in growth stretch and total stretch at constant elastic stretch. modeling skin 16

algorithmic treatment given and local newton iteration check growth criterion calculate growth function calculate residual calculate tangent update growth multiplier check converngence calculate growth tensor calculate elastic right cauchy green calculate piola kirchhoff stress calculate lagrangian moduli simulating skin 17

expander inflation & deflation skin is modeled as a 0. 2 cm thin 12 12 cm 2 square sheet, discretized with 3 24 24=1728 trilinear brick elements, with 4 25 25=2500 nodes and 7500 degrees of freedom. the base surface area of all expanders is scaled to 148 elements corresponding to 37 cm 2. this area, shown in red, is gradually pressurized from below while the bottom nodes of all remaining elements, shown in white, are fixed. simulating skin 18

fractional area gain & expander volume fraction area gain [-] expander volume [cm 3] 300 1. 6 250 1. 2 200 150 0. 8 100 0. 4 50 0. 00 0. 24 0. 48 0. 72 0. 96 normalized time [-] tissue expander inflation. expanders are inflated gradually between t=0. 00 and t=0. 08 by linearly increasing the pressure, which is then held constant from t=0. 08 to t=1. 00 to allow the skin to grow. under the same pressure, the circular expander displays the largest fractional area gain and expander volume, followed by the square, the rectangular, and the crescent-shaped expanders. stretching skin 19

fractional area gain & expander volume fraction area gain [-] expander volume [cm 3] 300 1. 6 250 1. 2 200 150 0. 8 100 0. 4 50 0. 00 0. 24 0. 48 0. 72 0. 96 normalized time [-] tissue expander inflation. expanders are inflated gradually between t=0. 00 and t=0. 08 by linearly increasing the pressure, which is then held constant from t=0. 08 to t=1. 00 to allow the skin to grow. under the same pressure, the circular expander displays the largest area gain and expander volume, followed by the rectangular||, the square, the crescent||, the crescent , and the rectangular expanders. stretching skin 20

quantitative expander classification maximum growth [-] initial area A 0 [cm 2] absolute area gain A [cm 2] fractional area gain A/A 0 [-] expander volume V [cm 3] expander pressure p/E [-] residual stress /E [-] circular 2. 36 37. 00 58. 74 1. 59 257. 45 0. 002 0. 42 square 2. 35 37. 00 50. 63 1. 37 186. 77 0. 002 0. 41 rectangular 2. 26 37. 00 44. 40 1. 20 122. 06 0. 002 0. 34 crescent 2. 25 37. 00 41. 19 1. 11 108. 42 0. 002 0. 33 tissue expander inflation and deflation. maximum growth multiplier, absolute area gain, fractional area gain, and expander volume under constant pressure loading at time t=50 and maximum principal residual stresses upon unloading after a constant pressure growth until t=12 are largest for the circular expander, followed by the square, the rectangular, and the crescent shape expanders. stretching skin 21

area growth - isotropic skin model 1. 00 1. 35 1. 70 2. 05 2. 40 tissue expander inflation. spatio-temporal evolution of area growth. under the same pressure applied to the same base surface area, the circular expander induces the largest amount of growth followed by the square, the rectangular, and the crescent-shaped expanders. stretching skin 22

area growth - anisotropic skin model langer’s lines 1. 00 1. 35 1. 70 2. 05 2. 40 tissue expander inflation. spatio-temporal evolution of area growth. the circular expander induces the largest growth, followed by the square, the crescent-shaped, and the rectangular expanders. growth is smaller when the expanders are placed orthogonal to the strong direction, orthogonal to langer's lines. stretching skin 23

area growth - anisotropic|| skin model langer’s lines 1. 00 1. 35 1. 70 2. 05 2. 40 tissue expander inflation. spatio-temporal evolution of area growth. the circular expander induces the largest growth, followed by the rectangular, the square, and the crescent-shaped expanders. growth is larger when the expanders are placed along material's strong direction, aligned with langer's lines. stretching skin 24

elastic stretch - isotropic skin model 0. 90 0. 95 1. 00 1. 05 1. 10 tissue expander deflation. spatio-temporal evolution of elastic area stretch. as the expander pressure is gradually removed, from left to right, the grown skin layer collapses. deviations from a flat surface after total unloading, right, demonstrate the irreversibility of the growth process. stretching skin 25

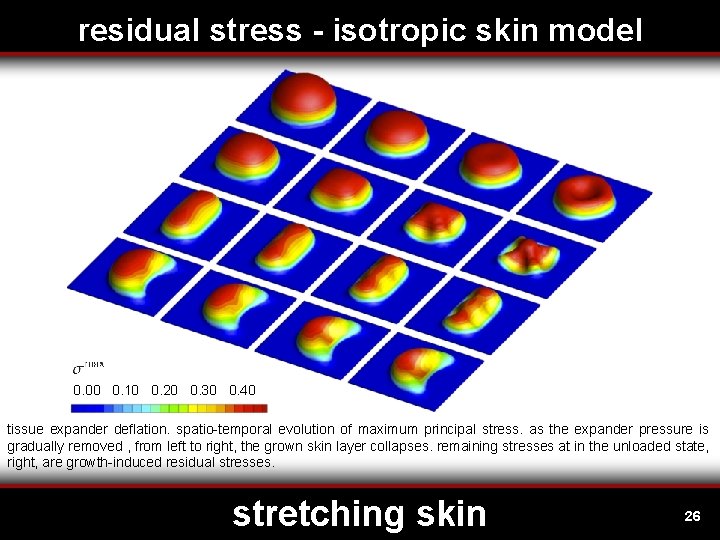

residual stress - isotropic skin model 0. 00 0. 10 0. 20 0. 30 0. 40 tissue expander deflation. spatio-temporal evolution of maximum principal stress. as the expander pressure is gradually removed , from left to right, the grown skin layer collapses. remaining stresses at in the unloaded state, right, are growth-induced residual stresses. stretching skin 26
