Flip Flops Not a gymnastic movement 91509 L

  • Slides: 15
Download presentation
Flip Flops Not a gymnastic movement. 9/15/09 - L 20 Flip Flops Copyright 2009

Flip Flops Not a gymnastic movement. 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 1

Class 20 – Flip Flops o o Definitions Latches n n o Set-Reset –

Class 20 – Flip Flops o o Definitions Latches n n o Set-Reset – SR The D Latch Material from section 5 -3 of text 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 2

Triggers o o o When the control input to a flip-flop changes value the

Triggers o o o When the control input to a flip-flop changes value the state of the latch in the flip-flop will change state. In a D-latch when the control input is a ‘ 1’, any changes on the input D will propagate to the output with the value of D at the time the control transitions from ‘ 1’ the final stored value. In a D flip-flop, the value on D on the rising edge (falling edge) of the control input will be the captured value. 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 3

Flip-flops o o o Constructed in such a way that they are edgetriggered. This

Flip-flops o o o Constructed in such a way that they are edgetriggered. This is in contrast to latches which are level sensitive and said to be transparent. There are two general methodologies for making flip-flops n n Edge-triggered Master-Slave 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 4

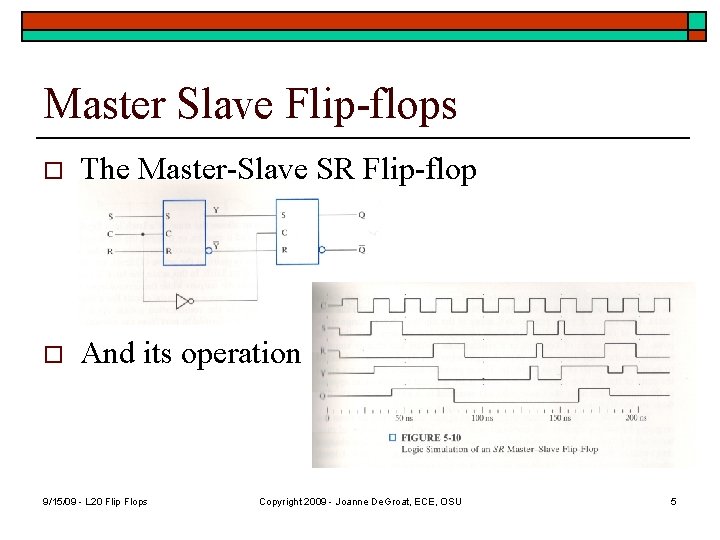

Master Slave Flip-flops o The Master-Slave SR Flip-flop o And its operation 9/15/09 -

Master Slave Flip-flops o The Master-Slave SR Flip-flop o And its operation 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 5

Master Slave D Flip-flop o o Can be constructed from the MS SR FF

Master Slave D Flip-flop o o Can be constructed from the MS SR FF by replacing the master SR latch by a D latch. This arrangement is also negative edge triggered. 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 6

A HDL model of the same o The SR latch model with control input

A HDL model of the same o The SR latch model with control input C 9/15/09 - L 20 Flip Flops ENTITY SR_latch IS PORT (S, R, C : IN BIT; Q, Q_bar : OUT BIT); END SR_latch; ARCHITECTURE one OF SR_latch IS SIGNAL CS, CR : BIT; SIGNAL Q_int, Q_bar_int : BIT; BEGIN CS <= S nand C after 1 ns; CR <= R nand C after 1 ns; Q_int <= CS nand Q_bar_int after 1 ns; Q_bar_int <= CR nand Q_int after 1 ns; Q <= Q_int; Q_bar <= Q_bar_int; END one; Copyright 2009 - Joanne De. Groat, ECE, OSU 7

A testbench to provide stimulus o o tb model Links in the latch in

A testbench to provide stimulus o o tb model Links in the latch in a master slave manner 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 8

VHDL simulation results o Waveform display 9/15/09 - L 20 Flip Flops Copyright 2009

VHDL simulation results o Waveform display 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 9

The D Flip-flop o The D can be constructed from the use of a

The D Flip-flop o The D can be constructed from the use of a D latch and an SR latch. 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 10

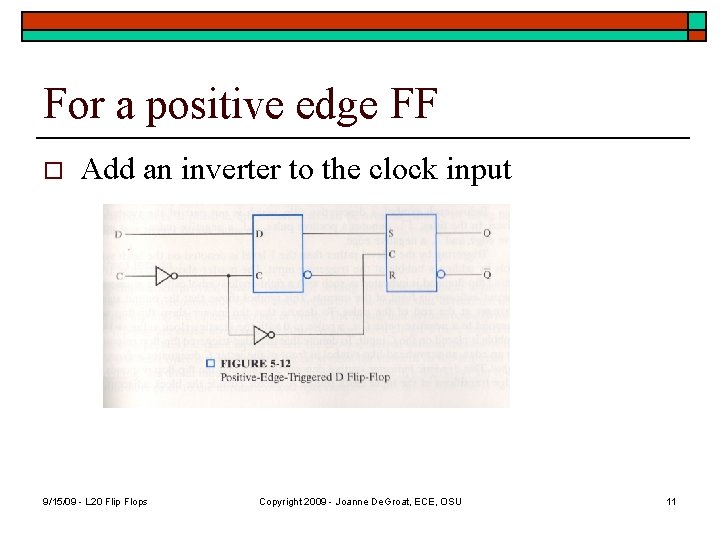

For a positive edge FF o Add an inverter to the clock input 9/15/09

For a positive edge FF o Add an inverter to the clock input 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 11

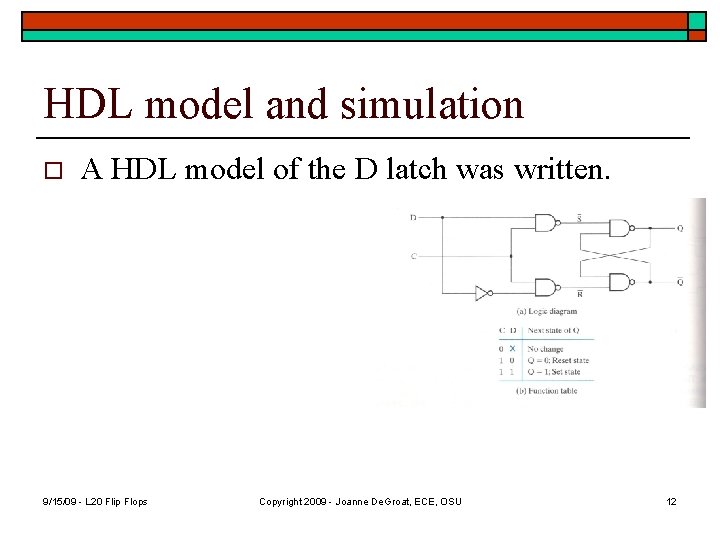

HDL model and simulation o A HDL model of the D latch was written.

HDL model and simulation o A HDL model of the D latch was written. 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 12

HDL simulation o o Results now for the D F/F Remember the delays 9/15/09

HDL simulation o o Results now for the D F/F Remember the delays 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 13

Flip flop with preset and clear o o Allows direct setting of state of

Flip flop with preset and clear o o Allows direct setting of state of flip-flop. When initially powered state of flip-flop is unknown. The sets the FF to a known state. 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 14

Class 20 assignment o o Covered sections 5 -1 and 5 -2 Problems for

Class 20 assignment o o Covered sections 5 -1 and 5 -2 Problems for hand in n o Problems for practice n o L 20 HW (on webpage) none Reading for next class: sections 5 -4 9/15/09 - L 20 Flip Flops Copyright 2009 - Joanne De. Groat, ECE, OSU 15
