Error Resilience for MPEG-4 Environment Nimrod Peleg Nov. 2000.

MPEG-4 Error Resilience Tools Three major categories: • Resynchronization • Data Partitioning • Data recovery • Extended header codes • RVLC • Error concealment

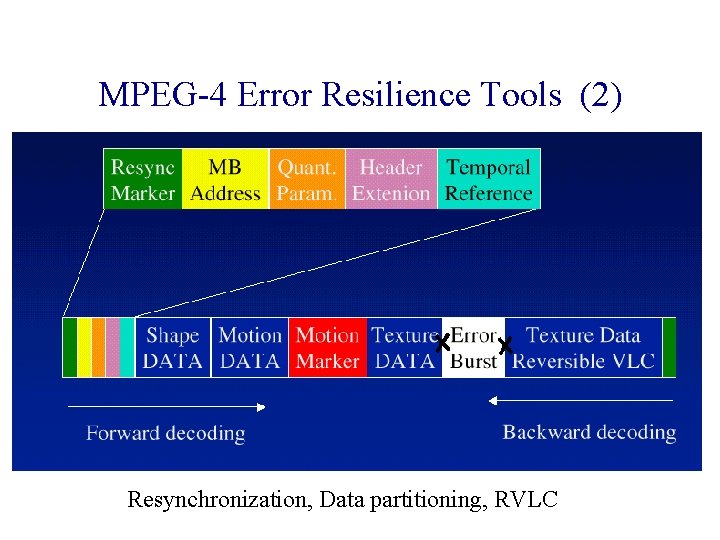

MPEG-4 Error Resilience Tools (2) Resynchronization, Data partitioning, RVLC

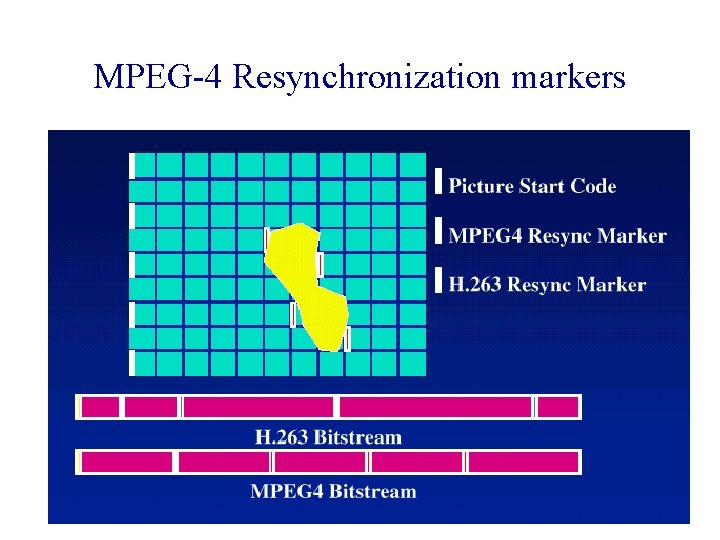

MPEG-4 Resynchronization markers

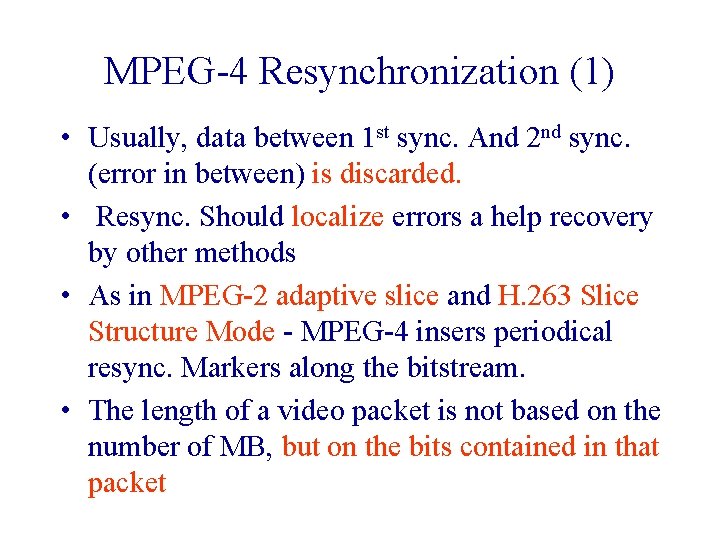

MPEG-4 Resynchronization (1) • Usually, data between 1 st sync. And 2 nd sync. (error in between) is discarded. • Resync. Should localize errors a help recovery by other methods • As in MPEG-2 adaptive slice and H. 263 Slice Structure Mode - MPEG-4 insers periodical resync. Markers along the bitstream. • The length of a video packet is not based on the number of MB, but on the bits contained in that packet

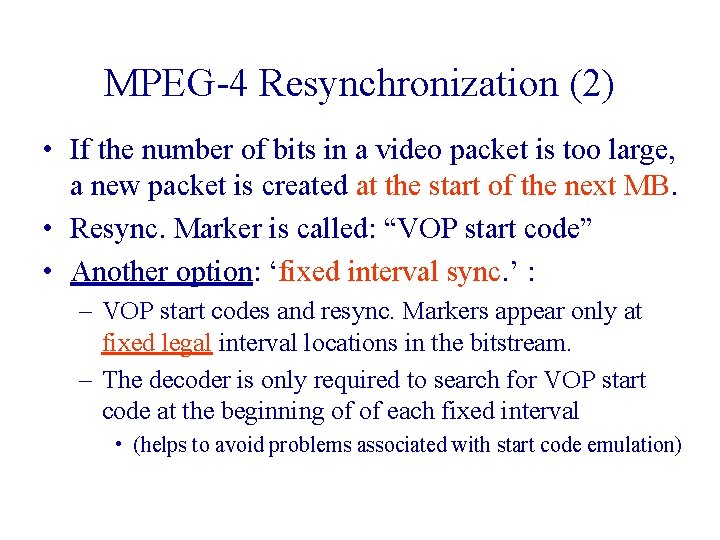

MPEG-4 Resynchronization (2) • If the number of bits in a video packet is too large, a new packet is created at the start of the next MB. • Resync. Marker is called: “VOP start code” • Another option: ‘fixed interval sync. ’ : – VOP start codes and resync. Markers appear only at fixed legal interval locations in the bitstream. – The decoder is only required to search for VOP start code at the beginning of of each fixed interval • (helps to avoid problems associated with start code emulation)

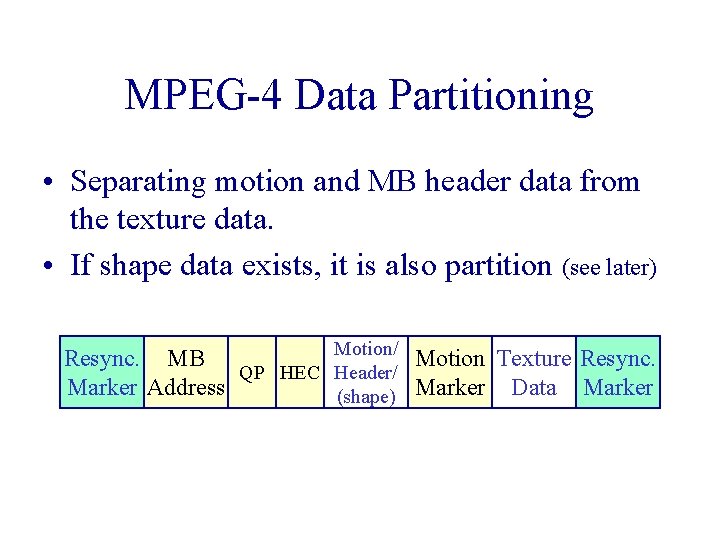

MPEG-4 Data Partitioning • Separating motion and MB header data from the texture data. • If shape data exists, it is also partition (see later) Motion/ Resync. MB Motion Texture Resync. QP HEC Header/ Marker Address (shape) Marker Data Marker

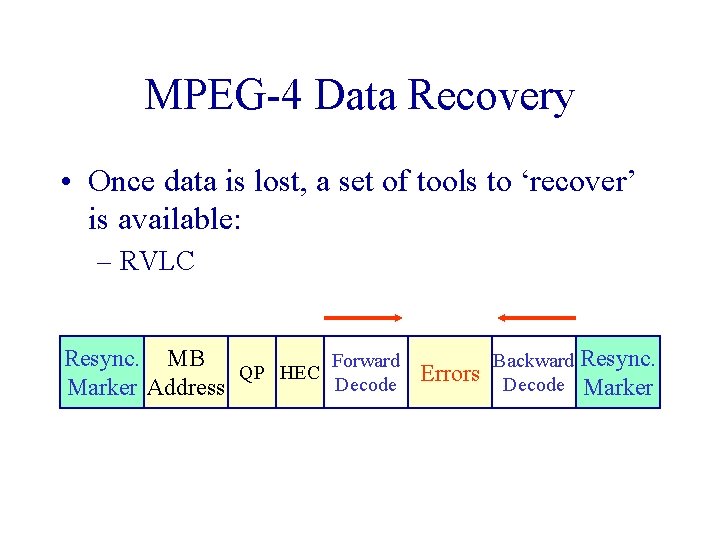

MPEG-4 Data Recovery • Once data is lost, a set of tools to ‘recover’ is available: – RVLC Resync. MB Forward Backward Resync. QP HEC Errors Decode Marker Address Marker

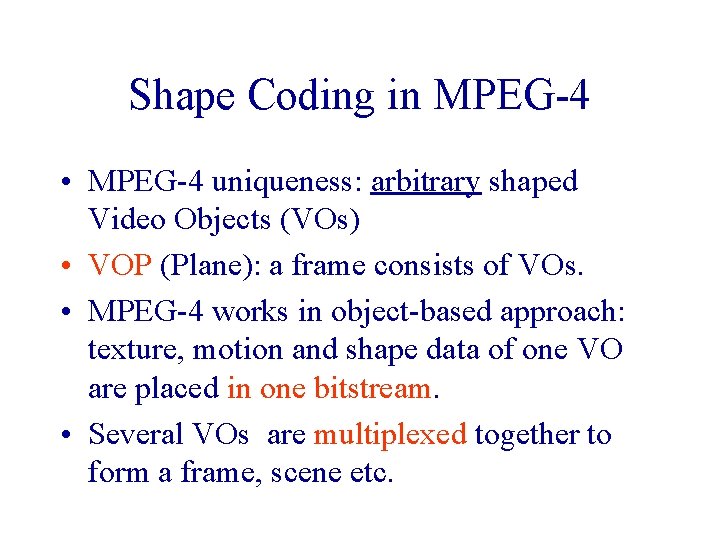

Shape Coding in MPEG-4 • MPEG-4 uniqueness: arbitrary shaped Video Objects (VOs) • VOP (Plane): a frame consists of VOs. • MPEG-4 works in object-based approach: texture, motion and shape data of one VO are placed in one bitstream. • Several VOs are multiplexed together to form a frame, scene etc.

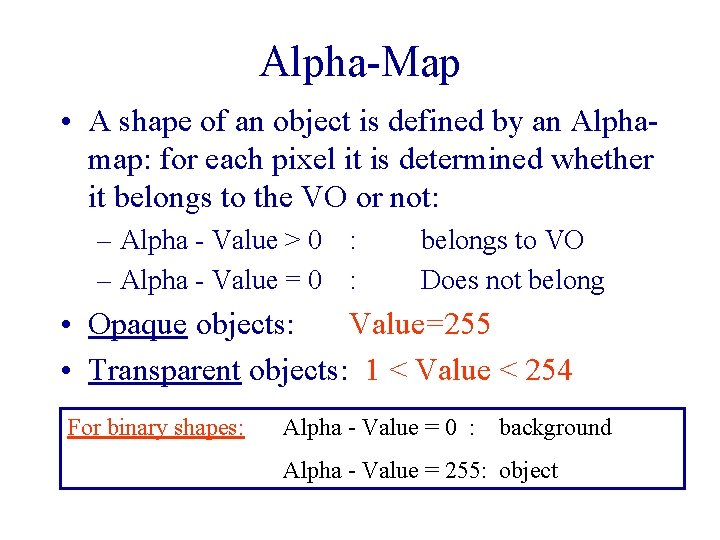

Alpha-Map • A shape of an object is defined by an Alphamap: for each pixel it is determined whether it belongs to the VO or not: – Alpha - Value > 0 : – Alpha - Value = 0 : belongs to VO Does not belong • Opaque objects: Value=255 • Transparent objects: 1 < Value < 254 For binary shapes: Alpha - Value = 0 : background Alpha - Value = 255: object

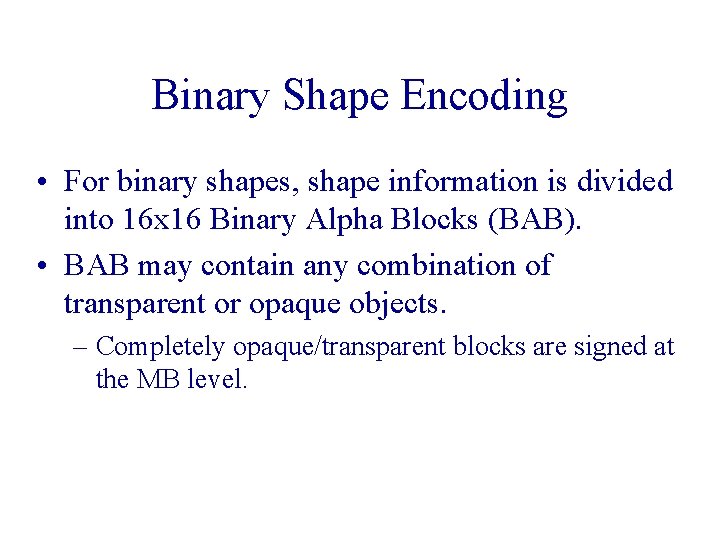

Binary Shape Encoding • For binary shapes, shape information is divided into 16 x 16 Binary Alpha Blocks (BAB). • BAB may contain any combination of transparent or opaque objects. – Completely opaque/transparent blocks are signed at the MB level.

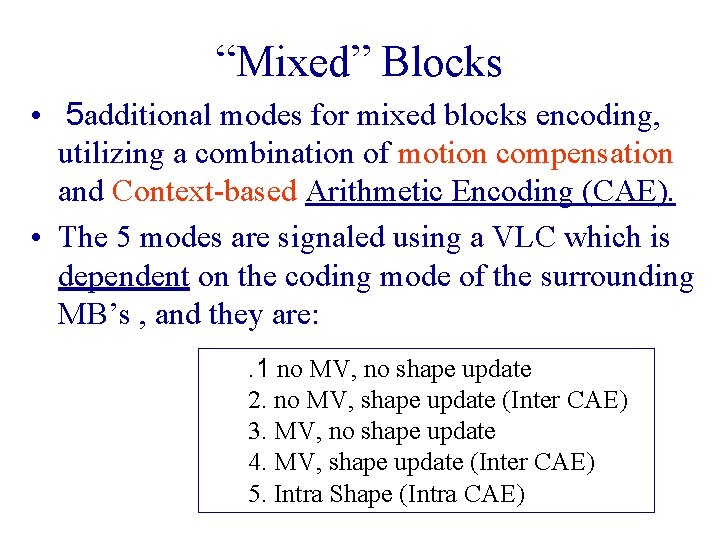

“Mixed” Blocks • 5 additional modes for mixed blocks encoding, utilizing a combination of motion compensation and Context-based Arithmetic Encoding (CAE). • The 5 modes are signaled using a VLC which is dependent on the coding mode of the surrounding MB’s , and they are: . 1 no MV, no shape update 2. no MV, shape update (Inter CAE) 3. MV, no shape update 4. MV, shape update (Inter CAE) 5. Intra Shape (Intra CAE)

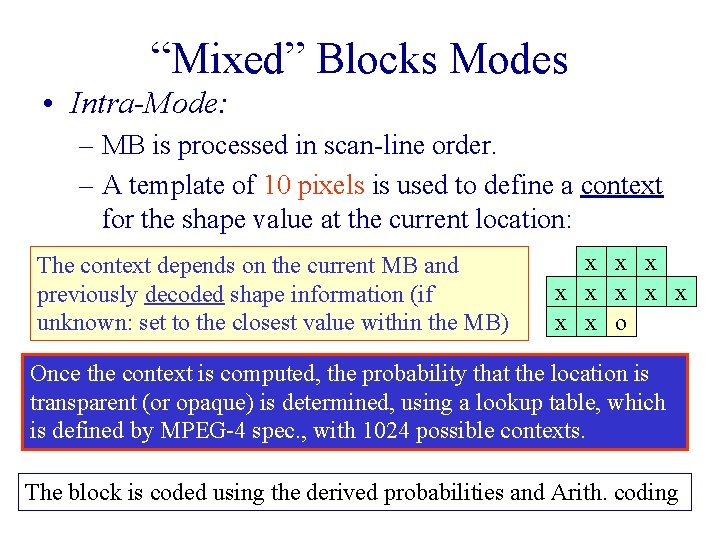

“Mixed” Blocks Modes • Intra-Mode: – MB is processed in scan-line order. – A template of 10 pixels is used to define a context for the shape value at the current location: The context depends on the current MB and previously decoded shape information (if unknown: set to the closest value within the MB) x x x x x o Once the context is computed, the probability that the location is transparent (or opaque) is determined, using a lookup table, which is defined by MPEG-4 spec. , with 1024 possible contexts. The block is coded using the derived probabilities and Arith. coding

“Mixed” Blocks Modes Cont’d • Inter-Mode – 4 additional modes (1 -4, above) appear in predicted VOPs (P, B, Sprite with global ME) – MC is used to provide initial estimate of the BAB – Estimation of the MV is derived from the neighboring MVs, and if there is differential value (sent by the encoder) it is added. – Binary shape information is extracted from the reference VOP, using pixel accurate motion compensation.

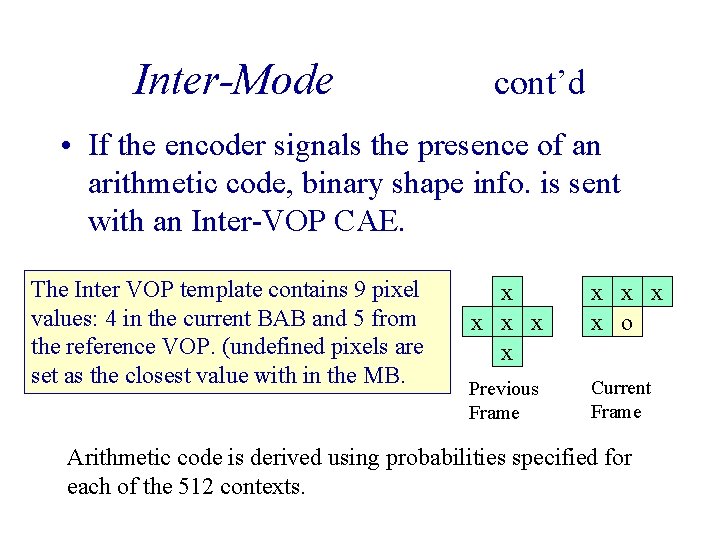

Inter-Mode cont’d • If the encoder signals the presence of an arithmetic code, binary shape info. is sent with an Inter-VOP CAE. The Inter VOP template contains 9 pixel values: 4 in the current BAB and 5 from the reference VOP. (undefined pixels are set as the closest value with in the MB. x x x x x o Previous Frame Current Frame Arithmetic code is derived using probabilities specified for each of the 512 contexts.

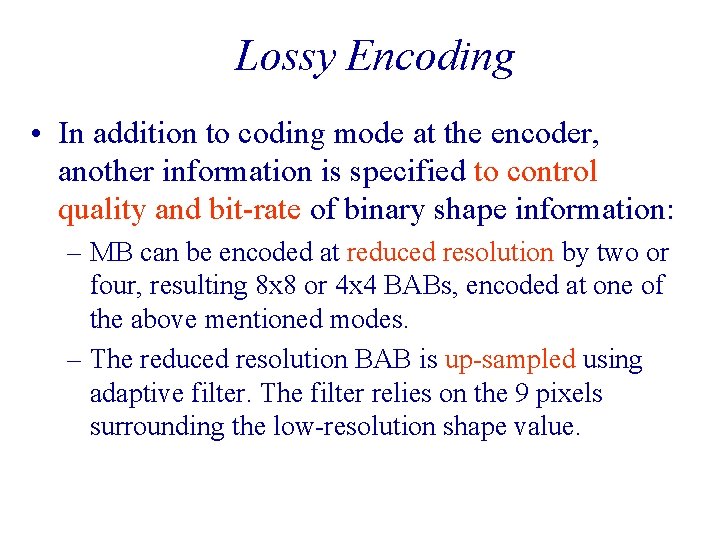

Lossy Encoding • In addition to coding mode at the encoder, another information is specified to control quality and bit-rate of binary shape information: – MB can be encoded at reduced resolution by two or four, resulting 8 x 8 or 4 x 4 BABs, encoded at one of the above mentioned modes. – The reduced resolution BAB is up-sampled using adaptive filter. The filter relies on the 9 pixels surrounding the low-resolution shape value.

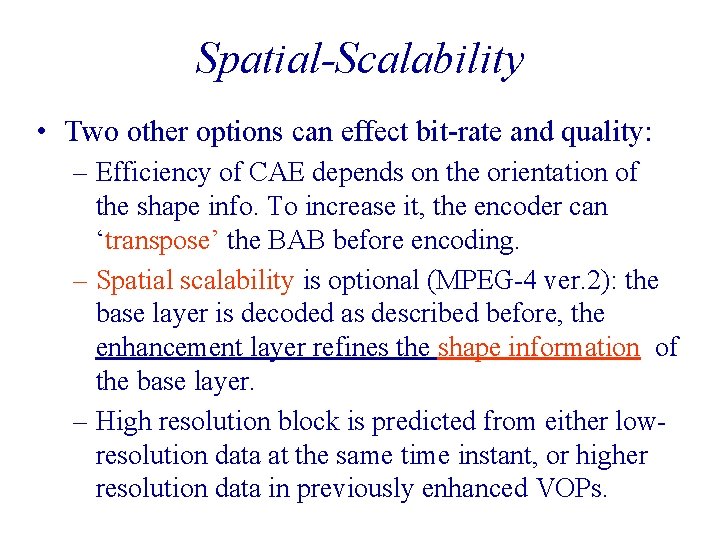

Spatial-Scalability • Two other options can effect bit-rate and quality: – Efficiency of CAE depends on the orientation of the shape info. To increase it, the encoder can ‘transpose’ the BAB before encoding. – Spatial scalability is optional (MPEG-4 ver. 2): the base layer is decoded as described before, the enhancement layer refines the shape information of the base layer. – High resolution block is predicted from either lowresolution data at the same time instant, or higher resolution data in previously enhanced VOPs.

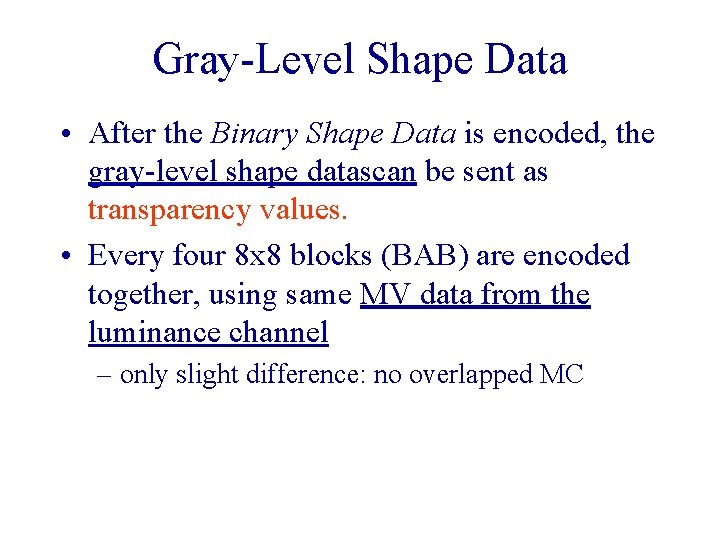

Gray-Level Shape Data • After the Binary Shape Data is encoded, the gray-level shape datascan be sent as transparency values. • Every four 8 x 8 blocks (BAB) are encoded together, using same MV data from the luminance channel – only slight difference: no overlapped MC

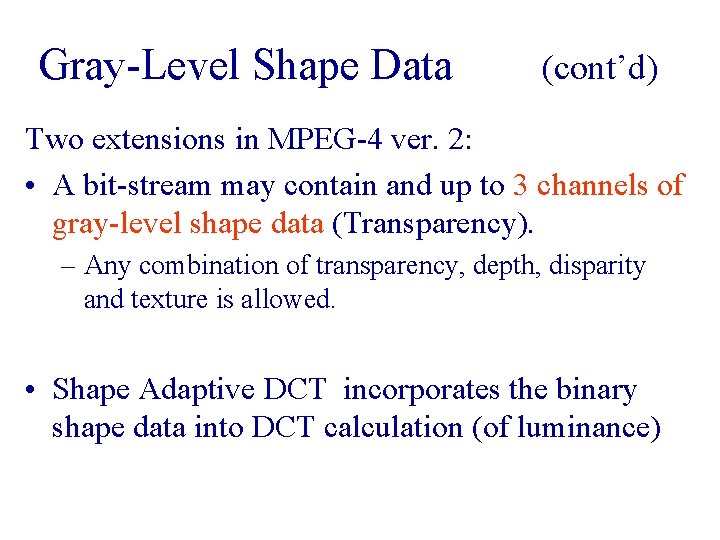

Gray-Level Shape Data (cont’d) Two extensions in MPEG-4 ver. 2: • A bit-stream may contain and up to 3 channels of gray-level shape data (Transparency). – Any combination of transparency, depth, disparity and texture is allowed. • Shape Adaptive DCT incorporates the binary shape data into DCT calculation (of luminance)

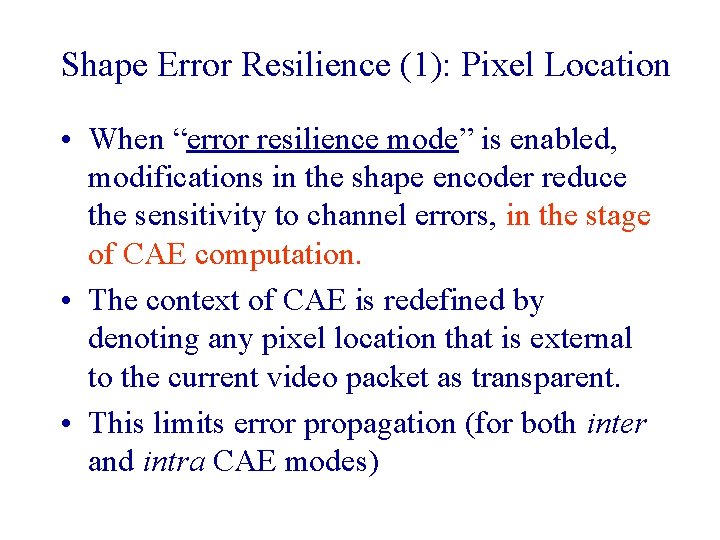

Shape Error Resilience (1): Pixel Location • When “error resilience mode” is enabled, modifications in the shape encoder reduce the sensitivity to channel errors, in the stage of CAE computation. • The context of CAE is redefined by denoting any pixel location that is external to the current video packet as transparent. • This limits error propagation (for both inter and intra CAE modes)

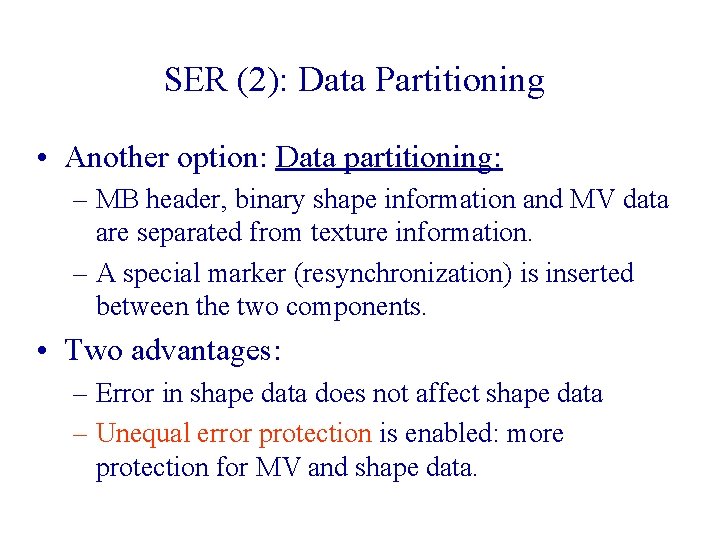

SER (2): Data Partitioning • Another option: Data partitioning: – MB header, binary shape information and MV data are separated from texture information. – A special marker (resynchronization) is inserted between the two components. • Two advantages: – Error in shape data does not affect shape data – Unequal error protection is enabled: more protection for MV and shape data.

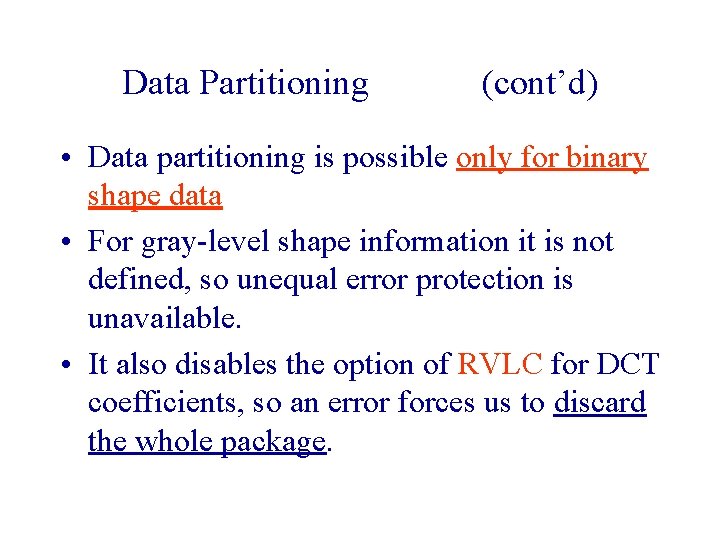

Data Partitioning (cont’d) • Data partitioning is possible only for binary shape data • For gray-level shape information it is not defined, so unequal error protection is unavailable. • It also disables the option of RVLC for DCT coefficients, so an error forces us to discard the whole package.

SER (3): Video packet header • This header can be inserted periodically, as resynchronization sign (start of MB). • It also includes redundant information from the VOP header: VOP can be decoded even if its header is corrupted ! • This is true only when no shape data exists… – in the former case, VOP header includes size and spatial location of the shape (which are not included in video packet header)

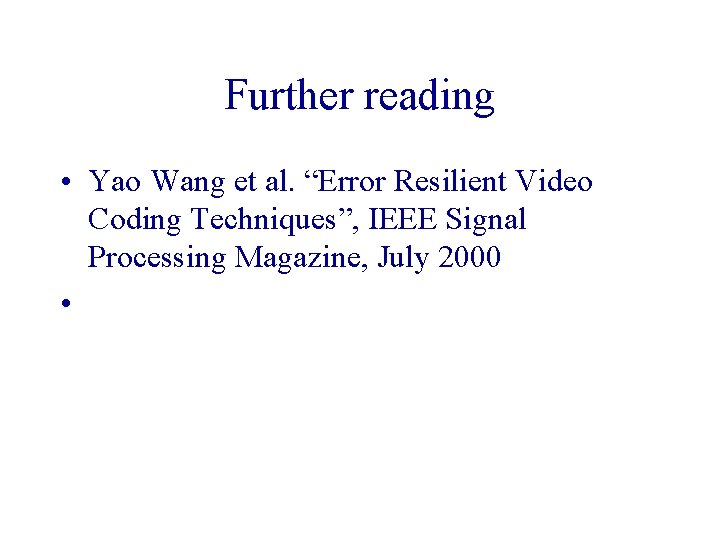

Further reading • Yao Wang et al. “Error Resilient Video Coding Techniques”, IEEE Signal Processing Magazine, July 2000 •
