Empirical Formulas n Empirical formulas smallest whole number
![Empirical Formulas n Empirical formulas: smallest whole number ratio of atoms present in a Empirical Formulas n Empirical formulas: smallest whole number ratio of atoms present in a](https://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-1.jpg)

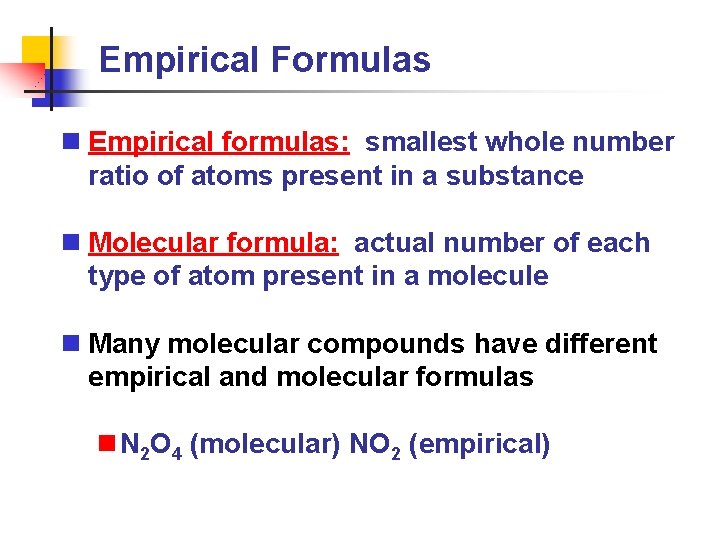

Empirical Formulas n Empirical formulas: smallest whole number ratio of atoms present in a substance n Molecular formula: actual number of each type of atom present in a molecule n Many molecular compounds have different empirical and molecular formulas n N 2 O 4 (molecular) NO 2 (empirical)
![Empirical Formulas n The empirical formula for a molecular compound can be found by Empirical Formulas n The empirical formula for a molecular compound can be found by](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-2.jpg)
Empirical Formulas n The empirical formula for a molecular compound can be found by dividing all subscripts in the molecular formula by the greatest common factor. n Examples: n C 6 H 12 O 6 n C 4 H 10 n Ca 2 SO 4
![Percent Composition n Empirical formulas are generally obtained by determining the percent composition of Percent Composition n Empirical formulas are generally obtained by determining the percent composition of](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-3.jpg)
Percent Composition n Empirical formulas are generally obtained by determining the percent composition of a compound: n Percent composition: n the percentage of the mass contributed by each element in a substance n % Element X = (# atoms of X)(AW) x 100% FW of compound
![Percent Compositon Example: Calculate the % composition of C 2 H 4 O 2 Percent Compositon Example: Calculate the % composition of C 2 H 4 O 2](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-4.jpg)

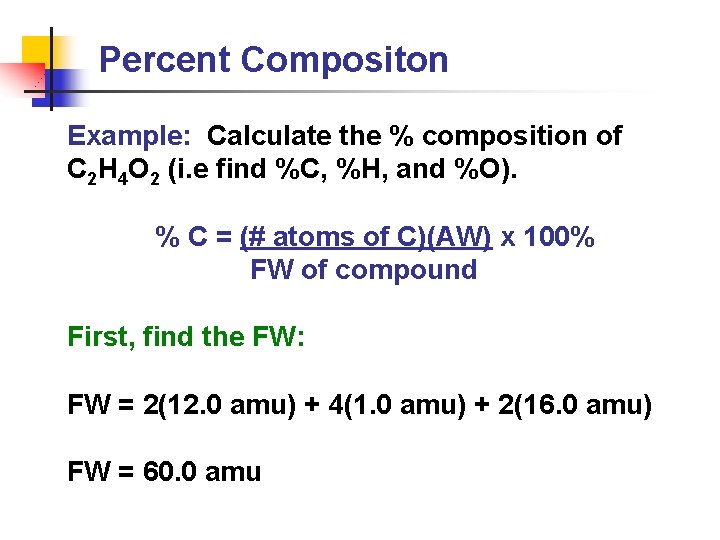

Percent Compositon Example: Calculate the % composition of C 2 H 4 O 2 (i. e find %C, %H, and %O). % C = (# atoms of C)(AW) x 100% FW of compound First, find the FW: FW = 2(12. 0 amu) + 4(1. 0 amu) + 2(16. 0 amu) FW = 60. 0 amu
![Percent Composition n Calculate the % composition for each element. % C = 2(12. Percent Composition n Calculate the % composition for each element. % C = 2(12.](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-5.jpg)
Percent Composition n Calculate the % composition for each element. % C = 2(12. 0 amu) x 100% = 40. 0% C 60. 0 amu % H = 4(1. 0 amu) x 100% = 6. 7 % H 60. 0 amu % O = 2(16. 0 amu) x 100% = 53. 3 % O 60. 0 amu
![Percent Composition Example: Calculate the % nitrogen in dinitrogen tetroxide. N 2 O 4 Percent Composition Example: Calculate the % nitrogen in dinitrogen tetroxide. N 2 O 4](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-6.jpg)
Percent Composition Example: Calculate the % nitrogen in dinitrogen tetroxide. N 2 O 4 FW = 2(14. 0 amu) + 4(16. 0 amu) = 92. 0 amu % N = 2(14. 0 amu) x 100% = 30. 4% 92. 0 amu
![Calculating Empirical Formulas n Percent composition data is commonly used to determine the empirical Calculating Empirical Formulas n Percent composition data is commonly used to determine the empirical](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-7.jpg)

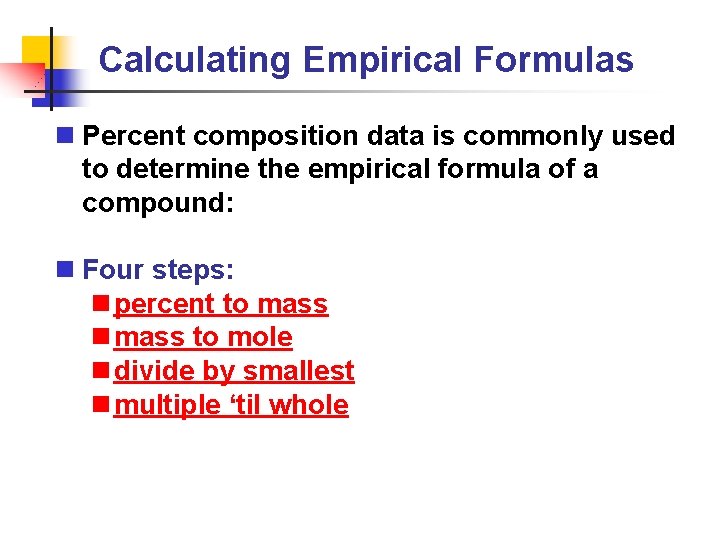

Calculating Empirical Formulas n Percent composition data is commonly used to determine the empirical formula of a compound: n Four steps: n percent to mass n mass to mole n divide by smallest n multiple ‘til whole
![Calculating Empirical Formulas Example: Calculate the empirical formula for a substance that contains 34. Calculating Empirical Formulas Example: Calculate the empirical formula for a substance that contains 34.](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-8.jpg)
Calculating Empirical Formulas Example: Calculate the empirical formula for a substance that contains 34. 63% C, 3. 875% H and 61. 50% O. Step 1: % to mass If you assume 100. 00 g of substance, then 34. 63 % C 34. 63 g C 3. 875 % H 3. 875 g H 61. 50 % O 61. 50 g O
![Calculating Empirical Formulas Step 2: Mass to moles # moles C = 34. 63 Calculating Empirical Formulas Step 2: Mass to moles # moles C = 34. 63](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-9.jpg)

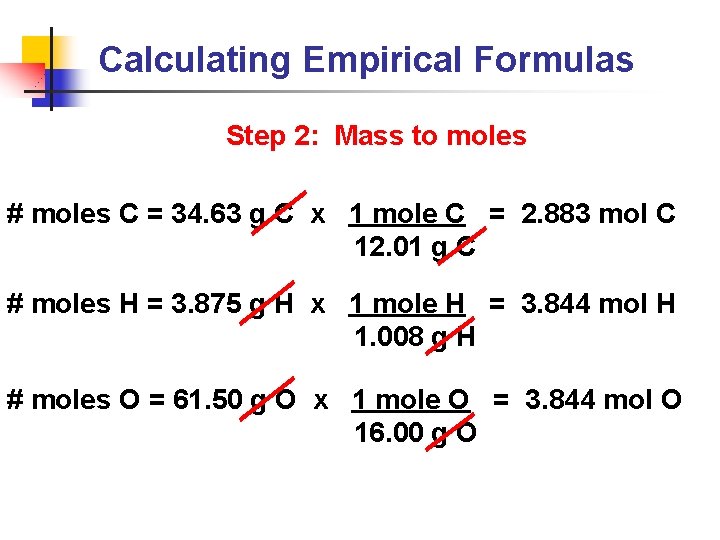

Calculating Empirical Formulas Step 2: Mass to moles # moles C = 34. 63 g C x 1 mole C = 2. 883 mol C 12. 01 g C # moles H = 3. 875 g H x 1 mole H = 3. 844 mol H 1. 008 g H # moles O = 61. 50 g O x 1 mole O = 3. 844 mol O 16. 00 g O
![Calculating Empirical Formulas Step 3: Divide by smallest (this gives the molar ratio of Calculating Empirical Formulas Step 3: Divide by smallest (this gives the molar ratio of](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-10.jpg)

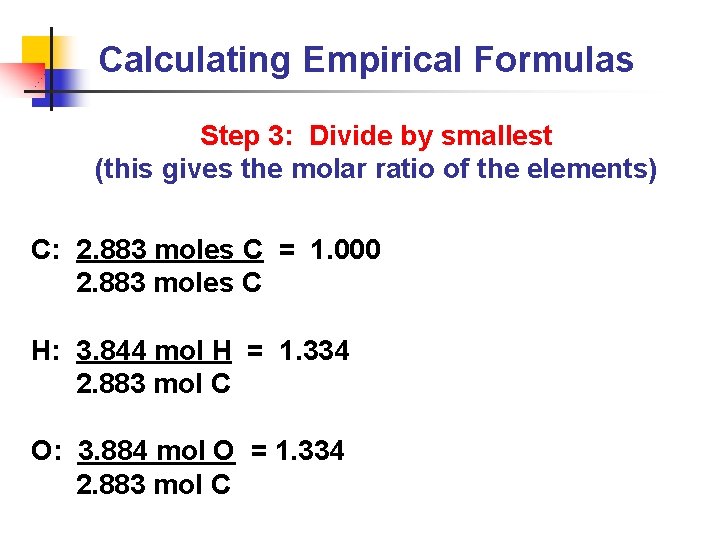

Calculating Empirical Formulas Step 3: Divide by smallest (this gives the molar ratio of the elements) C: 2. 883 moles C = 1. 000 2. 883 moles C H: 3. 844 mol H = 1. 334 2. 883 mol C O: 3. 884 mol O = 1. 334 2. 883 mol C
![Calculating Empirical Formulas Step 4: Multiply ‘til Whole (this step is necessary only when Calculating Empirical Formulas Step 4: Multiply ‘til Whole (this step is necessary only when](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-11.jpg)

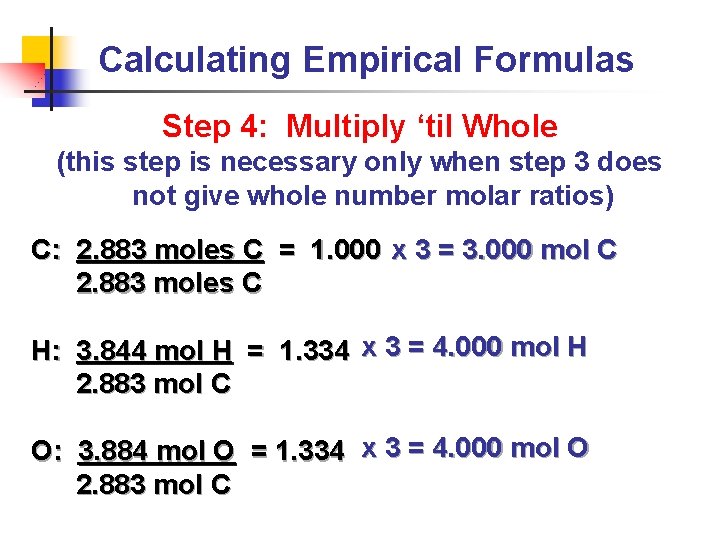

Calculating Empirical Formulas Step 4: Multiply ‘til Whole (this step is necessary only when step 3 does not give whole number molar ratios) C: 2. 883 moles C = 1. 000 x 3 = 3. 000 mol C 2. 883 moles C H: 3. 844 mol H = 1. 334 x 3 = 4. 000 mol H 2. 883 mol C O: 3. 884 mol O = 1. 334 x 3 = 4. 000 mol O 2. 883 mol C
![Calculating Empirical Formulas n Use these numbers to write the empirical formula: 3. 000 Calculating Empirical Formulas n Use these numbers to write the empirical formula: 3. 000](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-12.jpg)

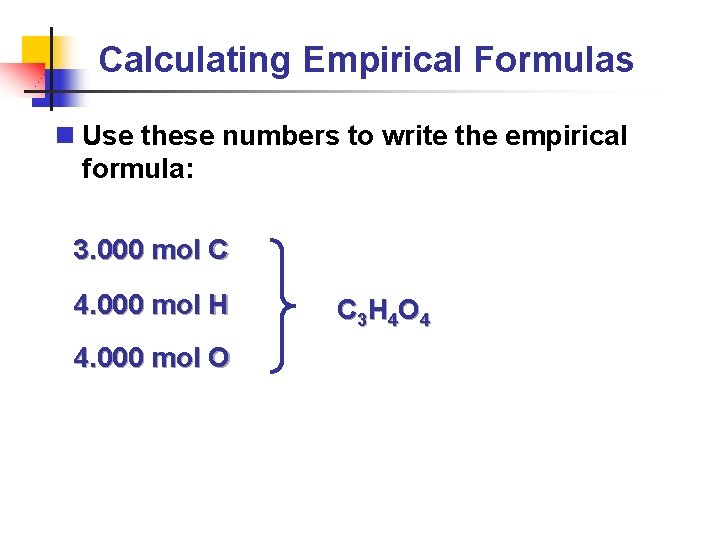

Calculating Empirical Formulas n Use these numbers to write the empirical formula: 3. 000 mol C 4. 000 mol H 4. 000 mol O C 3 H 4 O 4
![Calculating Empirical Formulas Example: An iron compound contains 69. 943 % Fe and 30. Calculating Empirical Formulas Example: An iron compound contains 69. 943 % Fe and 30.](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-13.jpg)

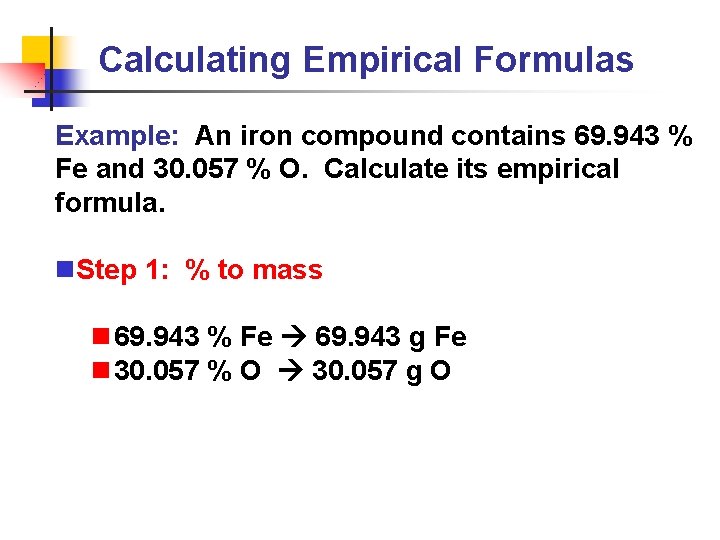

Calculating Empirical Formulas Example: An iron compound contains 69. 943 % Fe and 30. 057 % O. Calculate its empirical formula. n. Step 1: % to mass n 69. 943 % Fe 69. 943 g Fe n 30. 057 % O 30. 057 g O
![Calculating Empirical Formulas n Step 2: Mass to Moles mol Fe = 69. 943 Calculating Empirical Formulas n Step 2: Mass to Moles mol Fe = 69. 943](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-14.jpg)

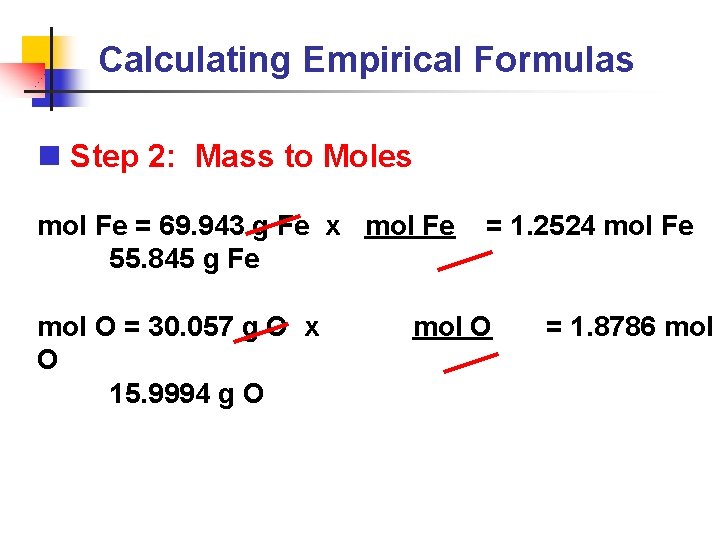

Calculating Empirical Formulas n Step 2: Mass to Moles mol Fe = 69. 943 g Fe x mol Fe 55. 845 g Fe mol O = 30. 057 g O x O 15. 9994 g O = 1. 2524 mol Fe mol O = 1. 8786 mol
![Calculating Empirical Formulas n Step 3: Divide by smallest O: 1. 8786 mol O Calculating Empirical Formulas n Step 3: Divide by smallest O: 1. 8786 mol O](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-15.jpg)
Calculating Empirical Formulas n Step 3: Divide by smallest O: 1. 8786 mol O = 1. 5000 1. 2524 mol Fe Fe: 1. 2524 mol Fe = 1. 0000 1. 2524 mol Fe
![Calculating Empirical Formulas n Step 4: Multiply ‘til whole Fe. O 1. 5 doesn’t Calculating Empirical Formulas n Step 4: Multiply ‘til whole Fe. O 1. 5 doesn’t](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-16.jpg)

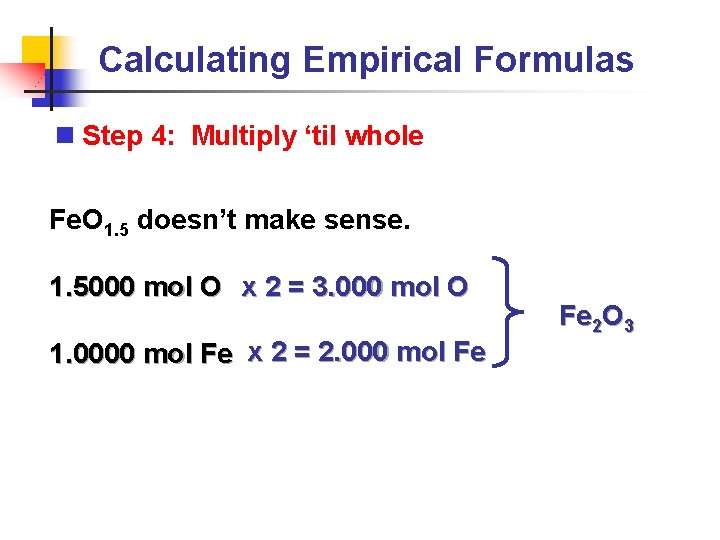

Calculating Empirical Formulas n Step 4: Multiply ‘til whole Fe. O 1. 5 doesn’t make sense. 1. 5000 mol O x 2 = 3. 000 mol O 1. 0000 mol Fe x 2 = 2. 000 mol Fe Fe 2 O 3
![Using Empirical Formulas to Find Molecular Formulas n Empirical formula for a molecule is Using Empirical Formulas to Find Molecular Formulas n Empirical formula for a molecule is](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-17.jpg)

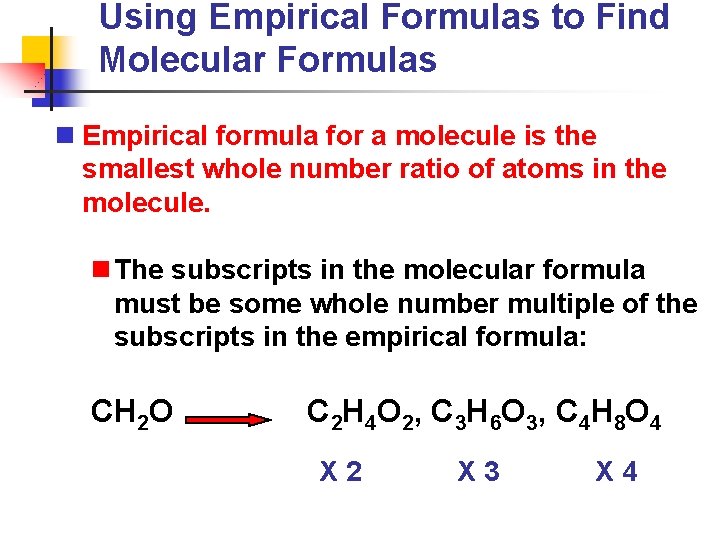

Using Empirical Formulas to Find Molecular Formulas n Empirical formula for a molecule is the smallest whole number ratio of atoms in the molecule. n The subscripts in the molecular formula must be some whole number multiple of the subscripts in the empirical formula: CH 2 O C 2 H 4 O 2, C 3 H 6 O 3, C 4 H 8 O 4 X 2 X 3 X 4
![Using Empirical Formulas to Find Molecular Formulas n Steps: n Find the empirical formula Using Empirical Formulas to Find Molecular Formulas n Steps: n Find the empirical formula](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-18.jpg)
Using Empirical Formulas to Find Molecular Formulas n Steps: n Find the empirical formula n Calculate the formula weight for the empirical formula. n MW number FW (empirical formula) MW and FW = the whole ratio between n Multiply the subscripts in the empirical
![Using Empirical Formulas to Find Molecular Formulas Example: A certain substances has an empirical Using Empirical Formulas to Find Molecular Formulas Example: A certain substances has an empirical](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-19.jpg)
Using Empirical Formulas to Find Molecular Formulas Example: A certain substances has an empirical formula of CH 2 O. If its molecular weight is 180. 0 amu, what is its molecular formula? Step 1: Empirical Formula = given = CH 2 O
![Using Empirical Formulas to Find Molecular Formulas Step 2: FW = 1 (12. 0 Using Empirical Formulas to Find Molecular Formulas Step 2: FW = 1 (12. 0](http://slidetodoc.com/presentation_image_h2/5f561d187072dc82ccf8041d34a71d07/image-20.jpg)

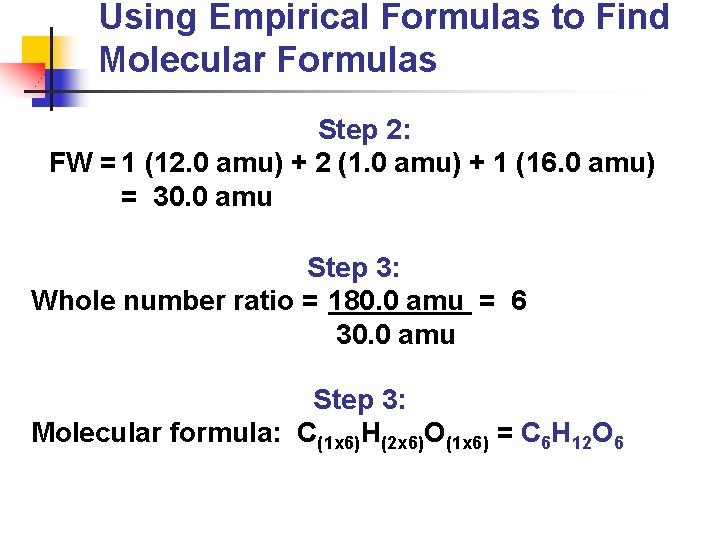

Using Empirical Formulas to Find Molecular Formulas Step 2: FW = 1 (12. 0 amu) + 2 (1. 0 amu) + 1 (16. 0 amu) = 30. 0 amu Step 3: Whole number ratio = 180. 0 amu = 6 30. 0 amu Step 3: Molecular formula: C(1 x 6)H(2 x 6)O(1 x 6) = C 6 H 12 O 6
