Earthresource ML version 2 0 and Lite demonstration

Earthresource. ML version 2. 0 and Lite – demonstration how to deliver Mineral resource data – Australia – EU - Finland Jouni Vuollo CGI Earthresource. ML Standards Working Group www. cgi-iugs. org

OUTLINE OF THE PRESENTATION • Background of development • Previous development – GGIC and IUGS/CGI • INSPIRE data specification influence - EU • Earth. Resource. ML versions • IUGS/CGI and EU INSPIRE • Earth. Resource. ML Full model/INSPIRE model • Earth. Resource. ML Lite – released August 2016 • Code lists for Earth. Resource. ML and Lite • How to deliver Mineral Resource Data now and in the future – by using standards – ERML and Lite • Data delivery - examples

Background of development • Extension of Geo. Sci. ML – Covering mineral occurrences, mining activities, commodities, mining waste • Developed by Australian geological survey organisations – Started 2006 – Australian Design Task Group – Governance now with the CGI-IUGS – Earth Resource. ML Interoperability Working Group established – 2010 September

Background of development • The name of the model changes to Earth. Resource. ML 2009 and the version 1. 1 was released. • The second and current Earth. Resource. ML version 2. 0 was released in October 2013. • In particular, important communities such as INSPIRE and Minerals 4 EU project provided valuable feedback to develop Earth. Resource. ML 2. 0 model

Background of development • Now Earth. Resource. ML 2. 0 is the preferred standard for mineral resource data sharing initiatives and projects, such as • European Union’s INSPIRE directive, EURare, Minerals 4 EU, and Pro. SUM projects, • the Australian Au. Scope, and Geoscience Portal projects. • After 2015 small modifications, the full INSPIRE Mineral Resource model and CGI Earth. Resource. ML models are identical.

Earth. Resource. ML versions • IUGS/CGI and EU INSPIRE • Earth. Resource. ML Lite – released August 2016 • • AUSGIN will implement in the near future Earth. Resource. ML v. 2. 0 and INSPIRE model After 2015 small modifications, the full INSPIRE Mineral Resource model and CGI Earth. Resource. ML models are identical. • Minerals 4 EU started to implement – see later •

Earth. Resource. ML - Lite • Earth. Resource Lite version was accepted August 2016 and released August 2016 and included to IGC 35 th presentation. • Earth. Resource. ML Lite delivers a simplified flat view of key elements of the full Earth. Resource. ML data model. • It can be used to standardise delivery of mineral resource data via Web Map Services (WMS) and simple features Web Feature Services (WFS SF 0) • Documentation • http: //www. earthresourceml. org/earthresourcemllite/1. 0/doc/html/index. htm

Earth. Resource. ML - Lite

Earth. Resource. ML v. 2. 0 and INSPIRE MR model • The model have two part • Earth Resource • Mining Feature • Model documentation • ERML web page • http: //www. earthresourceml. org/earthresourceml/2. 0/doc/ERML_ HTML_Documentation/ • INSPIRE web page • http: //inspire. ec. europa. eu/documents/Data_Specifications/INSP IRE_Data. Specification_MR_v 3. 0. pdf

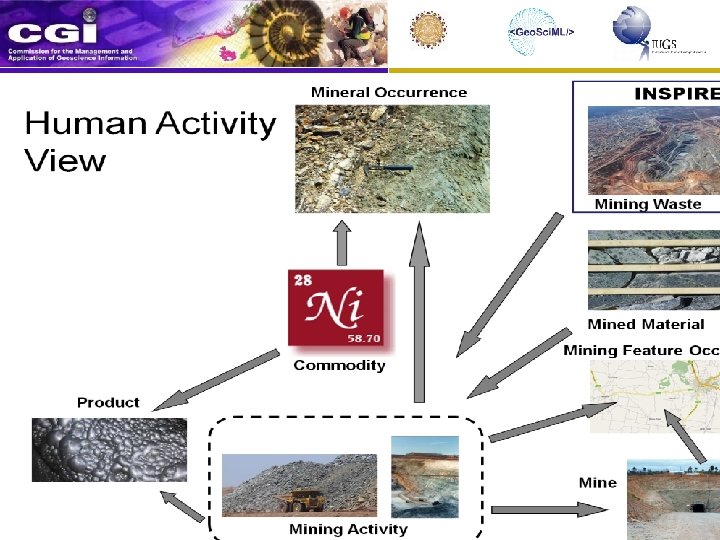

Earth. Resource. ML version 2. 0: • Earth Resource: natural material of potential economic value • Mining Feature: working on the Earth Resource: • Mineral Occurrence • Commodity and Commodity Measure • Ore Measure • Mineral deposit model • Exploration Activity • Earth Resource Material • Supergene processes (ex. alteration) • Mineral system Mining Feature: • Mine • Mining Activity • Mined material • Products • Mining waste

Earth. Resource. ML v. 2. 0 versus INSPIRE MR model Mine Earth. Resource begin Lifespan. Version end Lifespan. Version

Code lists for Earth. Resource. ML and Lite • Nineteen vocabularies required for the Earth. Resource. ML have been collated, debated, reviewed and adopted (20142016). • Service - > http: //def. seegrid. csiro. au/sissvoc/cgi 201211/collection

Code lists for Earth. Resource. ML and Lite

Data delivery – examples - AUSGIN – data model and service • Web • service based on OGC implementing rules for service and data • Current • version Based on Earth. Resource. ML v. 1. 0 and Mineral. Occurence. ML data models

Data delivery – examples - AUSGIN The snapshot (2. 8. 2016) of AUSGIN Geoscience portal - mines - http: //portal. geoscience. gov. au/gmap. html

Minerals 4 EU – data model and service • Web • • A based on OGC/INSPIRE implementing rules for service and data system fully INSPIRE compliant • • service Based on INSPIRE v. 3 and Earth. Resource. ML v. 2. 0 data models Picture of Minerals 4 EU data model

Data delivery – examples – Minerals 4 EU The snapshot (2. 8. 2016) of Minerals 4 EU portal – mines and mineral occurrences from 17 countries - http: //minerals 4 eu. brgm-rec. fr/minerals 4 EU/

GTK – data model and service • Data model and vocabularies • Based on Earth. Resource. ML v. 2. 0/INSPIRE v. 3 and data models and CGI Geoscience WG vocabularies • Web service • GTK web service – following OGC/INSPIRE implementing rules • Picture of GTK mineral occurrence and mine data model

Data delivery – examples – Finland The snapshot (12. 8. 2016) of GTK Mineral Deposit and Exlporation portal – mines and mineral occurrences and exploration data - http: //gtkdata. gtk. fi/mdae/index. html

INFO ABOUT ERML SWG WORK – see pages • Full documentation of the work and products of the Earth. Resource. ML Standards Working Group can be found at: • http: //www. earthresourceml. org/ (public website with schemas and data models) • http: //external. opengeospatial. org/twiki_public/Geo. Sci. MLswg/Web. Home (public wiki with minutes and actions of meetings), and • https: //www. seegrid. csiro. au/subversion/xmml/GGIC/ (Subversion working document repository)
