g Lite Enabling Grids for Escienc E 4

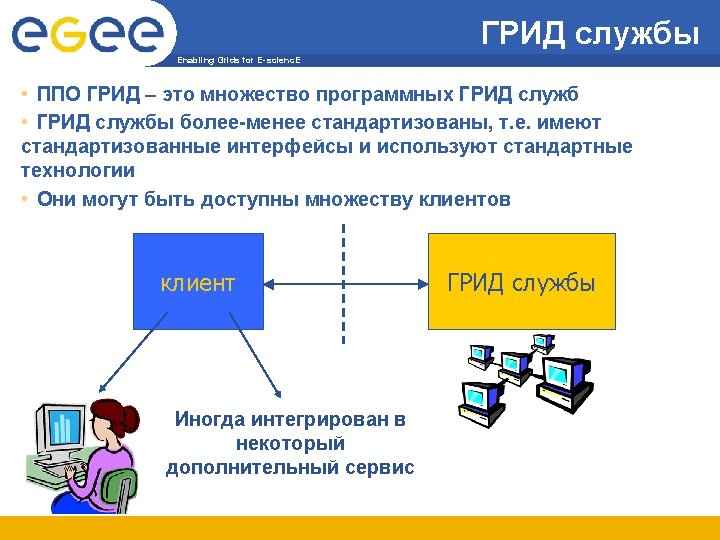

Типичные ГРИД службы (g. Lite) Enabling Grids for E-scienc. E 4

ГРИД портал GENIUS Enabling Grids for E-scienc. E Grid Enabled web e. Nvironment for site Independent User job Submission Существует несколько версий портала: • GENIUS – полная версия: https: //genius. ct. infn. it • Grid Demonstrator – открытая “для всех” 24/7 версия: https: //glitedemo. ct. infn. it/ • Grid Tutor – версия, адаптированая для обучения и тренинга: https: //glite-tutor. ct. infn. it/ 8

GENIUS: как он работает Enabling Grids for E-scienc. E Web сервер https + java/xml Браузер Портал 3 -звенная модель Portal Development Kit User interface M/W + GSI ГРИД службы 9

Enabling Grids for E-scienc. E Проект GILDA (https: //gilda. ct. infn. it/) 11

Enabling Grids for E-scienc. E GILDA Test-bed (https: //gilda. ct. infn. it/testbed. html) 20 сайтов на 3 континентах ! 13

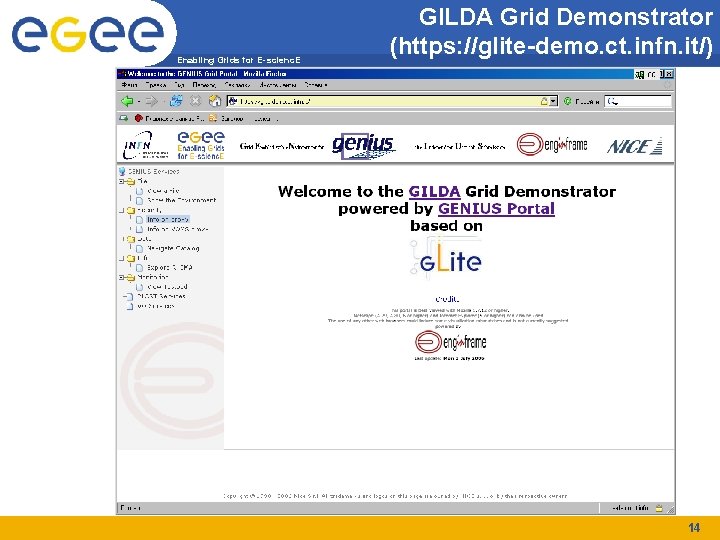

Enabling Grids for E-scienc. E GILDA Grid Demonstrator (https: //glite-demo. ct. infn. it/) 14

Подключение к GILDA Enabling Grids for E-scienc. E • https: //gilda. ct. infn. it 15

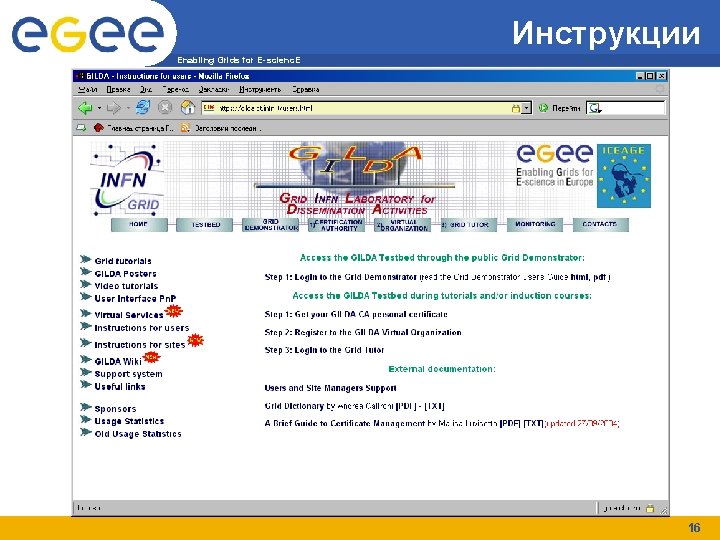

Инструкции Enabling Grids for E-scienc. E 16

Центр сертификации GILDA Enabling Grids for E-scienc. E 18

Загрузка GILDA CA сертификата Enabling Grids for E-scienc. E • https: //gilda. ct. infn. it/CA/mgt/get. CA. php 19

Получение персонального сертификата (3/4) Enabling Grids for E-scienc. E Dear User, you can download your GILDA Personal Certificate going, *with the same browser you used to submit the request*, to the URL: From: GILDA-CA <gilda-ca@ct. infn. it> To: <email из отправленной формы> Subject: GILDA Personal Certificate for <username> https: //gilda. ct. infn. it/cgi-bin/gucert. pl? 0 A 44 Your certificate is valid for $CERTIFICATE_DAYS_VALUE days. After that you can go to: https: //voms. ct. infn. it: 8443/voms/gilda/webui/request/user/create and register to the GILDA VOMS (usually, registration takes a working day). Then, you can go to the GILDA Grid Demonstrator at the URL: https: //grid-demo. ct. infn. it or, if you are participating to a tutorial or an induction course, to the GILDA Grid Tutor at the URL: Просто нажать на ссылку для получения сертификата https: //grid-tutor. ct. infn. it (for LCG) or https: //glite-tutor. ct. infn. it (for g. Lite) Remember that: 1) whenever you are prompted for the Operating System, use the username and the password you have chosen when you requested the GILDA Personal Certificate as username and as password; 2) whenever you are prompted for the GRID username and password and the passphrase of your GILDA Personal Certificate as password. Best Regards The GILDA CA Manager GILDA Certification Authority Tel: +39 095 378 5469 Fax: +39 095 378 5231 Via S. Sofia, 64 I-95123 Catania ITALY http: //gilda. ct. infn. it/CA/ 22

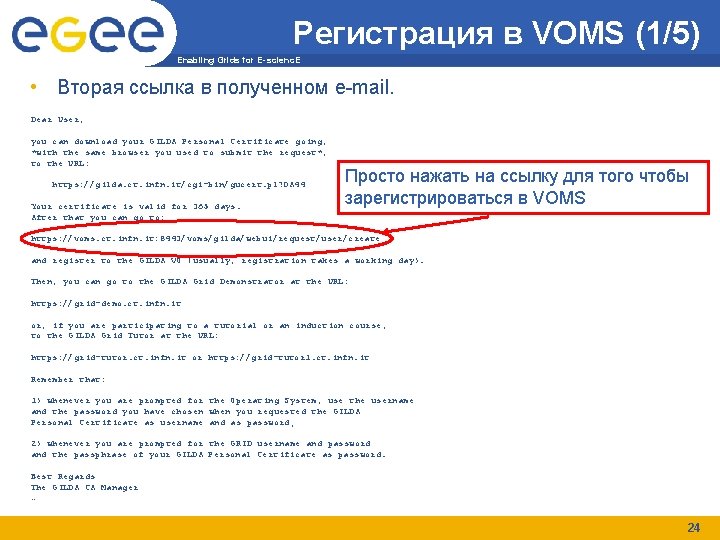

Регистрация в VOMS (1/5) Enabling Grids for E-scienc. E • Вторая ссылка в полученном e-mail. Dear User, you can download your GILDA Personal Certificate going, *with the same browser you used to submit the request*, to the URL: https: //gilda. ct. infn. it/cgi-bin/gucert. pl? 0 A 44 Your certificate is valid for 365 days. After that you can go to: Просто нажать на ссылку для того чтобы зарегистрироваться в VOMS https: //voms. ct. infn. it: 8443/voms/gilda/webui/request/user/create and register to the GILDA VO (usually, registration takes a working day). Then, you can go to the GILDA Grid Demonstrator at the URL: https: //grid-demo. ct. infn. it or, if you are participating to a tutorial or an induction course, to the GILDA Grid Tutor at the URL: https: //grid-tutor. ct. infn. it or https: //grid-tutor 1. ct. infn. it Remember that: 1) whenever you are prompted for the Operating System, use the username and the password you have chosen when you requested the GILDA Personal Certificate as username and as password; 2) whenever you are prompted for the GRID username and password and the passphrase of your GILDA Personal Certificate as password. Best Regards The GILDA CA Manager … 24

Регистрация в VOMS (4/5) Enabling Grids for E-scienc. E 27

GILDA Grid Tutor Enabling Grids for E-scienc. E 31

Доступ к GILDA Enabling Grids for E-scienc. E Host: glite-tutor. ct. infn. it Username: gatchina. XX (XX=01… 07) Password: Grid. GATXX (XX=01… 07) Pass. Phrase: GATCHINA GENIUS: https: //glite-tutor. ct. infn. it 32

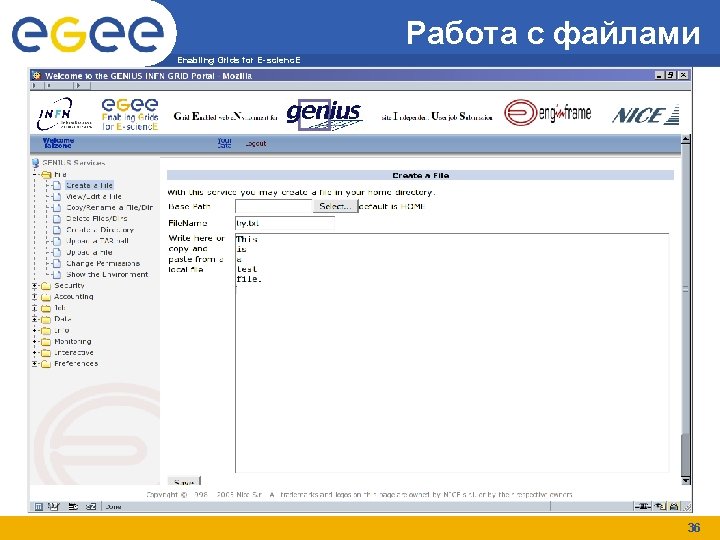

Работа с файлами Enabling Grids for E-scienc. E 36

Работа с файлами Enabling Grids for E-scienc. E 37

Работа с файлами (View/Edit) Enabling Grids for E-scienc. E 39

Работа с файлами (Copy/Rename) Enabling Grids for E-scienc. E 40

Работа с файлами (Delete) Enabling Grids for E-scienc. E 41

Работа с файлами (Create a Dir ) Enabling Grids for E-scienc. E 42

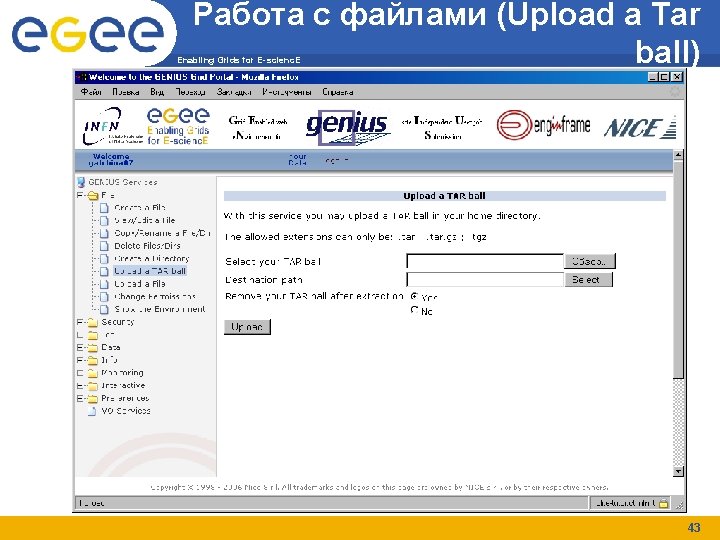

Работа с файлами (Upload a Tar ball) Enabling Grids for E-scienc. E 43

Работа с файлами (Upload a File) Enabling Grids for E-scienc. E 44

Работа с файлами (Show env) Enabling Grids for E-scienc. E 46

Аутентификация через Myproxy Enabling Grids for E-scienc. E n o i t lega e d t e g oxy r p y m 48

Аутентификация через Myproxy Enabling Grids for E-scienc. E myproxy-init UI My. Proxy Server Для запуска задач в ГРИД необходимо указывать VOMS Extensions ( --voms <voms_vo_name>) GENIUS Server (UI) WEB Browser Local WS myp et g y rox ati g e l -de on exec ution t pu t u o id r g any ce i v r se the Grid 49

Параметры настройки Грид Enabling Grids for E-scienc. E 51

Запуск заданий (выбор CE) Enabling Grids for E-scienc. E 54

Запуск заданий (log запуска) Enabling Grids for E-scienc. E 55

Просмотр очереди заданий Enabling Grids for E-scienc. E 56

Просмотр результатов Enabling Grids for E-scienc. E 60

Доступные ресурсы (1/2) Enabling Grids for E-scienc. E 61

Доступные ресурсы (2/2) Enabling Grids for E-scienc. E 62

Мониторинг Enabling Grids for E-scienc. E 64

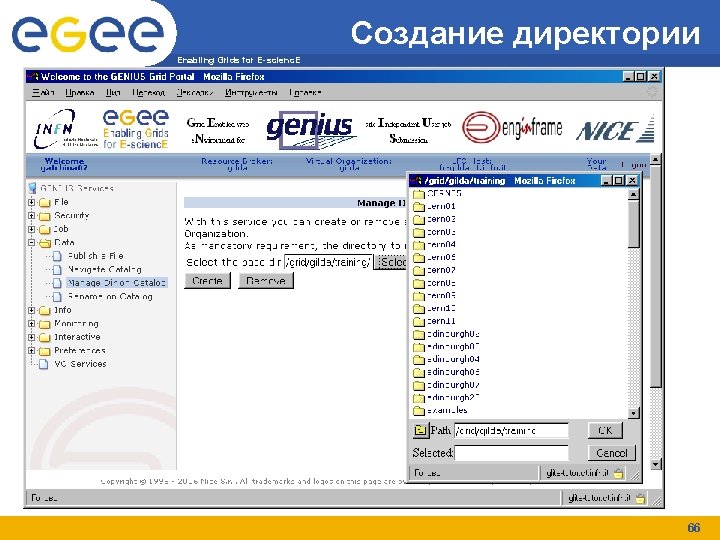

Создание директории Enabling Grids for E-scienc. E 66

Создание директории Enabling Grids for E-scienc. E 68

Копирование файла на SE (1/2) Enabling Grids for E-scienc. E 69

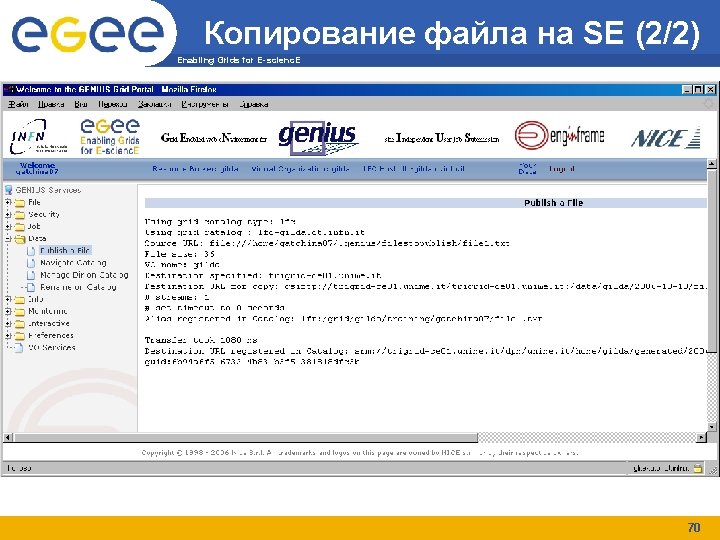

Копирование файла на SE (2/2) Enabling Grids for E-scienc. E 70

Навигация в Каталоге Enabling Grids for E-scienc. E 71

Примеры других ГРИД порталов Enabling Grids for E-scienc. E • OGCE - Open Grid Computing Environments Collaboratory http: //www. collab-ogce. org/nmi/index. jsp • PACI Hot. Page Grid Computing Portal https: //hotpage. paci. org/ • Sakai project http: //collab. sakaiproject. org/portal • CCT HPC Portal https: //portal. cct. lsu. edu/gridsphere • Tera. Grid User Portal https: //portal. teragrid. org/gridsphere • Grid. Sphere Project http: //www. gridsphere. org/gridsphere • P-GRADE Portal http: //www. lpds. sztaki. hu/pgportal/ 72
