Do C Private Iaa S Cloud Thomas Joseph

Do. C Private Iaa. S Cloud Thomas Joseph Cloud Manager http: //wp. doc. ic. ac. uk/tjoseph

Topics • • Cloud Infrastructure Setup – H/W & S/W Usage stats Case Studies Demo Access info User Functionalities Best Practices Future

Infrastructure • Built using Apache Cloudstack v 4. 1. 1 and Xenserver (hypervisor) • Running on most of the Cloud purchased h/w, more to be added soon. More can be purchased and added later. • Enables any Do. C user to create any number of VMs, any mixture of long/short lived VMs.

Infrastructure contd. • Publicly accessible via internet – subject to College firewall restrictions • 1024 public IP addresses for VMs - more can be added later. • Running a variety of Linux distributions (eg. Cent. OS, Debian, Ubuntu).

Who is using the Cloud today? • • • Student Group Projects (MSc & Third year) Individual Students Ph. D students, RAs & Academics CSG Testing & Development Approx 240 users & 200 VMs

Activity

User Operations

Server Usage stats

Case Study- Christian Priebe, LSDS We have used the Do. C Cloud. Stack deployment to mainly deploy multiple Paa. S systems, namely Open. Shift and App. Scale with Cloud. Foundry. I probably created around a hundred VMs or so, because of some low-level modifications to the system I made as part of several experiments. That's one of the biggest advantages to me. If something went wrong, just start a new VM or reset the old one and start again. This is works especially well in combination with using templates.

Case Study – Anandha Gopalan, TF 3 rd Yr Group Projects ● 22 groups in total ● Each group was assigned a VM on the Cloud – Given 'root' access, which allowed them to install any tools/packages that they wished to use for their project – Large disk space – No need for maintenance from CSG – Flexibility for the groups ● On asking around, students were generally positive ● Quite a few groups used the VM to show their final demonstration

Case Study – Anandha Gopalan, TF UG Individual Projects ● Students given VM if they ask for it – No need for CSG to maintain project machines (except when specialized H/W is needed) – Flexibility for student to install any tools/packages they see fit

Case Study – Petr Hosek, SRG

Accessing it Start here - Documentation http: //www. doc. ic. ac. uk/csg/services/cloud Web UI https: //146. 169. 20. 40: 8443/client/ Let’s give it a try!!

Demo • Demo for Cloud Login, VM Creation, Snapshot Volume, Create Template, http: //www. doc. ic. ac. uk/~tjoseph 1/vmdeploy ment-snapshot-template. mp 4

Inside the Do. C Cloud

Access info • All Do. C users have access via College username & password setting domain to “imperial”. • In case of issues contact help@doc. ic. ac. uk • External users cannot use their College login credentials.

Access info contd. • VMs can be accessed as any other Lab Machines in Do. C (e. g. ssh via shell servers). • CSG controlled VMs are provided with a root shell on tty 1/console. If super user access is required then please email help@doc. ic. ac. uk

User related functionalities Current abilities on CS 4. 1. 1 • Create VM's with existing Templates • Upload ISO's create VMs -> customize -> Snapshots -> Templates -> Create further VMs

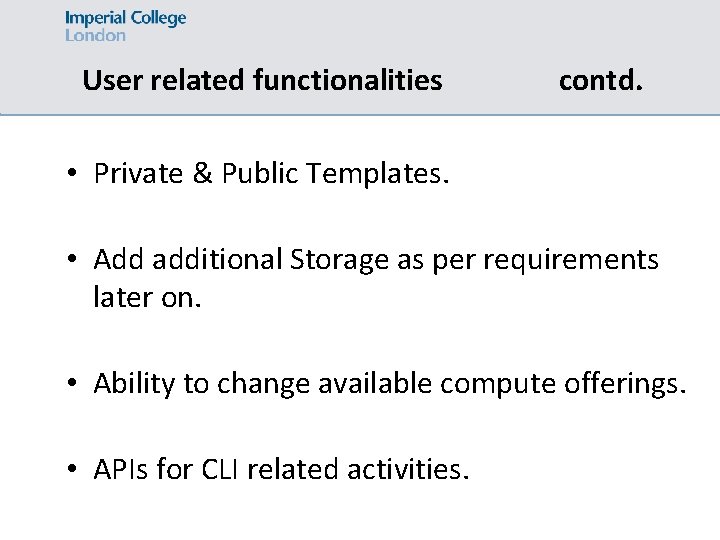

User related functionalities contd. • Private & Public Templates. • Add additional Storage as per requirements later on. • Ability to change available compute offerings. • APIs for CLI related activities.

Do’s & Dont’s • VM Deletion: Do delete additional allocated storage. • Don’t run performance related tests during business hours. • Don’t additional 1 Tb storage without informing us. • Do use version control or backup data manually as VMs are not being backed up.

Do’s & Don’ts contd. • Users should upload their code to Gitlab or to /vol/bitbucket. • Extra storage can be used by mounting filesystems via NFS. • DNS entries for custom VMs -> contact CSG • Non Do. C users can have access on request -> College passwords wouldn’t work.

Do’s & Don’ts contd. • Users can have their VM, template & volume quotas increased on request. • It’s possible for users want to add personal hardware as hypervisors either as KVM/Xen. Server. • Storing project VMs for future use -> Do create a snapshot/template and save a copy.

Future • • Host names (DNS entries) for Non CSG VMs GPGPU’s within the cloud More resource accounting More hardware where needed Alternate hypervisors e. g. KVM Support Windows VMs Upgrade Cloud. Stack -> v 4. 2. 1 • What do you want?
