Echinata TREKData Center E 2 E Cloud Iaa

Echinata – TREKData Center E 2 E Cloud Iaa. S 1 © 2018 Nokia

Table of contents Echinata and Trek Technologies Ltd. • Project background and requirements • Overall architecture • Core components detailed description : NESC, Airframe, network • Deepfield • Services and Support and SLAs • Timeline • Non-Binding Proposal 2 © Nokia 2016

Project background • Data Centers 3 © 2018 Nokia

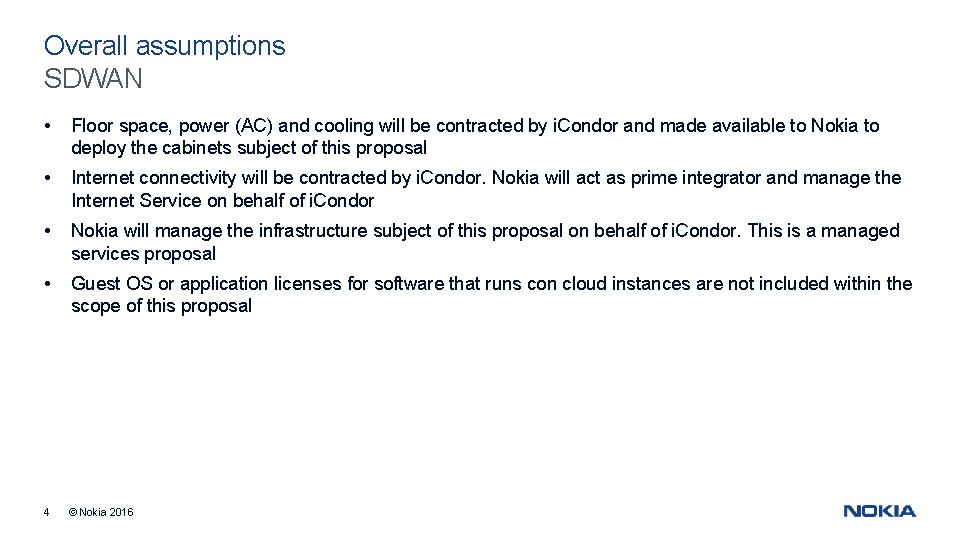

Overall assumptions SDWAN • Floor space, power (AC) and cooling will be contracted by i. Condor and made available to Nokia to deploy the cabinets subject of this proposal • Internet connectivity will be contracted by i. Condor. Nokia will act as prime integrator and manage the Internet Service on behalf of i. Condor • Nokia will manage the infrastructure subject of this proposal on behalf of i. Condor. This is a managed services proposal • Guest OS or application licenses for software that runs con cloud instances are not included within the scope of this proposal 4 © Nokia 2016

Overall architecture • TREK Data centers 5 © 2018 Nokia

Total Cloud Computing and Storage Capacity 36 compute nodes + Ephemeral internal 50 TB storage (-4 nodes NESC utility and controllers) 2000 v. CPU Usable (or with over commit 3000) 1 PB installed /320 TB usable external storage 35 TB usable HIGH SPEED external storage 6 © Nokia 2018

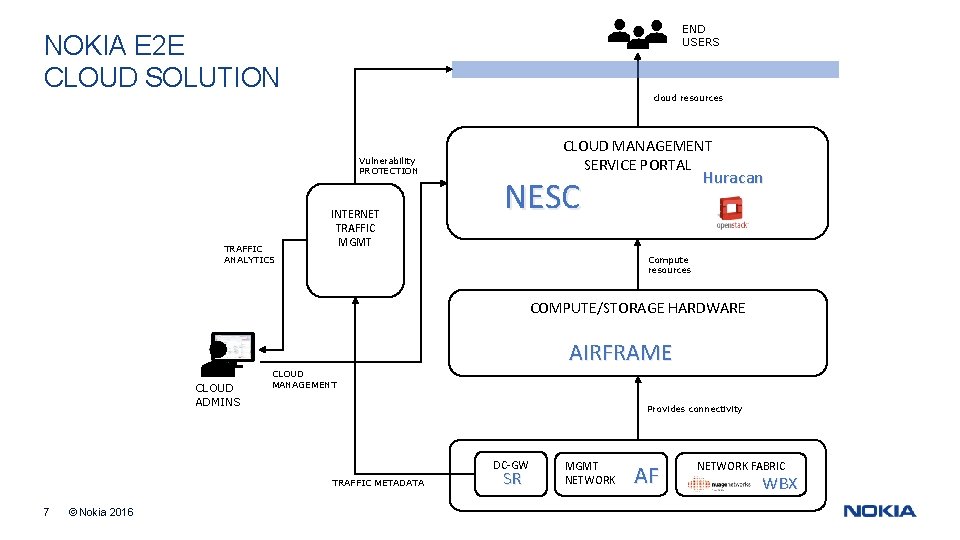

END USERS NOKIA E 2 E CLOUD SOLUTION cloud resources Vulnerability PROTECTION TRAFFIC ANALYTICS INTERNET TRAFFIC MGMT CLOUD MANAGEMENT SERVICE PORTAL Huracan NESC Compute resources COMPUTE/STORAGE HARDWARE AIRFRAME CLOUD ADMINS CLOUD MANAGEMENT Provides connectivity DC-GW TRAFFIC METADATA 7 © Nokia 2016 SR MGMT NETWORK AF NETWORK FABRIC WBX

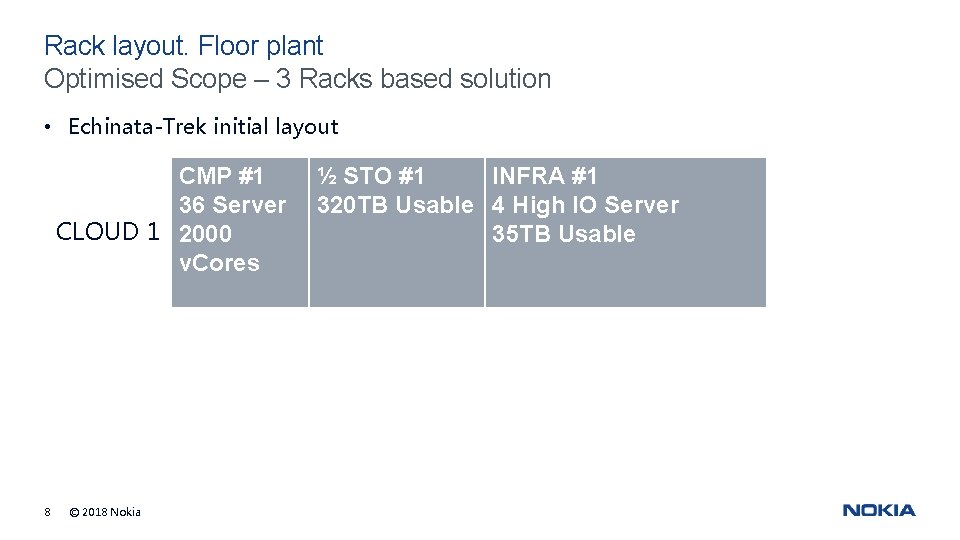

Rack layout. Floor plant Optimised Scope – 3 Racks based solution • Echinata-Trek initial layout CMP #1 36 Server CLOUD 1 2000 v. Cores 8 © 2018 Nokia ½ STO #1 INFRA #1 320 TB Usable 4 High IO Server 35 TB Usable

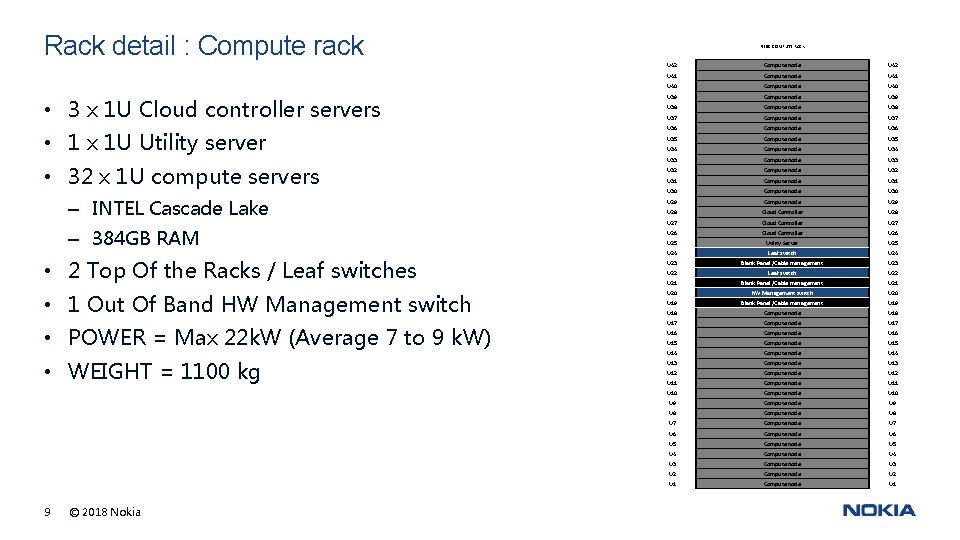

Rack detail : Compute rack • 3 x 1 U Cloud controller servers • 1 x 1 U Utility server • 32 x 1 U compute servers – INTEL Cascade Lake – 384 GB RAM • 2 Top Of the Racks / Leaf switches • 1 Out Of Band HW Management switch • POWER = Max 22 k. W (Average 7 to 9 k. W) • WEIGHT = 1100 kg 9 © 2018 Nokia NESC COMPUTE RACK U 42 Compute node U 42 U 41 Compute node U 41 U 40 Compute node U 40 U 39 Compute node U 39 U 38 Compute node U 38 U 37 Compute node U 37 U 36 Compute node U 36 U 35 Compute node U 35 U 34 Compute node U 34 U 33 Compute node U 33 U 32 Compute node U 32 U 31 Compute node U 31 U 30 Compute node U 30 U 29 Compute node U 29 U 28 Cloud Controller U 28 U 27 Cloud Controller U 27 U 26 Cloud Controller U 26 U 25 Utility Server U 25 U 24 Leaf switch U 24 U 23 Blank Panel /Cable management U 23 U 22 Leaf switch U 22 U 21 Blank Panel /Cable management U 21 U 20 HW Management switch U 20 U 19 Blank Panel /Cable management U 19 U 18 Compute node U 18 U 17 Compute node U 17 U 16 Compute node U 16 U 15 Compute node U 15 U 14 Compute node U 14 U 13 Compute node U 13 U 12 Compute node U 12 U 11 Compute node U 11 U 10 Compute node U 10 U 9 Compute node U 9 U 8 Compute node U 8 U 7 Compute node U 7 U 6 Compute node U 6 U 5 Compute node U 5 U 4 Compute node U 4 U 3 Compute node U 3 U 2 Compute node U 2 U 1 Compute node U 1

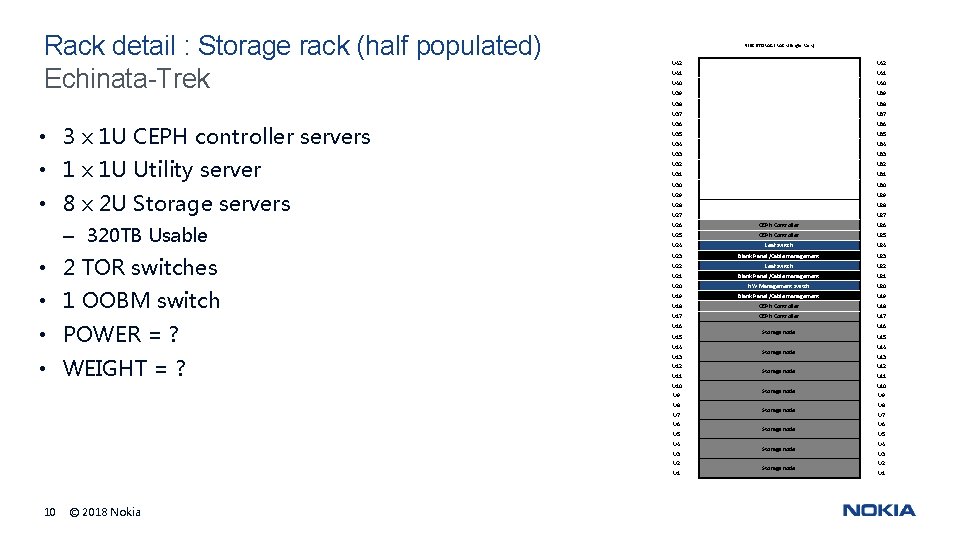

Rack detail : Storage rack (half populated) Echinata-Trek • 3 x 1 U CEPH controller servers • 1 x 1 U Utility server • 8 x 2 U Storage servers – 320 TB Usable • 2 TOR switches • 1 OOBM switch • POWER = ? • WEIGHT = ? NESC STORAGE RACK (Single Rack) U 42 U 41 U 40 U 39 U 38 U 37 U 36 U 35 U 34 U 33 U 32 U 31 U 30 U 29 U 28 U 27 CEPH Controller U 26 U 25 CEPH Controller U 25 U 24 Leaf switch U 24 U 23 Blank Panel /Cable management U 23 U 22 Leaf switch U 22 U 21 Blank Panel /Cable management U 21 U 20 HW Management switch U 20 U 19 Blank Panel /Cable management U 19 U 18 CEPH Controller U 18 U 17 CEPH Controller U 17 U 16 U 15 U 14 U 13 U 12 U 11 U 9 U 8 U 7 U 6 U 5 U 4 U 3 U 2 U 1 © 2018 Nokia U 28 U 26 U 10 10 U 29 Storage node Storage node U 16 U 15 U 14 U 13 U 12 U 11 U 10 U 9 U 8 U 7 U 6 U 5 U 4 U 3 U 2 U 1

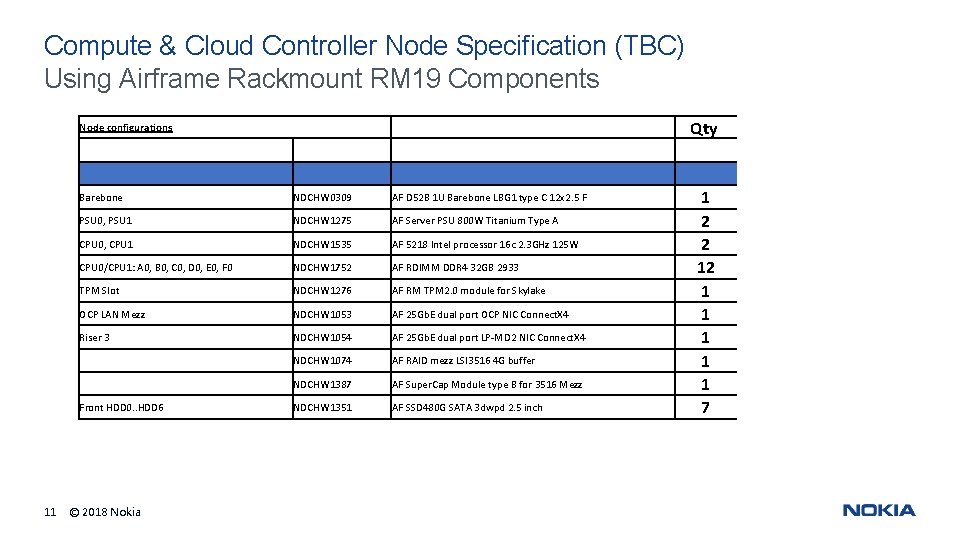

Compute & Cloud Controller Node Specification (TBC) Using Airframe Rackmount RM 19 Components Node configurations 11 Qty Barebone NDCHW 0309 AF D 52 B 1 U Barebone LBG 1 type C 12 x 2. 5 F PSU 0, PSU 1 NDCHW 1275 AF Server PSU 800 W Titanium Type A CPU 0, CPU 1 NDCHW 1535 AF 5218 Intel processor 16 c 2. 3 GHz 125 W CPU 0/CPU 1: A 0, B 0, C 0, D 0, E 0, F 0 NDCHW 1752 AF RDIMM DDR 4 32 GB 2933 TPM Slot NDCHW 1276 AF RM TPM 2. 0 module for Skylake OCP LAN Mezz NDCHW 1053 AF 25 Gb. E dual port OCP NIC Connect. X 4 Riser 3 NDCHW 1054 AF 25 Gb. E dual port LP-MD 2 NIC Connect. X 4 NDCHW 1074 AF RAID mezz LSI 3516 4 G buffer NDCHW 1387 AF Super. Cap Module type B for 3516 Mezz Front HDD 0. . HDD 6 NDCHW 1351 AF SSD 480 G SATA 3 dwpd 2. 5 inch 1 2 2 12 1 1 1 7 © 2018 Nokia

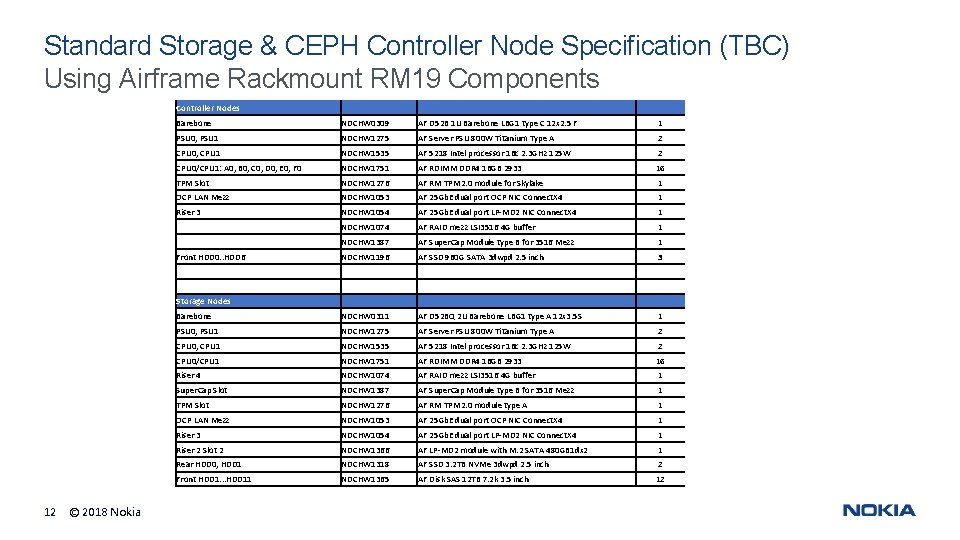

Standard Storage & CEPH Controller Node Specification (TBC) Using Airframe Rackmount RM 19 Components 12 © 2018 Nokia Controller Nodes Barebone NDCHW 0309 AF D 52 B 1 U Barebone LBG 1 type C 12 x 2. 5 F 1 PSU 0, PSU 1 NDCHW 1275 AF Server PSU 800 W Titanium Type A 2 CPU 0, CPU 1 NDCHW 1535 AF 5218 Intel processor 16 c 2. 3 GHz 125 W 2 CPU 0/CPU 1: A 0, B 0, C 0, D 0, E 0, F 0 NDCHW 1751 AF RDIMM DDR 4 16 GB 2933 16 TPM Slot NDCHW 1276 AF RM TPM 2. 0 module for Skylake 1 OCP LAN Mezz NDCHW 1053 AF 25 Gb. E dual port OCP NIC Connect. X 4 1 Riser 3 NDCHW 1054 AF 25 Gb. E dual port LP-MD 2 NIC Connect. X 4 1 NDCHW 1074 AF RAID mezz LSI 3516 4 G buffer 1 NDCHW 1387 AF Super. Cap Module type B for 3516 Mezz 1 Front HDD 0. . HDD 6 NDCHW 1196 AF SSD 960 G SATA 3 dwpd 2. 5 inch 3 Storage Nodes Barebone NDCHW 0311 AF D 52 BQ 2 U Barebone LBG 1 type A 12 x 3. 5 S 1 PSU 0, PSU 1 NDCHW 1275 AF Server PSU 800 W Titanium Type A 2 CPU 0, CPU 1 NDCHW 1535 AF 5218 Intel processor 16 c 2. 3 GHz 125 W 2 CPU 0/CPU 1 NDCHW 1751 AF RDIMM DDR 4 16 GB 2933 16 Riser 4 NDCHW 1074 AF RAID mezz LSI 3516 4 G buffer 1 Super. Cap Slot NDCHW 1387 AF Super. Cap Module type B for 3516 Mezz 1 TPM Slot NDCHW 1276 AF RM TPM 2. 0 module type A 1 OCP LAN Mezz NDCHW 1053 AF 25 Gb. E dual port OCP NIC Connect. X 4 1 Riser 3 NDCHW 1054 AF 25 Gb. E dual port LP-MD 2 NIC Connect. X 4 1 Riser 2 Slot 2 NDCHW 1366 AF LP-MD 2 module with M. 2 SATA 480 GB 1 dx 2 1 Rear HDD 0, HDD 1 NDCHW 1318 AF SSD 3. 2 TB NVMe 3 dwpd 2. 5 inch 2 Front HDD 1. . . HDD 11 NDCHW 1365 AF Disk SAS 12 TB 7. 2 k 3. 5 inch 12

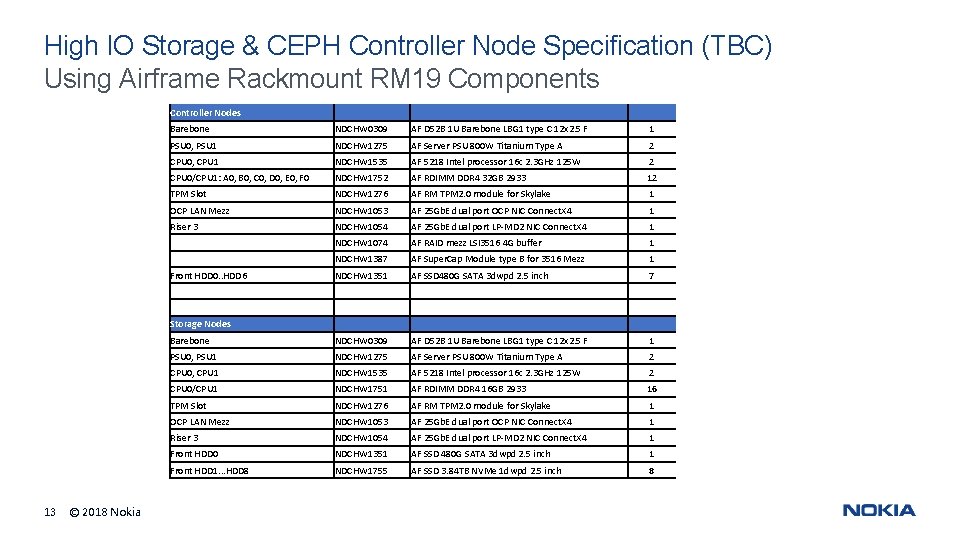

High IO Storage & CEPH Controller Node Specification (TBC) Using Airframe Rackmount RM 19 Components 13 © 2018 Nokia Controller Nodes Barebone NDCHW 0309 AF D 52 B 1 U Barebone LBG 1 type C 12 x 2. 5 F 1 PSU 0, PSU 1 NDCHW 1275 AF Server PSU 800 W Titanium Type A 2 CPU 0, CPU 1 NDCHW 1535 AF 5218 Intel processor 16 c 2. 3 GHz 125 W 2 CPU 0/CPU 1: A 0, B 0, C 0, D 0, E 0, F 0 NDCHW 1752 AF RDIMM DDR 4 32 GB 2933 12 TPM Slot NDCHW 1276 AF RM TPM 2. 0 module for Skylake 1 OCP LAN Mezz NDCHW 1053 AF 25 Gb. E dual port OCP NIC Connect. X 4 1 Riser 3 NDCHW 1054 AF 25 Gb. E dual port LP-MD 2 NIC Connect. X 4 1 NDCHW 1074 AF RAID mezz LSI 3516 4 G buffer 1 NDCHW 1387 AF Super. Cap Module type B for 3516 Mezz 1 Front HDD 0. . HDD 6 NDCHW 1351 AF SSD 480 G SATA 3 dwpd 2. 5 inch 7 Storage Nodes Barebone NDCHW 0309 AF D 52 B 1 U Barebone LBG 1 type C 12 x 2. 5 F 1 PSU 0, PSU 1 NDCHW 1275 AF Server PSU 800 W Titanium Type A 2 CPU 0, CPU 1 NDCHW 1535 AF 5218 Intel processor 16 c 2. 3 GHz 125 W 2 CPU 0/CPU 1 NDCHW 1751 AF RDIMM DDR 4 16 GB 2933 16 TPM Slot NDCHW 1276 AF RM TPM 2. 0 module for Skylake 1 OCP LAN Mezz NDCHW 1053 AF 25 Gb. E dual port OCP NIC Connect. X 4 1 Riser 3 NDCHW 1054 AF 25 Gb. E dual port LP-MD 2 NIC Connect. X 4 1 Front HDD 0 NDCHW 1351 AF SSD 480 G SATA 3 dwpd 2. 5 inch 1 Front HDD 1. . . HDD 8 NDCHW 1755 AF SSD 3. 84 TB NVMe 1 dwpd 2. 5 inch 8

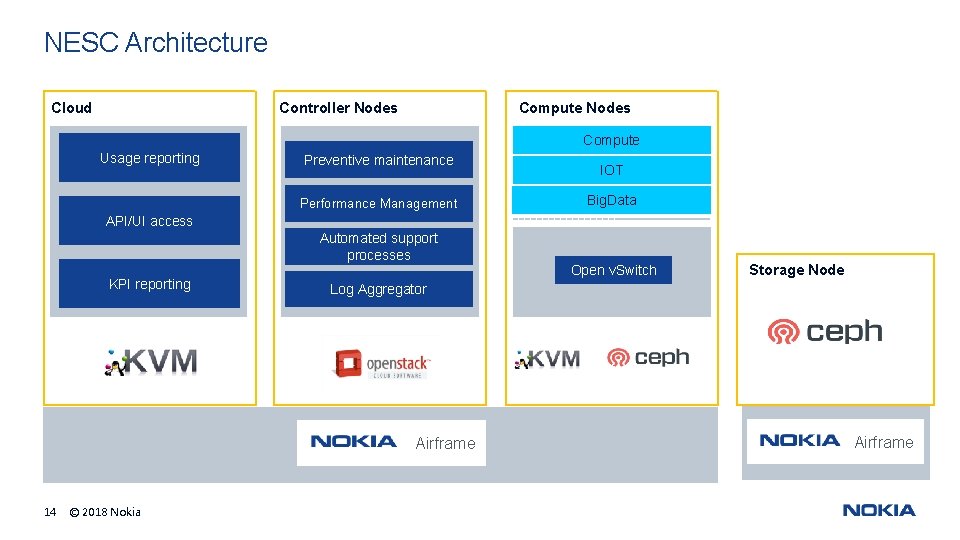

NESC Architecture Cloud Controller Nodes Compute Usage reporting Preventive maintenance Performance Management IOT Big. Data API/UI access Automated support processes KPI reporting © 2018 Nokia Storage Node Log Aggregator Airframe 14 Open v. Switch Airframe

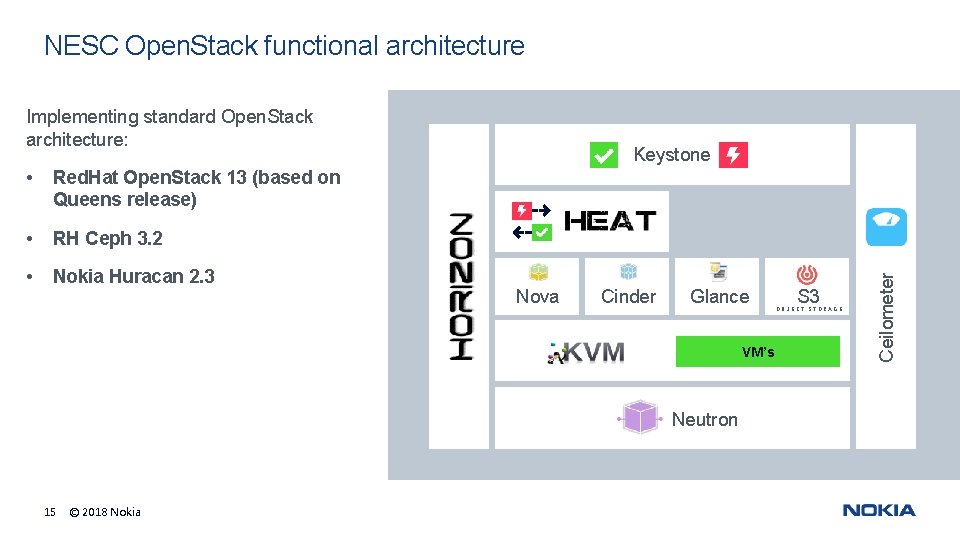

NESC Open. Stack functional architecture Implementing standard Open. Stack architecture: Red. Hat Open. Stack 13 (based on Queens release) • RH Ceph 3. 2 • Nokia Huracan 2. 3 Nova Cinder Glance VM’s Neutron 15 © 2018 Nokia S 3 OBJECT STORAGE Ceilometer • Keystone

Network Nuage Networks • Echinata-TREK networks 16 © 2018 Nokia

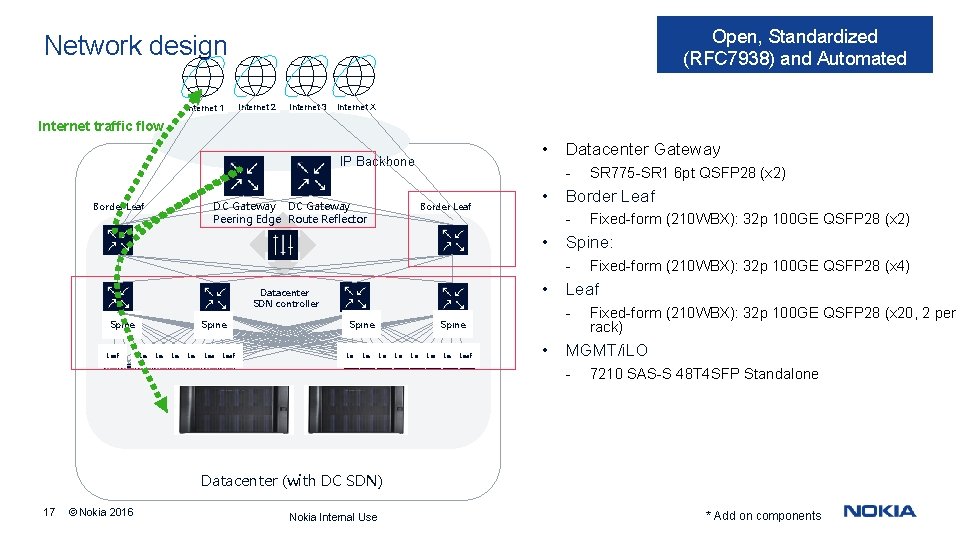

Open, Standardized (RFC 7938) and Automated Network design Internet 1 Internet 2 Internet 3 Internet X Internet traffic flow • IP Backbone Border Leaf DC Gateway Peering Edge Route Reflector Datacenter Gateway - Border Leaf • Border Leaf - • • Spine Leaf Leaf Leaf Leaf • Fixed-form (210 WBX): 32 p 100 GE QSFP 28 (x 4) Leaf - Spine Fixed-form (210 WBX): 32 p 100 GE QSFP 28 (x 2) Spine: - Datacenter SDN controller SR 775 -SR 1 6 pt QSFP 28 (x 2) Fixed-form (210 WBX): 32 p 100 GE QSFP 28 (x 20, 2 per rack) MGMT/i. LO - 7210 SAS-S 48 T 4 SFP Standalone Datacenter (with DC SDN) 17 © Nokia 2016 Nokia Internal Use * Add on components

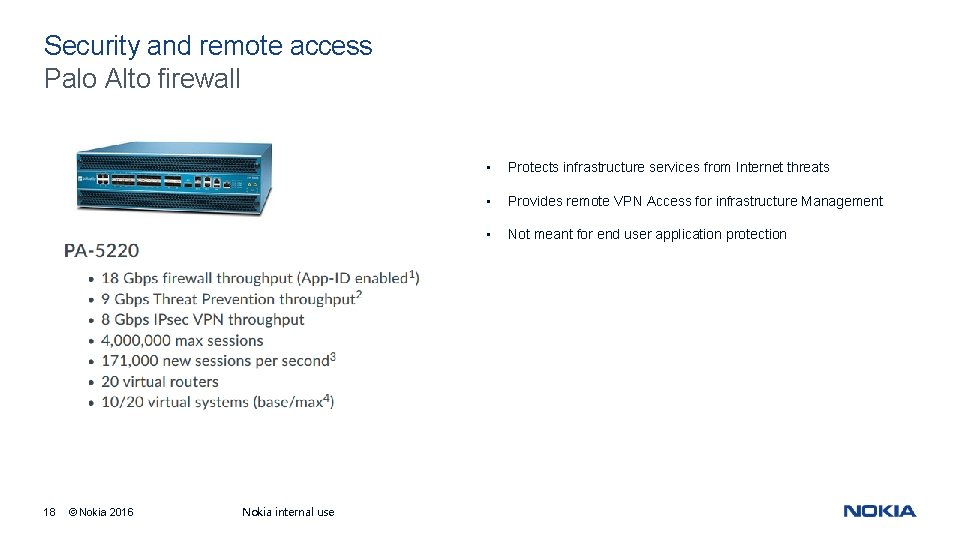

Security and remote access Palo Alto firewall 18 © Nokia 2016 Nokia internal use • Protects infrastructure services from Internet threats • Provides remote VPN Access for infrastructure Management • Not meant for end user application protection
