Digital Audio Signal Processing Lecture4 Acoustic Echo Cancellation
- Slides: 44
Digital Audio Signal Processing Lecture-4: Acoustic Echo Cancellation Marc Moonen Dept. E. E. /ESAT-STADIUS, KU Leuven marc. moonen@esat. kuleuven. be homes. esat. kuleuven. be/~moonen/
Outline • Introduction – Acoustic echo cancellation (AEC) problem & applications – Acoustic channels • Adaptive filtering algorithms for AEC – NLMS – Frequency domain adaptive filters – Affine projection algorithm (APA) • • Control algorithm Post-processing Loudspeaker non-linearity Stereo AEC Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 2
Introduction AEC problem/applications Suppress echo – to guarantee normal conversation conditions – to prevent the closed-loop system from becoming unstable Applications – Teleconferencing – Hands-free telephony – Handsets – … Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 3
Introduction AEC standardization ITU-T recommendations (G. 167) on acoustic echo controllers state that – Input/output delay of the AEC should be smaller than 16 ms – Far-end signal suppression should reach 40. . 45 d. B (depending on application), if no near-end signal is present – In presence of near-end signals the suppression should be at least 25 d. B – Many other requirements … Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 4
Introduction Room Acoustics (I) • Propagation of sound waves in an acoustic environment results in – signal attenuation – spectral distortion • Propagation can be modeled quite well as a linear filtering operation • Non-linear distortion mainly stems from the loudspeakers. This is often a second order effect and mostly not taken into account explicitly Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 5

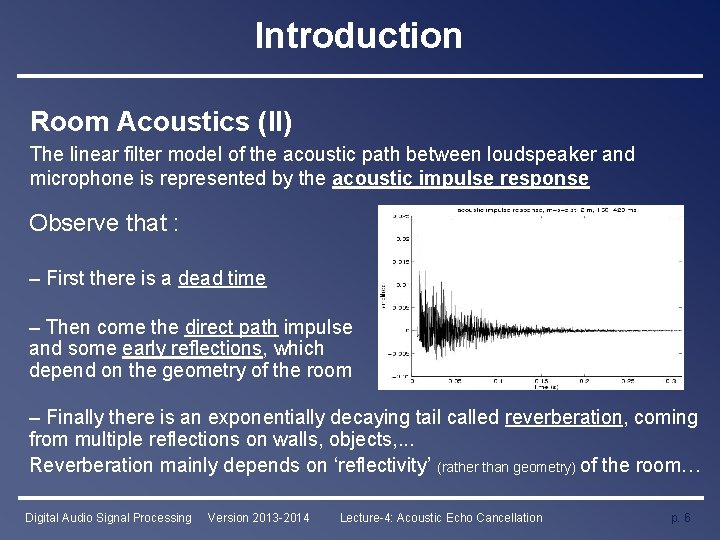

Introduction Room Acoustics (II) The linear filter model of the acoustic path between loudspeaker and microphone is represented by the acoustic impulse response Observe that : – First there is a dead time – Then come the direct path impulse and some early reflections, which depend on the geometry of the room – Finally there is an exponentially decaying tail called reverberation, coming from multiple reflections on walls, objects, . . . Reverberation mainly depends on ‘reflectivity’ (rather than geometry) of the room… Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 6

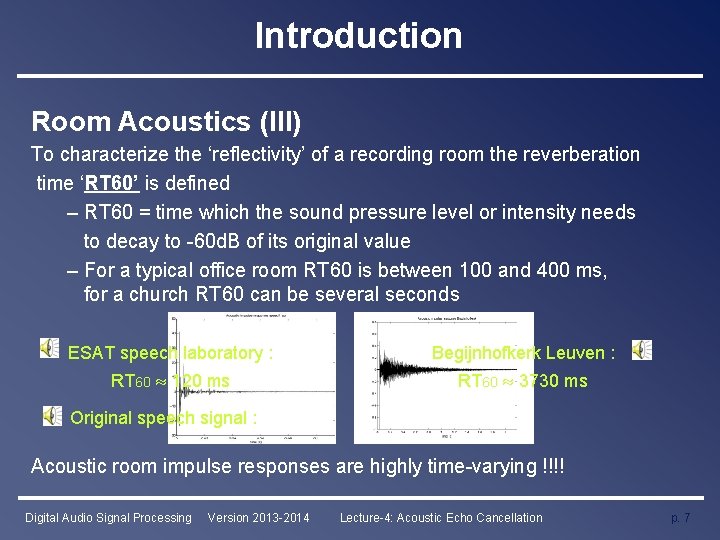

Introduction Room Acoustics (III) To characterize the ‘reflectivity’ of a recording room the reverberation time ‘RT 60’ is defined – RT 60 = time which the sound pressure level or intensity needs to decay to -60 d. B of its original value – For a typical office room RT 60 is between 100 and 400 ms, for a church RT 60 can be several seconds ESAT speech laboratory : Begijnhofkerk Leuven : RT 60 120 ms RT 60 3730 ms Original speech signal : Acoustic room impulse responses are highly time-varying !!!! Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 7
Introduction Acoustic Impulse Response : FIR or IIR ? • If the acoustic impulse response is modeled as – an FIR filter many hundreds to several thousands of filter taps are needed – an IIR filter order can be reduced, but still hundreds of filter coeffs (num. + denom. ) may be needed (sigh!) • Hence FIR models are typically used in practice because. . . – these are guaranteed to be stable – in a speech comms set-up the acoustics are highly time-varying, hence adaptive filtering techniques are called for (see DSP-CIS): • FIR adaptive filters : simple adaptation rules, no local minima, . . • IIR adaptive filters : more complex adaptation, local minima Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 8
Introduction `Conventional’ AEC Techniques • • Directional loudspeakers and microphones Voice controlled switching, loss control Howling control : stability margin improvement of the closed loop by – frequency shifting – using comb filters – removing resonant peaks Non-linear post-processing, e. g. center clipping Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 9
Outline • Introduction – Acoustic echo cancellation (AEC) problem & appls – Acoustic channels • Adaptive filtering algorithms for AEC – NLMS – Frequency domain adaptive filters – Affine projection algorithm (APA) • • Control algorithm Post-processing Loudspeaker non-linearity Stereo AEC Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 10
Adaptive filtering algorithms for AEC Basic set-up: • Adaptive filter produces a model for acoustic room impulse response + an estimate of the echo contribution in microphone signal, which is then subtracted from the microphone signal • Thanks to adaptivity – time-varying acoustics can be tracked – performance superior to performance of `conventional’ techniques Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 11
Adaptive filtering algorithms for AEC • Algorithms to be discussed – Normalized LMS – Frequency-domain adaptive filter (FDAF) & partitioned block freq-domain adaptive filter (PB-FDAF) – Affine projection algorithm (APA) & fast affine projection algorithm Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 12
Adaptive Filtering Algorithms: NLMS • NLMS update equations in which N is the adaptive filter length, is the adaptation stepsize, is a regularization parameter and k is the discrete-time index Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 13
Adaptive Filtering Algorithms : NLMS • Pros and cons of NLMS + cheap algorithm : O(N) + small input/output delay (= 1 sample) – for colored far-end signals (such as speech) convergence of the NLMS algorithm is slow (cfr lambda_max versus lambda_min, etc…. , see DSP-CIS) – large N then means even slower convergence ¤ NLMS is thus often used for the cancellation of short echo paths Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 14
Adaptive Filtering Algorithms • As some input/output delay is acceptable in AEC (cfr ITU. . ), algorithms can be derived that are even cheaper than NLMS, by exchanging implementation cost for extra processing delay, sometimes even with improved performance : • Frequency-domain adaptive filtering (FDAF) • Partitioned Block FDAF (PB-FDAF) + cost reduction + optimal (stepsize) tuning for each subband/frequency bin separately results in improved performance Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 15

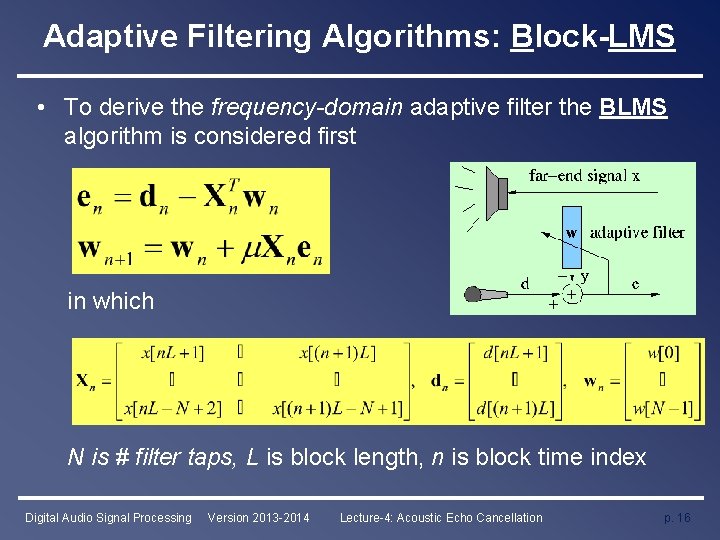

Adaptive Filtering Algorithms: Block-LMS • To derive the frequency-domain adaptive filter the BLMS algorithm is considered first in which N is # filter taps, L is block length, n is block time index Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 16
Adaptive Filtering Algorithms: Block-LMS • Both the BLMS convolution and correlation operation are computationally demanding. They can be implemented more efficiently in the frequency domain using fast convolution techniques, i. e. overlap-save/overlap-add : convolution overlap-save correlation with DFT matrix Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 17
Adaptive Filtering Algorithms: FDAF Overlap-save FDAF Will only work if (M is FFT-size) Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 18
Adaptive Filtering Algorithms: FDAF ¤ Typical parameter setting for the FDAF : ¤ FDAF is functionally equivalent to BLMS + FDAF is significantly cheaper than (B)LMS for a typical parameter setting If N=1024 : (=estimate only, in practice <20) - Input/output delay is equal to 2 L-1=2 N-1, which may be unacceptably large for realistic parameter settings : e. g. if N=1024 and fs=8000 Hz delay is 256 ms ! Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 19
Adaptive Filtering Algorithms: PB-FDAF • Overlap-save PB-FDAF : N-tap full-band filter split into (N/P) filter sections, P-taps each, then apply overlap-save to each section, etc. (`P takes the place of N’). Will only work if Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 20

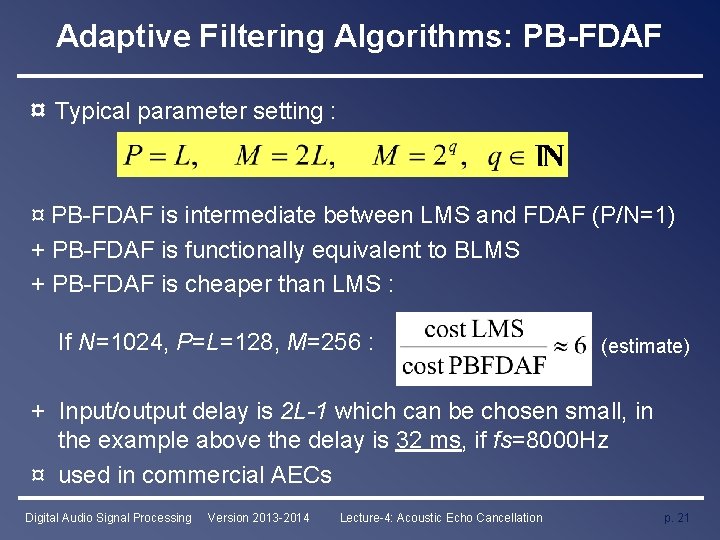

Adaptive Filtering Algorithms: PB-FDAF ¤ Typical parameter setting : ¤ PB-FDAF is intermediate between LMS and FDAF (P/N=1) + PB-FDAF is functionally equivalent to BLMS + PB-FDAF is cheaper than LMS : If N=1024, P=L=128, M=256 : (estimate) + Input/output delay is 2 L-1 which can be chosen small, in the example above the delay is 32 ms, if fs=8000 Hz ¤ used in commercial AECs Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 21
Adaptive Filtering Algorithms : PB-FDAF • PS: Instead of a simple stepsize , subband dependent stepsizes can be applied – stepsizes dependent on the subband energy (`subband normalization’) – convergence speed increased at only a small extra cost • PS: PB-FDAF algorithm can be simplified by leaving out of the weight updating equation (=`unconstrained updating’) Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 22
Adaptive Filtering Algorithms: APA Affine Projection Algorithm =intermediate between RLS and NLMS, complexity- as well as performance-wise NLMS (delta=0) : APA : if =1 a-posteriori error is 0 P last a-posteriori errors are 0 Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 23

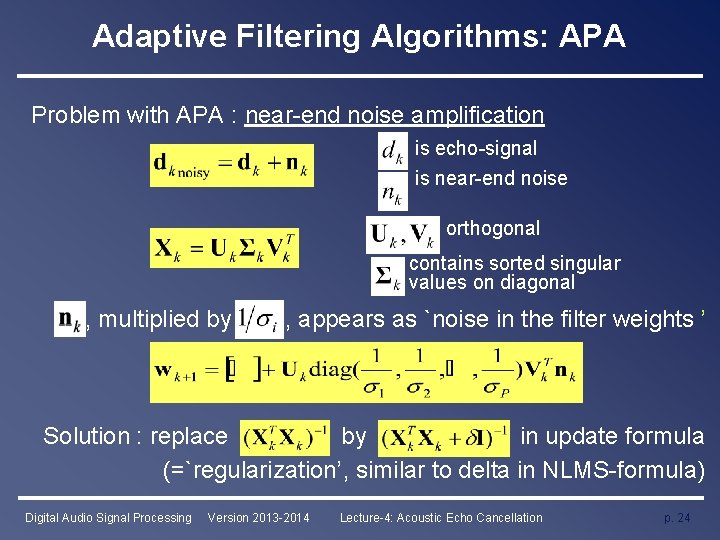

Adaptive Filtering Algorithms: APA Problem with APA : near-end noise amplification is echo-signal is near-end noise orthogonal contains sorted singular values on diagonal , multiplied by , appears as `noise in the filter weights ’ Solution : replace by in update formula (=`regularization’, similar to delta in NLMS-formula) Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 24
Adaptive Filtering Algorithms: APA Effect on near-end noise amplification Smaller if more regularization Effect on adaptation speed Slower if more regularization Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 25
Adaptive Filtering Algorithms: Fast-APA complexity, i. e. O(P. N), may be reduced to (roughly) LMS complexity, i. e. O(N) : 1. `Recursive ’ error vector calculation (delta=0) : Ignore steps 2 & 3 Ex: mu=1, then lower components were already nulled @ time k-1 2. Delayed filter vector update : accumulate filter adaptations based on vector x_k, apply only when x_k `leaves ’ the X_k matrix (at time k+P-1) 3. Recursive updating scheme for inverse in Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 26
Outline • Introduction – Acoustic echo cancellation (AEC) problem & appls – Acoustic channels • Adaptive filtering algorithms for AEC – NLMS – Frequency domain adaptive filters – Affine projection algorithm (APA) • • Control algorithm Post-processing Loudspeaker non-linearity Stereo AEC Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 27
Control Algorithm • Adaptation speed ( ) should be adjusted… – to the far-end signal power, in order to avoid instability of the adaptive filter stepsize normalization (e. g. NLMS) – to the amount of near-end activity, in order to prevent the filter to move away from the optimal solution (see DSP-II) double-talk detection Double talk refers to the situation where both the far-end and the near-end speaker are active. Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 28

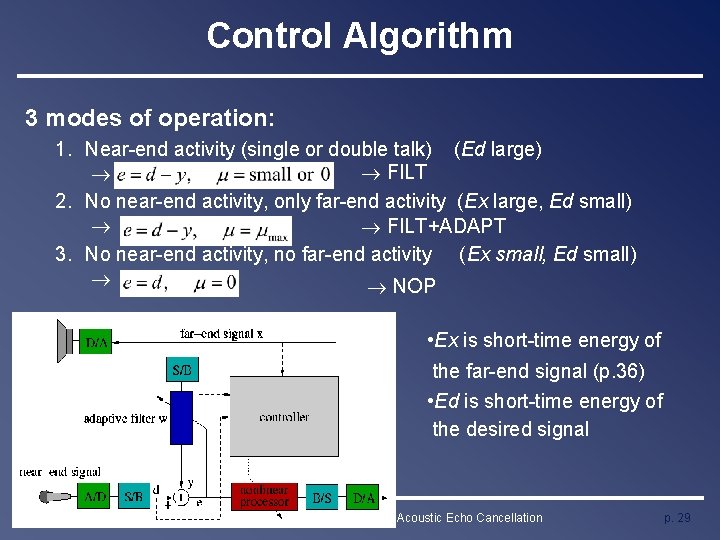

Control Algorithm 3 modes of operation: 1. Near-end activity (single or double talk) (Ed large) FILT 2. No near-end activity, only far-end activity (Ex large, Ed small) FILT+ADAPT 3. No near-end activity, no far-end activity (Ex small, Ed small) NOP • Ex is short-time energy of the far-end signal (p. 36) • Ed is short-time energy of the desired signal Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 29
Control Algorithm Double-talk Detection (DTD) • Difficult problem: detection of speech during speech • Desired properties – Limited number of false alarms – Small delay – Low complexity • Different approaches exist in the literature which are based on – – Energy Correlation Spectral contents … Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 30
Control Algorithm Energy-based DTD Compare short-time energy of far-end and near-end channel Ex and Ed : – Method 1 : If Ed > Ex double talk is a well-chosen threshold – Method 2 : If > 1 double talk Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 31
Post-processing • Error suppression obtained in practice will be limited to +/- 30 d. B, due to – – – non-linearities in the signal path (loudspeakers) time-variations of the acoustic impulse responses finite length of the adaptive filter local background noise failing double-talk detection … • A post-processing unit is added to further reduce the residual signal, e. g. `center clipping’ Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 32
Loudspeaker Non-linearity If loudspeaker non-linearity is significant (e. g. consumer applications), then this should be compensated for • Solution-1: Non-linear model (fixed) in cancellation path x Non-linear model Adaptive filter y d e Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 33

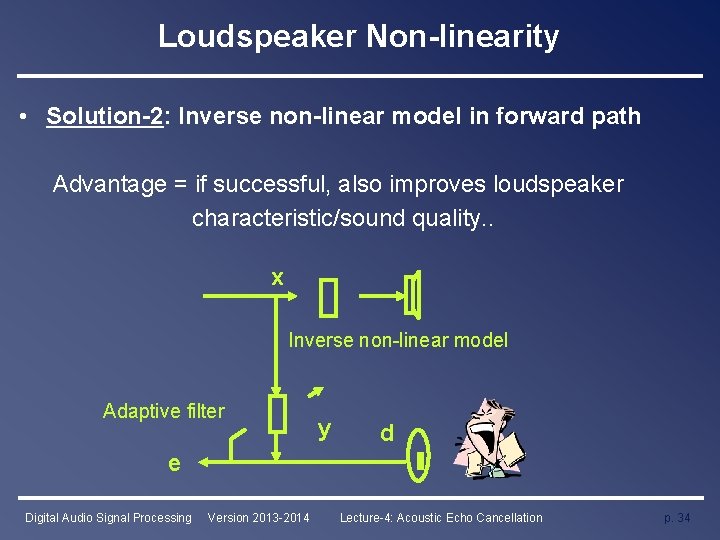

Loudspeaker Non-linearity • Solution-2: Inverse non-linear model in forward path Advantage = if successful, also improves loudspeaker characteristic/sound quality. . x Inverse non-linear model Adaptive filter y d e Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 34
Outline • Introduction – Acoustic echo cancellation (AEC) problem & appls – Acoustic channels • Adaptive filtering algorithms for AEC – NLMS – Frequency domain adaptive filters – Affine projection algorithm (APA) • • Control algorithm Post-processing Loudspeaker non-linearity Stereo AEC Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 35

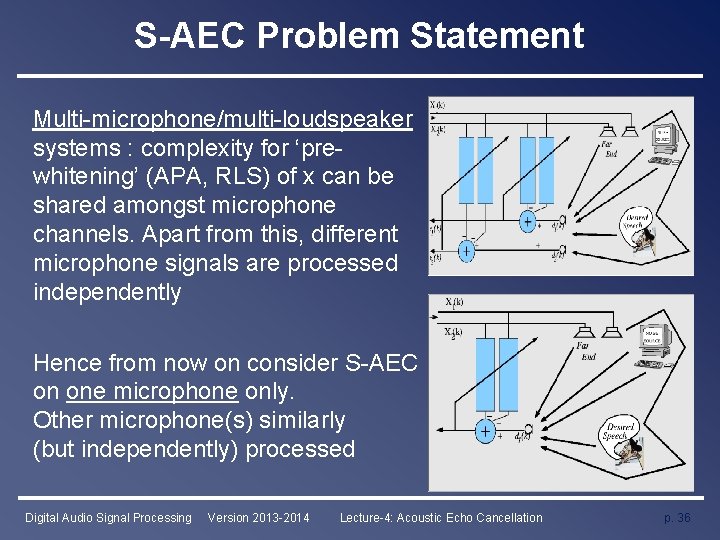

S-AEC Problem Statement Multi-microphone/multi-loudspeaker systems : complexity for ‘prewhitening’ (APA, RLS) of x can be shared amongst microphone channels. Apart from this, different microphone signals are processed independently Hence from now on consider S-AEC on one microphone only. Other microphone(s) similarly (but independently) processed Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 36

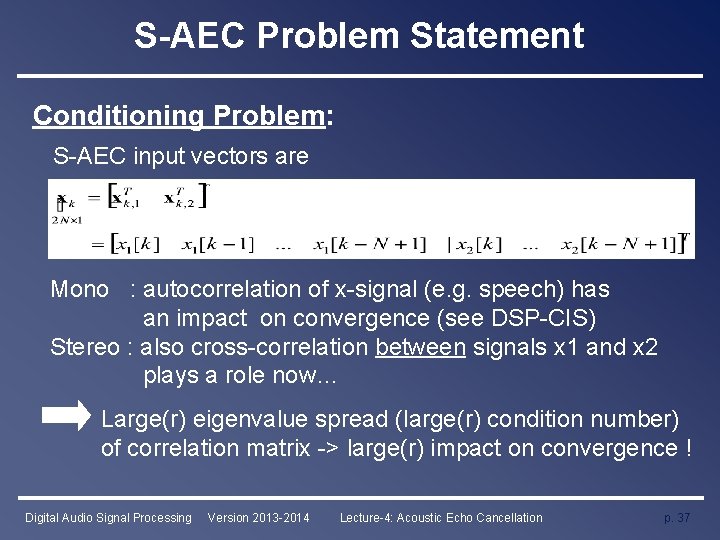

S-AEC Problem Statement Conditioning Problem: S-AEC input vectors are Mono : autocorrelation of x-signal (e. g. speech) has an impact on convergence (see DSP-CIS) Stereo : also cross-correlation between signals x 1 and x 2 plays a role now… Large(r) eigenvalue spread (large(r) condition number) of correlation matrix -> large(r) impact on convergence ! Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 37

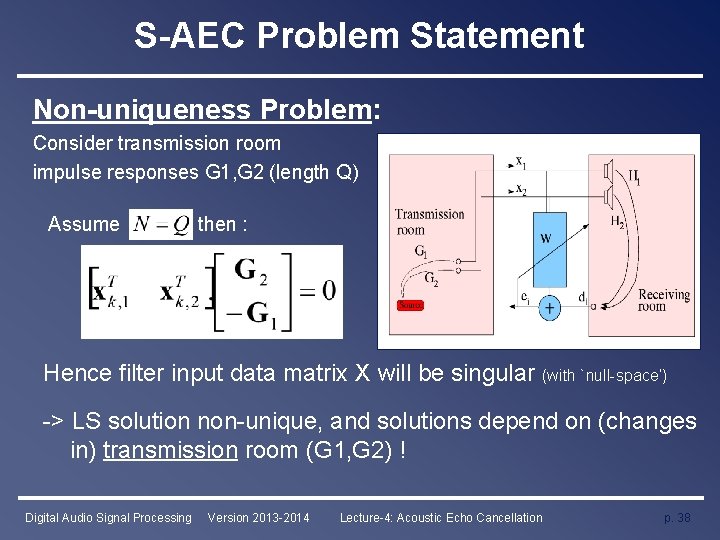

S-AEC Problem Statement Non-uniqueness Problem: Consider transmission room impulse responses G 1, G 2 (length Q) Assume then : Hence filter input data matrix X will be singular (with `null-space’) -> LS solution non-unique, and solutions depend on (changes in) transmission room (G 1, G 2) ! Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 38
S-AEC Problem Statement In practice : Hence So that X will be (only) ill-conditioned (instead of rank-deficient) which however is still bad news… Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 39

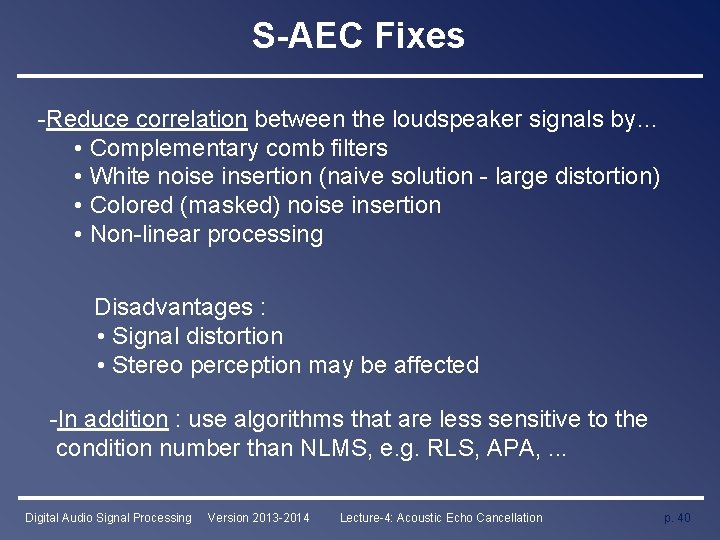

S-AEC Fixes -Reduce correlation between the loudspeaker signals by… • Complementary comb filters • White noise insertion (naive solution - large distortion) • Colored (masked) noise insertion • Non-linear processing Disadvantages : • Signal distortion • Stereo perception may be affected -In addition : use algorithms that are less sensitive to the condition number than NLMS, e. g. RLS, APA, . . . Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 40
S-AEC Fixes: Complementary comb filters Comb-1 for x 1, comb-2 for x 2 Two channels are decorrelated, BUT stereo image is distorted if applied below 1 k. Hz (=psycho-acoustics) Can be combined with another technique below 1 k. Hz Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 41
S-AEC Fixes: Noise insertion Remove all signal content below the masking threshold Fill with noise (both channels independently) Correlation between input channels decreases • Poor performance for speech • Good performance for music • Computationally intensive Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 42
S-AEC Fixes: Non-linear processing is often a half wave rectifier is necessary for good performance, but audible Good results for speech, audible artifacts in music Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 43
S-AEC Fixes: Non-linear processing Loudspeakers play original signal Mismatch Loudspeakers play processed signal Time Digital Audio Signal Processing Version 2013 -2014 Lecture-4: Acoustic Echo Cancellation p. 44
