The World Leader in High Performance Signal Processing Solutions New SOT supervisors

New SOT-23 Package Supervisors Ultra Low Power Supervisor : ADM 6326/28/46/48 Dual Channel Supervisors : ADM 6305/6 SOT-23 vs SOIC Triple Channel Supervisor : ADM 6710 Q Quad Channel Supervisors : ADM 6710 x Quad Channel Supervisors with negative rail monitoring : ADM 6339 Single Channel Voltage Monitor Dual Channel Voltage Monitor Triple Channel Voltage Monitor Quad Voltage Monitor (Negative Voltage Rail)

ADM 6326/28/46/48 3 -Pin, Ultra Low Power SOT-23 μP Reset Circuits KEY BENEFITS Ultra-Low 1 u. A (max) Supply Current (ADM 6326/ADM 6328) Precision Monitoring of 2. 5 V, 3. 3 V and 5 V Power Supply Voltages Reset Thresholds available from 2. 2 V to 4. 63 V 100 ms minimum Power-On Reset Pulse Width 2 Reset Output Options: l l Push-pull RESET Open-drain RESET Power Supply Glitch Immunity Specified from − 40°C to +85°C Package 3 -lead SOT-23 Price @ 1 k $0. 95 Sampling Final Release 03/09 10/09

ADM 6305/6 Dual input supervisor in a SOT KEY BENEFITS Monitors low voltage core and I/O supplies High accuracy 0. 4 V(± 1. 5%) threshold enables monitoring of core supplies <1. 2 V Output valid to 0. 9 V ensures clean power down Preset threshold in 100 m. V increments from 2. 5 -5. 0 V Pin to pin to MAX 6305/6 with higher spec. 5 Lead SOT 23 package saves board space KEY APPLICATIONS Monitoring core & I/O supplies on FPGA’s and u. P Monitoring low voltage core supplies Portable /Battery operated equipment ADM 6305/6 Price (1 k Qty) $1. 15 4

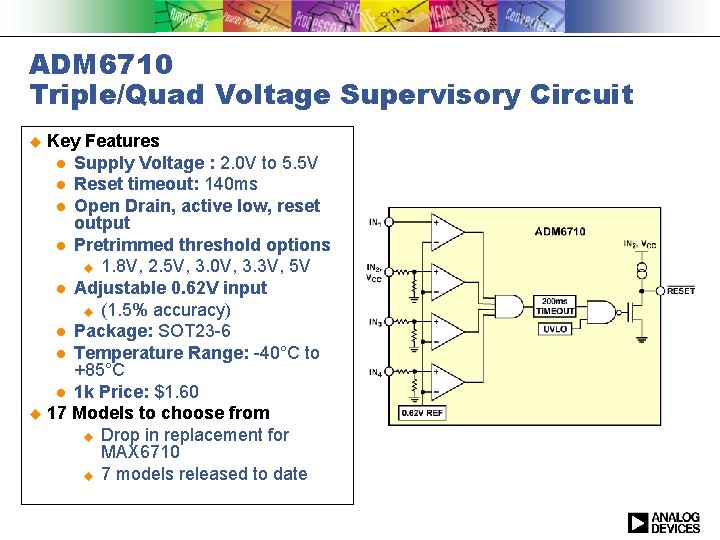

ADM 6710 Triple/Quad Voltage Supervisory Circuit Key Features l Supply Voltage : 2. 0 V to 5. 5 V l Reset timeout: 140 ms l Open Drain, active low, reset output l Pretrimmed threshold options 1. 8 V, 2. 5 V, 3. 0 V, 3. 3 V, 5 V l Adjustable 0. 62 V input (1. 5% accuracy) l Package: SOT 23 -6 l Temperature Range: -40°C to +85°C l 1 k Price: $1. 60 17 Models to choose from Drop in replacement for MAX 6710 7 models released to date

ADM 6339 Low Voltage, High Accuracy, Triple/Quad Voltage Microprocessor Supervisory Circuit KEY BENEFITS Quad Voltage Monitor Precision Monitoring of 1. 8 V, 2. 5 V, 3. 0 V, 3. 3 V, 5 V and -5 V Power Supply Voltages User Adjustable Voltage Monitoring Threshold Options l l Vth adj=1. 23 V Vth adj=0. 62 V with ± 0. 8% accuracy 200 ms typical reset timeout period 55 u. A Supply Current Open drain reset output with 10 u. A internal pull-up Immune to Short Monitored Supply Transients Guaranteed from -40°C to +85°C. Package 6 -lead SOT-23 Price @ 1 k $1. 85 Sampling Final Release 03/09 11/09
