CSE 636 Data Integration XML Semistructured Data Document

Semistructured Data • Another data model, based on trees • Motivation: flexible representation of

Graphs of Semistructured Data • Nodes = objects • Labels on arcs (attributes, relationships)

Example: Data Graph root beer bar beer manf name served. At Bud A. B.

XML HTML • Uses tags formatting the presentation (e. g. , “italic”) • Hard

HTML XML <html> <body> <h 1> Bibliography </h 1> <p> <i>Foundations of Databases</i> Abiteboul,

Why XML is of Interest to Us • XML is just syntax for data

XML Data Sharing and Exchange Applications XML DB Applications XML Data Transform Integrate Web

XML Tags & Elements • Tags: book, title, author, … – XML tags are

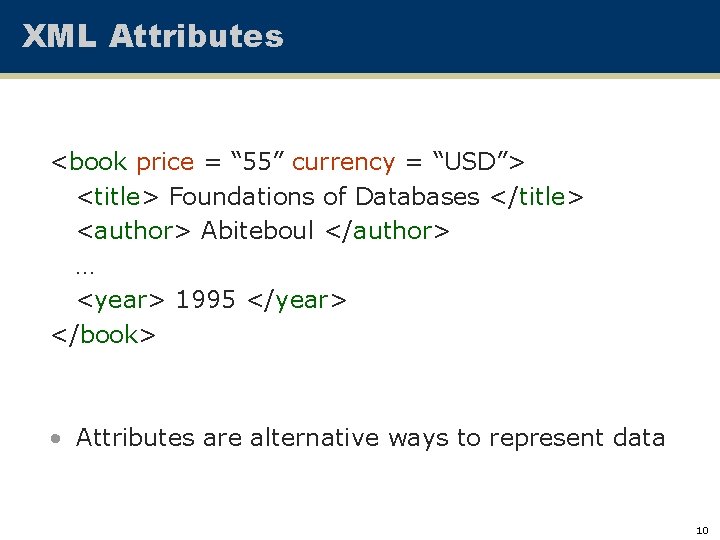

XML Attributes <book price = “ 55” currency = “USD”> <title> Foundations of Databases

Replacing Attributes with Elements <book> <title> Foundations of Databases </title> <author> Abiteboul </author> …

Elements vs. Attributes • Too many attributes make documents hard to read • Attributes

More XML: CDATA Section • Syntax: <![CDATA[. . . any text here. . .

More XML: Entity References • Syntax: &entityname; • Example: <element> this is less than

More XML: Comments • Syntax <!--. . Comment text. . . --> • Yes,

XML Semantics: a Tree ! Attribute node <data> <person age=“ 25” > person <name>

Well-Formed XML • Start the document with a declaration, surrounded by <? xml …

XML Data • XML is self-describing • Schema elements become part of the data

XML is Semistructured Data • Missing attributes: <person> <name> John</name> <phone>1234</phone> </person> <name>Joe</name> </person>

XML is Semistructured Data • Repeated attributes <person> <name>Mary</name> <phone>2345</phone> <phone>3456</phone> </person> • Impossible

XML is Semistructured Data • Attributes with different types in different objects <person> <name>

Document Type Definition (DTD) • • Part of the original XML specification An XML

Very Simple DTD <!DOCTYPE db [ <!ELEMENT db ((book|publisher)*)> <!ELEMENT book (title, author*, year?

DTD: The Content Model content model • Content model: <!ELEMENTtag (CONTENT)> – Complex –

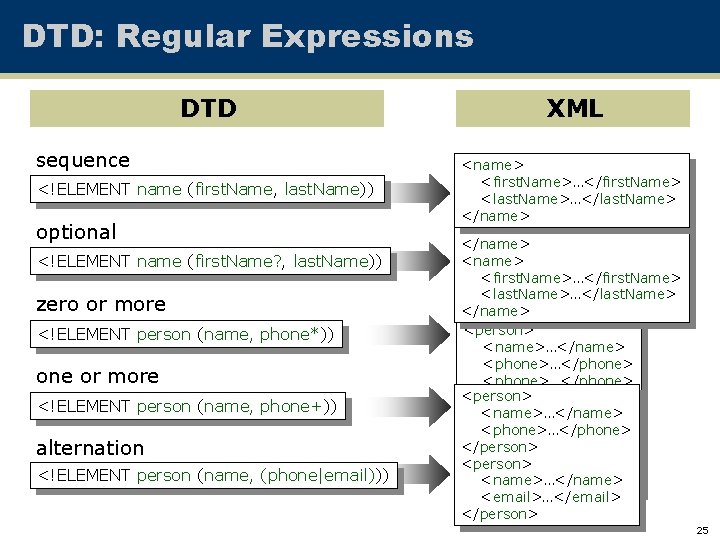

DTD: Regular Expressions DTD sequence <!ELEMENT name (first. Name, last. Name)) optional <!ELEMENT name

DTD: Attributes <!ELEMENT person (ssn, name, office, phone? )> <!ATTLIST person age CDATA #REQUIRED

DTD: Attributes <!ATTLISTtag (name type kind)+> Types: • CDATA = string • (Mon |

XML: IDs and References • Attributes can be pointers from one object to another

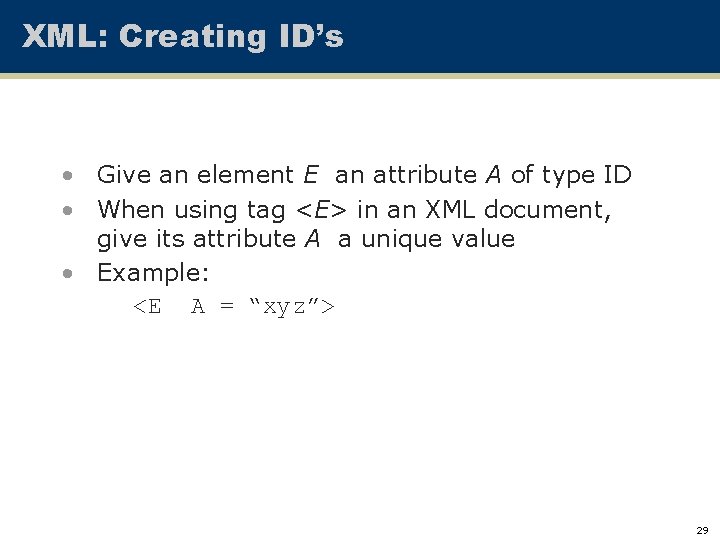

XML: Creating ID’s • Give an element E an attribute A of type ID

XML: Creating References • To allow objects of type F to refer to another

XML: IDs and References <person id=“o 555”> <name>Jane</name> </person> <person id=“o 456”> <name> Mary

DTD: ID and IDREF(S) Attributes <!ELEMENT person (ssn, name, office, phone? )> <!ATTLIS person

Use of DTDs 1. Set standalone = “no” 2. Either: a) Include the DTD

Example (a) <? xml version = “ 1. 0” standalone = “no” ? >

Example (b) • Assume the BARS DTD is in file bar. dtd <? xml

DTDs as Grammars <!DOCTYPE db [ <!ELEMENT db ((book|publisher)*)> <!ELEMENT book (title, author*, year?

DTDs as Grammars Same thing as: db book title author year publisher : :

DTDs as Grammars <!DOCTYPE paper [ <!ELEMENT paper <!ELEMENT section <!ELEMENT title <!ELEMENT text

DTDs as Schemas Not so well suited: • impose unwanted constraints on order: –

DTDs as Schemas No context-dependant typing dealer Used. Cars New. Cars a d model

XML APIs • Document Object Model - DOM – – – Manipulation of XML

References • Lecture Slides – Jeffrey D. Ullman – http: //www-db. stanford. edu/~ullman/dscb/pslides. html
