Monster Mashups Mapping for the interwebs Thanks to

Monster Mashups Mapping for the interwebs Thanks to UConn CLEAR Center for much of the content of this presentation.

What is a mashup? �A combination of separate, standalone technologies into a novel application, often functioning through an application programming interface (API) which facilitates communication between the technologies without modification of the source code.

The first mapping mashup Craigslist + Google maps

Info & Entertainment http: //meyerweb. com/eric/tools/gmap/hydesim. ht ml http: //www. doctorwholocations. org. uk/

Educational stuff

Mashup scale of difficulty Rapid Development Tools Basic Web Maps Customized Data Integration Piece of cake Fully Customized Web Maps Complicated pastry Google Maps My Maps Google Earth Google Map Maker Carto. DB Google Fusion Tables Map. Box Map. Builder API Development Batch. Geo Map Services Mapplets Geo. RSS Programming Mapping APIs HTML Java. Script Database Integration

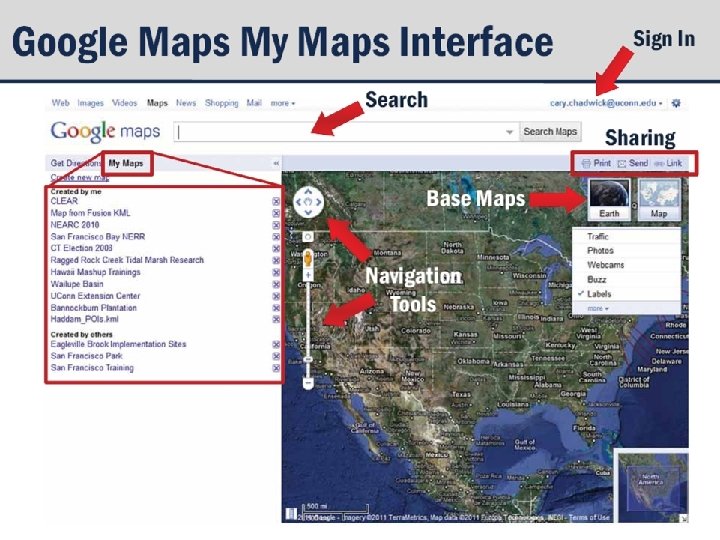

Google Maps “My Maps” �My Maps is embedded in Google Maps �Free method for personalizing Google Maps �WYSIWYG editor �Allows a user to add data, import KML �Create customized popup windows using plain text, rich text and HTML �Add photos, videos and hyperlinks within information bubbles �Collaborate with other map editors, email URL link to your Google Map, embed in website or blog

Editing mode

Editing tools

Adding features

Editing a feature

Sharing your map Print map Email URL Link Embed HTML Invite others to contribute KML

Limitations �You are limited to 1000 map features �Maximum KML import = 10 MB �All collaborators must have a Google Account �Customization is somewhat limited �Data is stored on Google servers �Google-centric

Google Fusion Tables �Cloud-based �Designed for application data management and collaboration �Offers data visualization tools including ability to map data in Google Maps and access HTML code to embed on third party websites � Supports. csv, . xls, . xsls, . ods, Google spreadsheets, . KML files � Quota of up to 250 MB per user (shared tables not included)

Fusion Table basics

Visualize!

More Fusion Table tricks � Supports embeddable charts, graphs, maps, and timelines � Configurable map styles and information windows � Supports data filters and basic queries � Data attribution and protection capabilities � Integration of data from multiple sources or users � Export to KML for sharing or viewing in Google Earth � Embed map or access as a KML network link � Public (searchable, embedded), Private or Collaborative Databases

GIS data and Fusion tables http: //www. shpescape. com/

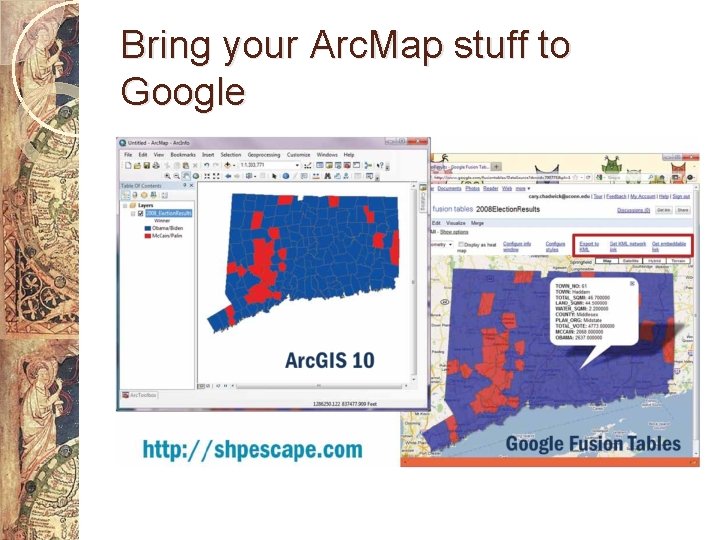

Bring your Arc. Map stuff to Google

Google Earth Google Maps � Desktop � Web app � 3 D globe � Polar regions � No login to create � Need HTML for customization � Direct GPS import � Historical imagery application � Mainly 2 D � No polar regions � Need Google login � WYSIWYG or other simple interface � GPS via Fusion Tables Google Earth v. Google Maps

Keyhole Markup Language (KML) �Format used by Google to display geographic information in browsers �Tag structure, based on XML �Allows sharing of points, lines and polygons without fancy GIS software

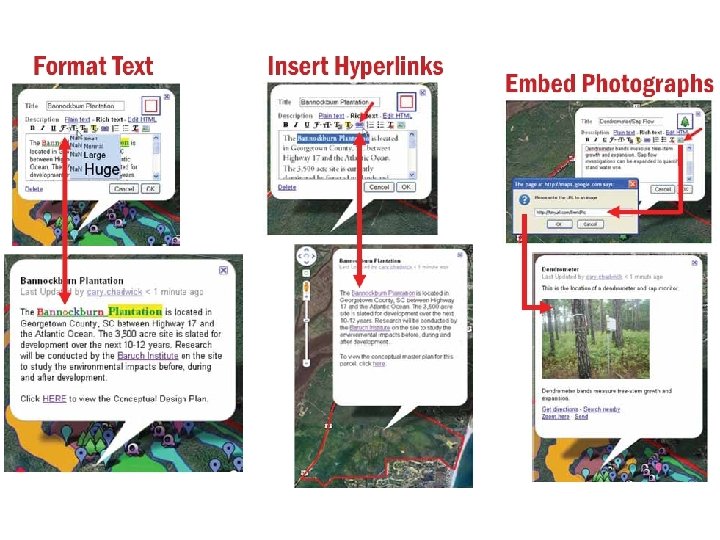

Formatted descriptions

Popup windows

Customizing pop-ups

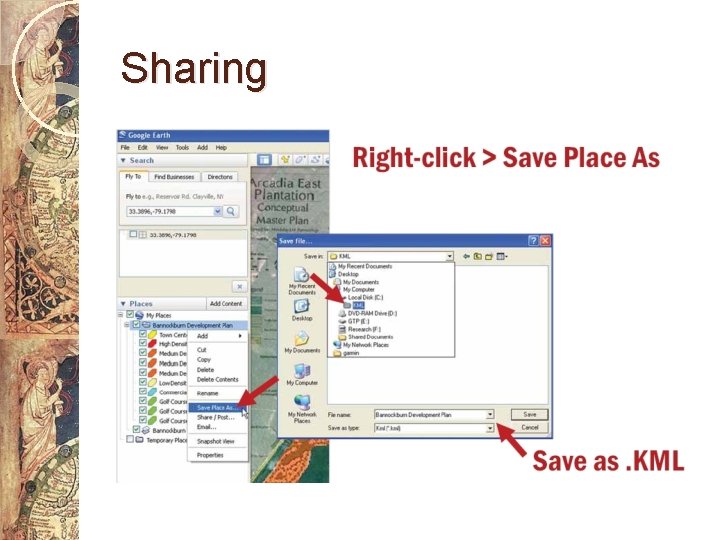

Sharing

Using KML Data

Exported Map data in Earth

Converting to/from KML Arc 9. 2 or 9. 3 http: //arcscripts. esri. com/details. asp? dbid=15603

SHP KML Google Earth

Sharing �Email the KML �Link to the KML for download �Embed the Google Earth map ◦ Copy and paste HTML ◦ Use the Embed map gadget: http: //tinyurl. com/mapgadget

Tutorials and Help

Carto. DB �Supports . shp (zipped) �Supports. csv, but need to georeference �After import, need to set display field and properties

Formats popup Toggle to use Formatted popup

Pick a scheme Value field Classes Classification method Color and transparency Outline Interact with base? Add labels?

Set legend properties

Select a basemap Save your settings Share to get the URL

Map. Box �Points are easy (as. csv) �Shapes as. kml (from Google Earth)

Drag & drop your. csv, then set fields for popups and markers Popup Marker Can also adjust individual markers after import

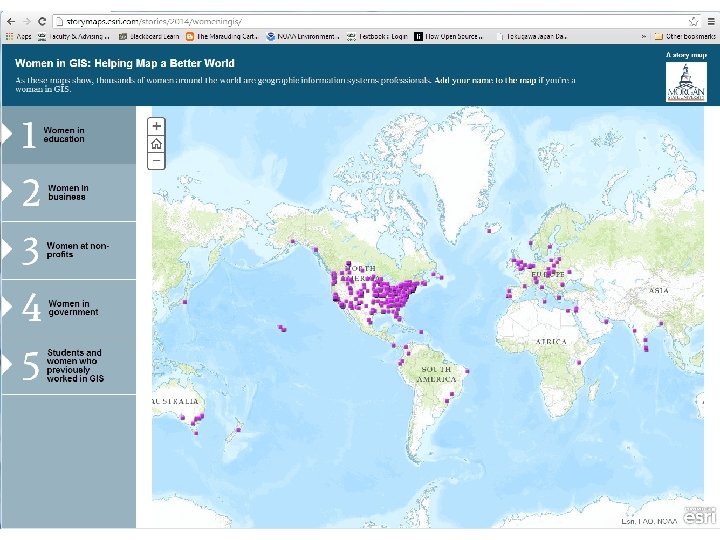

Arc. GIS Online � 30 -day free trial �Save maps as layer packages, or upload data straight into interface �Tapestry data is available

http: //www. esri. com/software/arcgis/take-a-look-at-web-maps
