Combinatorial Topology and Distributed Computing Part One What
Combinatorial Topology and Distributed Computing
Part One What is Distributed Computing? 10 -Sep-21 2
In the Beginning … 1 0 1 0 a computer was just a Turing machine … 10 -Sep-21 3
Today ? ? ? Computing is co-ordination and communication 10 -Sep-21 4
Here is a puzzle …. 10 -Sep-21 5
Each process has an input … 19 32 21 10 -Sep-21 6

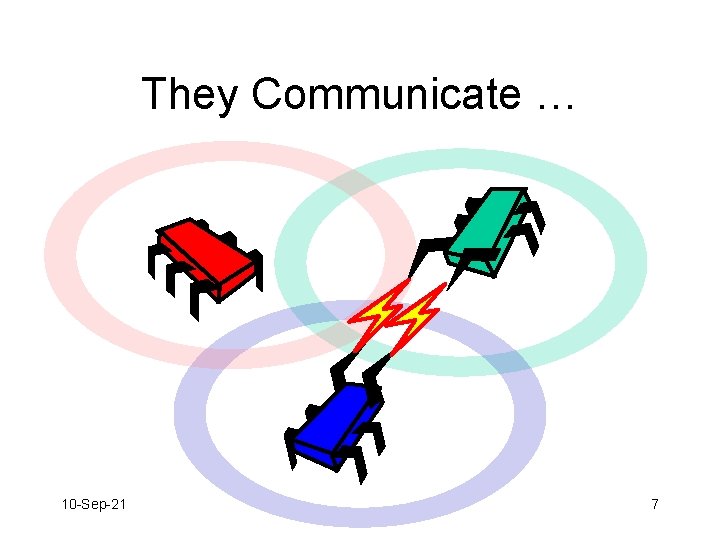

They Communicate … 10 -Sep-21 7
All Agree on One Input 19 19 19 consensus 10 -Sep-21 8
Why is this problem hard? ? ? (sleeping) 10 -Sep-21 9
Why is this problem hard? ? ? 10 -Sep-21 10
Why is this problem hard? (sleeping) 10 -Sep-21 (sleeping) 11
Why is this problem hard? (sleeping) 10 -Sep-21 12
Tasks 19 32 Possible set of input values 21 Finite computation 19 19 Possible set of output values 32 32 19 21 21 32 21 10 -Sep-21 13
Agree on · k Inputs 19 19 21 k-set agreement 10 -Sep-21 14

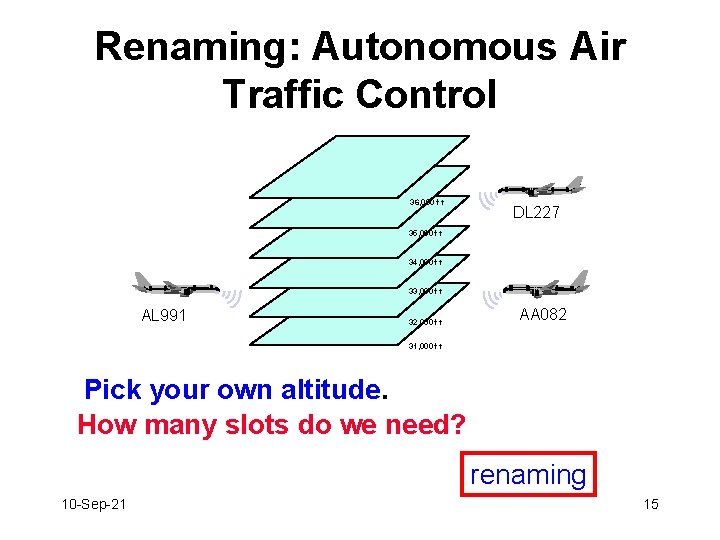

Renaming: Autonomous Air Traffic Control 36, 000 f t DL 227 35, 000 f t 34, 000 f t 33, 000 f t AL 991 32, 000 f t AA 082 31, 000 f t Pick your own altitude. How many slots do we need? renaming 10 -Sep-21 15
There are Many Models Communication? Failures? 10 -Sep-21 Timing? 16
Communication Message-Passing Read-Write Memory 10 -Sep-21 Black-Box Memory 17
Message-Passing 10 -Sep-21 18
Read-Write Memory
Read-Write Models write & read individual locations write & take memory snapshot Group writes together then takes snapshots together 10 -Sep-21 20
Round-By-Round
Black Box Memory Compare-and-swap Fetch-and-add
Failures Crash failures: processes halt How many? Which ones? 10 -Sep-21 23
Wait-Free Failure Model All but one may crash
t-Resilient Failure Model At most t may crash Here, t = 1.
Correlated Failures Processes on same server may crash
Adversaries Determine which sets of processes can halt. “worst-case” scenario 10 -Sep-21 27
Timing Models Processes share a clock Synchronous Processes do not share a clock Asynchronous Processes have approximatelysynchronized clocks Semi-synchronous 10 -Sep-21 28
Synchronous
Synchronous Failures ! detection easy
Asynchronous
Asynchronous Failures ? ? detection impossible
Semi-Synchronous
Semi-Synchronous Failures ! detection slow
Computation Model Space asynchronous semi-synchronous adversaries t-resilient wait-free messages read-write black-box Which combinations make sense? 35
Multicores Asynchronous Wait-free Shared Memory 10 -Sep-21 Sun T 2000 Niagara 36
Distributed Computing Internet Asynchronous Message-passing Sensor network 10 -Sep-21 37
Parallel Computing Synchronous Message-passing (or shared memory) GPU 10 -Sep-21 38
Operational Reasoning 10 -Sep-21 39
Combinatorial Reasoning Model-independent properties … … restricted model-dependent reasoning 10 -Sep-21 40
