CIS 601 03 Image ENHANCEMENT in the SPATIAL
- Slides: 35
CIS 601 – 03 Image ENHANCEMENT in the SPATIAL DOMAIN Longin Jan Latecki Based on Slides by Dr. Rolf Lakaemper
Most of these slides base on the textbook Digital Image Processing by Gonzales/Woods Chapter 3
Introduction Image Enhancement ? • • • Enhance otherwise hidden information Filter important image features Discard unimportant image features Spatial Domain ? • • Refers to the image plane (the ‘natural’ image) Direct image manipulation
Remember ? A 2 D grayvalue - image is a 2 D -> 1 D function, v = f(x, y)
Remember ? As we have a function, we can apply operators to this function, e. g. T(f(x, y)) = f(x, y) / 2 Operator Image (= function !)
Remember ? T transforms the given image f(x, y) into another image g(x, y) T f(x, y) g(x, y)
Spatial Domain The operator T can be defined over • • • The set of pixels (x, y) of the image The set of ‘neighborhoods’ N(x, y) of each pixel A set of images f 1, f 2, f 3, …
Spatial Domain Operation on the set of image-pixels 6 8 2 0 3 12 200 20 10 6 (Operator: Div. by 2) 4 1 0 10 5
Spatial Domain Operation on the set of ‘neighborhoods’ N(x, y) of each pixel 6 8 (Operator: sum) 12 200 6 8 2 0 12 200 20 10 226
Spatial Domain Operation on a set of images f 1, f 2, … 6 8 2 0 12 200 20 10 (Operator: sum) 5 5 1 0 2 20 3 4 11 13 3 0 14 220 23 14
Spatial Domain Operation on the set of image-pixels Remark: these operations can also be seen as operations on the neighborhood of a pixel (x, y), by defining the neighborhood as the pixel itself. • • • The easiest case of operators g(x, y) = T(f(x, y)) depends only on the value of f at (x, y) T is called a gray-level or intensity transformation function
Transformations Basic Gray Level Transformations • • Image Negatives Log Transformations Power Law Transformations Piecewise-Linear Transformation Functions For the following slides L denotes the max. possible gray value of the image, i. e. f(x, y) [0, L]
Transformations Image Negatives: T(f)= L-f Output gray level T(f)=L-f Input gray level
Transformations Log Transformations: T(f) = c * log (1+ f)
Transformations Log Transformations Inv. Log
Transformations Log Transformations
Transformations Power Law Transformations T(f) = c*f
Transformations • • • varying gamma ( ) obtains family of possible transformation curves >1 • Compresses dark values • Expands bright values <1 • Expands dark values • Compresses bright values
Transformations • Used for gamma-correction
Transformations • Used for general purpose contrast manipulation
Transformations Piecewise Linear Transformations
Piecewise Linear Transformations Thresholding Function L if f(x, y) > t, 0 else t = ‘threshold level’ Output gray level g(x, y) = Input gray level
Piecewise Linear Transformations Gray Level Slicing Purpose: Highlight a specific range of grayvalues Two approaches: 1. Display high value for range of interest, low value else (‘discard background’) 2. Display high value for range of interest, original value else (‘preserve background’)
Piecewise Linear Transformations Gray Level Slicing
Operations on a set of images Operation on a set of images f 1, f 2, … 6 8 2 0 12 200 20 10 (Operator: sum) 5 5 1 0 2 20 3 4 11 13 3 0 14 220 23 14
Operations on a set of images Logic (Bitwise) Operations AND OR NOT
Operations on a set of images The operators AND, OR, NOT are functionally complete: Any logic operator can be implemented using only these 3 operators
Operations on a set of images Any logic operator can be implemented using only these 3 operators: A B Op 0 0 1 1 1 0 0 1 1 0 Op= NOT(A) AND NOT(B) OR NOT(A) AND B
Operations on a set of images Image 1 AND Image 2 1 2 3 9 7 3 6 4 (Operator: AND) 1 1 2 2 1 0 1 1 2 2 2 0

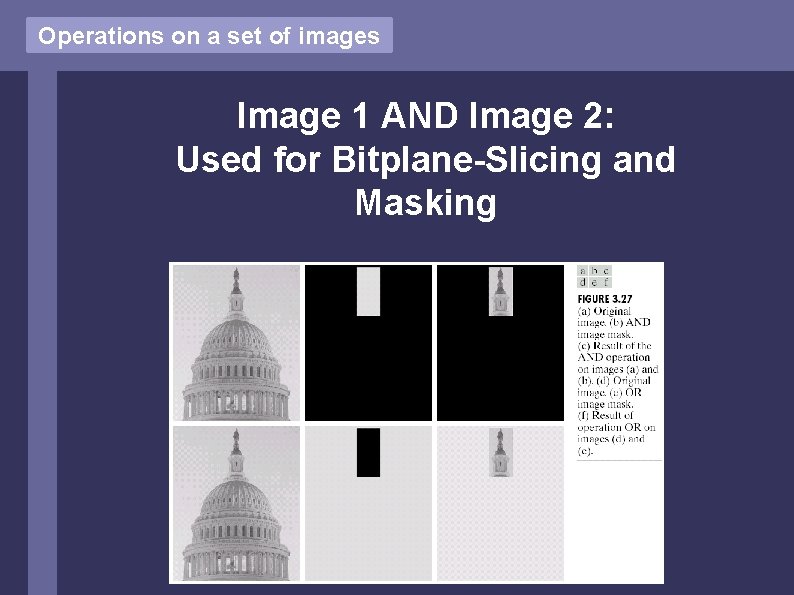

Operations on a set of images Image 1 AND Image 2: Used for Bitplane-Slicing and Masking
Operations on a set of images Exercise: Define the mask-image, that transforms image 1 into image 2 using the OR operand 1 2 3 9 7 3 6 4 (Operator: OR) 255 2 7 255 3 7 255
Operations Arithmetic Operations on a set of images 1 2 3 9 7 3 6 4 (Operator: +) 1 1 2 2 2 3 4 10 9 5 8 6
Operations Exercise: What could the operators + and – be used for ?
Operations Example: Operator – Foreground-Extraction
Operations Example: Operator + Image Averaging
