Chapter 9 Application Layer DNS Professor Rick Han

Chapter 9 Application Layer, DNS Professor Rick Han University of Colorado at Boulder rhan@cs. colorado. edu Prof. Rick Han, University of Colorado at Boulder

Announcements • Read Sections 9. 1 - 9. 2, Skip 9. 3 • HW #4 on Web, tcpdump possibility • Midterm: graded 3 out of 4 problems, partially finished grading last problem • hand back April 4 • Next, Application Layer Prof. Rick Han, University of Colorado at Boulder

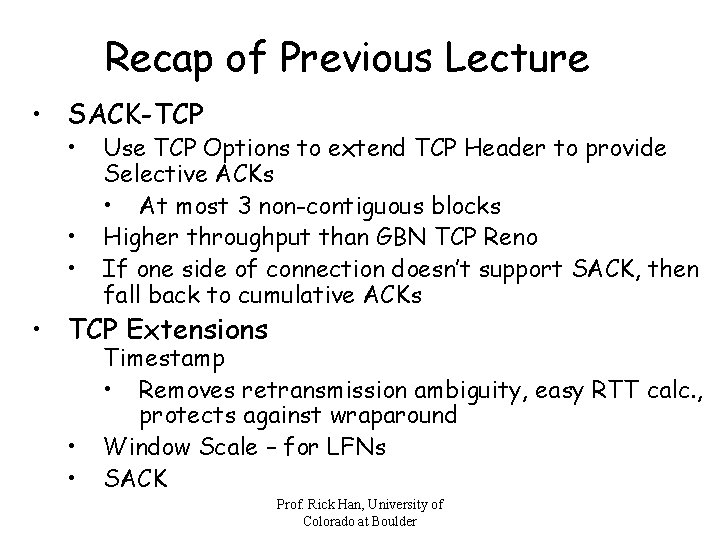

Recap of Previous Lecture • SACK-TCP • • • Use TCP Options to extend TCP Header to provide Selective ACKs • At most 3 non-contiguous blocks Higher throughput than GBN TCP Reno If one side of connection doesn’t support SACK, then fall back to cumulative ACKs • TCP Extensions • • Timestamp • Removes retransmission ambiguity, easy RTT calc. , protects against wraparound Window Scale – for LFNs SACK Prof. Rick Han, University of Colorado at Boulder

Recap of Previous Lecture (2) • Wireless TCP • • Wireless fading causes congestion backoff – Wrong response Split Connection Solution • Doesn’t isolate wired conn. from wired losses Link Layer Solution • Poor interaction with TCP Snoop TCP • TCP-aware link layer solution • At basestation, • cache un. ACKnowledged TCP packets – suppress duplicate ACKs back to sender while performing local retransmissions Prof. Rick Han, University of Colorado at Boulder

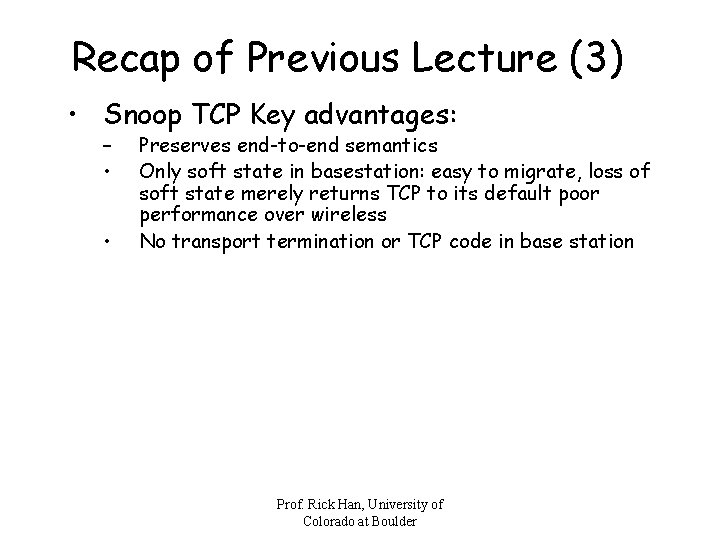

Recap of Previous Lecture (3) • Snoop TCP Key advantages: – • • Preserves end-to-end semantics Only soft state in basestation: easy to migrate, loss of soft state merely returns TCP to its default poor performance over wireless No transport termination or TCP code in base station Prof. Rick Han, University of Colorado at Boulder

Domain Name Service (DNS) • Translate/resolve a name into an IP address • www. cs. colorado. edu -> 128. 138. 242. 195 • Binding of a name to a value • What are examples of an address translation service we’ve already studied? • • • DHCP: MAC -> IP address ARP: IP address -> MAC These solutions are • Confined in/near a local area network LAN • DHCP: Client queries server • ARP: Client queries a destination peer Prof. Rick Han, University of Colorado at Boulder

DNS (2) • A DNS name translation service should provide at least global translation: input any name, get out an IP address • Can we reuse concepts from DHCP/ARP to provide global name translation? • • • DHCP Client queries DHCP server architecture (via relay) – useful theme Local LAN focus? • No, need wide area naming system DHCP uses a somewhat distributed rather than a centralized architecture – useful theme Prof. Rick Han, University of Colorado at Boulder

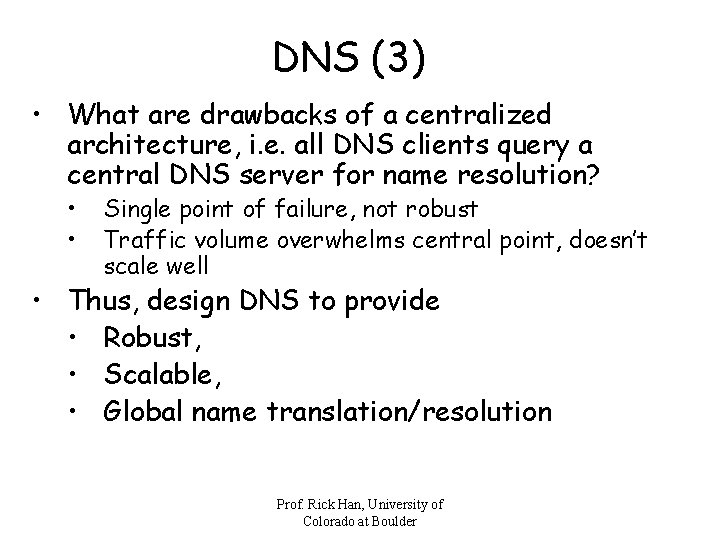

DNS (3) • What are drawbacks of a centralized architecture, i. e. all DNS clients query a central DNS server for name resolution? • • Single point of failure, not robust Traffic volume overwhelms central point, doesn’t scale well • Thus, design DNS to provide • Robust, • Scalable, • Global name translation/resolution Prof. Rick Han, University of Colorado at Boulder

DNS (4) • Where have we seen scalable systems before? • • IP Routing: hierarchical BGP routing above/between OSPF and RIP AS domains Also, hierarchical directory naming in operating systems follow a tree structure • Hierarchy is key to scalability • • Hierarchical distribution of processing • Early Internet had a flat distribution scheme of UNIX /etc/hosts. txt file to all hosts – single point of failure, and easily overwhelmed Hierarchical naming • Flat name space would be quickly unsupportable, e. g. think how large your home directory would become if confined to 1 directory Prof. Rick Han, University of Colorado at Boulder

DNS (5) • DNS is an application-layer protocol that runs on top of UDP port 53 • Commonly employed by other applicationlayer protocols such as HTTP, SMTP, and FTP • • http Web browser translates www. cs. colorado. edu into IP address, so http can set up a TCP connection to Web server Email SMTP program wants to send to rhan@cs. colorado. edu , so cs. colorado. edu has to be translated into an IP address Prof. Rick Han, University of Colorado at Boulder

DNS Hierarchical Name Space root org gwu edu net com colorado ucb cs uk bu ece anchor Prof. Rick Han, University of Colorado at Boulder gov, mil, etc…. mit

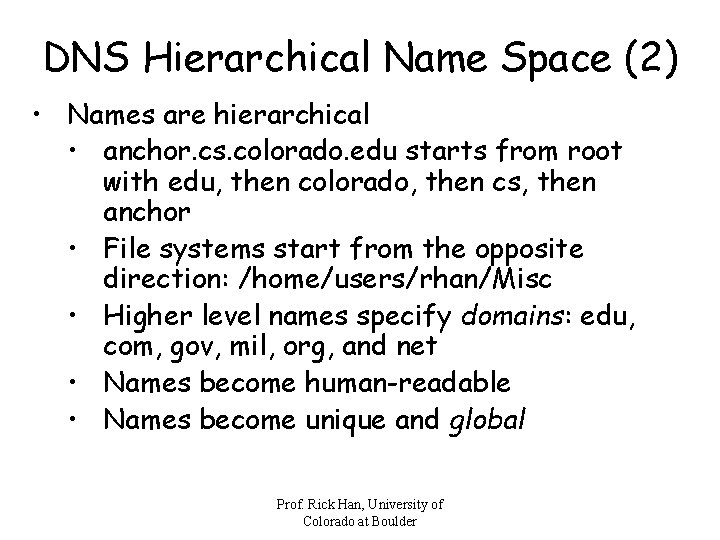

DNS Hierarchical Name Space (2) • Names are hierarchical • anchor. cs. colorado. edu starts from root with edu, then colorado, then cs, then anchor • File systems start from the opposite direction: /home/users/rhan/Misc • Higher level names specify domains: edu, com, gov, mil, org, and net • Names become human-readable • Names become unique and global Prof. Rick Han, University of Colorado at Boulder

DNS Name Servers • DNS Servers assume responsibility for certain subtrees or zones in name hierarchy • DNS as a hierarchy of name servers • Scalable! – processing is distributed via hierarchy • Each name server keeps a database of resource records binding names to IP addresses: • • <Name, Value, Type, Class, TTL> Name = www. cs. colorado. edu Value = IP address Type specifies how Value is interpreted, Value=A => Value IP address Prof. Rickis Han, University of Colorado at Boulder

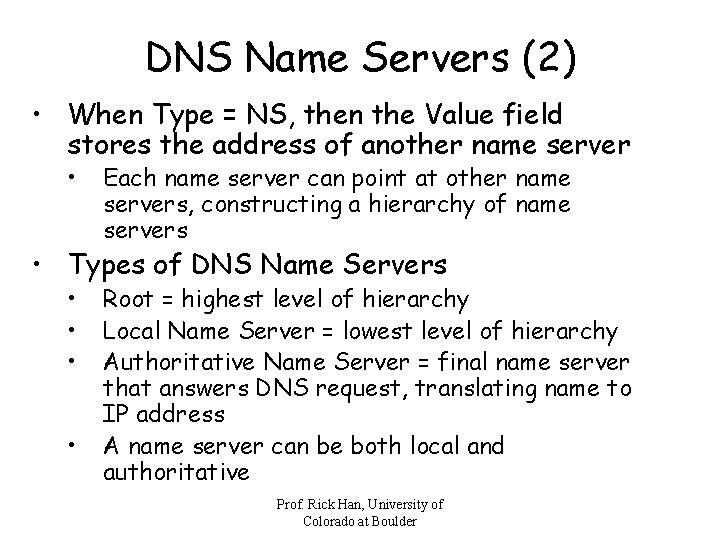

DNS Name Servers (2) • When Type = NS, then the Value field stores the address of another name server • Each name server can point at other name servers, constructing a hierarchy of name servers • Types of DNS Name Servers • • Root = highest level of hierarchy Local Name Server = lowest level of hierarchy Authoritative Name Server = final name server that answers DNS request, translating name to IP address A name server can be both local and authoritative Prof. Rick Han, University of Colorado at Boulder

DNS: Root Name Servers • Responsible for “root” zone • Approx. dozen root name servers worldwide – Currently {a-m}. rootservers. net • Local name servers contact root servers when they cannot resolve a name – Configured with wellknown root servers Prof. Rick Han, University of Colorado at Boulder Courtesy: Srini Seshan

DNS Name Resolution • Each host has a resolver – UNIX clients will typically call gethostbyname() to initiate a DNS name lookup • Typically a library that applications can link to – Local name servers hand-configured (e. g. /etc/resolv. conf) • Name servers – Typically responsible for a zone in the hierarchy – Local servers • Do lookup of distant host names for local hosts • Typically answer queries about local zone Prof. Rick Han, University of Colorado at Boulder

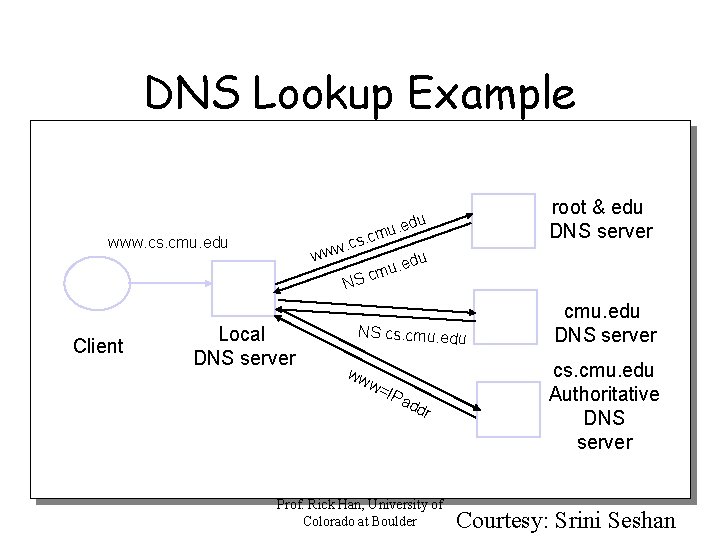

DNS Lookup Example root & edu DNS server NS cs. cmu. edu DNS server mu c. s. c www. edu u m c NS www. cs. cmu. edu Client . edu Local DNS server ww w= IPa dd r Prof. Rick Han, University of Colorado at Boulder cs. cmu. edu Authoritative DNS server Courtesy: Srini Seshan

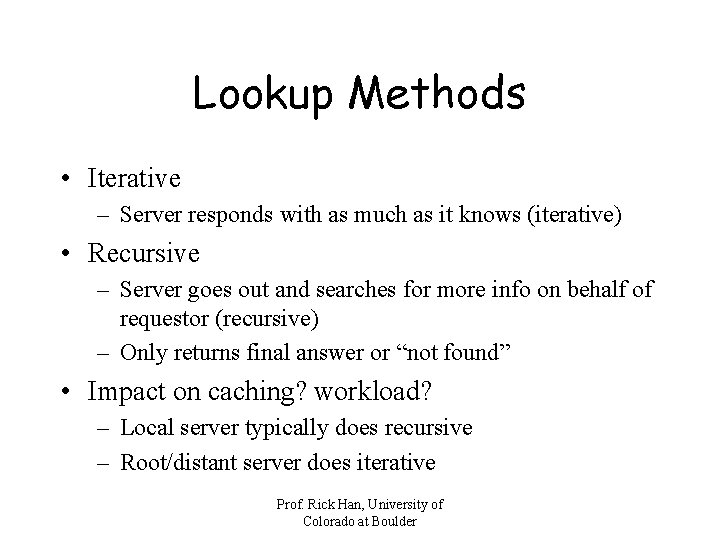

Lookup Methods • Iterative – Server responds with as much as it knows (iterative) • Recursive – Server goes out and searches for more info on behalf of requestor (recursive) – Only returns final answer or “not found” • Impact on caching? workload? – Local server typically does recursive – Root/distant server does iterative Prof. Rick Han, University of Colorado at Boulder

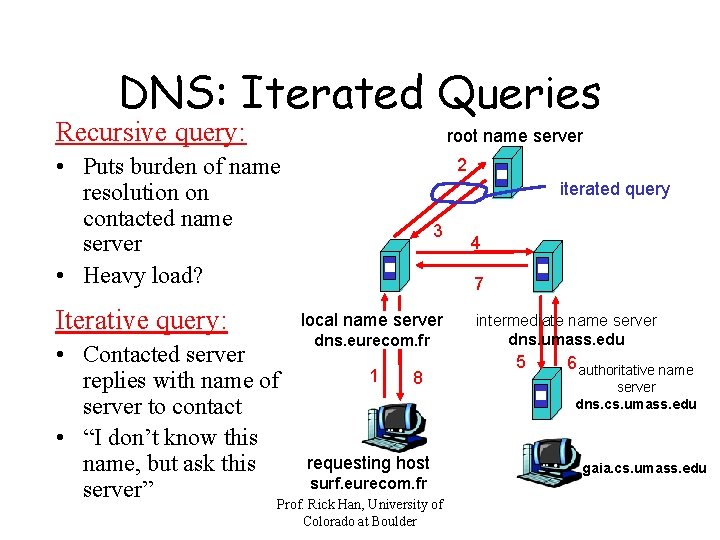

DNS: Iterated Queries Recursive query: root name server • Puts burden of name resolution on contacted name server • Heavy load? Iterative query: 2 iterated query 3 4 7 local name server dns. eurecom. fr • Contacted server 1 8 replies with name of server to contact • “I don’t know this requesting host name, but ask this surf. eurecom. fr server” Prof. Rick Han, University of Colorado at Boulder intermediate name server dns. umass. edu 5 6 authoritative name server dns. cs. umass. edu gaia. cs. umass. edu

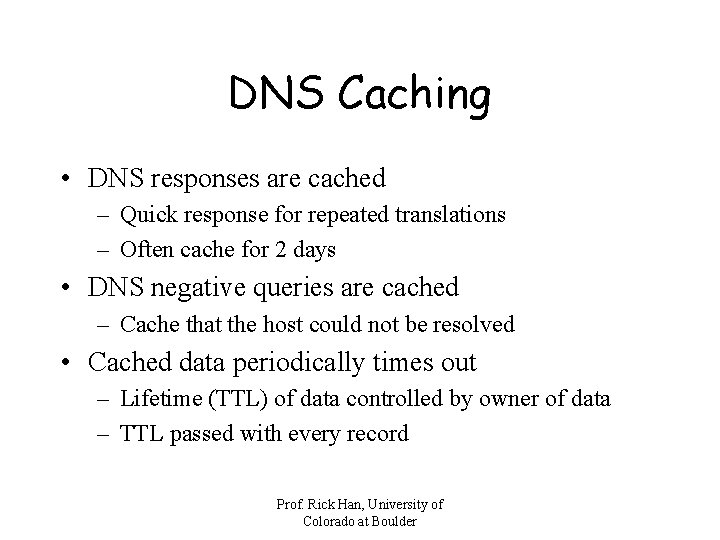

DNS Caching • DNS responses are cached – Quick response for repeated translations – Often cache for 2 days • DNS negative queries are cached – Cache that the host could not be resolved • Cached data periodically times out – Lifetime (TTL) of data controlled by owner of data – TTL passed with every record Prof. Rick Han, University of Colorado at Boulder

DNS Reliability • DNS servers are replicated to achieve robustness – Name service available if at least one replica is up – Queries can be load balanced between replicas – Root servers are replicated – at least a dozen – Each name server has a primary and secondary backup • Secondary replicas periodically update primary name server’s entire database via a “zone transfer” protocol over TCP • See RFC 2182 : Selection and Operation of Secondary DNS Servers Prof. Rick Han, University of Colorado at Boulder
