Chapter 12 Graphical User Interface Concepts Part 1

2 12. 1 Introduction • GUI – Graphical User Interface • Allows visual interaction

3 12. 1 Introduction Fig. 12. 1 Sample Internet Explorer window with GUI components.

4 12. 1 Introduction • GUI Components – Objects with which user interacts •

5 12. 1 Introduction Fig. 12. 2 Some basic GUI components. 2002 Prentice Hall.

6 12. 2 Windows Forms • Form – Graphical element used to create GUIs

7 12. 2 Windows Forms Fig. 12. 3 Components and controls for Windows Forms.

8 12. 2 Windows Forms Fig. 12. 4 Common Form properties and events. 2002

9 12. 3 Event-Handling Model • Event handler – Method called by event –

10 12. 3 Event-Handling Model calls Handler 1 for event E calls Object A

11 12. 3 Event-Handling Model Fig. 12. 6 Events section of the Properties window.

36 37 38 39 40 41 42 43 44 45 46 47 48 49

71 72 73 74 75 76 77 78 ' handler for click event on

15 12. 3 Event-Handling Model Fig. 12. 8 List of Form events. 2002 Prentice

16 12. 3 Event-Handling Model Fig. 12. 9 Details of Click event. 2002 Prentice

17 12. 4 Control Properties and Layout Fig. 12. 10 Class Control properties and

18 12. 4 Control Properties and Layout • Method Focus – Transfers focus to

19 12. 4 Control Properties and Layout • Anchoring – Specifying layout of controls

20 12. 4 Control Properties and Layout Fig. 12. 11 Anchoring demonstration. 2002 Prentice

21 12. 4 Control Properties and Layout Fig. 12 Manipulating the Anchor property of

22 12. 4 Control Properties and Layout Fig. 12. 13 Docking demonstration. 2002 Prentice

23 12. 4 Control Properties and Layout Fig. 12. 14 Control layout properties. 2002

24 12. 5 Labels, Text. Boxes and Buttons • Label – Displays read-only text

25 12. 5 Labels, Text. Boxes and Buttons Fig. 12. 15 Common Label properties.

26 12. 5 Labels, Text. Boxes and Buttons Fig. 12. 16 Text. Box properties

27 12. 5 Labels, Text. Boxes and Buttons Fig. 12. 17 Button properties and

29 12. 6 Group. Boxes and Panels • Groupboxes – Arrange controls on a

30 12. 6 Group. Boxes and Panels Fig. 12. 19 Group. Box properties. Fig.

31 12. 6 Group. Boxes and Panels Fig. 12. 21 Creating a Panel with

30 31 32 33 34 35 36 37 ' far right button handler Private

34 12. 7 Check. Boxes and Radio. Buttons • State Buttons – Check. Boxes

35 12. 7 Check. Boxes and Radio. Buttons Fig. 12. 23 Check. Box properties

Outline 37 Check. Box. Test. vb 2002 Prentice Hall. All rights reserved.

38 12. 7 Check. Boxes and Radio. Buttons Fig. 12. 25 Radio. Button properties

71 72 73 74 75 76 77 78 79 80 81 82 83 84

104 105 106 107 108 109 110 111 112 113 114 115 116 117

136 137 138 139 140 141 142 143 144 145 146 147 148 149

Outline 44 Radio. Button. Test. vb 2002 Prentice Hall. All rights reserved.

Outline 45 Radio. Button. Test. vb 2002 Prentice Hall. All rights reserved.

Outline 46 Radio. Button. Test. vb 2002 Prentice Hall. All rights reserved.

Outline 47 Radio. Button. Test. vb 2002 Prentice Hall. All rights reserved.

48 12. 8 Picture. Boxes • Picture. Boxes – Display images • • Bitmap

49 12. 8 Picture. Boxes Fig. 12. 30 Picture. Box properties and events. 2002

Outline 2002 Prentice Hall. All rights reserved. 51

52 12. 10 Keyboard-Event Handling • Key Events – Generated when keys are pressed

53 12. 10 Keyboard-Event Handling Fig. 12. 34 Keyboard events, delegates and event arguments.

31 32 33 34 35 36 37 38 39 40 41 42 43 44

Outline Key. Demo. vb 2002 Prentice Hall. All rights reserved. 56

Slides: 56

Download presentation

Chapter 12 – Graphical User Interface Concepts: Part 1 Outline 12. 1 12. 2 12. 3 12. 4 12. 5 12. 6 12. 7 12. 8 12. 9 12. 10 Introduction Windows Forms Event-Handling Model 12. 3. 1 Basic Event Handling Control Properties and Layout Labels, Text. Boxes and Buttons Group. Boxes and Panels Check. Boxes and Radio. Buttons Picture. Boxes Mouse-Event Handling Keyboard-Event Handling 2002 Prentice Hall. All rights reserved. 1

2 12. 1 Introduction • GUI – Graphical User Interface • Allows visual interaction • Event driven – User interaction generates events • Distinctive “look” and “feel” • Learn new applications more quickly 2002 Prentice Hall. All rights reserved.

4 12. 1 Introduction • GUI Components – Objects with which user interacts • Event generation – Contained in Toolbox • Control – Component with graphical representation 2002 Prentice Hall. All rights reserved.

6 12. 2 Windows Forms • Form – Graphical element used to create GUIs – Click and drag component from Toolbox • Code generated – Component is instantiated – Basic properties are set 2002 Prentice Hall. All rights reserved.

9 12. 3 Event-Handling Model • Event handler – Method called by event – Receives event information • Notion of delegates – Objects that reference methods – Act as intermediaries between objects creating events and methods handling events • Event multicasting – Inclusion of multiple handlers for one event 2002 Prentice Hall. All rights reserved.

10 12. 3 Event-Handling Model calls Handler 1 for event E calls Object A raises event E Delegate for event E Handler 2 for event E Handler 3 for event E Fig. 12. 5 Event-handling model using delegates. 2002 Prentice Hall. All rights reserved.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 ' Fig. 12. 7: Simple. Event. Example. vb ' Program demonstrating simple event handler. Outline 12 Public Class Frm. Simple Inherits System. Windows. Form #Region " Windows Form Designer generated code " Public Sub New() My. Base. New() Beginning of Visual Studio generated code ' This call is required by the Windows Form Designer. Initialize. Component() ' Add any initialization after the ' Initialize. Component() call End Sub ' New ' Form overrides dispose to clean up the component list. Protected Overloads Overrides Sub Dispose( _ By. Val disposing As Boolean) Simple. Even. Exampl e. vb If disposing Then If Not (components Is Nothing) Then components. Dispose() End If My. Base. Dispose(disposing) End Sub ' Dispose Friend With. Events lbl. Output As System. Windows. Forms. Label 2002 Prentice Hall. All rights reserved.

36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 ' Required by the Windows Form Designer Private components As System. Component. Model. Container ' NOTE: The following procedure is required by ' the Windows Form Designer. ' It can be modified using the Windows Form Designer. ' Do not modify it using the code editor. <System. Diagnostics. Debugger. Step. Through ()> _ Private Sub Initialize. Component() Me. lbl. Output = New System. Windows. Forms. Label() Me. Suspend. Layout() ' 'lbl. Output ' Me. lbl. Output. Location = New System. Drawing. Point(32, 48) Me. lbl. Output. Name = "lbl. Output" Me. lbl. Output. Size = New System. Drawing. Size(168, 40) Me. lbl. Output. Tab. Index = 0 Me. lbl. Output. Text = "Click Me!" ' 'Frm. Simple ' Me. Auto. Scale. Base. Size = New System. Drawing. Size(5, 13) Me. Client. Size = New System. Drawing. Size(272, 237) Me. Controls. Add. Range( _ New System. Windows. Forms. Control() { Me. lbl. Output}) Outline Simple. Even. Exampl e. vb Me. Name = "Frm. Simple" Me. Text = "Simple. Event. Example" Me. Resume. Layout(False) End Sub #End Region 13 of Visual Studio generated code 2002 Prentice Hall. All rights reserved.

71 72 73 74 75 76 77 78 ' handler for click event on lbl. Output Private Sub lbl. Output_Click(By. Val sender As Object, _ By. Val e As System. Event. Args) Handles lbl. Output. Click Message. Box. Show("Label was pressed") End Sub ' lbl. Output_Click End Class ' Frm. Simple. Example Name of the handler followed by an underscore and the event name Outline 14 Reference to the object that generated the event Event arguments object Event-handling code displays a message box Simple. Even. Exampl e. vb 2002 Prentice Hall. All rights reserved.

18 12. 4 Control Properties and Layout • Method Focus – Transfers focus to control • Active control • Method Hide – Hides control • Visible property is false • Method Show – Shows control • Visible property is true 2002 Prentice Hall. All rights reserved.

19 12. 4 Control Properties and Layout • Anchoring – Specifying layout of controls within container – Controls remain fixed distances from inside of container • Docking – Sets dimensions of control to dimensions of container at all times 2002 Prentice Hall. All rights reserved.

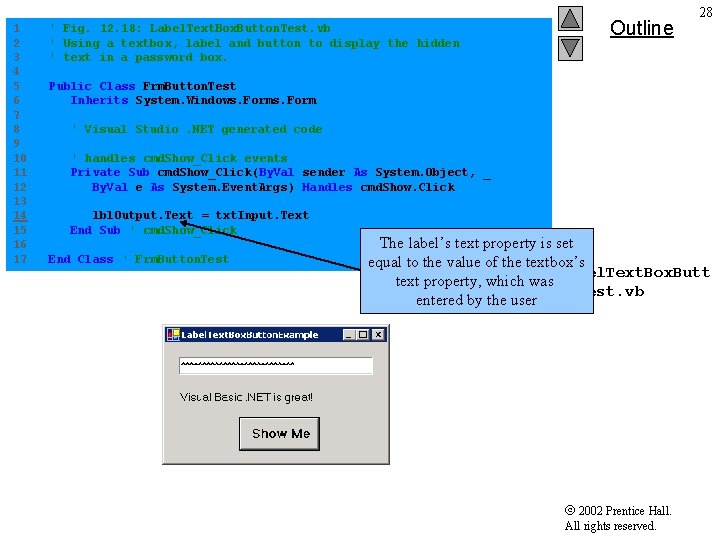

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 ' Fig. 12. 18: Label. Text. Box. Button. Test. vb ' Using a textbox, label and button to display the hidden ' text in a password box. Outline 28 Public Class Frm. Button. Test Inherits System. Windows. Form ' Visual Studio. NET generated code ' handles cmd. Show_Click events Private Sub cmd. Show_Click(By. Val sender As System. Object, _ By. Val e As System. Event. Args) Handles cmd. Show. Click lbl. Output. Text = txt. Input. Text End Sub ' cmd. Show_Click End Class ' Frm. Button. Test The label’s text property is set equal to the value of the textbox’s Label. Text. Box. Butt text property, which was on. Test. vb entered by the user 2002 Prentice Hall. All rights reserved.
