Artifacts are either final or intermediate work products

Artifacts are either final or intermediate work products that are produced and used during a project. Artifacts are used to capture and convey project information. Unit III 9/30/2020 1

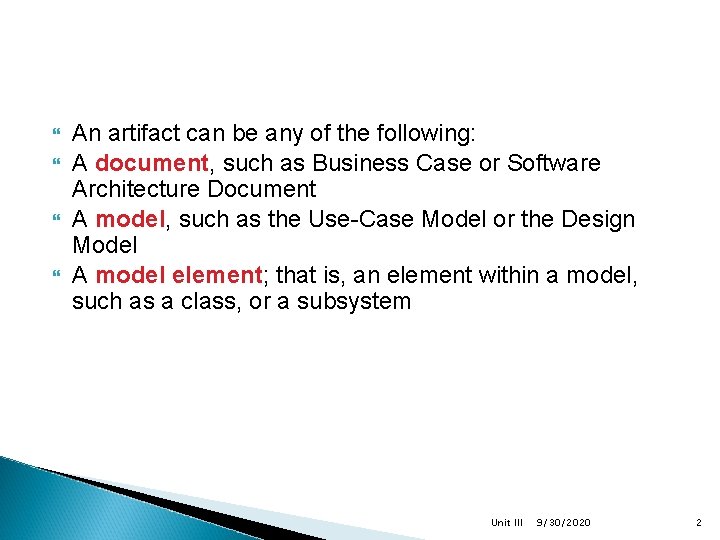

An artifact can be any of the following: A document, such as Business Case or Software Architecture Document A model, such as the Use-Case Model or the Design Model A model element; that is, an element within a model, such as a class, or a subsystem Unit III 9/30/2020 2

Example Unit III 9/30/2020 3

ARTIFACTS OF THE PROCESS The artifacts of the process are organized into five sets: management, requirements, design, implementation, and deployment. The management artifacts capture the information necessary to synchronize stakeholder expectations. The requirements, design, implementation, and deployment artifacts are captured in rigorous notations that support automated analysis Unit III 9/30/2020 4

Most modern systems are composed of numerous components intended to execute in a heterogeneous network of distributed platforms. They require a very different sequence of artifact evolution and a very different approach to trace ability. Rather than being built sequentially, the artifacts are evolved together. The primary difference from the conventional approach is that within each life-cycle phase, the workflow activities do not progress in a simple linear way, nor does artifact building proceed monotonically (sequence) from one artifact to another. Unit III 9/30/2020 5

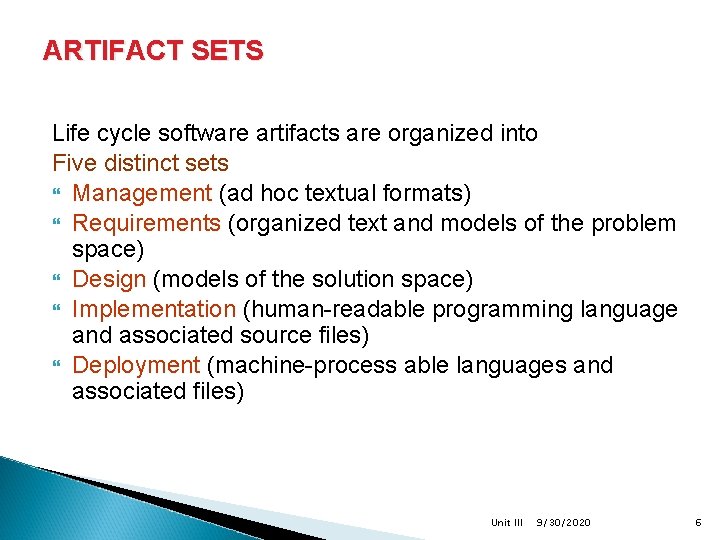

ARTIFACT SETS Life cycle software artifacts are organized into Five distinct sets Management (ad hoc textual formats) Requirements (organized text and models of the problem space) Design (models of the solution space) Implementation (human-readable programming language and associated source files) Deployment (machine-process able languages and associated files) Unit III 9/30/2020 6

Requirement Set 1. Vision statement 2. Requirements model(s) Design Set Implementation set Deployment Set 1. Design model(s) 1. Source code 1. Integrated baselines product 2. Test model executable 2. Associated 3. Software baselines compilearchitecture time files 2. Associated rundescription time files 3. Component executables 3. User manual Planning Artifacts Management Set 1. Work breakdown structure 1. Operational Artifacts Release descriptions 2. Business Case 2. Status assessments 3. Release specifications 3. Software change order database 4. Software development plan 4. Deployment documents 5. Environment Unit III 9/30/2020 7

Management Set The management captures the artifacts associated with process planning and execution. These artifacts use ad hoc notations to capture the “contracts” among project personnel, among stakeholders, and between project personnel and stakeholders. Specific artifacts included in this set are the WBS, the business case, the software development plan, the release descriptions, the status assessments, the software change orders, the deployment documents, and the environment. Unit III 9/30/2020 8

Management Artifact Set The Project Management Artifact Set captures the artifacts associated with project and process planning and execution. Unit III 9/30/2020 9

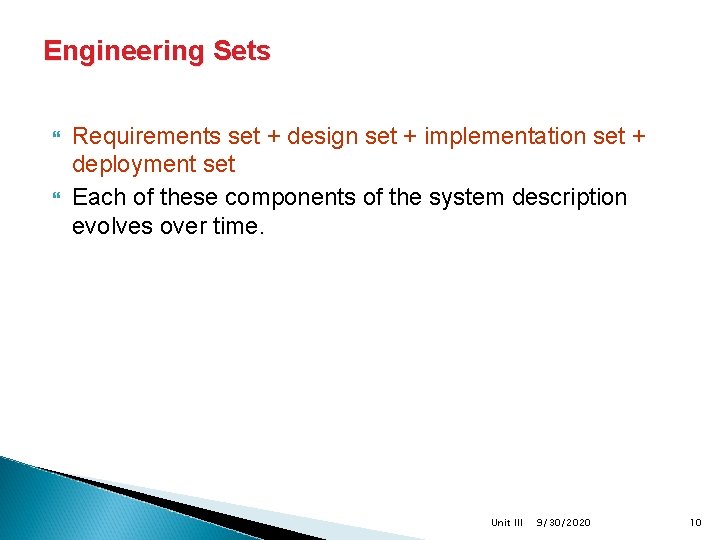

Engineering Sets Requirements set + design set + implementation set + deployment set Each of these components of the system description evolves over time. Unit III 9/30/2020 10

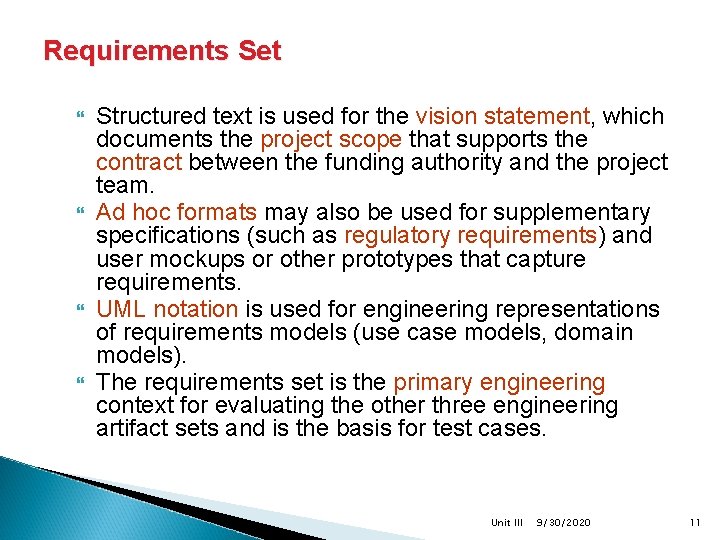

Requirements Set Structured text is used for the vision statement, which documents the project scope that supports the contract between the funding authority and the project team. Ad hoc formats may also be used for supplementary specifications (such as regulatory requirements) and user mockups or other prototypes that capture requirements. UML notation is used for engineering representations of requirements models (use case models, domain models). The requirements set is the primary engineering context for evaluating the other three engineering artifact sets and is the basis for test cases. Unit III 9/30/2020 11

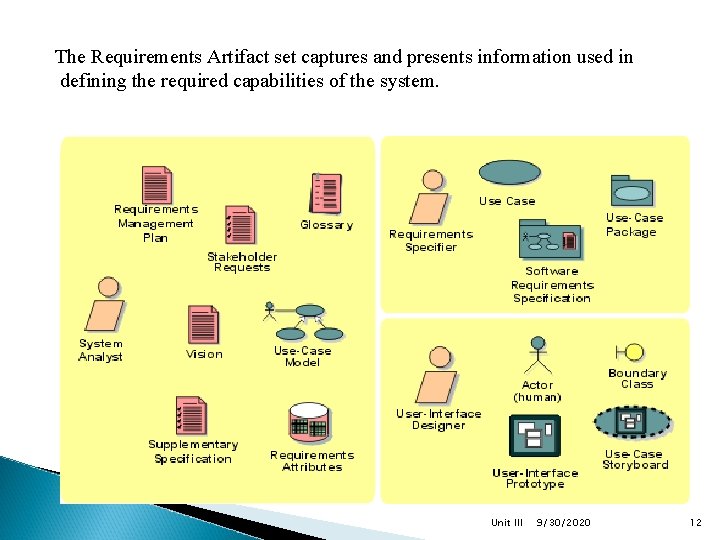

The Requirements Artifact set captures and presents information used in defining the required capabilities of the system. Unit III 9/30/2020 12

Design Set UML notation is used to engineer the design models for the solution. The design set contains varying levels of abstraction that represent the components of the solution space (their identities, attributes, static relationships, dynamic interactions). Design model include structural and behavioral information Design model information can be straightforwardly and, in many cases, automatically translated into a subset of the implementation and deployment set artifacts. Specific design set artifacts include the design model, the test model, and the software architecture description Unit III 9/30/2020 13

The Analysis & Design artifact set captures and presents information related to the solution to the problems posed in the Requirements set. Unit III 9/30/2020 14

Implementation Set The implementation set includes source code that represents the tangible implementations of components and any executables necessary for stand-alone testing of components. Implementation set artifacts can also be translated (compiled and linked) into a subset of the deployment set. Specific artifacts include self-documenting product source code baselines and associated files (compilation scripts, configuration management infrastructure, data files), self-documenting text source code baselines and associated files, stand-alone component executables, and component test driver executables. Unit III 9/30/2020 15

Implementation Artifact Set The Implementation Artifact Set captures and presents the realization of the solution presented in the Analysis & . Design Set Unit III 9/30/2020 16

Deployment Set The deployment set includes user deliverables and machine language notations, executable software, and the build scripts, installation scripts, and executable target specific data necessary to use the product in its target environment. Deployment set information can be installed, executed against scenarios of use, and dynamically reconfigured to support the features required in the end product. Specific artifacts include executable baselines and associated run-time files, and the user manual. Unit III 9/30/2020 17

Deployment Artifact Set The Deployment Artifact set captures and presents information related to transitioning the system presented in the Implementation set into the production environment Unit III 9/30/2020 18

Inception Elaboration Construction Transition Mgt. Req. Design. Impl. Deployment Life-Cycle focus on artifact sets Unit III 9/30/2020 19

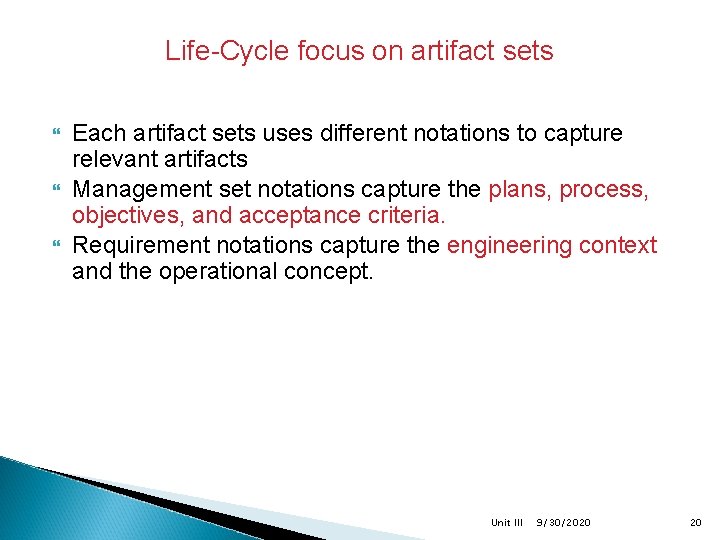

Life-Cycle focus on artifact sets Each artifact sets uses different notations to capture relevant artifacts Management set notations capture the plans, process, objectives, and acceptance criteria. Requirement notations capture the engineering context and the operational concept. Unit III 9/30/2020 20

Design notations capture the engineering blueprints (architectural design, component design). Implementation notations capture the building blocks of the solution in human-readable formats. Deployment notations (executables and data files) capture the solution in machine-readable formats. Unit III 9/30/2020 21

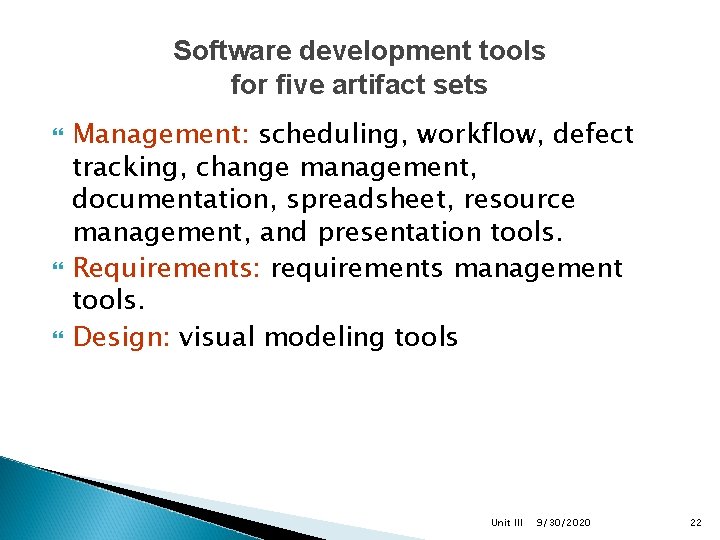

Software development tools for five artifact sets Management: scheduling, workflow, defect tracking, change management, documentation, spreadsheet, resource management, and presentation tools. Requirements: requirements management tools. Design: visual modeling tools Unit III 9/30/2020 22

Implementation: compiler/debugger tools, code analysis tools, test coverage analysis tools, and test management tools. Deployment: test coverage and test automation tools, network management tools, commercial components, and installation tools. Unit III 9/30/2020 23

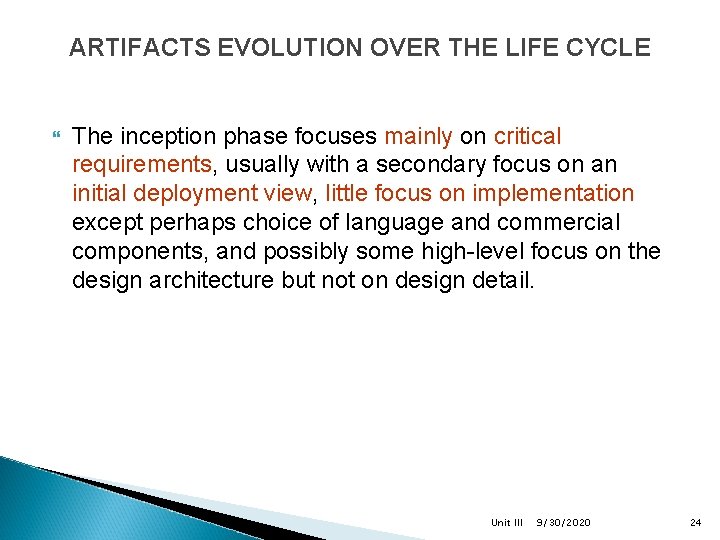

ARTIFACTS EVOLUTION OVER THE LIFE CYCLE The inception phase focuses mainly on critical requirements, usually with a secondary focus on an initial deployment view, little focus on implementation except perhaps choice of language and commercial components, and possibly some high-level focus on the design architecture but not on design detail. Unit III 9/30/2020 24

ARTIFACTS EVOLUTION OVER THE LIFE CYCLE Elaboration phase there is much greater depth in requirements. This phase activities include the generation of an executable prototype. Unit III 9/30/2020 25

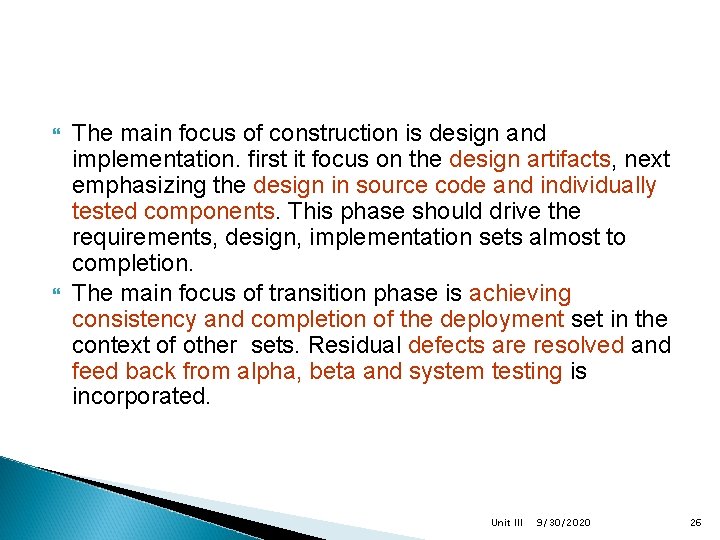

The main focus of construction is design and implementation. first it focus on the design artifacts, next emphasizing the design in source code and individually tested components. This phase should drive the requirements, design, implementation sets almost to completion. The main focus of transition phase is achieving consistency and completion of the deployment set in the context of other sets. Residual defects are resolved and feed back from alpha, beta and system testing is incorporated. Unit III 9/30/2020 26

Unit III 9/30/2020 27

Software Process Framework The Software Process Framework (SPF) is a document that provides information contained in the SEI Capability Maturity Model (CMM) for Software v 1. 1 (Paulk 93 a) in a format suitable for process definition and improvement. The SPF allows users to determine if their organization's software process documentation is consistent with the recommendations made by the CMM. Unit III 9/30/2020 28

When organizational software process documentation is found to be inconsistent with the CMM, the SPF provides the ability to make informed decisions regarding the applicability of specific CMM recommendations. Unit III 9/30/2020 29

Management artifacts The management set includes several artifacts that capture intermediate results necessary to document the product /process legacy, maintain the product, improve the product , improve the process. Unit III 9/30/2020 30

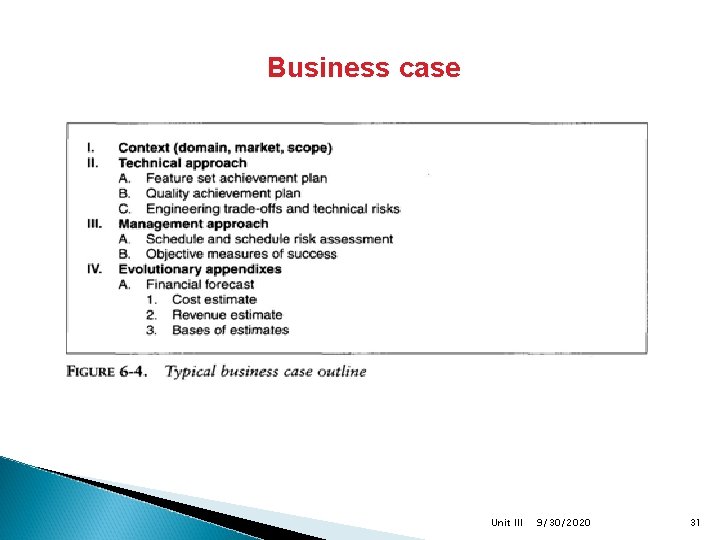

Business case Unit III 9/30/2020 31

Business case(cont) It provides all the information necessary to determine whether the project is worth investing in. It details the expected revenue, expected cost, technical and management plans, and backup data necessary to demonstrate the risks and realism of the plans. The main purpose is to transform the vision into economic terms so that an organization make accurate ROI assessment. Unit III 9/30/2020 32

Software development plan The Software Development Plan is a comprehensive, composite artifact that gathers all information required to manage the project. It encloses a number of artifacts developed during the Inception phase and is maintained throughout the project Unit III 9/30/2020 33

Unit III 9/30/2020 34

Work breakdown structure (WBS): It is the vehicle for budgeting and collecting costs. A functional breakdown in the WBS will result in a functional decomposition in the software Unit III 9/30/2020 35

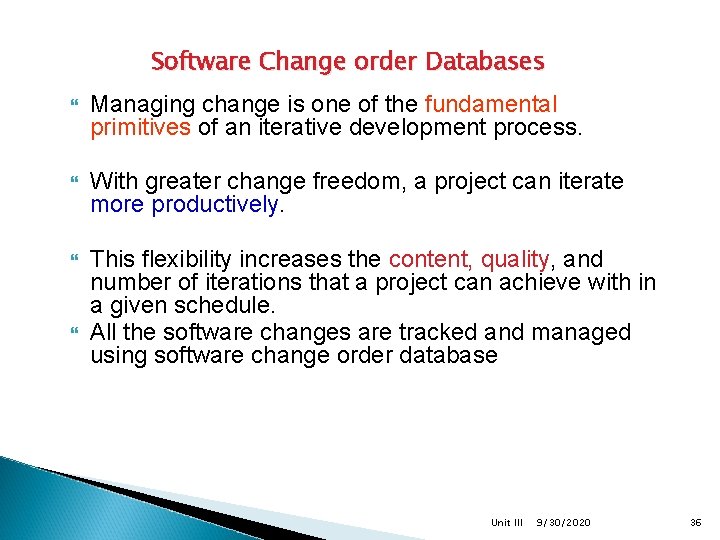

Software Change order Databases Managing change is one of the fundamental primitives of an iterative development process. With greater change freedom, a project can iterate more productively. This flexibility increases the content, quality, and number of iterations that a project can achieve with in a given schedule. All the software changes are tracked and managed using software change order database Unit III 9/30/2020 36

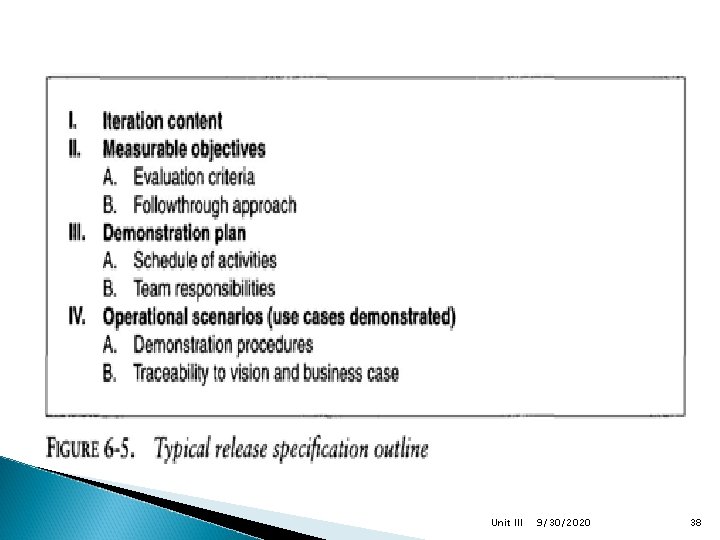

Release Specifications There are two important forms of requirements: vision statement: which captures the contract between the development group and the buyer. It captures the system requirements. It should understandable to the buyer. It uses use case model. eg: ad hoc format that may include text, mockups, use cases, spread sheets, or other formats. Evaluation criteria: Transient snapshots of objectives for a given intermediate lifecycle milestone. It is defined as management artifact rather than as part of requirement set It is represented by use cases, use case realizations, annotations on use cases, or structured text representations. Unit III 9/30/2020 37

Unit III 9/30/2020 38

Release descriptions Release descriptions document describes the results of each release. Release baselines should accompanied a release description document. This document may also include metric summary that quantifies its quality in a absolute and relative terms. Unit III 9/30/2020 39

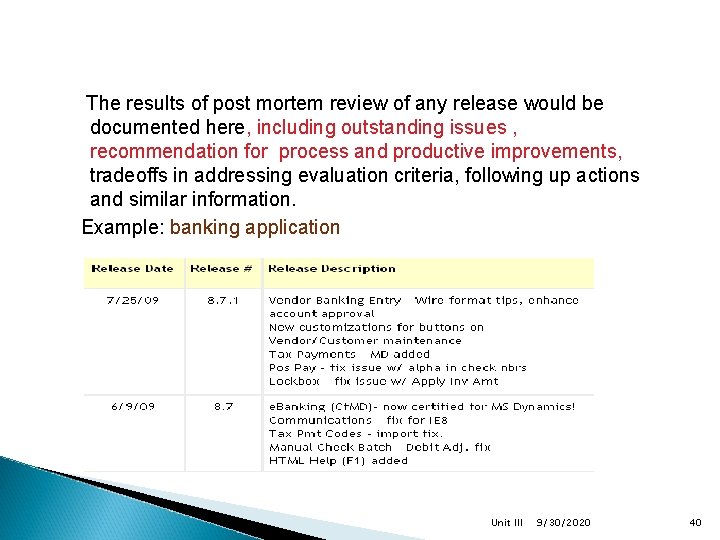

The results of post mortem review of any release would be documented here, including outstanding issues , recommendation for process and productive improvements, tradeoffs in addressing evaluation criteria, following up actions and similar information. Example: banking application Unit III 9/30/2020 40

Status assessments Status assessments provide periodic snapshots of project health and status, including software project manager assessment, quality indicators, and management indicators. The periodic status assessment document provide the critical mechanism for managing everyone’s expectations throughout the lifecycle. Typical status assessment should include a review of resources, personnel staffing, financial data, top 10 risks, technical progress, major milestone plans and results, total project or product scope. Unit III 9/30/2020 41

Environment A robust, integrated development and maintenance environment must support automation of the development process. It should include requirements management, visual modeling, document automation, host and programming tools, automated regression testing, and continuous and integrated change management. Unit III 9/30/2020 42

Deployment Deployment document can take many forms. It may include computer system operations manuals, s/w installation manuals, plans and procedures, site surveys etc. . For commercial software products it may include Transition plans, marketing plans, sales plans, and training course plans Unit III 9/30/2020 43

Management Artifact sequence Unit III 9/30/2020 44

Engineering Artifacts are captured in rigorous engineering notations such as UML, programming languages, or executable machine codes. Three Engineering Artifacts are: 1. Vision Document. 2. Architecture Description. 3. S/W User Manual. Unit III 9/30/2020 45

Vision Document ◦ The source for capturing the expectations among stakeholders. ◦ Written from the users’ perspective. ◦ Focus is on essential features of the system, and the acceptable levels of quality. ◦ Includes the operational concept. Unit III 9/30/2020 46

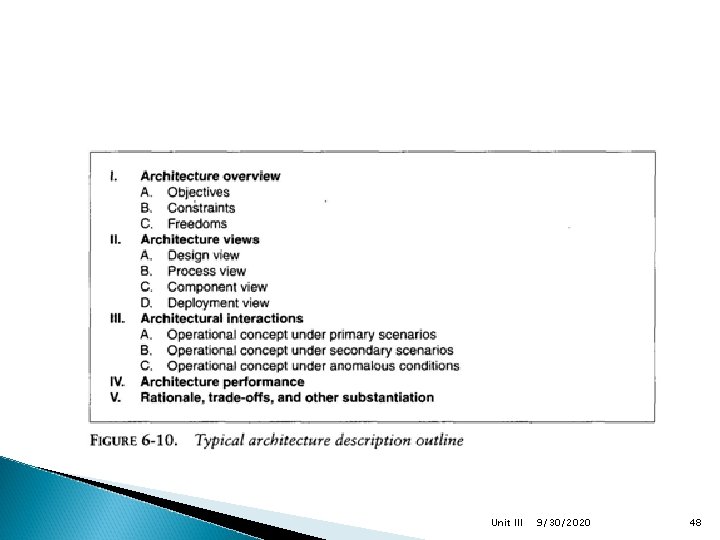

Architecture Description It provides an organized view of the software architecture under development. It includes views of the design, implementation and deployment sets to achieve the operational concept of requirement set. It can be described using a subset of the design model or as an abstraction of the design model or combination of both. Unit III 9/30/2020 47

Unit III 9/30/2020 48

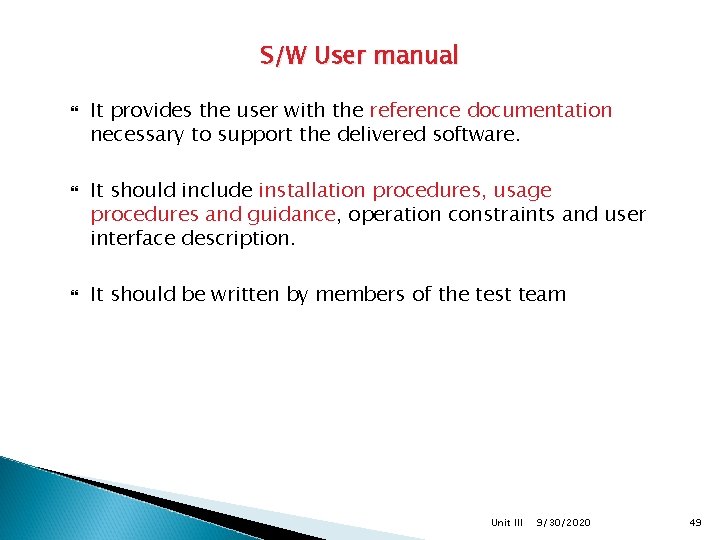

S/W User manual It provides the user with the reference documentation necessary to support the delivered software. It should include installation procedures, usage procedures and guidance, operation constraints and user interface description. It should be written by members of the test team Unit III 9/30/2020 49

Pragmatic Artifacts People want to review information but don’t understand the language of the artifact. People want to review the information but don’t have access to the tools. Human readable engineering artifacts should use rigorous notations that are complete, consistent and used in a self documenting manner. Useful documentation is self defining: It is documentation that gets used. Paper is tangible: electronic artifacts are too easy to change. Unit III 9/30/2020 50
