Area, Centroid, Moment of Inertia, Radius of Gyration Dr. Mohammed E. Haque, P. E. Professor Department of Construction science COSC 321 Haque (PPT_C 7) 1
Area, Moment of Inertia y A=bh x Centroid h Ix = b h 3 /12 Iy = h b 3 /12 b COSC 321 Haque (PPT_C 7) 2

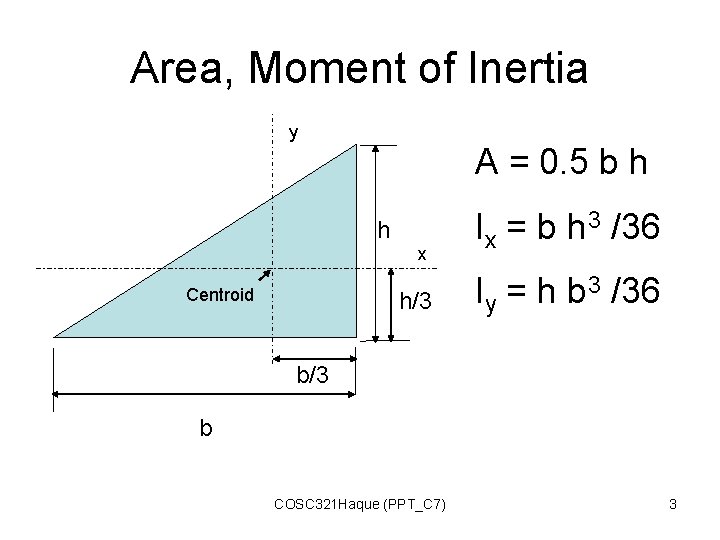

Area, Moment of Inertia y A = 0. 5 b h h x Centroid h/3 Ix = b h 3 /36 Iy = h b 3 /36 b/3 b COSC 321 Haque (PPT_C 7) 3

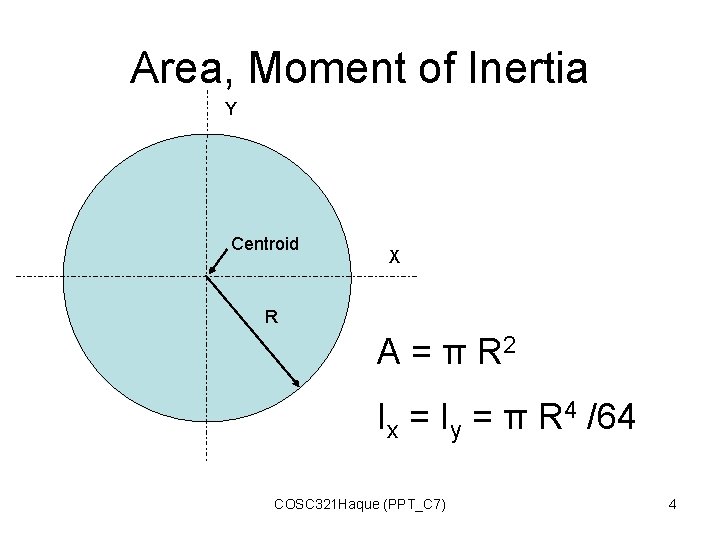

Area, Moment of Inertia Y Centroid X R A = π R 2 Ix = Iy = π R 4 /64 COSC 321 Haque (PPT_C 7) 4
Radius of Gyration rx = (Ix /A) ry = (Iy /A) COSC 321 Haque (PPT_C 7) 5

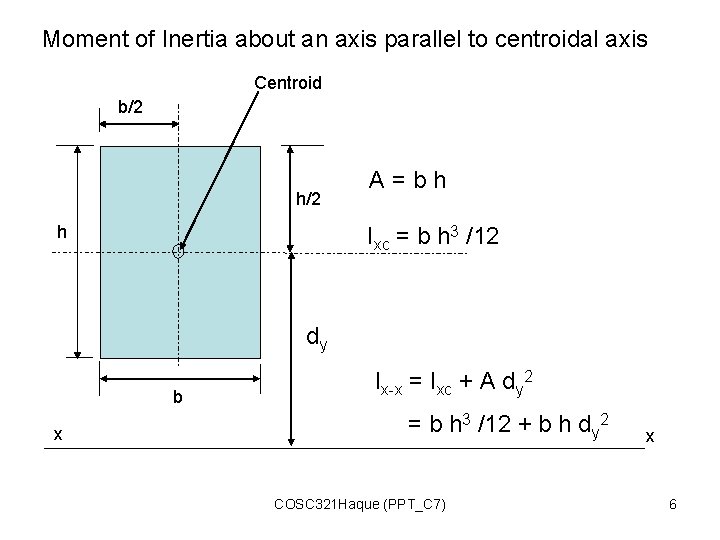

Moment of Inertia about an axis parallel to centroidal axis Centroid b/2 h A=bh Ixc = b h 3 /12 dy b x Ix-x = Ixc + A dy 2 = b h 3 /12 + b h dy 2 COSC 321 Haque (PPT_C 7) x 6

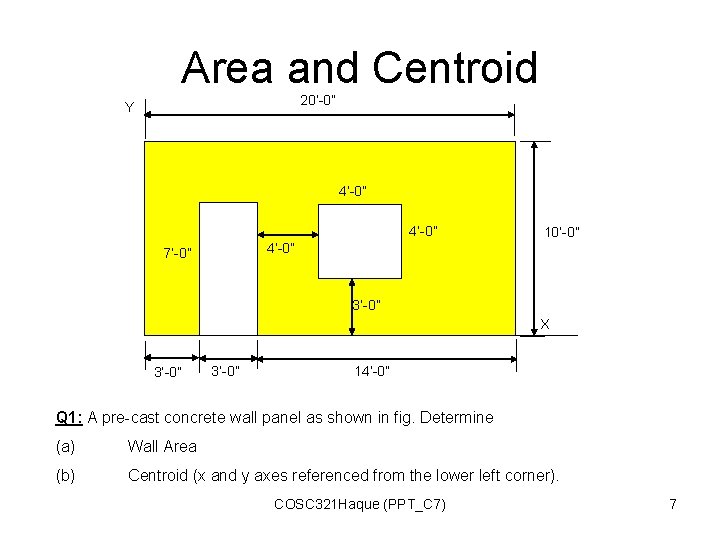

Area and Centroid 20’-0” Y 4’-0” 10’-0” 4’-0” 7’-0” 3’-0” X 3’-0” 14’-0” Q 1: A pre-cast concrete wall panel as shown in fig. Determine (a) Wall Area (b) Centroid (x and y axes referenced from the lower left corner). COSC 321 Haque (PPT_C 7) 7

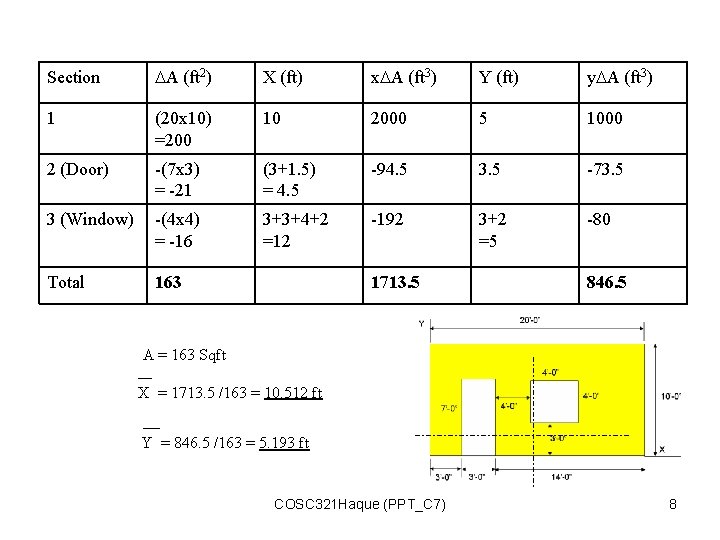

Section A (ft 2) X (ft) x A (ft 3) Y (ft) y A (ft 3) 1 (20 x 10) =200 10 2000 5 1000 2 (Door) -(7 x 3) = -21 (3+1. 5) = 4. 5 -94. 5 3. 5 -73. 5 3 (Window) -(4 x 4) = -16 3+3+4+2 =12 -192 3+2 =5 -80 Total 163 1713. 5 846. 5 A = 163 Sqft X = 1713. 5 /163 = 10. 512 ft Y = 846. 5 /163 = 5. 193 ft COSC 321 Haque (PPT_C 7) 8

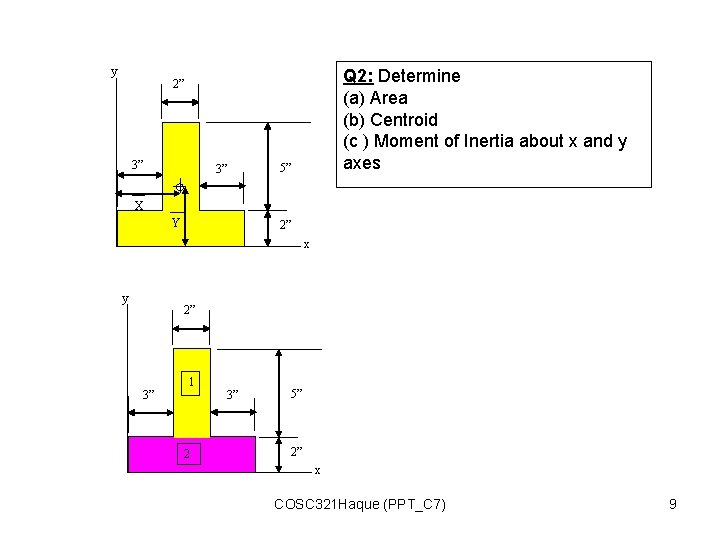

y Q 2: Determine (a) Area (b) Centroid (c ) Moment of Inertia about x and y axes 2” 3” 3” 5” X Y 2” x y 2” 3” 1 2 3” 5” 2” x COSC 321 Haque (PPT_C 7) 9

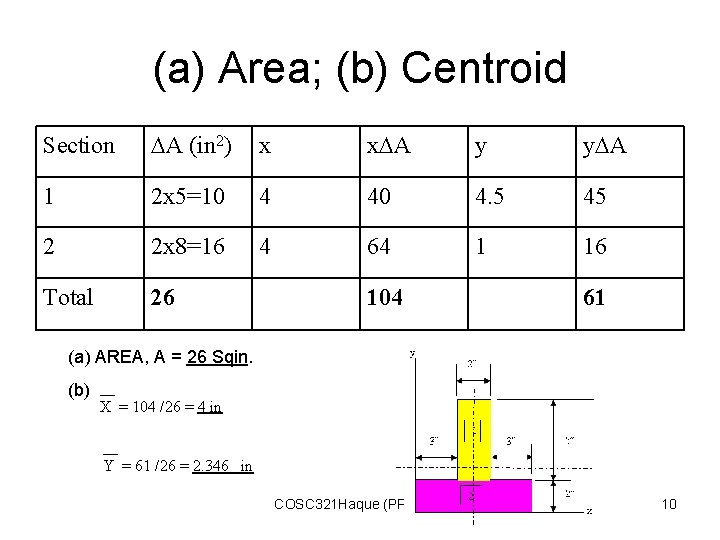

(a) Area; (b) Centroid Section A (in 2) x x A y y A 1 2 x 5=10 4 40 4. 5 45 2 2 x 8=16 4 64 1 16 Total 26 104 61 (a) AREA, A = 26 Sqin. (b) X = 104 /26 = 4 in Y = 61 /26 = 2. 346 in COSC 321 Haque (PPT_C 7) 10

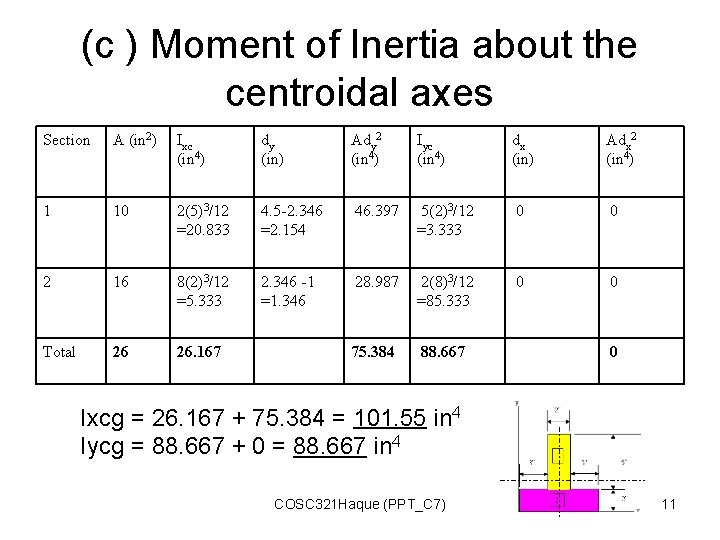

(c ) Moment of Inertia about the centroidal axes Section A (in 2) Ixc (in 4) dy (in) Ady 2 (in 4) Iyc (in 4) dx (in) Adx 2 (in 4) 1 10 2(5)3/12 =20. 833 4. 5 -2. 346 =2. 154 46. 397 5(2)3/12 =3. 333 0 0 2 16 8(2)3/12 =5. 333 2. 346 -1 =1. 346 28. 987 2(8)3/12 =85. 333 0 0 Total 26 26. 167 75. 384 88. 667 0 Ixcg = 26. 167 + 75. 384 = 101. 55 in 4 Iycg = 88. 667 + 0 = 88. 667 in 4 COSC 321 Haque (PPT_C 7) 11

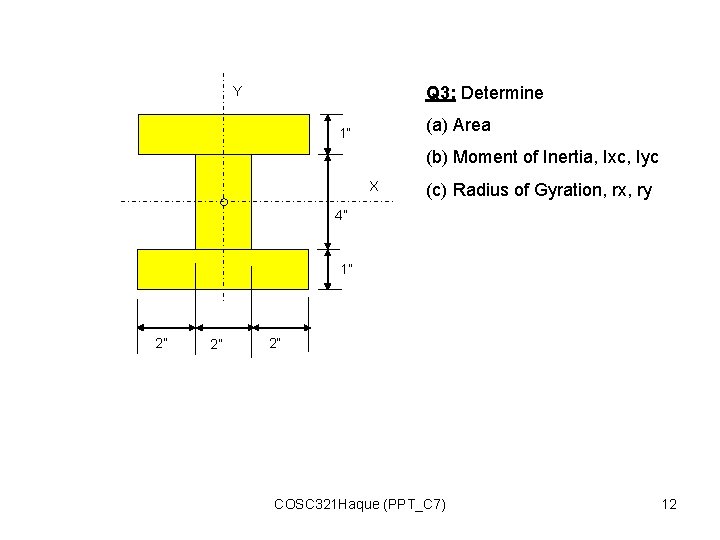

Q 3: Determine Y (a) Area 1” (b) Moment of Inertia, Ixc, Iyc X (c) Radius of Gyration, rx, ry 4” 1” 2” 2” 2” COSC 321 Haque (PPT_C 7) 12
Y 1 1” X 4” 3 2 2” 1” 2” A= 20 in 2 Ix = 11. 667 + 75. 0 = 86. 667 in 4 Iy = 38. 667 + 0 = 38. 667 in 4 rx = (86. 667/20) = 2. 08 in ry = (38. 667/20) = 1. 39 in 2” Section A (in 2) Ixc (in 4) dy (in) Ady 2 (in 4) Iyc (in 4) dx (in) Adx 2 (in 4) 1 6 x 1=6 6(1)3/12 =0. 5 2. 5 37. 5 1(6)3/12 =18 0 0 2 6 x 1=6 6(1)3/12 =0. 5 2. 5 37. 5 1(6)3/12 =18 0 0 3 2 x 4=8 2(4)3/12 =10. 667 0 0 4(2)3/12 =2. 667 0 0 Total 20 75. 0 38. 667 11. 667 COSC 321 Haque (PPT_C 7) 0 13

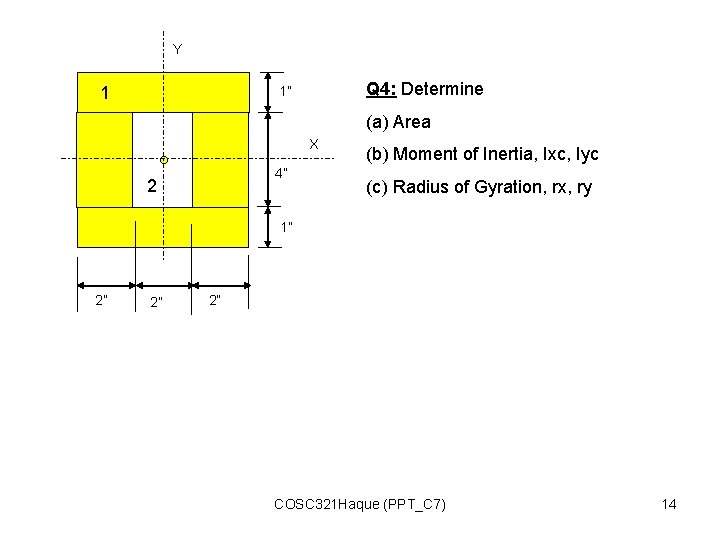

Y 1 Q 4: Determine 1” (a) Area X 4” 2 (b) Moment of Inertia, Ixc, Iyc (c) Radius of Gyration, rx, ry 1” 2” 2” 2” COSC 321 Haque (PPT_C 7) 14

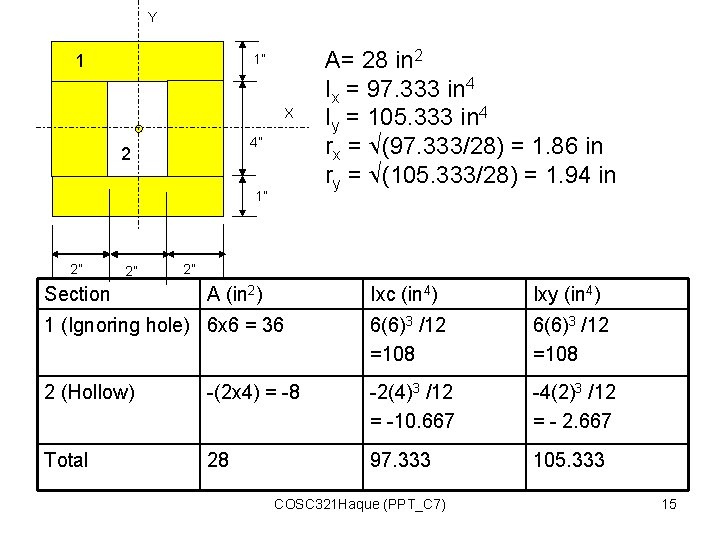

Y 1 1” X 4” 2 1” 2” 2” Section A= 28 in 2 Ix = 97. 333 in 4 Iy = 105. 333 in 4 rx = (97. 333/28) = 1. 86 in ry = (105. 333/28) = 1. 94 in 2” A (in 2) Ixc (in 4) Ixy (in 4) 1 (Ignoring hole) 6 x 6 = 36 6(6)3 /12 =108 2 (Hollow) -(2 x 4) = -8 -2(4)3 /12 = -10. 667 -4(2)3 /12 = - 2. 667 Total 28 97. 333 105. 333 COSC 321 Haque (PPT_C 7) 15

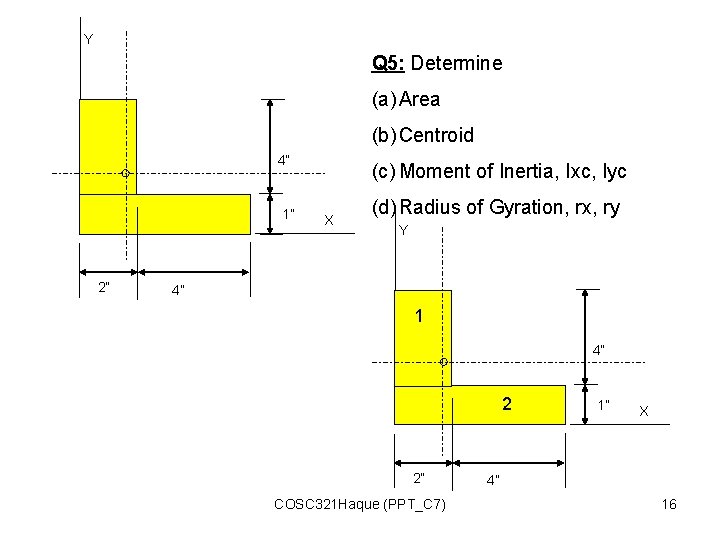

Y Q 5: Determine (a) Area (b) Centroid 4” 1” 2” (c) Moment of Inertia, Ixc, Iyc X (d) Radius of Gyration, rx, ry Y 4” 1 4” 2 2” COSC 321 Haque (PPT_C 7) 1” X 4” 16

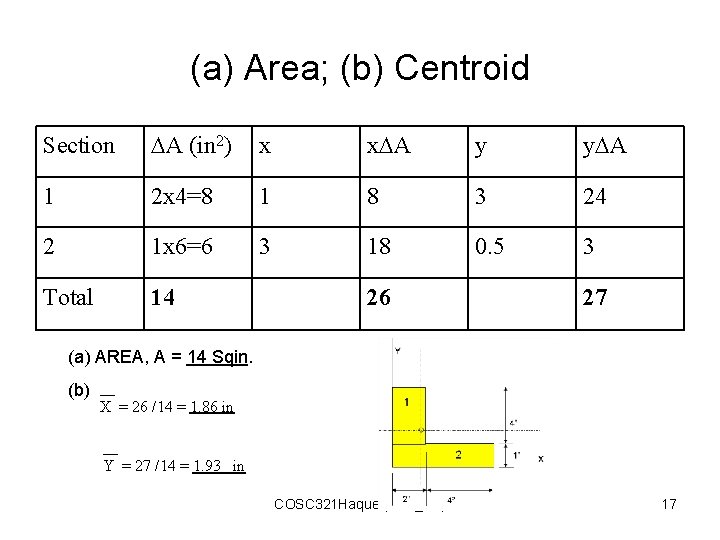

(a) Area; (b) Centroid Section A (in 2) x x A y y A 1 2 x 4=8 1 8 3 24 2 1 x 6=6 3 18 0. 5 3 Total 14 26 27 (a) AREA, A = 14 Sqin. (b) X = 26 /14 = 1. 86 in Y = 27 /14 = 1. 93 in COSC 321 Haque (PPT_C 7) 17

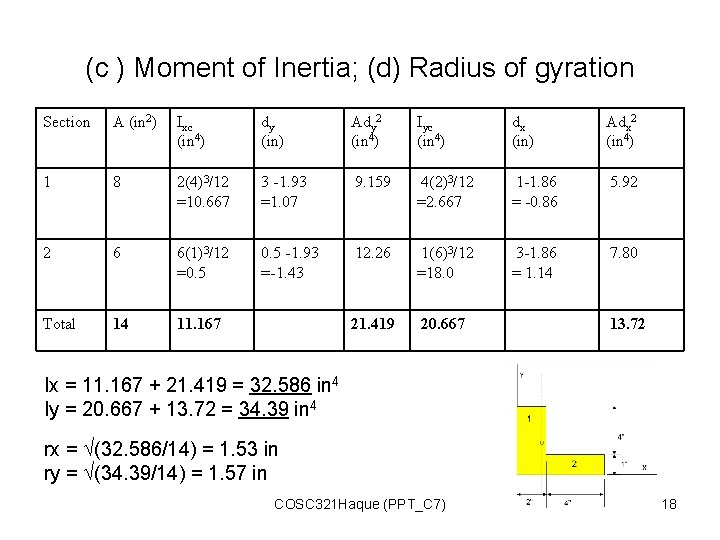

(c ) Moment of Inertia; (d) Radius of gyration Section A (in 2) Ixc (in 4) dy (in) Ady 2 (in 4) Iyc (in 4) dx (in) Adx 2 (in 4) 1 8 2(4)3/12 =10. 667 3 -1. 93 =1. 07 9. 159 4(2)3/12 =2. 667 1 -1. 86 = -0. 86 5. 92 2 6 6(1)3/12 =0. 5 -1. 93 =-1. 43 12. 26 1(6)3/12 =18. 0 3 -1. 86 = 1. 14 7. 80 Total 14 11. 167 21. 419 20. 667 13. 72 Ix = 11. 167 + 21. 419 = 32. 586 in 4 Iy = 20. 667 + 13. 72 = 34. 39 in 4 rx = (32. 586/14) = 1. 53 in ry = (34. 39/14) = 1. 57 in COSC 321 Haque (PPT_C 7) 18
