ANATOMY OF THE SMALL INTESTINE Prof Ahmed Fathalla

• ANATOMY OF THE SMALL INTESTINE Prof. Ahmed Fathalla Ibrahim Professor of Anatomy College of Medicine King Saud University E-mail: ahmedfathala@gmail. com

OBJECTIVES At the end of the lecture, students should: q. List the different parts of small intestine. q. Describe the anatomy of duodenum, duodenum jejunum & ileum regarding: the shape, length, site of beginning & termination, peritoneal covering, arterial supply & lymphatic drainage. q. Differentiate between each part of duodenum regarding the length, level & relations. q. Differentiate between the jejunum & ileum regarding the characteristic anatomical features of each of them.

SMALL INTESTINE FIXED PART FREE (MOVABLE) PART (NO MESENTERY) (WITH MESENTERY) DUODENUM JEJUNUM & ILEUM

ABDOMEN Peritoneal cavity Posterior abdominal wall Anterior abdominal wall Peritoneal fold (Mesentery OR Omentum) Retroperitoneal structure

ABDOMEN

ABDOMEN L L s OMENTUM SI

JEJUNUM & ILEUM OMENTUM TC AC

MESENTERY OF SMALL INTESTINE

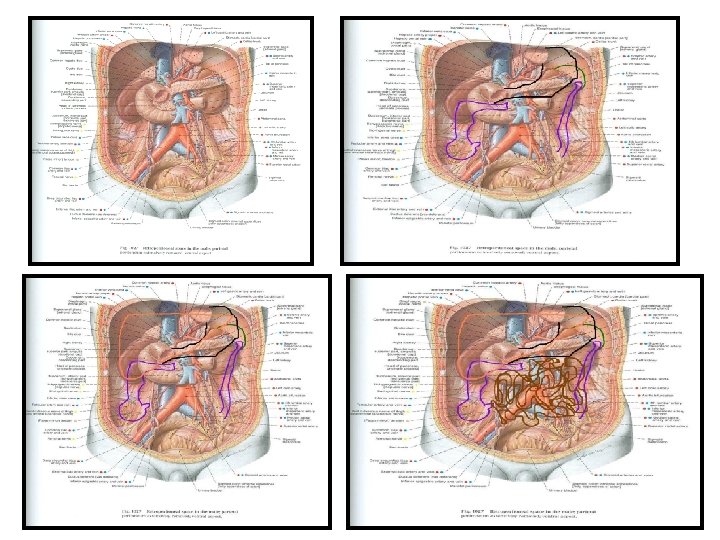

1 2

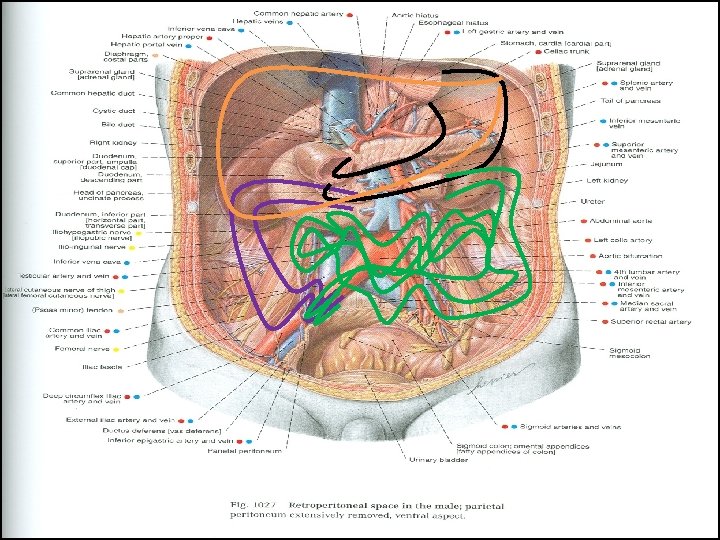

DUODENUM Pancreas Right kidney Left kidney Abdominal aorta Inferior vena cava Right psoas major Left psoas major

RELATION BETWEEN EMBRYOLOGICAL ORIGIN & ARTERIAL SUPPLY DUODENUM: q. Origin: Foregut & Midgut q. Arterial supply: 1. Coeliac trunk (artery of foregut) 2. Superior mesenteric: (artery of midgut) JEJUNUM & ILEUM: q. Origin: Midgut q. Arterial supply: Superior mesenteric: (artery of midgut)

DUODENUM q. SHAPE: C-shaped loop q. LENGTH: 10 inches q. BEGINNING: at pyloro-duodenal junction q. TERMINATION: at duodeno-jejunal flexure q. PERITONEAL COVERING: retroperitoneal q. DIVISIONS: 4 parts q. EMBRYOLOGICAL ORIGIN: foregut & midgut q. ARTERIAL SUPPLY: coeliac & superior mesenteric q. LYMPHATIC DRAINAGE: coeliac & superior mesenteric

DUODENUM LENGTH – SURFACE ANATOMY PART LENGTH LEVEL FIRST PART (HORIZONTAL) 2 INCHES L 1 SECOND PART (DESCENDING) 3 INCHES THIRD PART (HORIZONTAL) 4 INCHES FOURTH PART (ASCENDING) 1 INCHES (TRANSPYLORIC PLANE) DESCENDS FROM L 1 TO L 3 (SUBCOTAL PLANE) ASCENDS FROM L 3 TO L 2

RELATIONS OF FIRST PART 3) 2) 1) X X Anterior Liver Posterior 1)Bile duct 2) Gastroduodenal artery 3)Portal vein

RELATIONS OF SECOND PART Anterior 1)Liver 2)TC 3)SI Posterior Right kidney X Lateral RCF Medial Pancreas

OPENINGS IN SECOND PART OF DUODENUM 1. Common opening of bile duct & main pancreatic duct: on summit of major duodenal papilla. 2. Opening of accessory pancreatic duct (one inch higher): on summit of minor duodenal papilla.

RELATIONS OF THIRD PART q Anterior: a)Small intestine b) Superior mesenteric vessels q Posterior: 1) Right psoas major 2) Inferior vena cava 3) Abdominal aorta 4) Inferior mesenteric vessels X b 1 2 34

RELATIONS OF FOURTH PART q Anterior: Small intestine q Posterior: Left psoas major

JEJUNUM & ILEUM q. SHAPE: coiled tube q. LENGTH: 6 meters (20 feet) q. BEGINNING: at duodeno-jejunal flexure q. TERMINATION: at ilieo-caecal junction q. PERITONEAL FOLD: mesentery of small intestine q. EMBRYOLOGICAL ORIGIN: midgut q. ARTERIAL SUPPLY: superior mesenteric q. LYMPHATIC DRAINAGE: superior mesenteric

JEJUNUM LENGTH DIAMETER WALL APPEARANCE VESSELS MESENTERIC FAT ILEUM Shorter (proximal 2/5) Longer (distal 3/5) Wider Narrower Thicker (more plicae circulares) Thinner (less plica circulares) Dark red (more vascular) Light red (less vascular) Less arcades (long terminal branches) More arcades (short terminal branches) Small amount near intestinal Large amount near intestinal border LYMPHOID TISSUE Few aggregations Numerous aggregations (Peyer’s patches)

QUESTION 1 q. Which one of the following is anterior to the third part of duodenum? 1. Superior mesenteric vessels 2. Right kidney 3. Right posas major muscle 4. Abdominal aorta

QUESTION 2 q. Which one of the following structures could be injured in case of perforated duodenal ulcer? 1. Right kidney 2. Right colic flexure 3. Gastroduodenal artery 4. Inferior mesenteric vessels
