Analogtodigital conversion Its what happens when a voltage

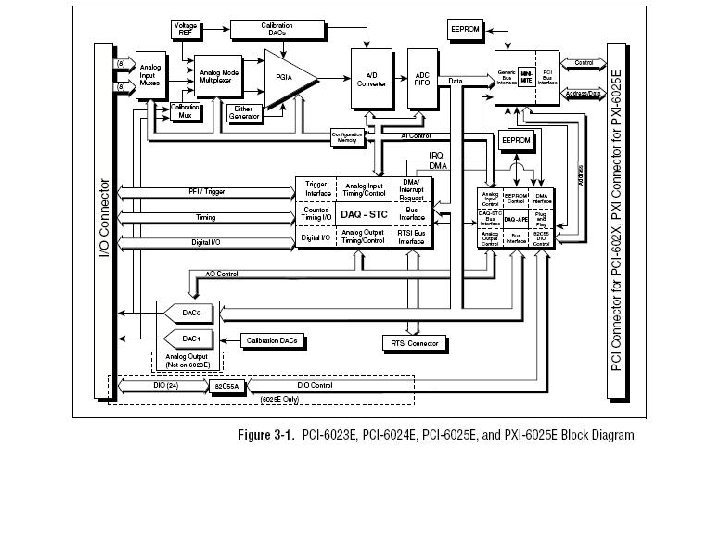

Analog-to-digital conversion • It’s what happens when a voltage signal is sent into a computer • 6024 E card: successive approx method • Resolution: number of digital bits (12) • Range: of voltage input (± 10. 24) • Step size in m. V: Range / 2^Res ≈ 5 m. V • Sample rate (up to 200 KHz) • Start-of-conversion control • Busy signal while conversion in progress • Sample-and-hold • Anti-aliasing LP filter • Flash converter • Dual-Slope A-D conversion

where and what is the maximum error?

ADC methods • • • Flash converter: use of analog comparators Errors in ADC… (time-out for DAC details): 1. 2. 3. 4. 5. 6. • • • Power-of-2 source resistors vs R-2 R ladder analog switches for digital inputs reference voltage for HI; gnd for LO multiplying DAC Bipolar DAC ADA lab: 7524 + 353 Counting converter—variable sample rate Successive approximation Dual slope

Analog comparator as 1 -bit ADC

X Y Z Ain 0 0 0 Ain< ¼*Vref 0 0 1 ¼<Ain<½ 0 1 1 ½<Ain<¾ 1 1 1 Ain > ¾

TRUTH TABLE for converting X Y Z to binary numbers XYZ BA 000 00 001 01 011 10 111 11 • What should B be? Y! • What about A? X xor Y xor Z will work, as will Z and X xnor Y • To make an N-bit flash conversion we need 2^N - 1 comparators. • For an 8 -bit conversion 255 comparators are required! • A costly proposition, but necessary where blinding speed is required (in radar, for example). • Try the AD 9002 -B 8 -bit flash converter, with 160 MHz bandwidth, 750 m. W power consumption and a cost of $200 per chip • Or the 6 -bit, 200 MHz, AD 9006, at $320 per chip, for use in digital oscilloscopes. • year 2000 prices…

Errors in ADC Thanks to rejiggering resistors, error is now ±½LSB

nerve cell as digital to analog converter many inputs, one output…

Review of neg. gain summ. amp: Extend this idea to N inputs, with each Rsn = 2*Rs(n-1) where Rs 1 is the MSB

Analog switches in the service of a multiplying 3 -bit D-A converter would look like: allow Vref to be variable for multiplication…

Bipolar DAC with R-2 R ladder: Should be -5 v… The R-2 R ladder uses twice as many resistors, but of only 2 sizes… When the digital input is 0 0 the offset output is +1. 25 volts If logical 1 = Vref, then the max output above is = -(15/16)*Vref An R-2 R ladder is in the 7524 DAC chip for Lab ADA…

AD 7524 (7533)

Settling time. Consider a 4 -bit DAC that must change from 7 to 8, due to input change of 0111 to 1000. All the input bits are switching at once. If the analog switches in the DAC bits change slower from LO to HI than HI to LO, then there will be a brief pause when the DAC output drops to 0 before jumping up to 8.

7533 features • • Low cost 10 -bit DAC Low cost AD 7524 replacement Linearity: ½ LSB, 1 LSB, or 2 LSB Low power dissipation Full 4 -quadrant multiplying DAC CMOS/TTL direct interface Latch free (protection Schottky not required) Endpoint linearity • http: //www. analog. com/static/imported-files/data_sheets/AD 7533. pdf see for circuit diagram with op amp. . .

DAC step size should say “step size” instead of resolution… An 8 -bit resolution for 5. 12 v range results in 40 m. V step size

Using all the bits you can If your signal is so small as to cover only a few steps your output will look like a miniature staircase… You need more gain! … could decrease Vref, also…

Learning to be a DAC (Hebb’s Law) more later in lecture on adaptive gain control • workfold 23D 2 A_learn_2010 for jj = 1: 4 % update each weight del. W = err_now*trn_set_col( jj )*mew; % Hebb's rule W_col(jj) = W_col(jj) + del. W; end Learn Grey code to avoid transient glitches? : one bit changes per clock pulse…

Counting A-D converter:

Action of counting converter • Connect an up-counter's outputs to a DAC's digital inputs, making sure to hook up the counter's MSB to the DAC's MSB, and so on. • Connect output of the DAC to the V+ side of an analog comparator like the LM 311. • Connect the unknown Analog input = AIN to the V- side of the comparator. • Start by CLEARing the counter to 0000. Send pulses into its clock. • With each count up the DAC output will increase by a step. • At some point DAC-out will become greater than analog-in, and will send the output of the comparator from LO to HI. • When the comparator output switches from 0 to 1, have it hold the count. • The output of the counter at the time it's “held” is the answer! (memory) • The answer is a 4 -bit digital code which represents analog-in • If the comparator output is LO then this ADC is BUSY.

Problems with counting converter • What if Ain is greater than DAC output MAX for 1111 = input? • The sampling rate is not constant (smaller Ain’s convert faster than larger) • It takes 16 clock pulses to convert the largest Ain. • Ain can’t change while (long) conversion is occurring

digression: sample & hold • Capacitor holds the sampled signal: only high-Z paths for cap to discharge • The smaller the capacitor (pico farad? ), the faster it will charge up: want low Z output resistance from the left, through FET switch. • Cap can “droop” during hold by leaking through op amp +input • FET switch is low Z for pos. sample pulse • sample pulse should occur just before A-D conversion begins

successive approximation A-D conversion

S-A timing at 1 -hot sequencer

Excitation table for S-R latch S R Q comment 0 0 0 1 1 0 1 Set 1 1 ? Not Allowed no change memory state 0 Reset

Realizing S-bar R-bar latch with 2 NAND gates

1 -hot sequencer with 8 -bit serial-in parallel-out 74164

Guessing circuit combinatorial logic start

Guessing circuit combinatorial logic, continued

Guessing circuit combinatorial logic, enough…

Improvements of SA over counting converter • No problem converting Ain > DACmax to 1111 • N clock pulses needed for N bit conversion: Example: for 8 bits counting converter might need 256 clock pulses, SA will need 8 clock cycles always • Sample rate is constant • SA plays “ 20 questions” with unknown Ain: decreases range of unknown by factor of 2 on each cycle. • EOC = end of conversion signal is HI on last bit of one-hot sequencer. (EOC must latch answer) • Can operate normally in a continuous re-sample mode

Dual Slope A-D conversion • integrating A-D converter: no need for sample and hold • found in digital multimeters • utilizes current-voltage relationship of capacitor:

Capacitor in feedback path of op amp

Dual Slope Circuit:

Dual Slope Timing: • May need sign-changing op amp to match with circuit diagram • Longer count time→greater number to be displayed at zero-crossing • No need for sample and hold because signal is “averaged” over conversion time • For DMM conversion cycle time is about 250 msec

Bipolar analog representation: 2’s complement code 1 -1 = 0 001 +111 1000

Review • Fastest A-D conversion is flash with comparators • D-A conversion with neg gain summation amp and R-2 R ladder of resistors • Successive approx for N bits of resolution needs N clock cycles for conversion; final clock cycle is end -of-conversion signal • May need anti-aliasing LP filter and sample & hold on input to A-D converter • Dual slope A-D averages analog-in over long cycle
