5 Integrals Copyright Cengage Learning All rights reserved

5 Integrals Copyright © Cengage Learning. All rights reserved.

5. 2 The Definite Integral Copyright © Cengage Learning. All rights reserved.

The Definite Integral We have seen that a limit of the form arises when we compute an area. We also saw that it arises when we try to find the distance traveled by an object. It turns out that this same type of limit occurs in a wide variety of situations even when f is not necessarily a positive function. 3

The Definite Integral Note 1: The symbol was introduced by Leibniz and is called an integral sign. It is an elongated S and was chosen because an integral is a limit of sums. 4

The Definite Integral In the notation f (x) is called the integrand a and b are called the limits of integration; a is the lower limit and b is the upper limit. For now, the symbol dx has no meaning by itself; is all one symbol. The dx simply indicates that the independent variable is x. The procedure of calculating an integral is called integration. 5

The Definite Integral Note 2: The definite integral is a number; it does not depend on x. In fact, we could use any letter in place of x without changing the value of the integral: Note 3: The sum that occurs in Definition 2 is called a Riemann sum after the German mathematician Bernhard Riemann (1826– 1866). 6

The Definite Integral So Definition 2 says that the definite integral of an integrable function can be approximated to within any desired degree of accuracy by a Riemann sum. We know that if f happens to be positive, then the Riemann sum can be interpreted as a sum of areas of approximating rectangles (see Figure 1). If f (x) 0, the Riemann sum f (xi*) x is the sum of areas of rectangles. Figure 1 7

The Definite Integral We see that the definite integral can be interpreted as the area under the curve y = f (x) from a to b. (See Figure 2. ) If f (x) 0, the integral is the area under the curve y = f (x) from a to b. Figure 2 8

The Definite Integral If f takes on both positive and negative values, as in Figure 3, then the Riemann sum is the sum of the areas of the rectangles that lie above the x-axis and the negatives of the areas of the rectangles that lie below the x-axis (the areas of the blue rectangles minus the areas of the gold rectangles). f (xi*) x is an approximation to the net area. Figure 3 9

The Definite Integral When we take the limit of such Riemann sums, we get the situation illustrated in Figure 4. A definite integral can be interpreted as a net area, that is, a difference of areas: where A 1 is the area of the region above the x-axis and below the graph of f, and A 2 is the area of the region below the x-axis and above the graph of f. is the net area. Figure 4 10

The Definite Integral Note 4: Although we have defined by dividing [a, b] into subintervals of equal width, there are situations in which it is advantageous to work with subintervals of unequal width. If the subinterval widths are x 1, x 2, . . . , xn, we have to ensure that all these widths approach 0 in the limiting process. This happens if the largest width, max xi, approaches 0. So in this case the definition of a definite integral becomes 11

The Definite Integral Note 5: We have defined the definite integral for an integrable function, but not all functions are integrable. The following theorem shows that the most commonly occurring functions are in fact integrable. The theorem is proved in more advanced courses. If f is integrable on [a, b], then the limit in Definition 2 exists and gives the same value no matter how we choose the sample points. 12

The Definite Integral To simplify the calculation of the integral we often take the sample points to be right endpoints. Then = xi and the definition of an integral simplifies as follows. 13

Example 1 Express as an integral on the interval [0, ]. Solution: Comparing the given limit with the limit in Theorem 4, we see that they will be identical if we choose f (x) = x 3 + x sin x. We are given that a = 0 and b = . Therefore, by Theorem 4, we have 14

The Definite Integral When Leibniz chose the notation for an integral, he chose the ingredients as reminders of the limiting process. In general, when we write we replace lim by , by x, and x by dx. 15

Evaluating Integrals 16

Evaluating Integrals When we use a limit to evaluate a definite integral, we need to know how to work with sums. The following three equations give formulas for sums of powers of positive integers. 17

Evaluating Integrals The remaining formulas are simple rules for working with sigma notation: 18

Example 2 (a) Evaluate the Riemann sum for f (x) = x 3 – 6 x, taking the sample points to be right endpoints and a = 0, b = 3, and n = 6. (b) Evaluate Solution: (a) With n = 6 the interval width is and the right endpoints are x 1 = 0. 5, x 2 = 1. 0 , x 3 = 1. 5, x 4 = 2. 0, x 5 = 2. 5, and x 6 = 3. 0. 19

Example 2 – Solution cont’d So the Riemann sum is R 6 = f (xi) x = f (0. 5) x + f (1. 0) x + f (1. 5) x + f (2. 0) x + f (2. 5) x + f (3. 0) x = (– 2. 875 – 5. 625 – 4 + 0. 625 + 9) = – 3. 9375 20

Example 2 – Solution cont’d Notice that f is not a positive function and so the Riemann sum does not represent a sum of areas of rectangles. But it does represent the sum of the areas of the blue rectangles (above the x-axis) minus the sum of the areas of the gold rectangles (below the x-axis) in Figure 5 21

Example 2 – Solution cont’d (b) With n subintervals we have So x 0 = 0, x 1 = 3/n, x 2 = 6/n, x 3 = 9/n, and, in general, xi = 3 i/n. Since we are using right endpoints, we can use Theorem 4: 22

Example 2 – Solution cont’d (Equation 9 with c = 3/n) (Equations 11 and 9) (Equations 7 and 5) 23

Example 2 – Solution cont’d 24

Example 2 – Solution cont’d This integral can’t be interpreted as an area because f takes on both positive and negative values. But it can be interpreted as the difference of areas A 1 – A 2, where A 1 and A 2 are shown in Figure 6 25

Example 2 – Solution cont’d Figure 7 illustrates the calculation by showing the positive and negative terms in the right Riemann sum Rn for n = 40. R 40 – 6. 3998 Figure 7 26

Example 2 – Solution cont’d The values in the table show the Riemann sums approaching the exact value of the integral, – 6. 75, as n 27

The Midpoint Rule 28

The Midpoint Rule We often choose the sample point to be the right endpoint of the i th subinterval because it is convenient for computing the limit. But if the purpose is to find an approximation to an integral, it is usually better to choose to be the midpoint of the interval, which we denote by 29

The Midpoint Rule Any Riemann sum is an approximation to an integral, but if we use midpoints we get the following approximation. 30

Example 5 Use the Midpoint Rule with n = 5 to approximate Solution: The endpoints of the five subintervals are 1, 1. 2, 1. 4, 1. 6, 1. 8, and 2. 0, so the midpoints are 1. 1, 1. 3, 1. 5, 1. 7, and 1. 9. The width of the subintervals is x = (2 – 1)/5 = Midpoint Rule gives so the 31

Example 5 – Solution cont’d 0. 691908 Since f (x) = 1/x > 0 for 1 x 2, the integral represents an area, and the approximation given by the Midpoint Rule is the sum of the areas of the rectangles shown in Figure 11 32

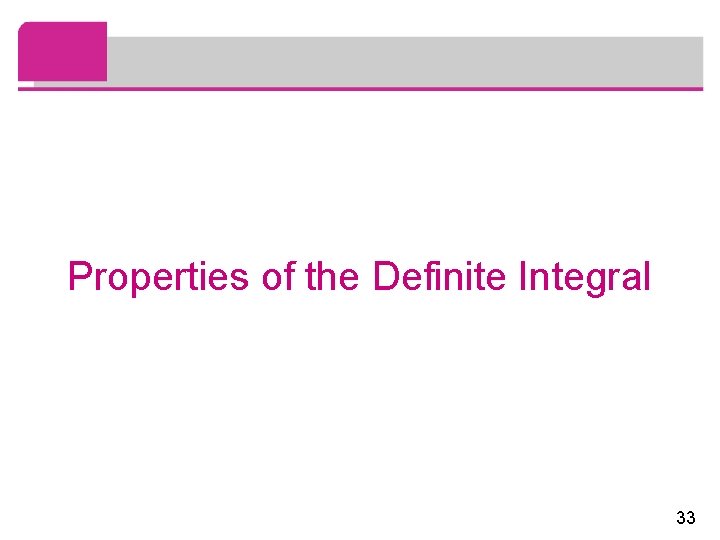

Properties of the Definite Integral 33

Properties of the Definite Integral When we defined the definite integral implicitly assumed that a < b. , we But the definition as a limit of Riemann sums makes sense even if a > b. Notice that if we reverse a and b, then x changes from (b – a)/n to (a – b)/n. Therefore 34

Properties of the Definite Integral If a = b, then x = 0 and so We now develop some basic properties of integrals that will help us to evaluate integrals in a simple manner. We assume that f and g are continuous functions. 35

Properties of the Definite Integral Property 1 says that the integral of a constant function f (x) = c is the constant times the length of the interval. If c > 0 and a < b, this is to be expected because c(b – a) is the area of the shaded rectangle in Figure 13 36

Properties of the Definite Integral Property 2 says that the integral of a sum is the sum of the integrals. For positive functions it says that the area under f + g is the area under f plus the area under g. Figure 14 helps us understand why this is true: In view of how graphical addition works, the corresponding vertical line segments have equal height. Figure 14 37

Properties of the Definite Integral In general, Property 2 follows from Theorem 4 and the fact that the limit of a sum is the sum of the limits: 38

Properties of the Definite Integral Property 3 can be proved in a similar manner and says that the integral of a constant times a function is the constant times the integral of the function. In other words, a constant (but only a constant) can be taken in front of an integral sign. Property 4 is proved by writing f – g = f + (–g) and using Properties 2 and 3 with c = – 1. 39

Example 6 Use the properties of integrals to evaluate Solution: Using Properties 2 and 3 of integrals, we have 40

Example 6 – Solution cont’d We know from Property 1 that and we have found that So 41

Properties of the Definite Integral The next property tells us how to combine integrals of the same function over adjacent intervals. 42

Properties of the Definite Integral This is not easy to prove in general, but for the case where f (x) 0 and a < c < b Property 5 can be seen from the geometric interpretation in Figure 15: the area under y = f (x) from a to c plus the area from c to b is equal to the total area from a to b. Figure 15 43

Properties of the Definite Integral Properties 1– 5 are true whether a < b, a = b, or a > b. The following properties, in which we compare sizes of functions and sizes of integrals, are true only if a b. 44

Properties of the Definite Integral If f (x) 0, then represents the area under the graph of f, so the geometric interpretation of Property 6 is simply that areas are positive. (It also follows directly from the definition because all the quantities involved are positive. ) Property 7 says that a bigger function has a bigger integral. It follows from Properties 6 and 4 because f – g 0. 45

Properties of the Definite Integral Property 8 is illustrated by Figure 16 for the case where f (x) 0. If f is continuous we could take m and M to be the absolute minimum and maximum values of f on the interval [a, b]. Figure 16 46

Properties of the Definite Integral In this case Property 8 says that the area under the graph of f is greater than the area of the rectangle with height m and less than the area of the rectangle with height M. Property 8 is useful when all we want is a rough estimate of the size of an integral without going to the bother of using the Midpoint Rule. 47
