XRANK Ranked Keyword Search over XML Documents Sang

Contents Introduction: problem overview Data Model and Query Semantics Computing Elem. Ranks Efficiently Evaluating

Introduction: Problem Overview Problem Efficiently producing ranked results for keyword search queries over hierarchical

Data Model and Query Semantics (1/4) Definitions XML Document G = (N, CE, HE)

Data Model and Query Semantics (2/4) Definitions (continued) Keyword Query Q={k 1, …, kn}

Data Model and Query Semantics (3/4) Ranking function Desired properties Result specificity: more specific

Data Model and Query Semantics (4/4) Ranking function (continued) Elem. Rank(v) Defined at the

Computing Elem. Ranks (1/2) Page. Rank Sum of 2 probabilities Visiting document v at

Computing Elem. Ranks (2/2) Elem. Rank Element level granularity, Sum of 4 probabilities Nd(u):

Efficiently Evaluating XML Keyword Search Queries (1/8) How to produce ranked results efficiently? Naive

Efficiently Evaluating XML Keyword Search Queries (2/8) Dewy Inverted List (DIL) Dewy ID: ID

Efficiently Evaluating XML Keyword Search Queries (3/8) Dewy Inverted List (Continued) DIL Data Structure

Efficiently Evaluating XML Keyword Search Queries (4/8) Dewy Inverted List (Continued) <workshop> date DIL

Efficiently Evaluating XML Keyword Search Queries (4/8) Rank[2] Pos. List[1] Pos. List[2] Contains. All

Efficiently Evaluating XML Keyword Search Queries (5/8) Ranked Dewey Inverted List DIL Challenge If

Efficiently Evaluating XML Keyword Search Queries (6/8) Ranked Dewey Inverted List (RDIL) Threshold Algorithm

Efficiently Evaluating XML Keyword Search Queries (7/8) Hybrid Dewey Inverted List (HDIL) Motivation In

Efficiently Evaluating XML Keyword Search Queries (8/8) HDIL (Continued) An adaptive strategy: Calculate the

Experimental Evaluation Setup: Data sets DBLP (real data, 143 MB, depth = 4, many

Conclusion XRANK is the first system that takes into account The hierarchical and hyperlinked

Appendix B. DIL Query Processing Algorithm 01. procedure Evaluate. Query (k 1, k 2,

Appendix C. Experimental Evaluation Space Requirements DBLP XMARK Inv. List Index Naïve-ID 258 MB

Appendix D. Experimental Evaluation Query Performance: DBLP - Low Correlation Keywords

Slides: 25

Download presentation

XRANK: Ranked Keyword Search over XML Documents Sang. Jin Lee sjinlee@snu. ac. kr Dept. of Industrial Engineering Seoul National University

Contents Introduction: problem overview Data Model and Query Semantics Computing Elem. Ranks Efficiently Evaluating XML Keyword Search Queries Experimental Evaluation Conclusion

Introduction: Problem Overview Problem Efficiently producing ranked results for keyword search queries over hierarchical XML documents Challenges Nested elements are results Best relevant element Hyperlink and containment links Parent/child elements Keyword proximity Keyword distance Ancestor distance E. g. XQL language 01. <workshop date=” 28 July 2000”> 02. <title> XML and IR: A SIGIR 2000 Workshop </title> 03. <editors> David Carmel, Yoelle Maarek, Aya Soffer </editors> 04. <proceedings> 05. <paper id=” 1”> 06. <title> XQL and Proximal Nodes </title> 07. <author> Ricardo Baeza-Yates </author> 08. <author> Gonzalo Navarro </author> 09. <abstract> The recently proposed language … 10. </abstract> 11. <body> 12. <section name=”Introduction”> 13. Searching on structured text is more important … 14. </section> 15. <section name=”Implementing XML Operations”> 16. <subsection name=”Path Expressions”> 17. At first sight, the XQL query language looks … 18. </subsection> 19. … 20. </section> 21. <cite ref=” 2”>Querying XML in Xyleme</cite> 22. <cite xlink=”. . /paper/xmlql/”>A Query … </cite> 23. </body> 24. </paper> 25. <paper id=” 2”> 26. <title> Querying XML in Xyleme </title> 27. … 28. </paper> 29. </proceedings> 30. </workshop>

Data Model and Query Semantics (1/4) Definitions XML Document G = (N, CE, HE) N : The set of nodes N = NE U NV - NE : The set of elements - NV : The set of values 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. <body> <section name=”Introduction”> Searching on structured text is more important … </section> <section name=”Implementing XML Operations”> <subsection name=”Path Expressions”> At first sight, the XQL query language looks … </subsection> … </section> <cite ref=” 2”>Querying XML in Xyleme</cite> <cite xlink=”. . /paper/xmlql/”>A Query … </cite> </body> CE : The set of containment edges relating nodes HE : The set of hyperlink edges relating nodes ※ contains*(v, k): the node v directly or indirectly contains keyword k

Data Model and Query Semantics (2/4) Definitions (continued) Keyword Query Q={k 1, …, kn} conjunctive semantics (k 1 … kn): contain all of the query keywords disjunctive semantics (k 1 … kn): contain at least one of the query keywords (*) Results (1) R 0 = {v v NE k Q(contains*(v, k))} directly or indirectly contain all of the query keywords (2) Result(Q)={v k Q, c N ((v, c) CE c R 0 contains*(c, k))} only the most specific results are returned. element that has multiple independent occurrences of the query keywords ※ CE are considered for result set, HE are considered for ranking

Data Model and Query Semantics (3/4) Ranking function Desired properties Result specificity: more specific results higher than less specific results Keyword proximity Keyword distance Ancestor distance Hyperlink awareness Hyperlink Containment links Parent/child elements ※ Search keyword: XQL language 25. 26. 27. 28. <paper id=” 2”> <title> Querying XQL language. . . </title> … </paper> 05. 06. 07. 08. 09. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. <paper id=” 1”> <title> XQL and Proximal Nodes </title> <author> Ricardo Baeza-Yates </author> <author> Gonzalo Navarro </author> <abstract> The recently proposed language … </abstract> <body> <section name=”Introduction”> Searching … </section> <section name=”Implementing XML Operations”> <subsection name=”Path Expressions”> At first sight, the XQL query language looks … </subsection> … </section> <cite ref=” 2”>Querying XML in Xyleme</cite> <cite xlink=”. . /paper/xmlql/”>A Query … </cite> </body> </paper>

Data Model and Query Semantics (4/4) Ranking function (continued) Elem. Rank(v) Defined at the granularity of an element Taking the nested structure of XML into account Consider Keyword search query Q={k 1, …, kn} Results R= Result(Q) A result element v 1 R With respect to one keyword: r(v 1, Q) (v 1, v 2) (v 2, v 3), . . . , (vt, vt+1), vt+1: directly contains the keyword ki ※ f = max or f=sum Overall Ranking

Computing Elem. Ranks (1/2) Page. Rank Sum of 2 probabilities Visiting document v at random, e. g. d=0. 85 Visiting document v by navigating (hyperlink) from document u

Computing Elem. Ranks (2/2) Elem. Rank Element level granularity, Sum of 4 probabilities Nd(u): the total number of documents Nde(u): the number of elements containing the element v Nc(u): the number of sub-elements of u Nh(u): the number of out-going hyperlinks from element u d 1: by hyperlink d 2: by forward containment edges d 3: by reverse containment edge Convergence It is said to be proved But, . . ? 11. 22. 23. <body> <section>Querying XML. . . </section> <section>Querying HTML. . </section> </body>

Efficiently Evaluating XML Keyword Search Queries (1/8) How to produce ranked results efficiently? Naive approach Dewey Inverted List (DIL) Ranked Dewey Inverted List (RDIL) Hybrid Dewey Inverted List (HDIL) Naive approach Treating each element as a document Problems Space overhead Spurious query results Inaccurate ranking of results date <workshop> 2 <title> <editors> 4 <proceedings> 5 28 July … XML and … David Carmel … E. g. <paper> Search Query keyword XQL: 1, 5, 6, 8 Ricardo: 1, 5, 6, 7 3 1 <title> 7 XQL and … <author> 8 Ricardo … 6 <paper> … … …

Efficiently Evaluating XML Keyword Search Queries (2/8) Dewy Inverted List (DIL) Dewy ID: ID of an ancestor prefix of the descendant ID Ancestor-descendant relationship are implicitly captured E. g. XQL: 0. 3. 0. 0 Ricardo: 0. 3. 0. 1 <workshop> date 0. 0 <title> 0. 1 28 July … XML and … 0 <editors> <author> 0. 3. 0. 0 XQL <proceedings> 0. 3 David Carmel … <paper> <title> 0. 2 0. 3. 0. 1 Ricardo Dewy IDs <paper> … 0. 3. 1 … …

Efficiently Evaluating XML Keyword Search Queries (3/8) Dewy Inverted List (Continued) DIL Data Structure The inverted list for a keyword k contains the Dewey IDs of all the XML elements that directly contain the keyword k An entry in DIL Elem. Rank The list of all positions where the keyword k appears in that element Entries are sorted by Dewey IDs

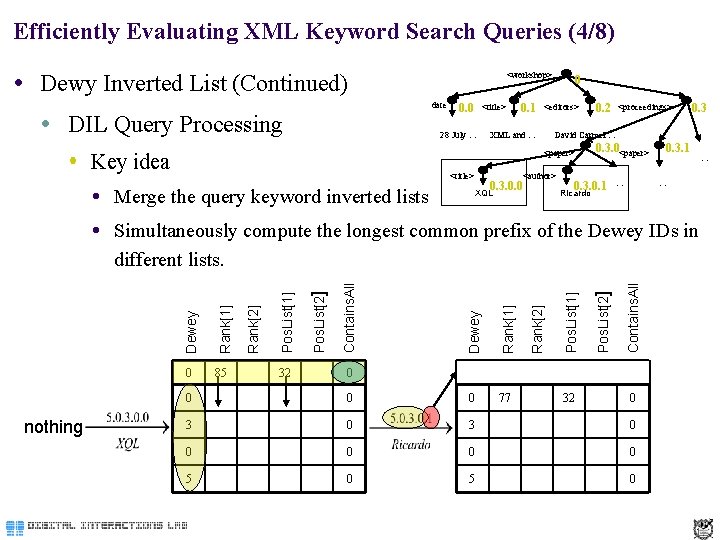

Efficiently Evaluating XML Keyword Search Queries (4/8) Dewy Inverted List (Continued) <workshop> date DIL Query Processing 0. 0 <title> 28 July … 0. 1 0 <editors> XML and … <title> Merge the query keyword inverted lists 0. 3. 0. 0 XQL <proceedings> 0. 3 David Carmel … <paper> Key idea 0. 2 <author> 0. 3. 0<paper> 0. 3. 0. 1 Ricardo … 0. 3. 1 … 0 0 5 0 77 32 Contains. All 0 82 Pos. List[2] 3 Pos. List[1] 0 Rank[2] 3 Rank[1] 0 32 Pos. List[2] 0 85 Pos. List[1] 0 0 Rank[2] 1 Rank[1] 0 Dewey nothing Contains. All Simultaneously compute the longest common prefix of the Dewey IDs in different lists. 38 0 0 …
