www. ssi. shimadzu. com EDX-720 Training E nergy Dispersive X-ray Energy Dispersive X-ray Fluorescence Spectrometer
www. ssi. shimadzu. com An Atom Electrons Nucleus: K L M Orbital or shell Protons Neutrons
www. ssi. shimadzu. com Atoms & Energy Atoms can absorb and release energy using electrons Atoms absorb energy by promoting an electron to a higher energy orbital K L M Atoms release energy by demoting electrons to a lower energy orbital Energy
www. ssi. shimadzu. com What are X-Rays? . . . . Energy X-Rays Are a Type of Electromagnetic Wave Also Light or Energy
www. ssi. shimadzu. com Two types of X-Rays Continuous X-rays High energy Broad spectrum Energy in vs. Characteristic X-rays Low energy Discrete spectrum Energy out

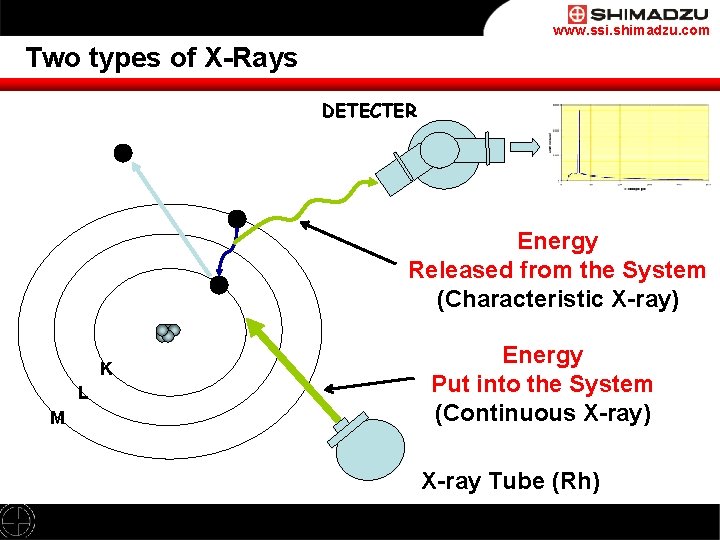

www. ssi. shimadzu. com Two types of X-Rays DETECTER Energy Released from the System (Characteristic X-ray) K L M Energy Put into the System (Continuous X-ray) X-ray Tube (Rh)
www. ssi. shimadzu. com Characteristic X-Rays Types of transitions
www. ssi. shimadzu. com X-Ray Tube and Spectra How X-Rays are generated
www. ssi. shimadzu. com Si. Li Detector
www. ssi. shimadzu. com Filters Rh creates it own spectra Mo. Ni Ag Mo Ti EDX-720 includes: Ag, Mo. Ni, Ti Sensitivity is low in Introducing a filter reduces the Rh background these areas Increases Sensitivity! ! !
www. ssi. shimadzu. com Filters (Cont. )
www. ssi. shimadzu. com Filters (Cont. ) Without primary filter With primary filter • X-ray tube consist of characteristic X-ray (Rh) and continuous X-rays. • Continuous X-rays are background • Filters decrease background
www. ssi. shimadzu. com Intensity vs. Matrix Intensity and Density are inversely related Density affects the analyte’s ability to Fluoresce through the matrix
www. ssi. shimadzu. com Measurement Atmosphere Air, Helium, or Vacuum: Elements in the range of Na – Sc Measurement under Helium or Vacuum • Allows analysis of light elements whose x-ray emissions may be absorbed by air, and • Increasing sensitivity for light elements Solid - Air, Vacuum, or Helium Liquid - Air, Helium Powder - Air, Helium
www. ssi. shimadzu. com Types of Analyses Two Types of Analyses: Qual/Quantitative Analysis Conditions: FP (Fundamental Parameters Calibration Curve Sample Form: Bulk Films Filter Paper
www. ssi. shimadzu. com Hardware Accessories Collimator Exchanger 10 mm 5 mm CCD Camera X, Y Positioner X Y 3 mm 1 mm
www. ssi. shimadzu. com Sample Turret • Up to 16 samples • Analysis in air • Analysis under He/Vacuum for lighter elements • Continuous measurement using a sample turret

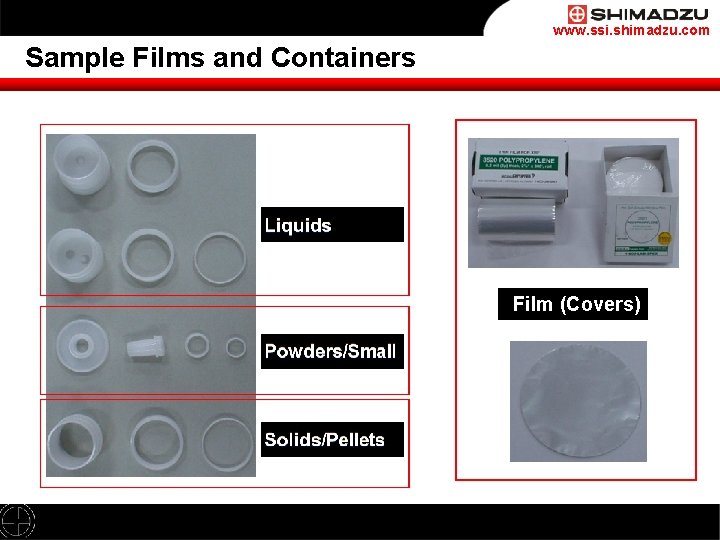

www. ssi. shimadzu. com Sample Films and Containers Film (Covers)
