www. ces. net Open DWDM systems deployment Lada Altmannová CESNET Praha, May 14 th, 2009 The Quilt's 2007 Spring Member Meeting and Workshop

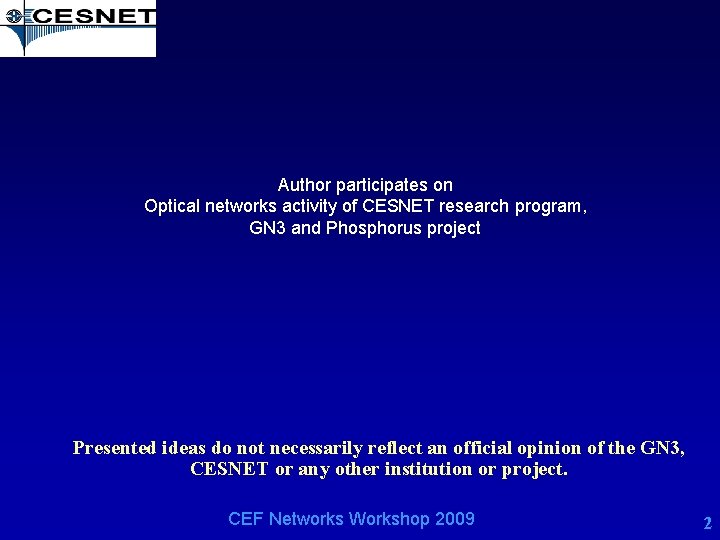

Author participates on Optical networks activity of CESNET research program, GN 3 and Phosphorus project Presented ideas do not necessarily reflect an official opinion of the GN 3, CESNET or any other institution or project. CEF Networks Workshop 2009 2

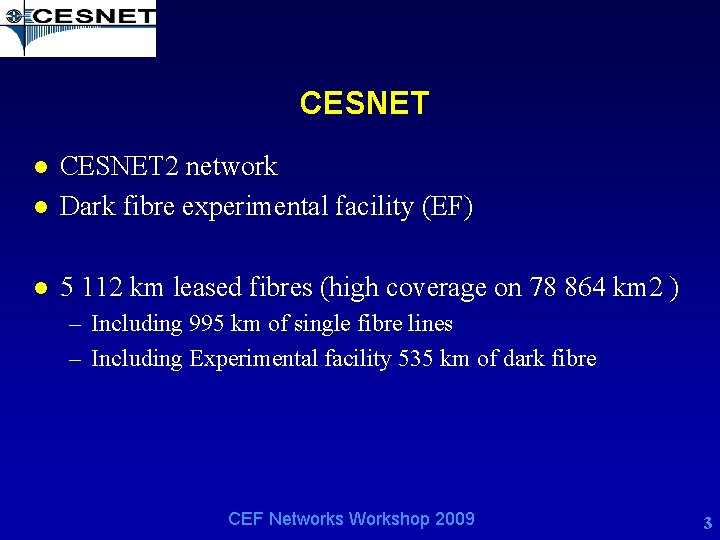

CESNET l CESNET 2 network Dark fibre experimental facility (EF) l 5 112 km leased fibres (high coverage on 78 864 km 2 ) l – Including 995 km of single fibre lines – Including Experimental facility 535 km of dark fibre CEF Networks Workshop 2009 3

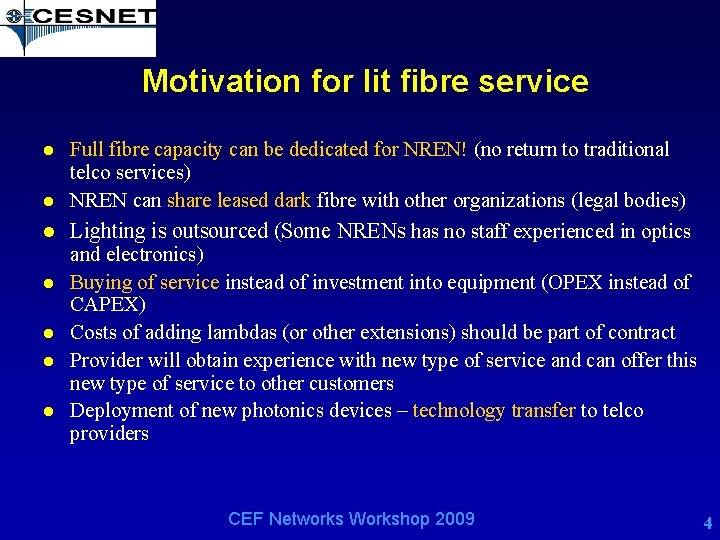

Motivation for lit fibre service Full fibre capacity can be dedicated for NREN! (no return to traditional telco services) l NREN can share leased dark fibre with other organizations (legal bodies) l Lighting is outsourced (Some NRENs has no staff experienced in optics and electronics) l Buying of service instead of investment into equipment (OPEX instead of CAPEX) l Costs of adding lambdas (or other extensions) should be part of contract l Provider will obtain experience with new type of service and can offer this new type of service to other customers l Deployment of new photonics devices – technology transfer to telco providers l CEF Networks Workshop 2009 4

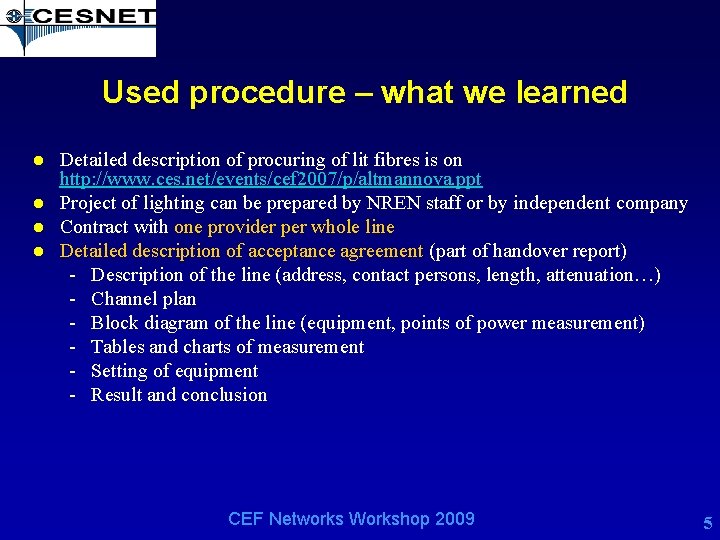

Used procedure – what we learned l l Detailed description of procuring of lit fibres is on http: //www. ces. net/events/cef 2007/p/altmannova. ppt Project of lighting can be prepared by NREN staff or by independent company Contract with one provider per whole line Detailed description of acceptance agreement (part of handover report) - Description of the line (address, contact persons, length, attenuation…) - Channel plan - Block diagram of the line (equipment, points of power measurement) - Tables and charts of measurement - Setting of equipment - Result and conclusion CEF Networks Workshop 2009 5

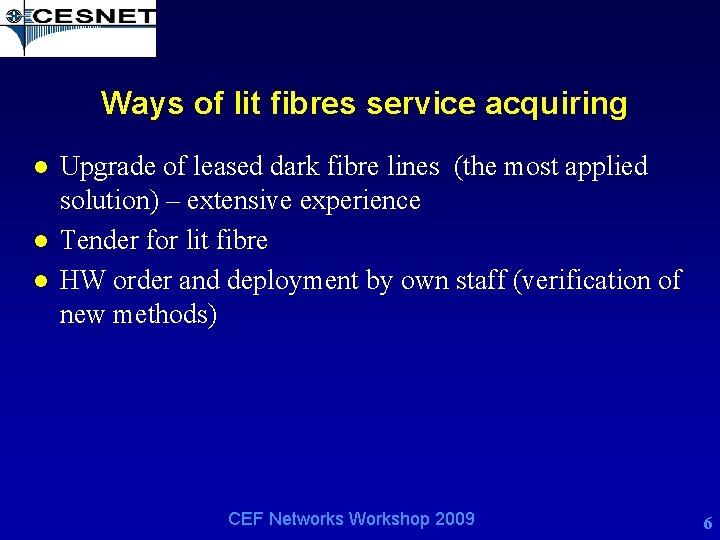

Ways of lit fibres service acquiring l l l Upgrade of leased dark fibre lines (the most applied solution) – extensive experience Tender for lit fibre HW order and deployment by own staff (verification of new methods) CEF Networks Workshop 2009 6

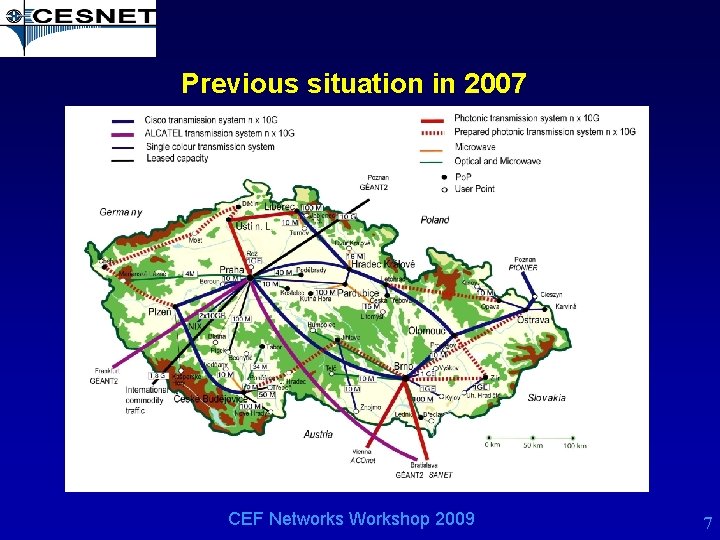

Previous situation in 2007 CEF Networks Workshop 2009 7

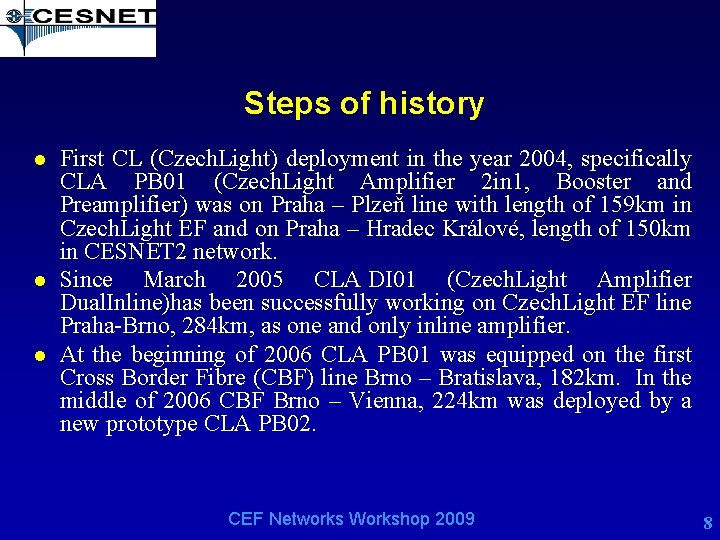

Steps of history l l l First CL (Czech. Light) deployment in the year 2004, specifically CLA PB 01 (Czech. Light Amplifier 2 in 1, Booster and Preamplifier) was on Praha – Plzeň line with length of 159 km in Czech. Light EF and on Praha – Hradec Králové, length of 150 km in CESNET 2 network. Since March 2005 CLA DI 01 (Czech. Light Amplifier Dual. Inline)has been successfully working on Czech. Light EF line Praha-Brno, 284 km, as one and only inline amplifier. At the beginning of 2006 CLA PB 01 was equipped on the first Cross Border Fibre (CBF) line Brno – Bratislava, 182 km. In the middle of 2006 CBF Brno – Vienna, 224 km was deployed by a new prototype CLA PB 02. CEF Networks Workshop 2009 8

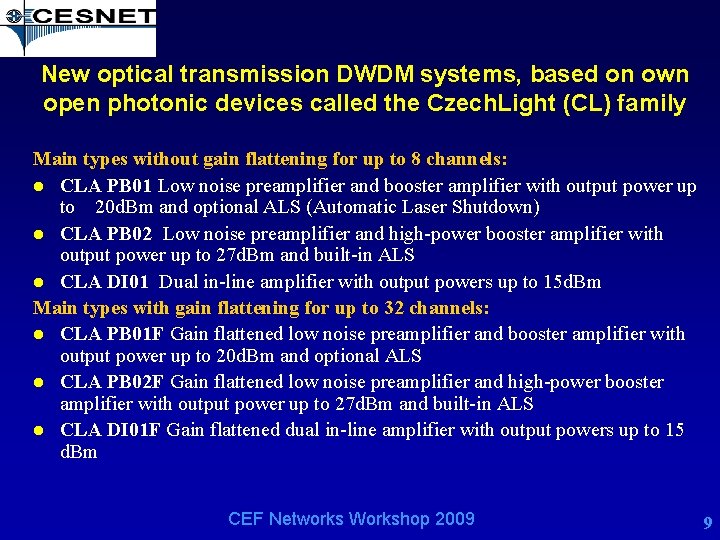

New optical transmission DWDM systems, based on own open photonic devices called the Czech. Light (CL) family Main types without gain flattening for up to 8 channels: l CLA PB 01 Low noise preamplifier and booster amplifier with output power up to 20 d. Bm and optional ALS (Automatic Laser Shutdown) l CLA PB 02 Low noise preamplifier and high-power booster amplifier with output power up to 27 d. Bm and built-in ALS l CLA DI 01 Dual in-line amplifier with output powers up to 15 d. Bm Main types with gain flattening for up to 32 channels: l CLA PB 01 F Gain flattened low noise preamplifier and booster amplifier with output power up to 20 d. Bm and optional ALS l CLA PB 02 F Gain flattened low noise preamplifier and high-power booster amplifier with output power up to 27 d. Bm and built-in ALS l CLA DI 01 F Gain flattened dual in-line amplifier with output powers up to 15 d. Bm CEF Networks Workshop 2009 9

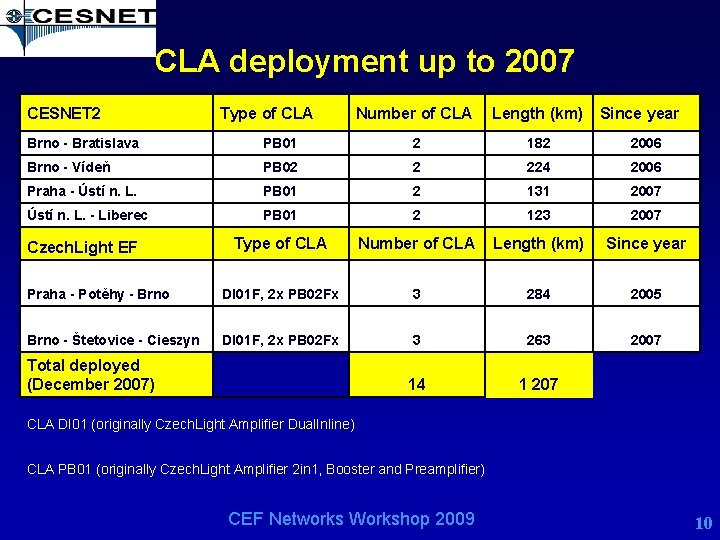

CLA deployment up to 2007 CESNET 2 Type of CLA Number of CLA Length (km) Since year Brno - Bratislava PB 01 2 182 2006 Brno - Vídeň PB 02 2 224 2006 Praha - Ústí n. L. PB 01 2 131 2007 Ústí n. L. - Liberec PB 01 2 123 2007 Type of CLA Number of CLA Length (km) Since year Praha - Potěhy - Brno DI 01 F, 2 x PB 02 Fx 3 284 2005 Brno - Štetovice - Cieszyn DI 01 F, 2 x PB 02 Fx 3 263 2007 Czech. Light EF Total deployed (December 2007) 14 1 207 CLA DI 01 (originally Czech. Light Amplifier Dual. Inline) CLA PB 01 (originally Czech. Light Amplifier 2 in 1, Booster and Preamplifier) CEF Networks Workshop 2009 10

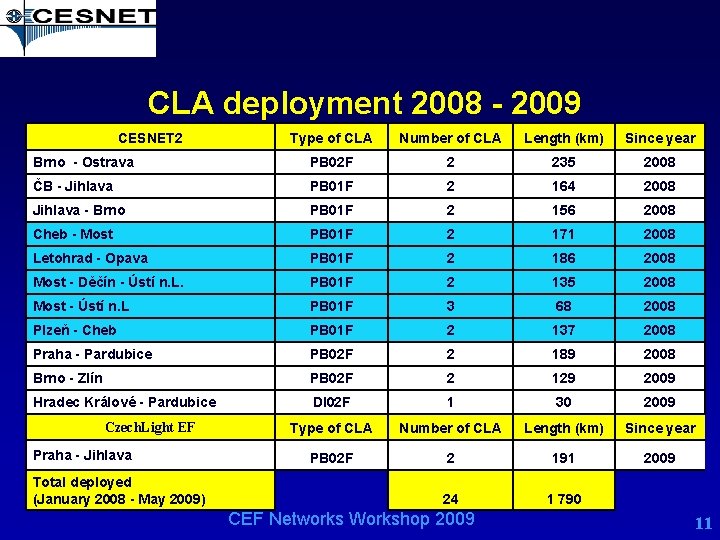

CLA deployment 2008 - 2009 CESNET 2 Type of CLA Number of CLA Length (km) Since year Brno - Ostrava PB 02 F 2 235 2008 ČB - Jihlava PB 01 F 2 164 2008 Jihlava - Brno PB 01 F 2 156 2008 Cheb - Most PB 01 F 2 171 2008 Letohrad - Opava PB 01 F 2 186 2008 Most - Děčín - Ústí n. L. PB 01 F 2 135 2008 Most - Ústí n. L PB 01 F 3 68 2008 Plzeň - Cheb PB 01 F 2 137 2008 Praha - Pardubice PB 02 F 2 189 2008 Brno - Zlín PB 02 F 2 129 2009 Hradec Králové - Pardubice DI 02 F 1 30 2009 Type of CLA Number of CLA Length (km) Since year PB 02 F 2 191 2009 24 1 790 Czech. Light EF Praha - Jihlava Total deployed (January 2008 - May 2009) CEF Networks Workshop 2009 11

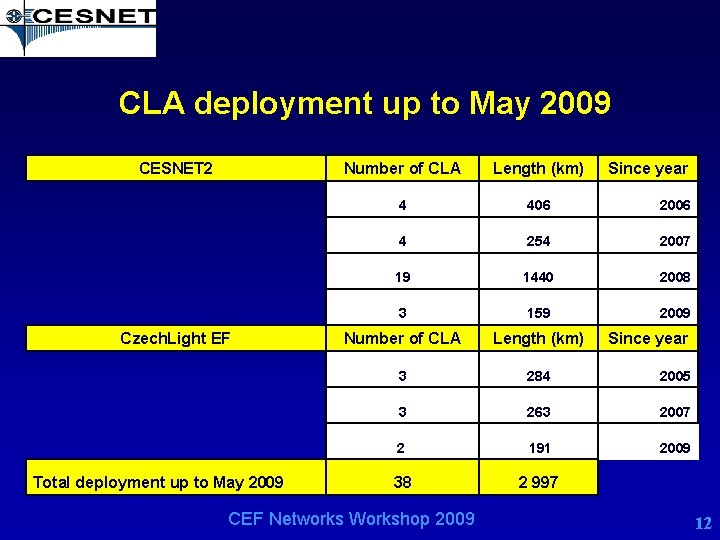

CLA deployment up to May 2009 CESNET 2 Czech. Light EF Total deployment up to May 2009 Number of CLA Length (km) 4 406 2006 4 254 2007 19 1440 2008 3 159 2009 Number of CLA Length (km) 3 284 2005 3 263 2007 2 191 2009 38 2 997 CEF Networks Workshop 2009 Since year 12

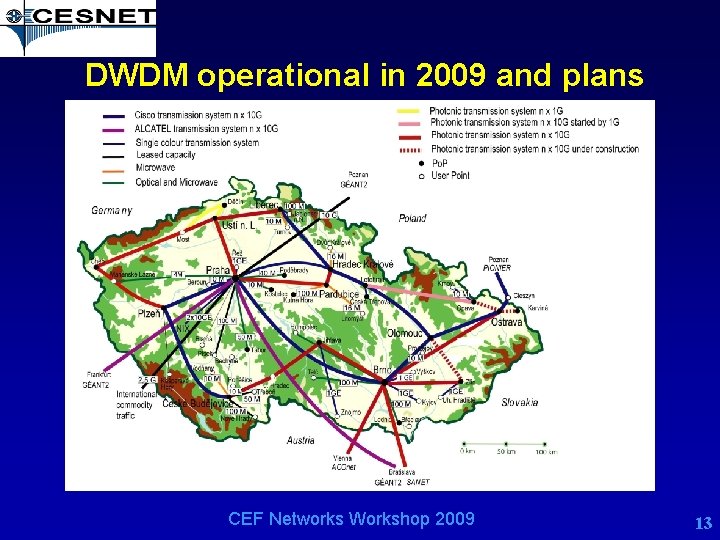

DWDM operational in 2009 and plans CEF Networks Workshop 2009 13

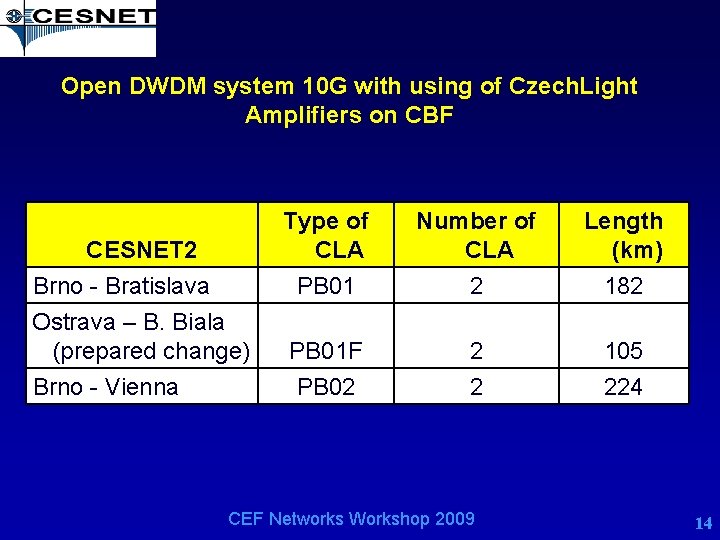

Open DWDM system 10 G with using of Czech. Light Amplifiers on CBF CESNET 2 Brno - Bratislava Ostrava – B. Biala (prepared change) Brno - Vienna Type of CLA Number of CLA Length (km) PB 01 2 182 PB 01 F 2 105 PB 02 2 224 CEF Networks Workshop 2009 14

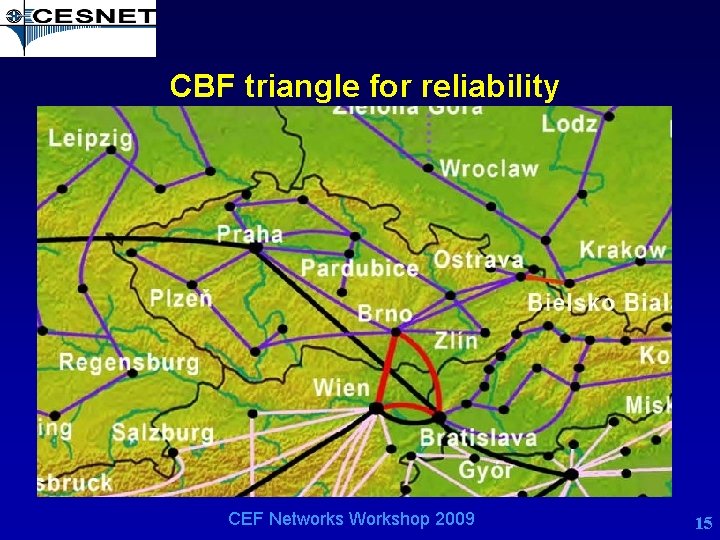

CBF triangle for reliability CEF Networks Workshop 2009 15

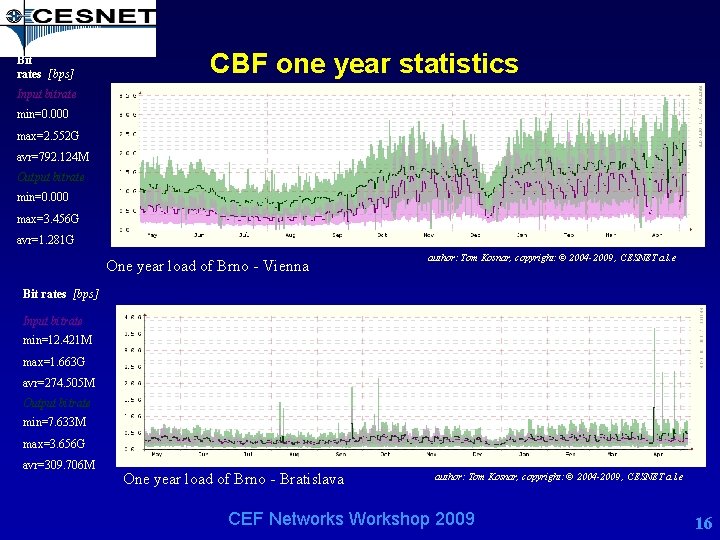

CBF one year statistics Bit rates [bps] Input bitrate min=0. 000 max=2. 552 G avr=792. 124 M Output bitrate min=0. 000 max=3. 456 G avr=1. 281 G One year load of Brno - Vienna author: Tom Kosnar, copyright: © 2004 -2009 , CESNET a. l. e Bit rates [bps] Input bitrate min=12. 421 M max=1. 663 G avr=274. 505 M Output bitrate min=7. 633 M max=3. 656 G avr=309. 706 M One year load of Brno - Bratislava author: Tom Kosnar, copyright: © 2004 -2009 , CESNET a. l. e CEF Networks Workshop 2009 16

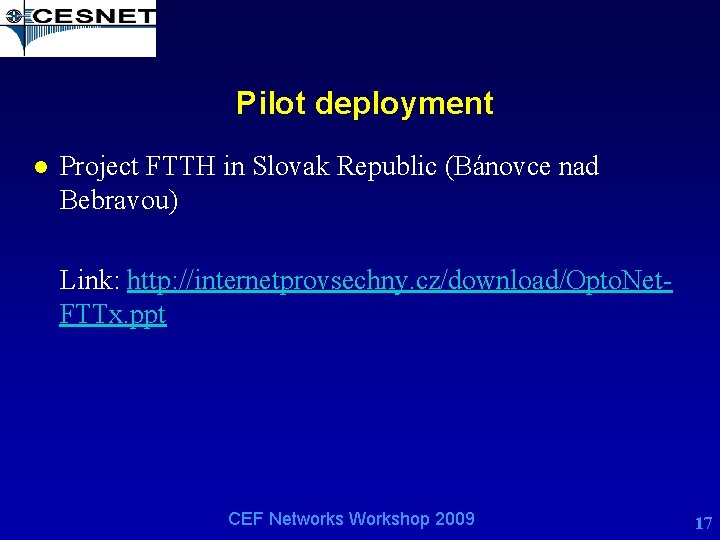

Pilot deployment l Project FTTH in Slovak Republic (Bánovce nad Bebravou) Link: http: //internetprovsechny. cz/download/Opto. Net. FTTx. ppt CEF Networks Workshop 2009 17

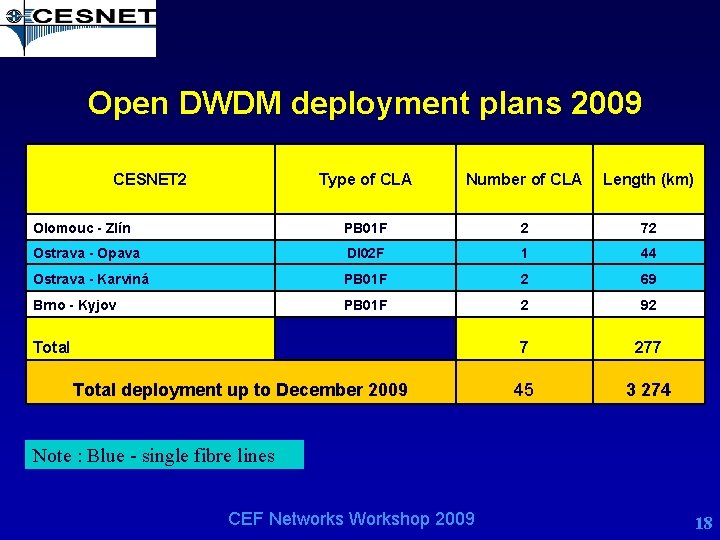

Open DWDM deployment plans 2009 CESNET 2 Type of CLA Number of CLA Length (km) Olomouc - Zlín PB 01 F 2 72 Ostrava - Opava DI 02 F 1 44 Ostrava - Karviná PB 01 F 2 69 Brno - Kyjov PB 01 F 2 92 7 277 45 3 274 Total deployment up to December 2009 Note : Blue - single fibre lines CEF Networks Workshop 2009 18

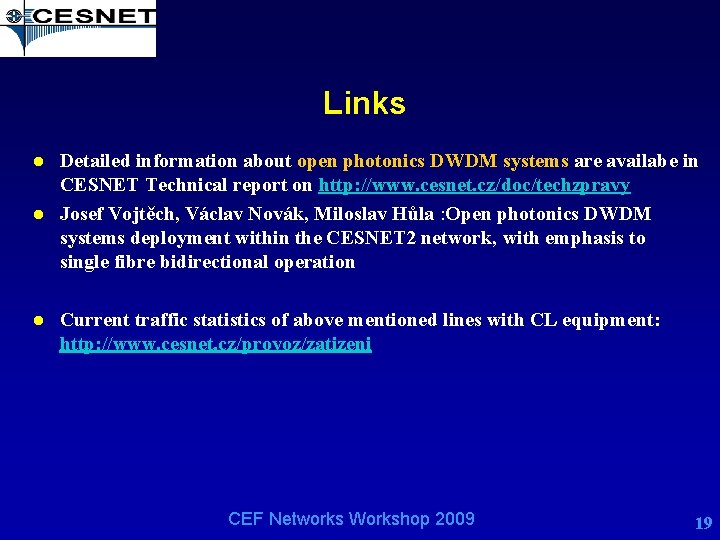

Links l l l Detailed information about open photonics DWDM systems are availabe in CESNET Technical report on http: //www. cesnet. cz/doc/techzpravy Josef Vojtěch, Václav Novák, Miloslav Hůla : Open photonics DWDM systems deployment within the CESNET 2 network, with emphasis to single fibre bidirectional operation Current traffic statistics of above mentioned lines with CL equipment: http: //www. cesnet. cz/provoz/zatizeni CEF Networks Workshop 2009 19

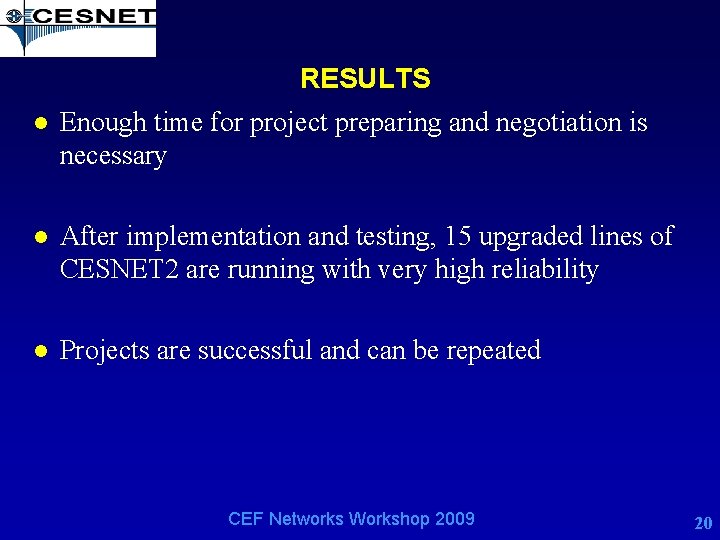

RESULTS l Enough time for project preparing and negotiation is necessary l After implementation and testing, 15 upgraded lines of CESNET 2 are running with very high reliability l Projects are successful and can be repeated CEF Networks Workshop 2009 20

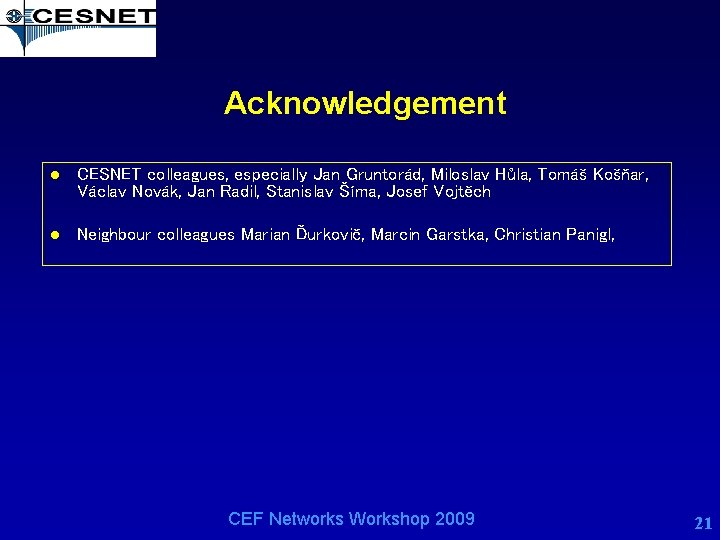

Acknowledgement l CESNET colleagues, especially Jan Gruntorád, Miloslav Hůla, Tomáš Košňar, Václav Novák, Jan Radil, Stanislav Šíma, Josef Vojtěch l Neighbour colleagues Marian Ďurkovič, Marcin Garstka, Christian Panigl, CEF Networks Workshop 2009 21
