Virtuoso Platform training ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Virtuoso Platform training ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION Nevion Confidential

Agenda • • • 2 Platform Overview Low Bit Rate Media Functions High Bit Rate Media Functions Auxiliary Media Functions Pricing examples Summary Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

3 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

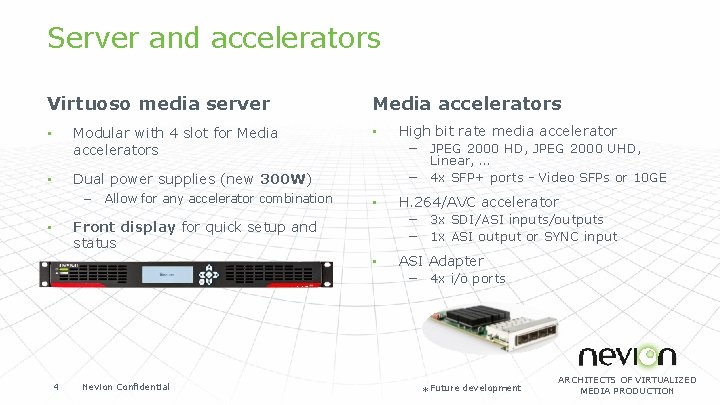

Server and accelerators Virtuoso media server Modular with 4 slot for Media accelerators • Media accelerators • Linear, … − 4 x SFP+ ports - Video SFPs or 10 GE Dual power supplies (new 300 W) • − Allow for any accelerator combination • H. 264/AVC accelerator − 3 x SDI/ASI inputs/outputs − 1 x ASI output or SYNC input • ASI Adapter − 4 x i/o ports Front display for quick setup and status • 4 Nevion Confidential High bit rate media accelerator − JPEG 2000 HD, JPEG 2000 UHD, * Future development ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Virtuoso OS • Software package running on the media server • Household tasks − Power and cooling management − Alarms and logs − APIs and GUI • User and security management • Inventory management − Configuration − SW inventory − License management • Auxiliary tasks − Aggregation of signals − Thumbnails 5 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Media functions Main media function J 2 K-HD J 2 K-UHD/4 K Linear-HD Auxiliary media function for each main function Protection pack FEC 2022 -7 LDO Monitoring pack Qo. S SLA Qo. E H. 264 TS Adaptation TS Switch 6 Nevion Confidential f 1 Processing pack f 2 f 3 Adaptation pack 2022 -6 TR 03 ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Media Function / accelerator mapping High Bit Rate Accelerator JPEG 2000 HD H. 264/AVC Accelerator H. 264/AVC MPEG-2 JPEG 2000 UHD/4 K Uncompressed (linear) Virtuoso Server TS Adaptation TICO* TS Switching *Under development 7 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Media Functions flexibility Compression Adaptation Protection Monitoring IP Aggregation J 2 K H. 264 Linear 8 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Low Bit Rate Media Functions 9 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

H. 264/AVC Media Function H. 264/AVC Accelerator 1 codec per accelerator Encoder or decoder functionality SDI H. 264/AVC Codec TS Supports SD, HD and 3 G SDI SW configurable Excellent quality with 8/10 bit 4: 2: 0/4: 2: 2 support DVB-CISSA AES-128 bit Scrambling 10 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

TS Adaptation Media Function Virtuoso Server Adaptation in any direction Unicast and Multicast ASI <-> IP TS IP <-> IP Unicast <-> Multicast Up to 80 TS over IP Up to 20 TS over ASI IP aggregation 11 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

TS Switching Media Function Alarm-based switching Up to 50 switches per server Up to 4 inputs per switch Virtuoso Server TS Input TS Output Combine ASI and TS over IP Total aggregated switch input 800 Mbps per server Total aggregated switch output 400 Mbps per server 12 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

High Bit Rate Media Functions 13 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

JPEG 2000 HD Media Function 4 Encoders or 4 Decoders per accelerator Encoder or decoder functionality Supports SD, HD and 3 G SDI HBR Accelerator J 2 K HD Codec SDI J 2 K HD Codec TS J 2 K HD Codec SW configurable VSF TR-01 compliant IP Aggregation 14 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

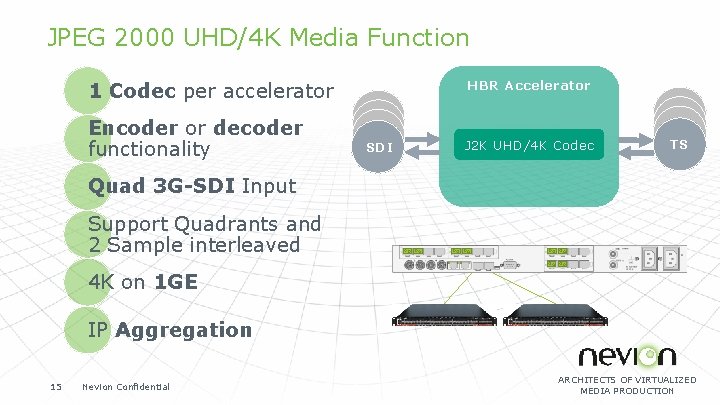

JPEG 2000 UHD/4 K Media Function HBR Accelerator 1 Codec per accelerator Encoder or decoder functionality SDI J 2 K UHD/4 K Codec TS Quad 3 G-SDI Input Support Quadrants and 2 Sample interleaved 4 K on 1 GE IP Aggregation 15 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Uncompressed Video over IP Media Function HBR Accelerator 4 channels of adaptation per accelerator SDI to SMPTE 2022 -6 SDI <-> IP SDI SMPTE 2022 -6 SDI <-> IP Supports SD, HD and 3 G SDI SFP Port redundancy SFP SFP Upgrade path for TR 03 and TR 04 16 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Auxiliary Media Functions 17 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

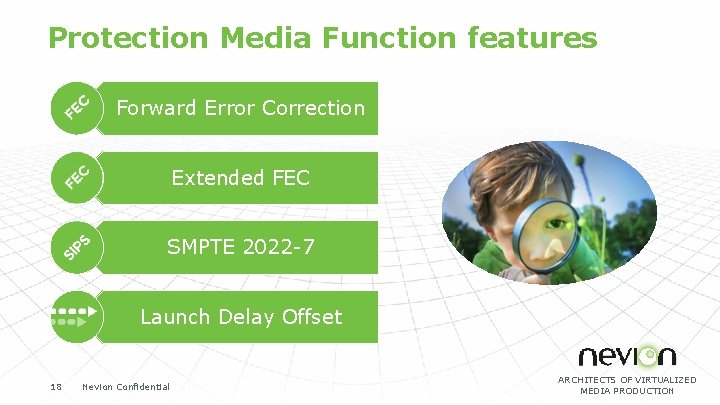

Protection Media Function features Forward Error Correction Extended FEC SMPTE 2022 -7 Launch Delay Offset 18 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Protection Media Functions 19 Uncompressed Protection TS Protection SDI SMPTE 2022 -6 IP/ASI ASI/TSo. IP Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

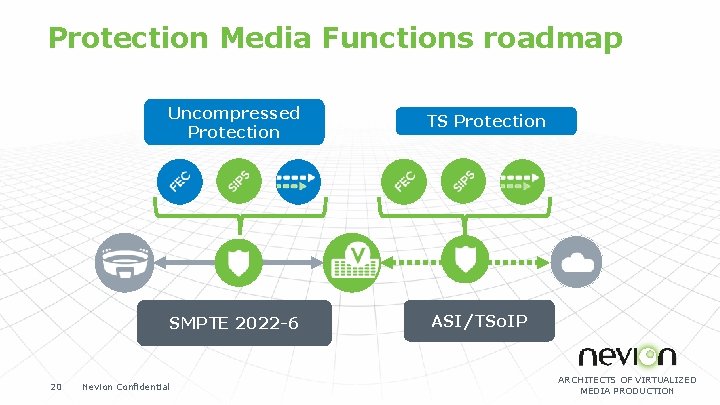

Protection Media Functions roadmap 20 Uncompressed Protection TS Protection SDI SMPTE 2022 -6 IP/ASI ASI/TSo. IP Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Monitoring Media Function features Quality of experience Thumbnails Audio Monitoring Quality of service ETR 290 Priority 1 -3 SLA statistics 21 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Monitoring Media Functions Uncompressed Monitoring SDI 22 Nevion Confidential TS Monitoring IP/ASI ASI/TSo. IP ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Pricing 23 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Price examples • JPEG 2000 8 channel example • Linear transport 8 channel example • Examples are give in list prices • Price list v 16. 1 will be available on December 12 th 24 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Example – Virtuoso J 2 K-HD 8 channels 1 service = € 2000 + € 300 + € 200 = € 2500 1 service J 2 K-HD 1570 High Bit Rate Accelerator = € 2500 x 2 = € 5000 Virtuoso Appliance = € 3930 Maintenance fee ( 5% of SW) = € 1079 Monitoring ……. 8 services = € 2500 x 8 = € 20000 Virtuoso OS = € Protection J 2 K-HD 8 Protection Monitoring Total = € 31579 HBR Price per channel = € 3947 25 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

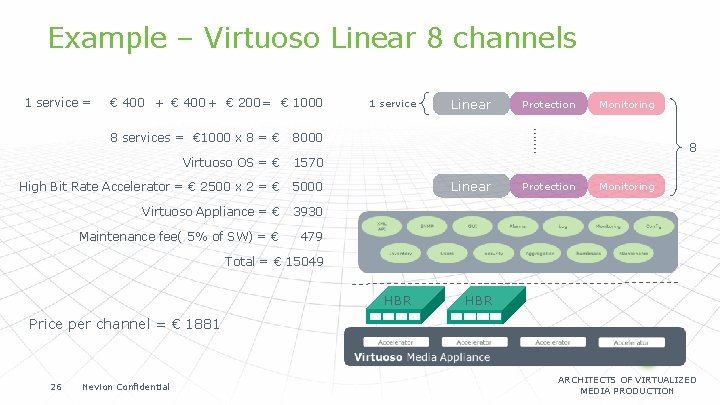

Example – Virtuoso Linear 8 channels 1 service = € 400 + € 200 = € 1000 8000 Virtuoso OS = € 1570 High Bit Rate Accelerator = € 2500 x 2 = € 5000 Virtuoso Appliance = € 3930 Maintenance fee( 5% of SW) = € 479 Linear Protection Monitoring ……. 8 services = € 1000 x 8 = € 1 service Linear 8 Protection Monitoring Total = € 15049 HBR Price per channel = € 1881 26 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

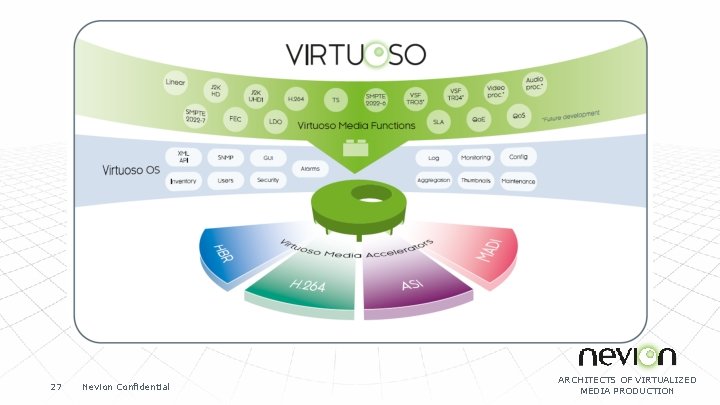

27 Nevion Confidential ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION

Thank you ARCHITECTS OF VIRTUALIZED MEDIA PRODUCTION
