Vanishing Energy ----Energy in Dispersive Media 07300190021 徐小凡
Contradiction • in Lecture 19:
What's ε? • ε('s time-domain expansion) is a response function with following properties: • • time-translation invariant initial condition independent finite causality
• ε is consistent with Kramers-Kronig relation: • or
• Provided ε/ε 0 is not alway equal to 1, there exists Im ε/ε 0, i. e. energy dissipation (proved later). • Provided ε/ε 0 is not alway equal to 1, there exists dispersion.
• The imaginary part of ε introduces the decay in propagation, i. e. energy absorption.
• Landau: A dispersive medium is also an absorbing medium.
• Reference for more details: either of • Jackson 7. 10 • Landau § 82 • 数学物理方法,胡嗣柱,pp 138

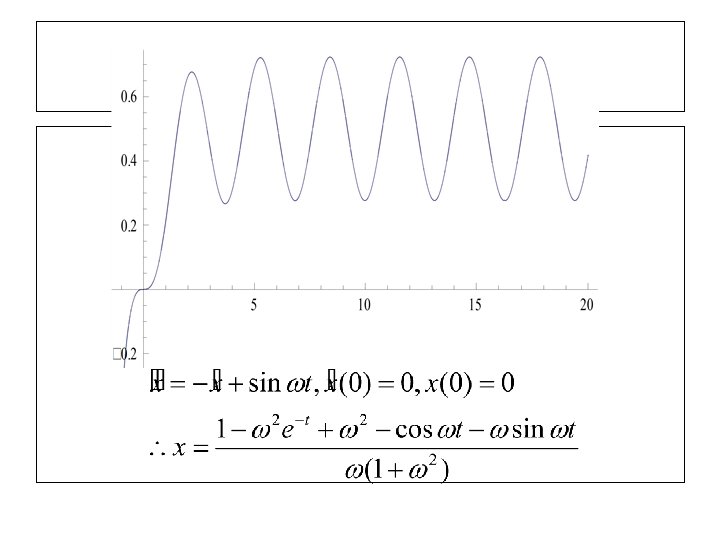

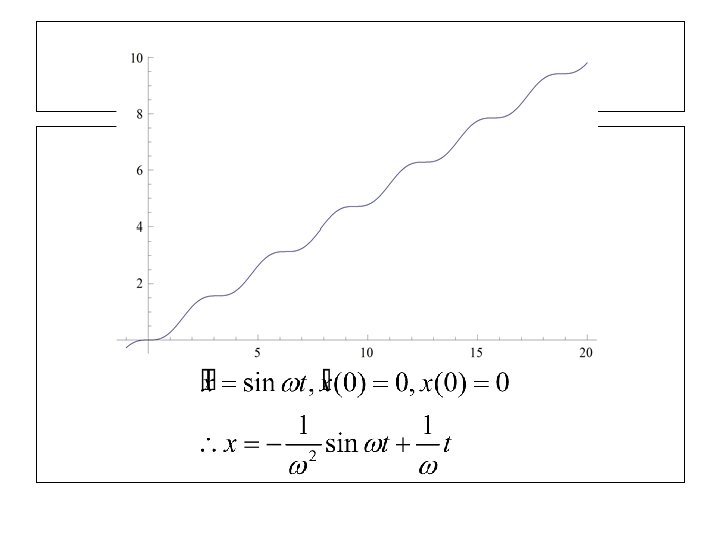

A simple example • Damping is essential for a periodic forced oscillation, or fundamentally speaking, a response function.
Return to Energy • modification upon equation of continuity: instead of considering the temporally non-locality and non-linear operation of energy
• analysis of Split the integrand into two equal parts and in one make the substitutions, ω-> -ω', ω'-> -ω, and use the reality constraints to obtain
• We now suppose that the electric field is dominated by frequency components in a relatively narrow range compared to the characteristic frequency interval over which ε(ω) changes appreciably. • Thus,
• more compactly while and in Lecture 18

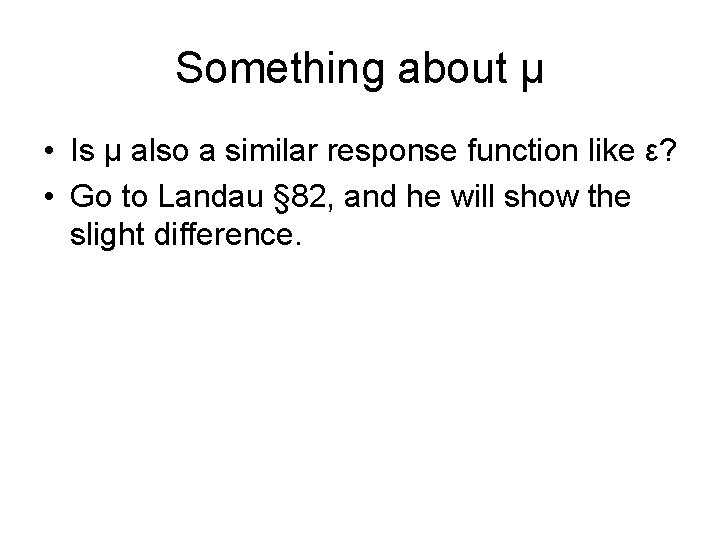

Something about μ • Is μ also a similar response function like ε? • Go to Landau § 82, and he will show the slight difference.
