Using Resource Description Framework RDF to carry metadata
- Slides: 37
Using Resource Description Framework (RDF) to carry metadata for datasets M. Benno Blumenthal and John del Corral International Research Institute for Climate and Society Open. DAP 2007 http: //iridl. ldeo. columbia. edu/ontologies/

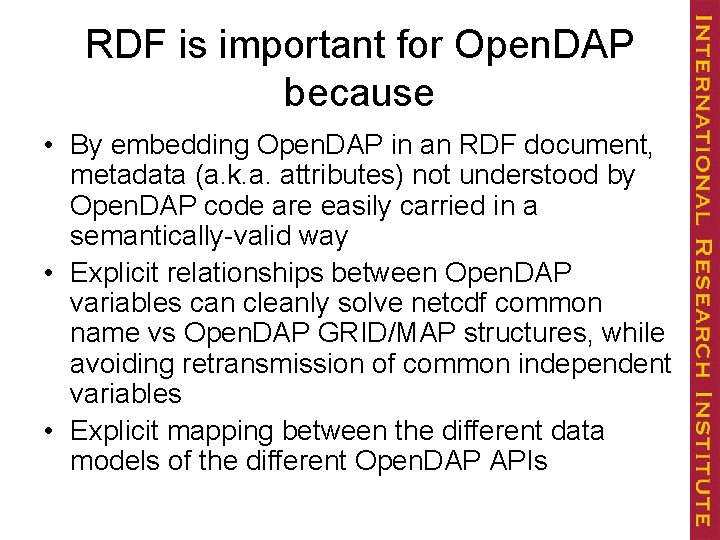

RDF is important for Open. DAP because • By embedding Open. DAP in an RDF document, metadata (a. k. a. attributes) not understood by Open. DAP code are easily carried in a semantically-valid way • Explicit relationships between Open. DAP variables can cleanly solve netcdf common name vs Open. DAP GRID/MAP structures, while avoiding retransmission of common independent variables • Explicit mapping between the different data models of the different Open. DAP APIs
RDF is important for Open. DAP because • Support for different languages can be built on top of RDF object support, e. g. Ruby Active. RDF
Why RDF? Web-based system for interoperating semantics A key part of the Semantic Web RDF/OWL is an interesting technology, but it is even more interesting when it is clear that it can help solve our problems
Standard Metadata Schema/Data Services Tools Datasets Users
Many Data Communities Standard Metadata Schema Tools Standard Metadata Schema Datasets Users Standard Metadata Schema Tools Users Datasets Tools Users Standard Metadata Schema Tools Users Datasets
Super Schema Standard metadata schema Standard Metadata Schema Tools Datasets Users Standard Metadata Schema Tools Users Datasets
Super Schema: direct Standard metadata schema/data service Standard Metadata Schema Tools Datasets Users Standard Metadata Schema Tools Users Datasets
Flaws • A lot of work • Super Schema/Service is the Lowest. Common-Denominator • Science keeps evolving, so that standards either fall behind or constantly change
RDF Standard Data Model Exchange Standard metadata schema RDF RDF Standard Metadata Schema Tools Datasets Users RDF Standard Metadata Schema Tools Users Datasets
RDF Data Model Exchange Standard metadata schema RDF RDF Standard Metadata Schema RDF RDF Tools Datasets Users RDF Standard Metadata Schema Users RDF Standard Metadata Schem RDF Tools Datasets RDF Datasets Standard Metadata Schema Tools Users RDF Datasets Tools Users Datasets
RDF Architecture queries Virtual (derived) RDF RDF RDF RDF RDF
Why is this better? • Maps the original dataset metadata into a standard format that can be transported and manipulated • Still the same impedance mismatch when mapped to the least-common-denominator standard metadata, but • When a better standard comes along, the original complete-but-nonstandard metadata is already there to be remapped, and “late semantic binding” means everyone can use the new semantic mapping • Can uses enhanced mappings between models that have common concepts beyond the least-commondenominator • EASIER – tools to enhance the mapping process, mappings build on other mappings
CF attributes NC basic attributes IRIDL attributes SWEET Ontologies CF Standard Names As Terms SWEET as Terms Gazetteer Terms Search Terms IRIDL Terms
Sample Tool: Faceted Search http: //iridl. ldeo. columbia. edu/ontologies/query 2. pl? . . .
Distinctive Features of the search • Search terms are interrelated • terms that describe the set of returns are displayed (spanning and not) • Returned items also have structure (subitems and superseded items are not shown)
Architectural Features of the search http: //iridl. ldeo. columbia. edu/ontologies/query 2. pl • Multiple search structures possible • Multiple languages possible • Search structure is kept in the database, not in the code

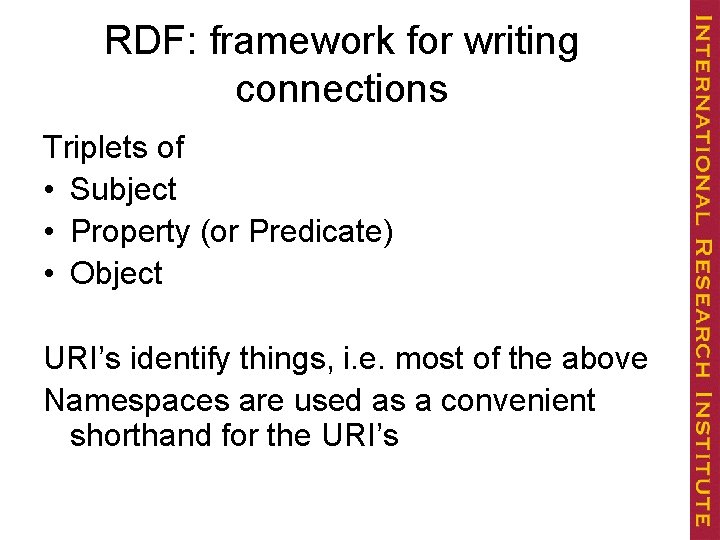

RDF: framework for writing connections Triplets of • Subject • Property (or Predicate) • Object URI’s identify things, i. e. most of the above Namespaces are used as a convenient shorthand for the URI’s
Datatype Properties {WOA} dc: title “NOAA NODC WOA 01” {WOA} dc: description “NOAA NODC WOA 01: World Ocean Atlas 2001, an atlas of objectively analyzed fields of major ocean parameters at monthly, seasonal, and annual time scales. Resolution: 1 x 1; Longitude: global; Latitude: global; Depth: [0 m, 5500 m]; Time: [Jan, Dec]; monthly”
Object Properties {WOA} iridl: is. Container. Of {Grid-1 x 1}, {Grid-1 x 1} iridl: is. Container. Of {Monthly}
WOA 01 diagram

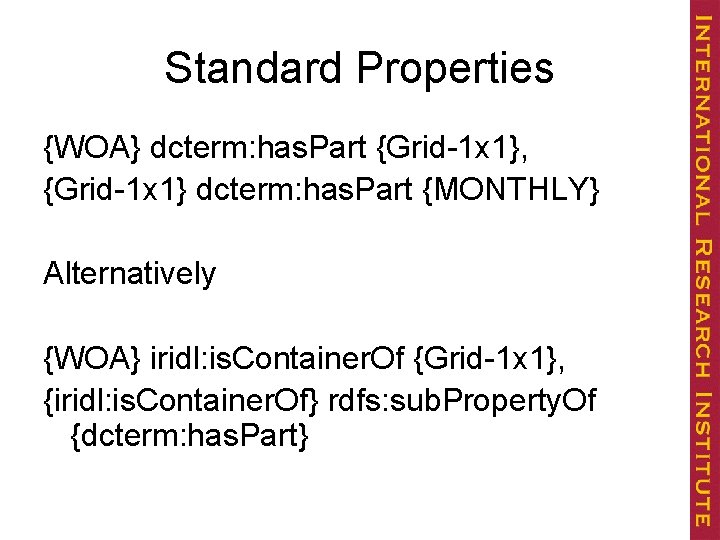

Standard Properties {WOA} dcterm: has. Part {Grid-1 x 1}, {Grid-1 x 1} dcterm: has. Part {MONTHLY} Alternatively {WOA} iridl: is. Container. Of {Grid-1 x 1}, {iridl: is. Container. Of} rdfs: sub. Property. Of {dcterm: has. Part}

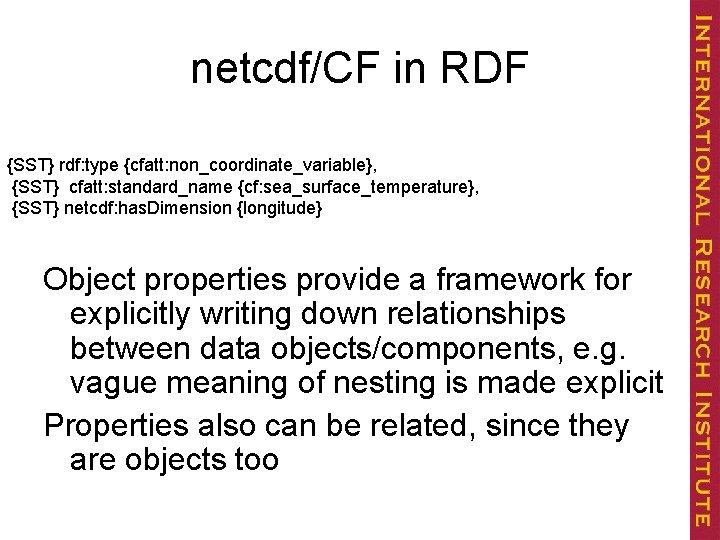

netcdf/CF in RDF {SST} rdf: type {cfatt: non_coordinate_variable}, {SST} cfatt: standard_name {cf: sea_surface_temperature}, {SST} netcdf: has. Dimension {longitude} Object properties provide a framework for explicitly writing down relationships between data objects/components, e. g. vague meaning of nesting is made explicit Properties also can be related, since they are objects too
RDF Tools • • • Transport/Exchange (RDF/XML) Storage RDF APIs (Redland, Jena, Sesame) Query (SPARQL, Se. RQL, …) Basic Semantics

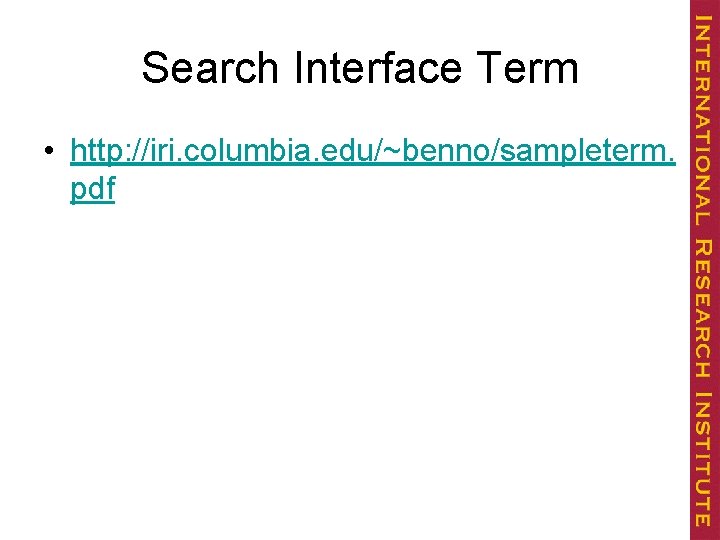

Search Interface Term • http: //iri. columbia. edu/~benno/sampleterm. pdf
Ontologies Use Conventions to connect concepts to established sets of concepts Generate additional “virtual” triples from the original set and semantics RDFS – some property/class semantics OWL – additional property/class semantics: more sophisticated (ontological) relationships
OWL Language for expressing ontologies, i. e. the semantics are very important. However, even without a reasoner to generate the implied RDF statements, OWL classes and properties represent a sophistication of the RDF Schema However, there is a serious split in world view from what we have been talking about: concepts as classes vs concepts as individuals
Faceted Search Explicated
Search Interface • Items (datasets/maps) • Terms • Facets • Taxa
Search Interface Semantic API {item} dc: title dc: description rss: link iridl: icon dcterm: is. Part. Of {item 2} dcterm: is. Replaced. By {item 2} {item} trm: is. Described. By {term} a {facet} of {taxa} of {trm: Term}, {facet} a {trm: Facet}, {taxa} a {trm: Taxa}, {term} trm: directly. Implies {term 2}

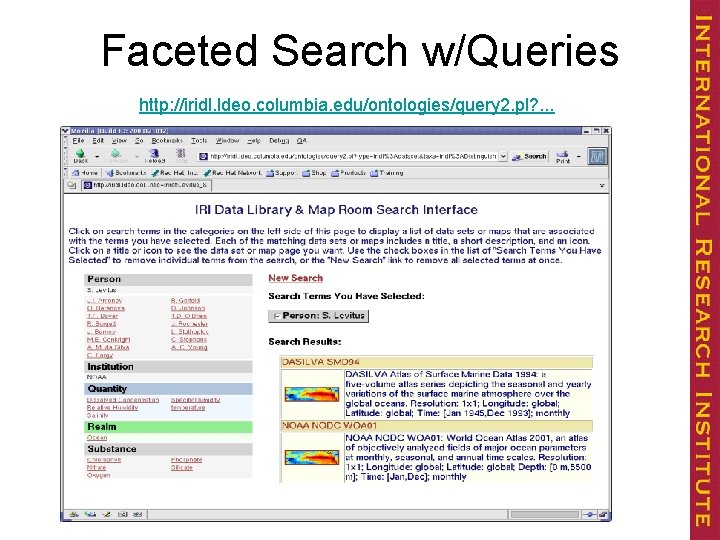

Faceted Search w/Queries http: //iridl. ldeo. columbia. edu/ontologies/query 2. pl? . . .
RDF Architecture queries Virtual (derived) RDF RDF RDF RDF RDF
IRI RDF Architecture MMI Data Servers Ontologies JPL bibliography Start Point Standards Organizations RDF Crawler RDFS Semantics Owl Semantics SWRL Rules Se. RQL CONSTRUCT Sesame Search Queries Search Interface Location Canonicalizer Time Canonicalizer
CF attributes NC basic attributes IRIDL attributes SWEET Ontologies CF Standard Names As Terms SWEET as Terms Gazetteer Terms Search Terms IRIDL Terms
RDF is important for Open. DAP because • By embedding Open. DAP in an RDF document, metadata (a. k. a. attributes) not understood by Open. DAP code are easily carried in a semantically-valid way • Explicit relationships between Open. DAP variables can cleanly solve netcdf common name vs Open. DAP GRID/MAP structures, while avoiding retransmission of common independent variables • Explicit mapping between the different data models of the different Open. DAP APIs • Build on language support of RDF objects
Embedded Open. DAP Ontology

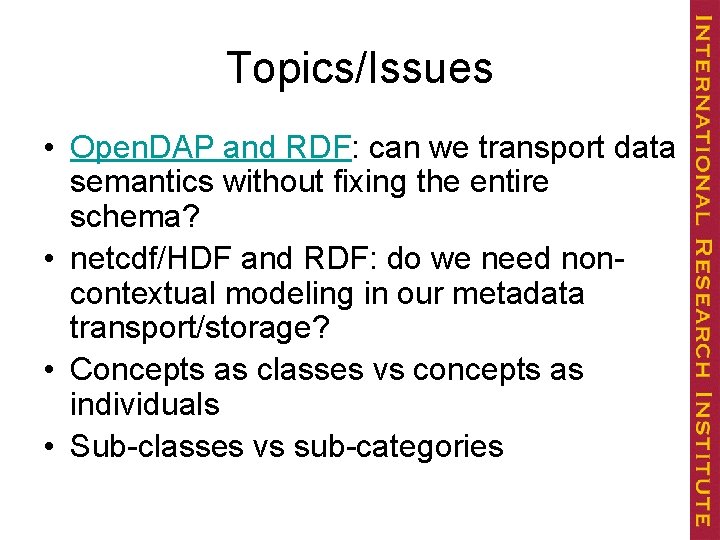

Topics/Issues • Open. DAP and RDF: can we transport data semantics without fixing the entire schema? • netcdf/HDF and RDF: do we need noncontextual modeling in our metadata transport/storage? • Concepts as classes vs concepts as individuals • Sub-classes vs sub-categories
