Threaded Case Study JULI 2004 Haesen Davy Janssen

Threaded Case Study JULI 2004 Haesen Davy Janssen Luc

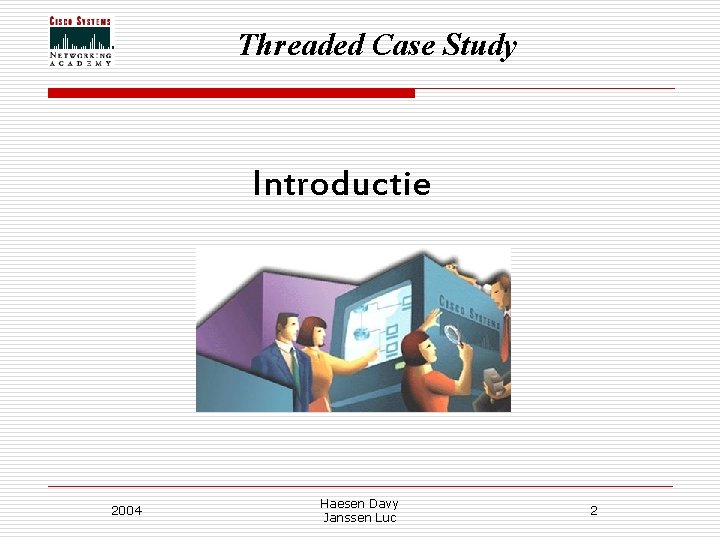

Threaded Case Study Introductie 2004 Haesen Davy Janssen Luc 2

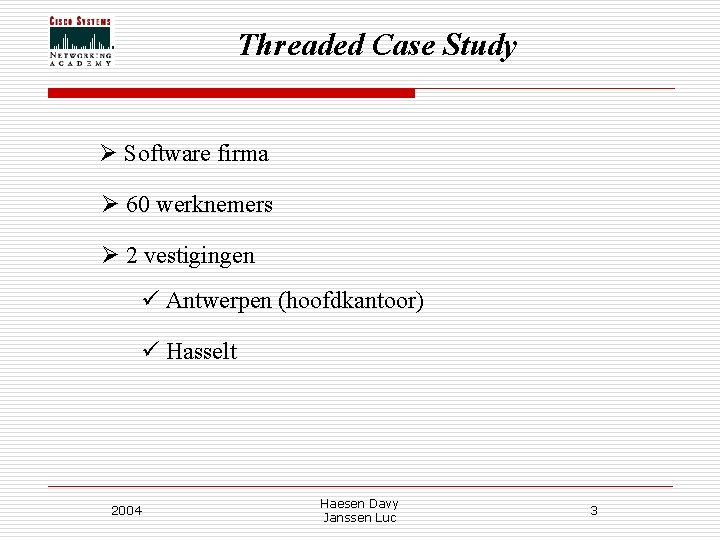

Threaded Case Study Ø Software firma Ø 60 werknemers Ø 2 vestigingen ü Antwerpen (hoofdkantoor) ü Hasselt 2004 Haesen Davy Janssen Luc 3

Threaded Case Study Design Goals 2004 Haesen Davy Janssen Luc 4

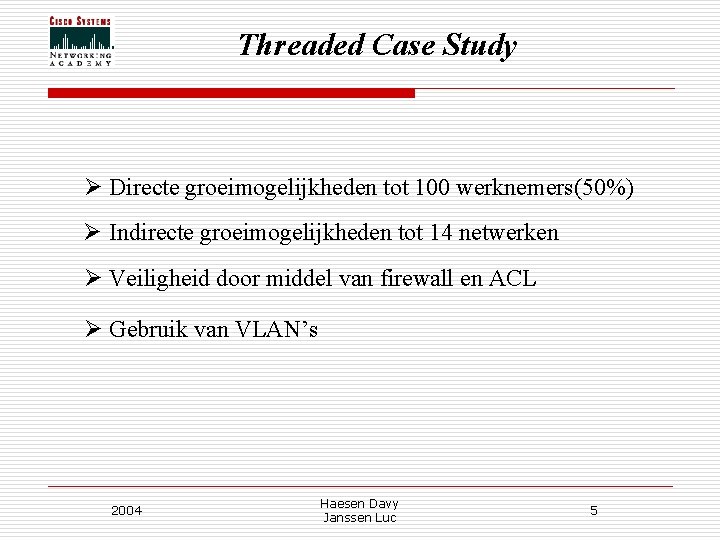

Threaded Case Study Ø Directe groeimogelijkheden tot 100 werknemers(50%) Ø Indirecte groeimogelijkheden tot 14 netwerken Ø Veiligheid door middel van firewall en ACL Ø Gebruik van VLAN’s 2004 Haesen Davy Janssen Luc 5

Threaded Case Study WAN Lay-out 2004 Haesen Davy Janssen Luc 6

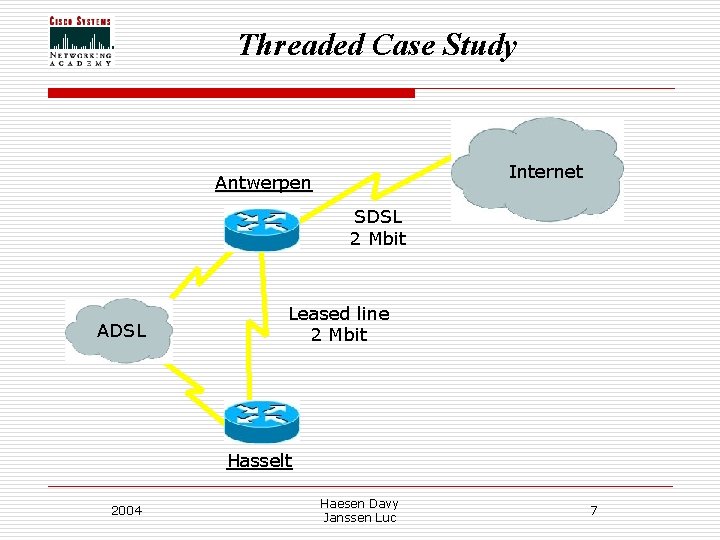

Threaded Case Study Internet Antwerpen SDSL 2 Mbit ADSL Leased line 2 Mbit Hasselt 2004 Haesen Davy Janssen Luc 7

Threaded Case Study LAN Lay-out 2004 Haesen Davy Janssen Luc 8

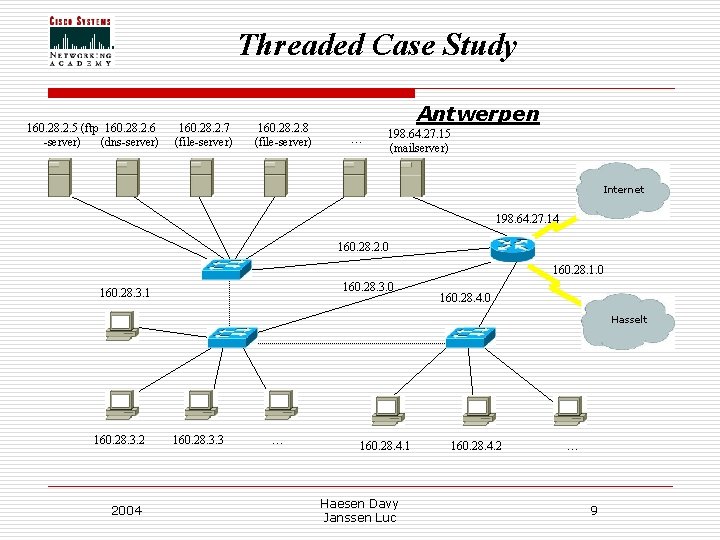

Threaded Case Study 160. 28. 2. 5 (ftp 160. 28. 2. 6 -server) (dns-server) 160. 28. 2. 7 (file-server) 160. 28. 2. 8 (file-server) Antwerpen … 198. 64. 27. 15 (mailserver) Internet 198. 64. 27. 14 160. 28. 2. 0 160. 28. 1. 0 160. 28. 3. 1 160. 28. 4. 0 Hasselt 160. 28. 3. 2 2004 160. 28. 3. 3 … 160. 28. 4. 1 Haesen Davy Janssen Luc 160. 28. 4. 2 … 9

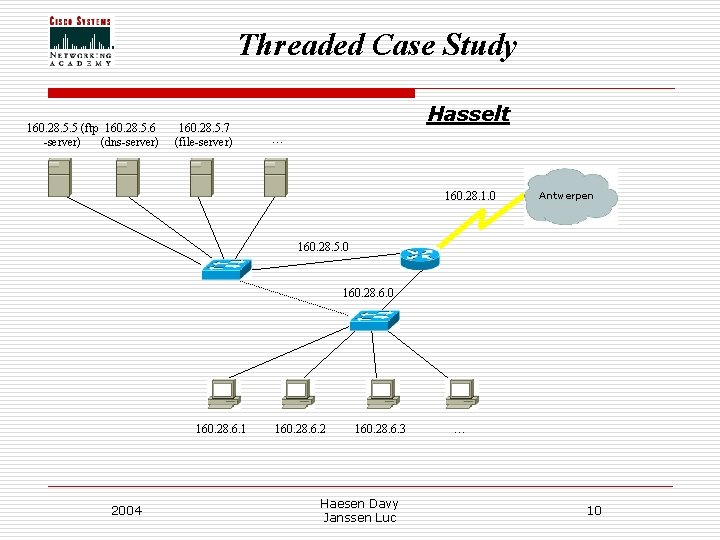

Threaded Case Study 160. 28. 5. 5 (ftp 160. 28. 5. 6 -server) (dns-server) 160. 28. 5. 7 (file-server) Hasselt … 160. 28. 1. 0 Antwerpen 160. 28. 5. 0 160. 28. 6. 1 2004 160. 28. 6. 2 160. 28. 6. 3 Haesen Davy Janssen Luc … 10

Threaded Case Study Kabelplan 2004 Haesen Davy Janssen Luc 11

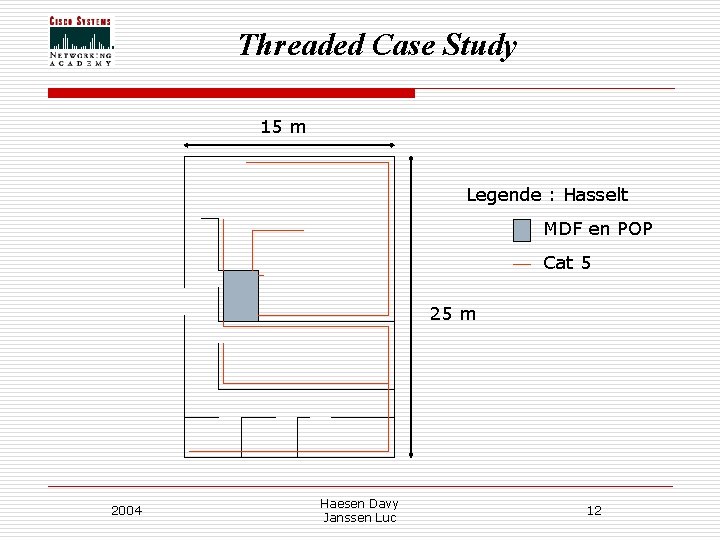

Threaded Case Study 15 m Legende : Hasselt MDF en POP Cat 5 25 m 2004 Haesen Davy Janssen Luc 12

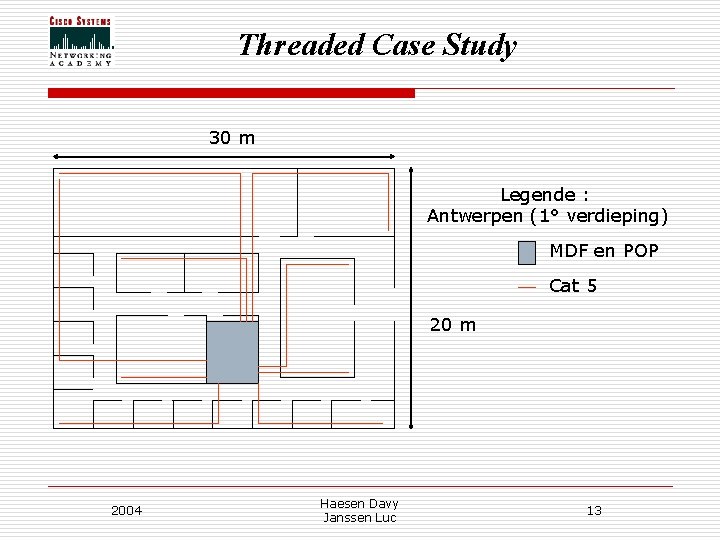

Threaded Case Study 30 m Legende : Antwerpen (1° verdieping) MDF en POP Cat 5 20 m 2004 Haesen Davy Janssen Luc 13

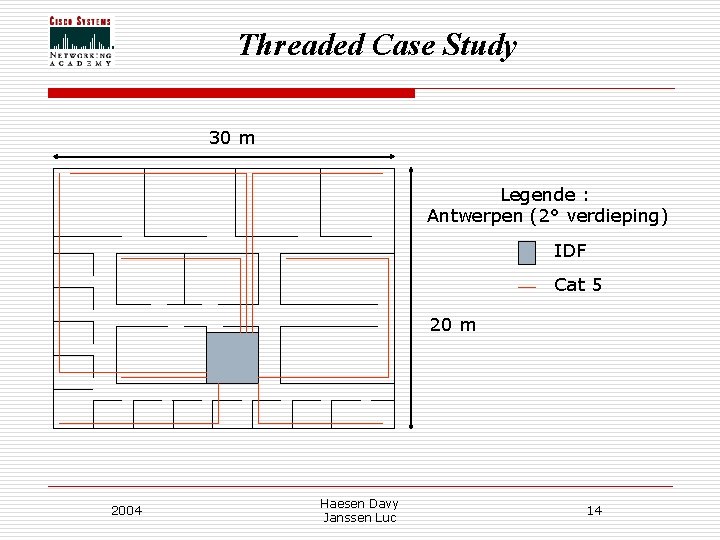

Threaded Case Study 30 m Legende : Antwerpen (2° verdieping) IDF Cat 5 20 m 2004 Haesen Davy Janssen Luc 14

Threaded Case Study VLAN’s 2004 Haesen Davy Janssen Luc 15

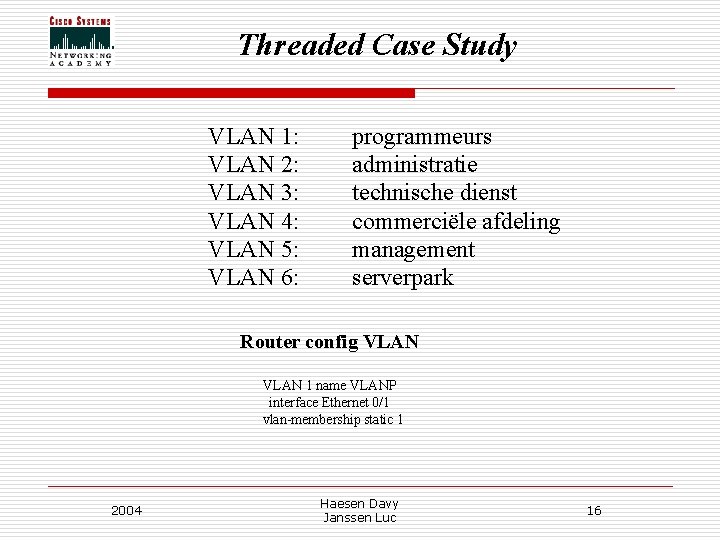

Threaded Case Study VLAN 1: VLAN 2: VLAN 3: VLAN 4: VLAN 5: VLAN 6: programmeurs administratie technische dienst commerciële afdeling management serverpark Router config VLAN 1 name VLANP interface Ethernet 0/1 vlan-membership static 1 2004 Haesen Davy Janssen Luc 16

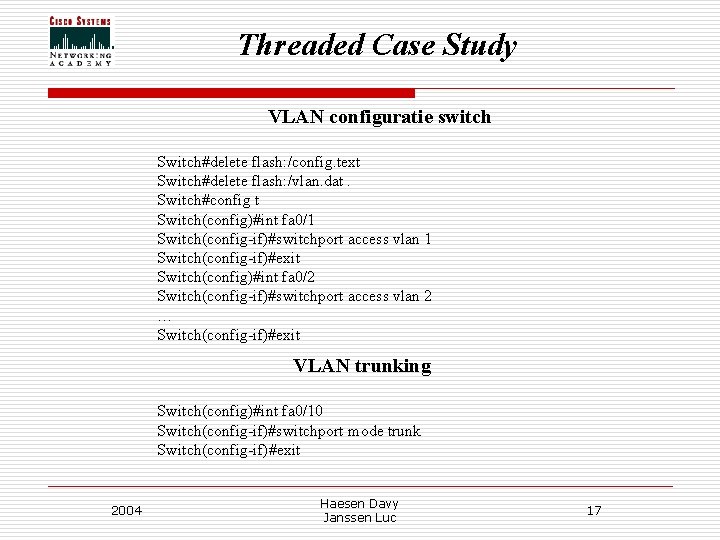

Threaded Case Study VLAN configuratie switch Switch#delete flash: /config. text Switch#delete flash: /vlan. dat. Switch#config t Switch(config)#int fa 0/1 Switch(config-if)#switchport access vlan 1 Switch(config-if)#exit Switch(config)#int fa 0/2 Switch(config-if)#switchport access vlan 2 … Switch(config-if)#exit VLAN trunking Switch(config)#int fa 0/10 Switch(config-if)#switchport mode trunk Switch(config-if)#exit 2004 Haesen Davy Janssen Luc 17

Threaded Case Study ACL 2004 Haesen Davy Janssen Luc 18

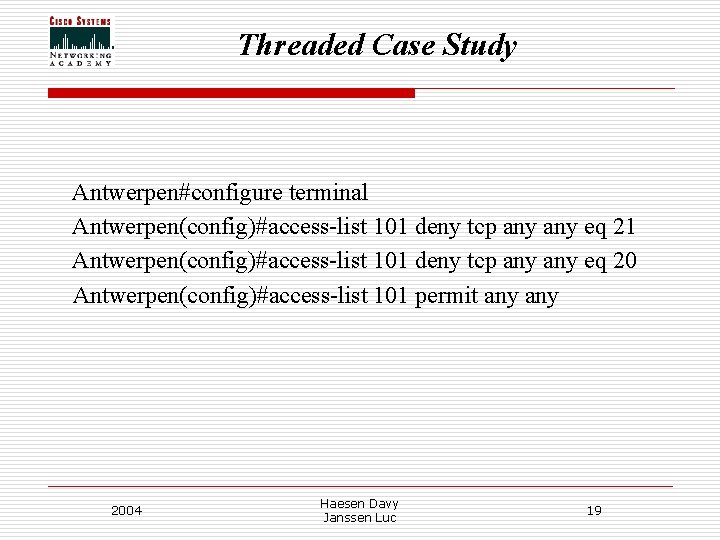

Threaded Case Study Antwerpen#configure terminal Antwerpen(config)#access-list 101 deny tcp any eq 21 Antwerpen(config)#access-list 101 deny tcp any eq 20 Antwerpen(config)#access-list 101 permit any 2004 Haesen Davy Janssen Luc 19

Threaded Case Study Router configuratie 2004 Haesen Davy Janssen Luc 20

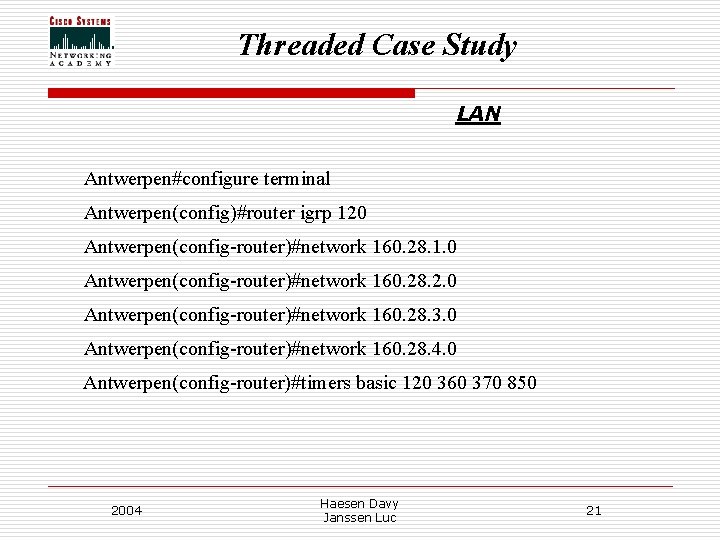

Threaded Case Study LAN Antwerpen#configure terminal Antwerpen(config)#router igrp 120 Antwerpen(config-router)#network 160. 28. 1. 0 Antwerpen(config-router)#network 160. 28. 2. 0 Antwerpen(config-router)#network 160. 28. 3. 0 Antwerpen(config-router)#network 160. 28. 4. 0 Antwerpen(config-router)#timers basic 120 360 370 850 2004 Haesen Davy Janssen Luc 21

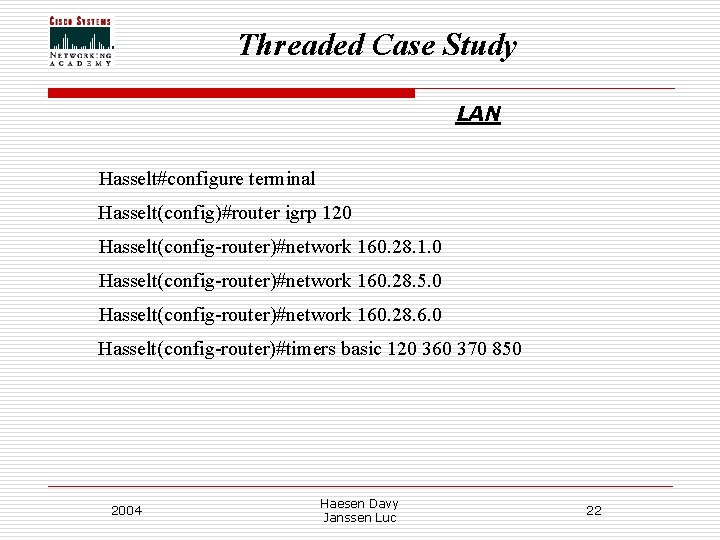

Threaded Case Study LAN Hasselt#configure terminal Hasselt(config)#router igrp 120 Hasselt(config-router)#network 160. 28. 1. 0 Hasselt(config-router)#network 160. 28. 5. 0 Hasselt(config-router)#network 160. 28. 6. 0 Hasselt(config-router)#timers basic 120 360 370 850 2004 Haesen Davy Janssen Luc 22

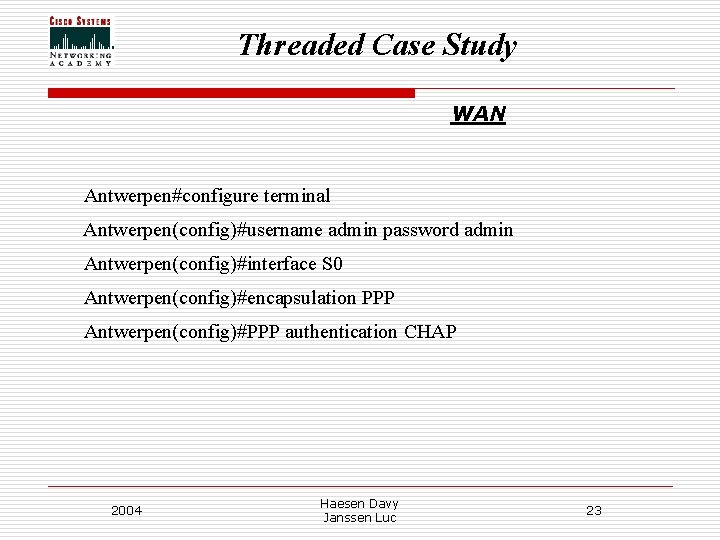

Threaded Case Study WAN Antwerpen#configure terminal Antwerpen(config)#username admin password admin Antwerpen(config)#interface S 0 Antwerpen(config)#encapsulation PPP Antwerpen(config)#PPP authentication CHAP 2004 Haesen Davy Janssen Luc 23

Threaded Case Study WAN Hasselt#configure terminal Hasselt(config)#username admin password admin Hasselt(config)#interface S 0 Hasselt(config)#encapsulation PPP Hasselt(config)#PPP authentication CHAP 2004 Haesen Davy Janssen Luc 24

Threaded Case Study Bekabeling 2004 Haesen Davy Janssen Luc 25

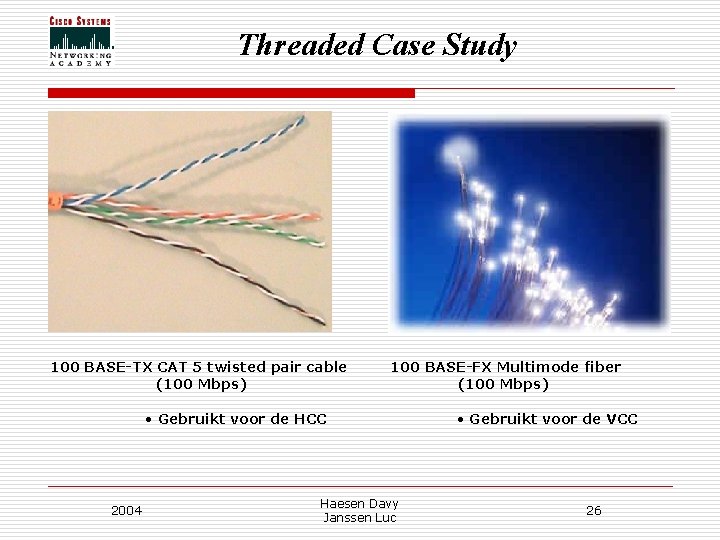

Threaded Case Study 100 BASE-TX CAT 5 twisted pair cable (100 Mbps) 100 BASE-FX Multimode fiber (100 Mbps) • Gebruikt voor de HCC 2004 Haesen Davy Janssen Luc • Gebruikt voor de VCC 26

Threaded Case Study Gebruikte hardware 2004 Haesen Davy Janssen Luc 27

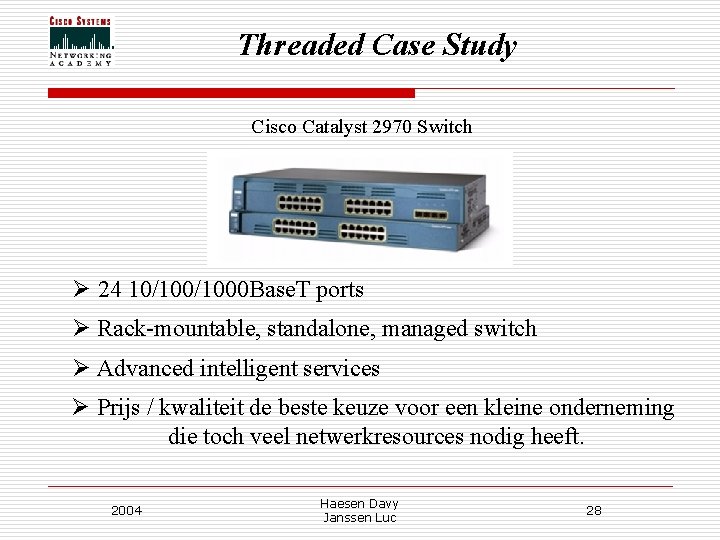

Threaded Case Study Cisco Catalyst 2970 Switch Ø 24 10/1000 Base. T ports Ø Rack-mountable, standalone, managed switch Ø Advanced intelligent services Ø Prijs / kwaliteit de beste keuze voor een kleine onderneming die toch veel netwerkresources nodig heeft. 2004 Haesen Davy Janssen Luc 28

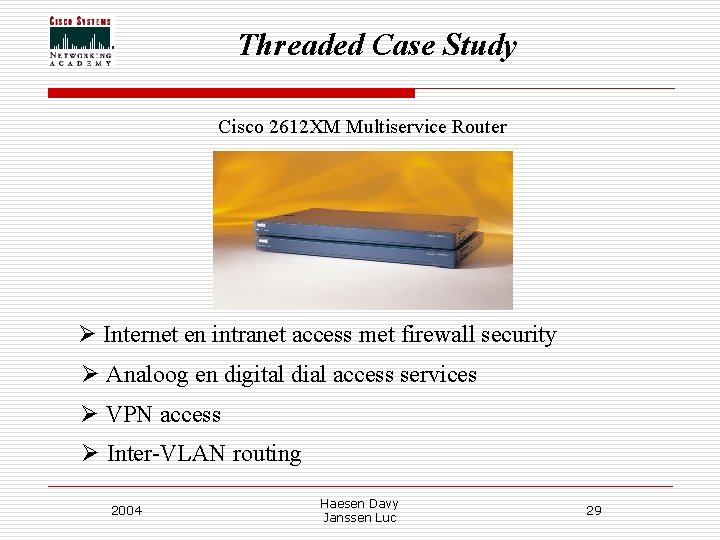

Threaded Case Study Cisco 2612 XM Multiservice Router Ø Internet en intranet access met firewall security Ø Analoog en digital dial access services Ø VPN access Ø Inter-VLAN routing 2004 Haesen Davy Janssen Luc 29

Threaded Case Study Prijslijst 2004 Haesen Davy Janssen Luc 30

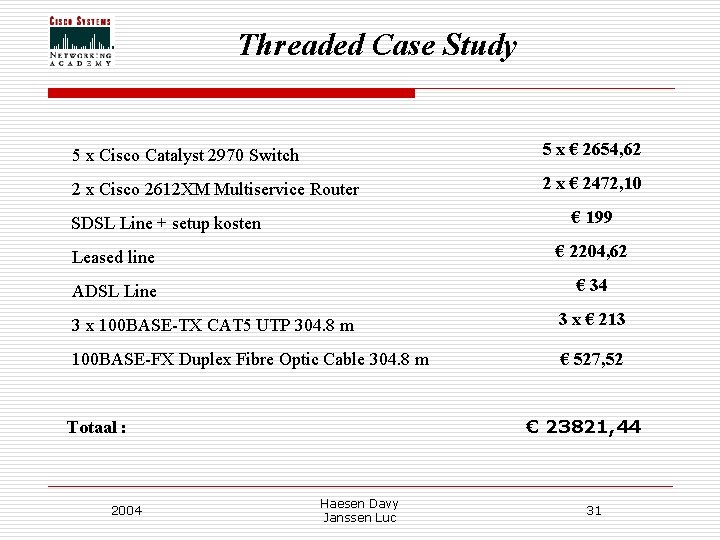

Threaded Case Study 5 x Cisco Catalyst 2970 Switch 5 x € 2654, 62 2 x Cisco 2612 XM Multiservice Router 2 x € 2472, 10 € 199 SDSL Line + setup kosten Leased line € 2204, 62 ADSL Line € 34 3 x 100 BASE-TX CAT 5 UTP 304. 8 m 3 x € 213 100 BASE-FX Duplex Fibre Optic Cable 304. 8 m € 527, 52 € 23821, 44 Totaal : 2004 Haesen Davy Janssen Luc 31
