Introduction The 49 P 11 -843 Sure. Switch Contactor Upgrade is the next generation contactor with a microprocessor brain. • Sealed to keep out insects and debris • Microprocessor control nearly eliminates contact welding and pitting • Condensing units protected from brownouts and short cycling 49 P 11 -843 Sure. Switch 3

What is It? The Sure. Switch Contactor Upgrade is the first contactor to include a microprocessor. The contacts are inside of a sealed box to eliminate damage caused by insect intrusion and debris. Compatible with virtually all single stage residential air conditioners and heat pumps with permanent split capacitor (PSC) fan motors. Works with equipment up to a 40 FLA rating / 5 Ton system. 49 P 11 -843 Sure. Switch 4

Features/Benefits • Sealed switching contacts eliminate bug and debris issues • Microprocessor detects and mitigates arcing that damages traditional contactors • Integrated short cycle and random startup timer lowers pull on electricity, especially in multi-unit installations • Integrated line voltage brownout protection • Quiet latching relay, no buzz or hum • LED status indicator Sealed to reduce damage from insects and debris. Optical sensor monitors the arc and adjusts timing. 49 P 11 -843 Sure. Switch Open design allows for damage from fire ants, other insects. 5

Why is it Better? Increases system reliability and homeowner peace of mind. • 5 x Contactor life • Sealed to keep out insects and debris • Microprocessor control nearly eliminates contact welding and pitting • Compressor protected from brownouts and short cycling • 5 Year warranty 49 P 11 -843 Sure. Switch 6

Why is it Better? “Zero Cross” contact control switches without damaging current present. Traditional Contactors Sure. Switch Sealed Relay with Optical Sensor plus unique opening and closing algorithms achieve consistent Zero Cross Switching. Contact shows no damage after 1 M cycles. 49 P 11 -843 Sure. Switch Traditional contactors do not have microprocessor intelligence. They open and close at random, often in the “Arc Zone where damage occurs. Damage shown after 300 K cycles. 7

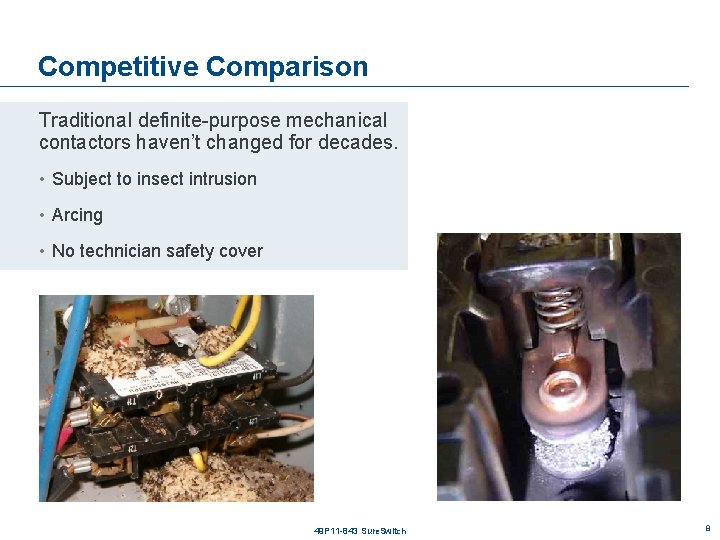

Competitive Comparison Traditional definite-purpose mechanical contactors haven’t changed for decades. • Subject to insect intrusion • Arcing • No technician safety cover 49 P 11 -843 Sure. Switch 8

Competitive Comparison Other “sealed contactors” do not offer protection against insect intrusion. “Arc Cover, ” “Dust Cover, ” or “Plastic Noise Shields” do not offer the same level of protection as the fully sealed Sure. Switch. Our contactor housing design limits dust and other contaminants from the magnet structure, reducing noise, eliminating insects, and reducing contactor failure. No protection. Some protection but some ants still get in. 49 P 11 -843 Sure. Switch Completely sealed from insects and debris. 9

Testimonials “Had ant problems in the past and this will cure them. Also much better for the compressor with the built in protections. Clear instructions, took 20 min max to install. ” “Before I bought this I was replacing my contactor relay at least once a year. It's been 2 years since I installed this and so far so good. It really does start a/c quieter overall. ” -J Shea “They seem to me they are superior than a traditional contactor. . . I was a skeptic at first but I have them on several 10 seer 5 ton units that would burn up these crappy contactors we have. So far they have held up 2. 5 years on my test units. ” -Joe Schearer 49 P 11 -843 Sure. Switch 10

Why Contractors Trust White-Rodgers Industry Leading Products • Used by more OEM’s • Offering the widest range of Universal Replacement Controls Ease of Installation • Simple, easy to understand instructions Reliability of Product • Quality control provides reliable products Affordable • Competitive prices Supported by Knowledgeable Representatives • Contractor direct phone support 49 P 11 -843 Sure. Switch 11

Customer Driven Packaging 1. Universal or Direct OEM 2 1 3 5 2. Product Type & Color Code a) b) c) 4 Red = Indoor Units Purple = Outdoor Units Gold = Commercial 3. Model Number 4. Large Product Image(s) 5. Key Attributes a) b) c) d) 6 Stages Blower Motor Type Ignitor Voltage Other 6. Cross Reference on Carton Easy To Merchandise, Select, And Use 49 P 11 -843 Sure. Switch 12

Technical 49 P 11 -843 Sure. Switch Contactor Upgrade

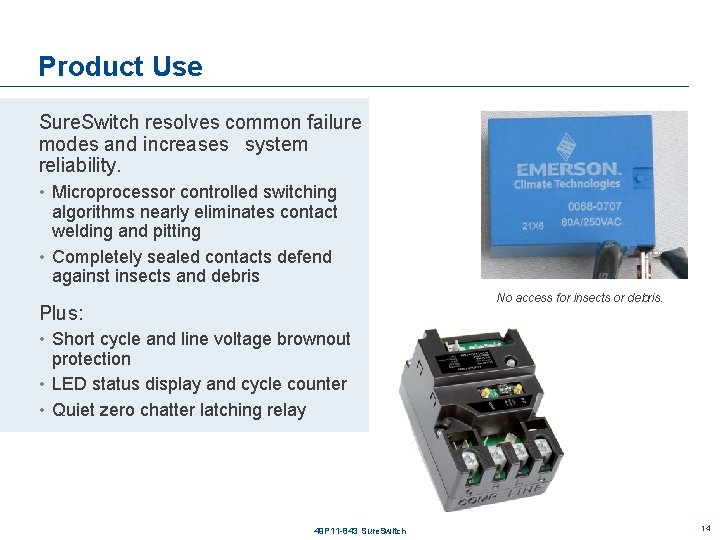

Product Use Sure. Switch resolves common failure modes and increases system reliability. • Microprocessor controlled switching algorithms nearly eliminates contact welding and pitting • Completely sealed contacts defend against insects and debris No access for insects or debris. Plus: • Short cycle and line voltage brownout protection • LED status display and cycle counter • Quiet zero chatter latching relay 49 P 11 -843 Sure. Switch 14

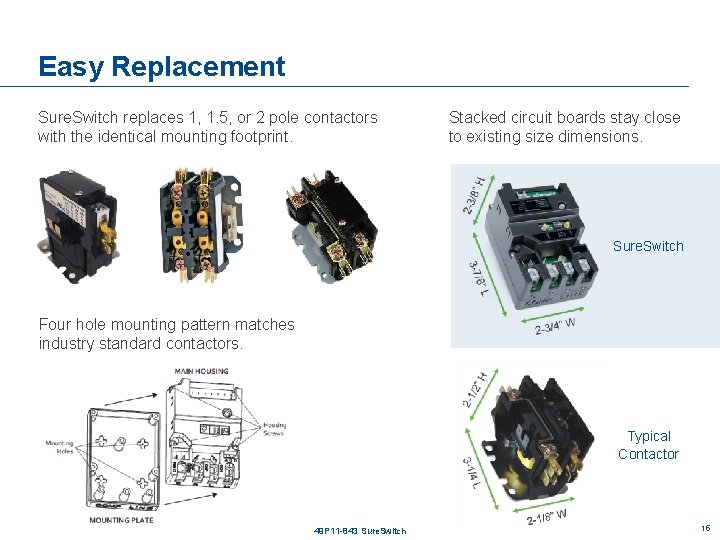

Easy Replacement Sure. Switch replaces 1, 1. 5, or 2 pole contactors with the identical mounting footprint. Stacked circuit boards stay close to existing size dimensions. Sure. Switch Four hole mounting pattern matches industry standard contactors. Typical Contactor 49 P 11 -843 Sure. Switch 15

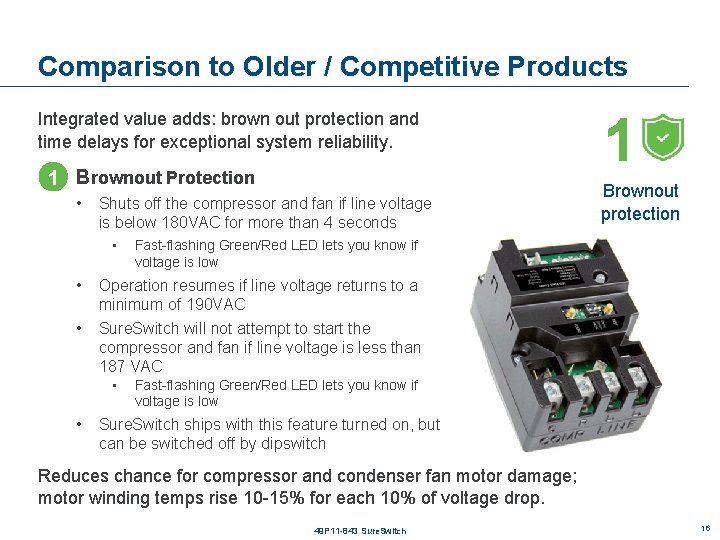

Comparison to Older / Competitive Products Integrated value adds: brown out protection and time delays for exceptional system reliability. 1 Brownout Protection • Shuts off the compressor and fan if line voltage is below 180 VAC for more than 4 seconds • • • 1 Brownout protection Fast-flashing Green/Red LED lets you know if voltage is low Operation resumes if line voltage returns to a minimum of 190 VAC Sure. Switch will not attempt to start the compressor and fan if line voltage is less than 187 VAC • Fast-flashing Green/Red LED lets you know if voltage is low • Sure. Switch ships with this feature turned on, but can be switched off by dipswitch Reduces chance for compressor and condenser fan motor damage; motor winding temps rise 10 -15% for each 10% of voltage drop. 49 P 11 -843 Sure. Switch 16

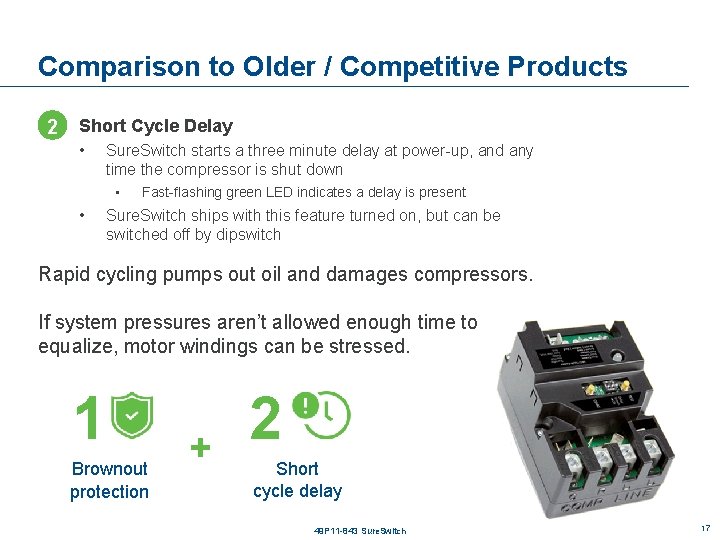

Comparison to Older / Competitive Products 2 Short Cycle Delay • Sure. Switch starts a three minute delay at power-up, and any time the compressor is shut down • Fast-flashing green LED indicates a delay is present • Sure. Switch ships with this feature turned on, but can be switched off by dipswitch Rapid cycling pumps out oil and damages compressors. If system pressures aren’t allowed enough time to equalize, motor windings can be stressed. 1 Brownout protection + 2 Short cycle delay 49 P 11 -843 Sure. Switch 17

Comparison to Older / Competitive Products 3 Random Start Delay • Sure. Switch starts a 5 -90 second delay, at power-up and recovery from a brownout, in addition to the short cycle delay • Fast-flashing Green LED indicates a delay is present • Normal compressor cycling will not activate a Random Start Delay Perfect for multi-unit installs like apartments to help reduce blackouts from multiple loads restarting simultaneously. 1 Brownout protection 2 + Short cycle delay 3 + Random start delay 49 P 11 -843 Sure. Switch = 18

Specs ELECTRICAL RATINGS Line voltage input: 208/240 VAC, 50/60 Hz Recommended Terminal Torque – C, R, L 1 and L 2 Full load amperes: (FLA) 40 A #4– 6 AWG: 45 in-lbs Locked rotor amperes: (LRA) 200 A #8 AWG: 40 in-lbs Control (Coil) voltage (Y, C): 24 VAC, 50/60 Hz #10– 14 AWG: 35 in-lbs For 2 Pole applications if local electrical codes are met #10– 14 AWG: 35 in-lbs Operating Temperature Range 24 VAC (Y, C) terminals are ¼” male QC’s accepting #12 -24 AWG wire -40° to 158° F (-40° to 70°C) Terminal Designations Humidity Range 5 to 95% relative humidity (non-condensing) Dimensions 2 -3/4" W x 2 -3/8" H x 3 -7/8" L Sure. Switch requires line voltage for operation and testing. Timings Short-cycle delay: 0 s or 180 s (selectable) at 60 Hz 0 s or 216 s (selectable) at 50 Hz Compressor test: 5 s at 60 Hz 6 s at 60 Hz 49 P 11 -843 Sure. Switch 19

Tri-color LED and Test Button Sure. Switch includes a test mode to assist in system installation and troubleshooting. Press the “TEST” button for one second to energize the compressor and fan for five seconds to simulate a Y call. The “TEST” button will also allow the short cycle time delay to be bypassed if a Y call is present, by pressing the “TEST” button for one second as well. TEST button The tri-color LED will alternately flash GREEN/RED/YELLOW 49 P 11 -843 Sure. Switch 20

Install 49 P 11 -843 Sure. Switch Contactor Upgrade

Introduction The Sure. Switch Contactor Upgrade 49 P 11 -843 includes three key features in one convenient component. • Brownout • Short Cycle • Random Start Delay Y&C inputs 24 V spade connections Tri-color LED Brownout & short cycle setup dipswitches COUNT button TEST button Housing Screws • • • 4 locations Captive style Only 1 is screwed tight from factory to speed disassembly Fan/accessory 240 V spade connections Mounting plate 49 P 11 -843 Sure. Switch 240 V Line & compressor lug connections 22

What’s in the Box? Sure. Switch Contactor Upgrade 49 P 11 -843 2 - Sheet metal screws 1 - Spade connector splitter 1 - Label for control panel 1 - Instruction sheet in three languages 49 P 11 -843 Sure. Switch 23

Feature and Design Sure. Switch inside view two panel design • Stacked circuit board design helps keep product dimensions as compact as possible 24 V transformer Low voltage top PCB High voltage bottom PCB Product Benefit/Feature Sealed relay switches compressor & fan loads Inside the sealed relay box. 49 P 11 -843 Sure. Switch 24

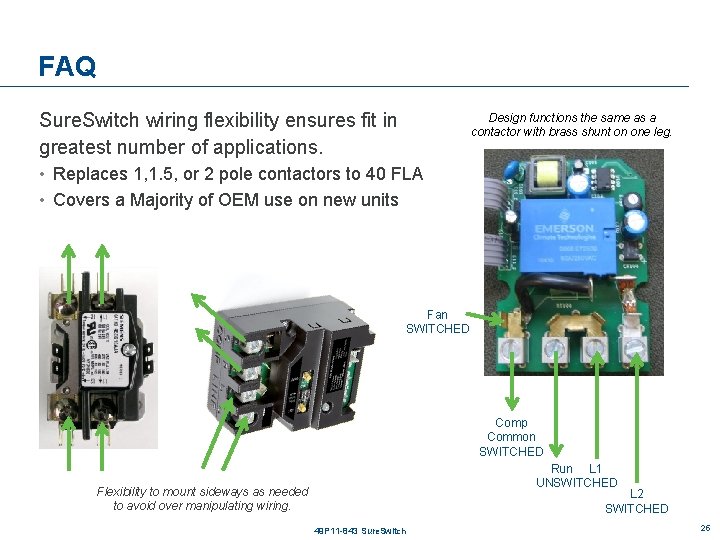

FAQ Sure. Switch wiring flexibility ensures fit in greatest number of applications. Design functions the same as a contactor with brass shunt on one leg. • Replaces 1, 1. 5, or 2 pole contactors to 40 FLA • Covers a Majority of OEM use on new units Fan SWITCHED Comp Common SWITCHED Run L 1 UNSWITCHED Flexibility to mount sideways as needed to avoid over manipulating wiring. L 2 SWITCHED 49 P 11 -843 Sure. Switch 25

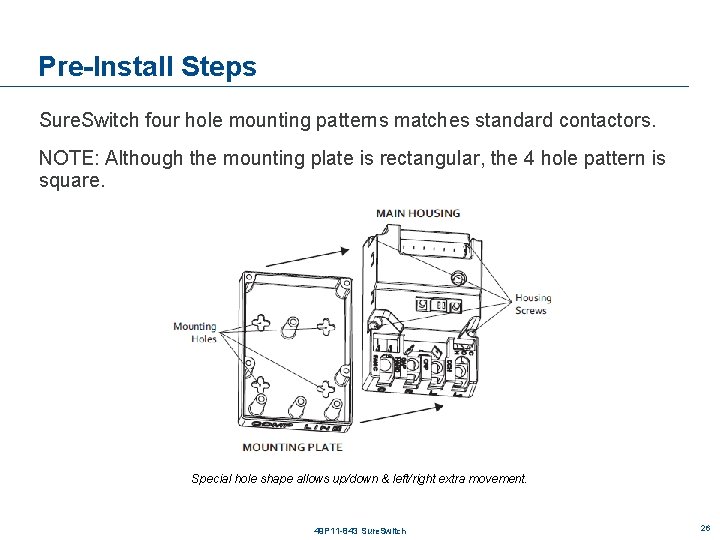

Pre-Install Steps Sure. Switch four hole mounting patterns matches standard contactors. NOTE: Although the mounting plate is rectangular, the 4 hole pattern is square. Special hole shape allows up/down & left/right extra movement. 49 P 11 -843 Sure. Switch 26

Step-by-Step Instructions Wiring diagram with typical accessories and options handled • 2 -wire hard start • 3 -wire fan • 4 -wire fan • Dual capacitor • Two capacitors 49 P 11 -843 Sure. Switch 27

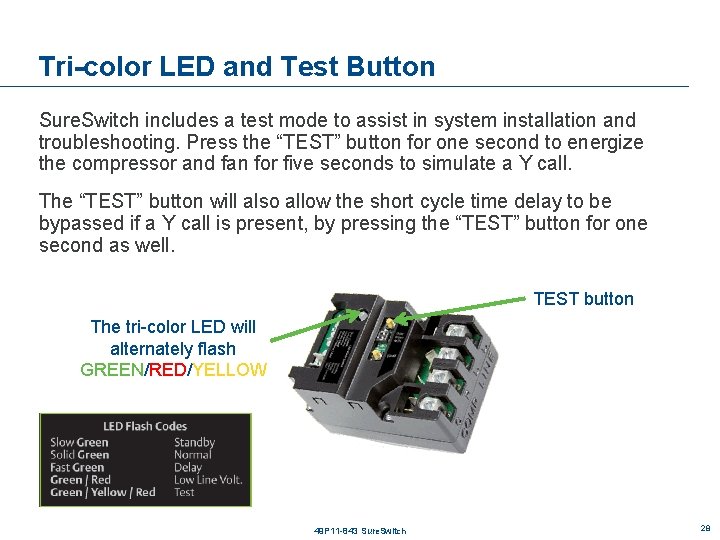

Tri-color LED and Test Button Sure. Switch includes a test mode to assist in system installation and troubleshooting. Press the “TEST” button for one second to energize the compressor and fan for five seconds to simulate a Y call. The “TEST” button will also allow the short cycle time delay to be bypassed if a Y call is present, by pressing the “TEST” button for one second as well. TEST button The tri-color LED will alternately flash GREEN/RED/YELLOW 49 P 11 -843 Sure. Switch 28

Lifetime Cycle Count Button A count of compressor cycles since the control was installed is stored in the control’s memory. To display the count, press and hold the “COUNT” button for one second. The LED will flash to indicate compressor cycles rounded to the nearest 100 cycles. Example: 52, 318 cycles would flash 5 GREEN, then 2 RED, the 3 YELLOW on the tri-color LED • GREEN = 1 flash per 10, 000 cycles • RED = 1 flash per 1, 000 cycles • YELLOW = 1 flash per 100 cycles COUNT button 49 P 11 -843 Sure. Switch 29

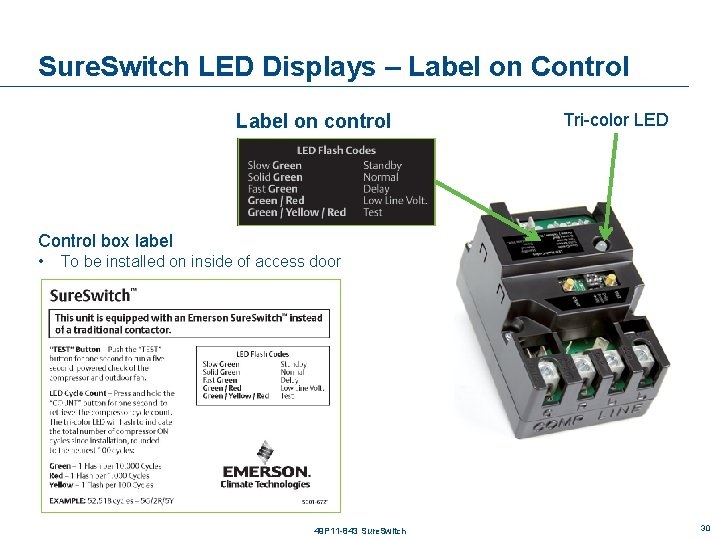

Sure. Switch LED Displays – Label on Control Label on control Control box label • Tri-color LED Product Benefit/Feature To be installed on inside of access door 49 P 11 -843 Sure. Switch 30
