Socket Layer COMS W 6998 Spring 2010 Erich Nahum
Outline l l l Sockets API Refresher Linux Sockets Architecture Interface between BSD sockets and AF_INET Interface between AF_INET and TCP/UDP Receive Path Send Path
BSD Socket API l l Originally developed by UC Berkeley at the dawn of time Used by 90% of network oriented programs Standard interface across operating systems Simple, well understood by programmers
User Space Socket API l socket() / bind() / accept() / listen() l l select() / poll() / epoll() l l Stream oriented (e. g. TCP) Rx / Tx sendto() / recvfrom() l l Waiting for events send() / recv() l l Initialization, addressing and hand shaking Datagram oriented (e. g. UDP) Rx / TX close(), shutdown() l Closing down an association
Standard Socket Sequence The ‘server’ application socket() bind() The ‘client’ application socket() listen() bind() accept() read() write() close() 3 -way handshake data flow to server data flow to client 4 -way handshake connect() write() read() close()
Socket() System Call l l Creating a socket from user space is done by the socket() system call: l int socket (int family, int type, int protocol); l On success, a file descriptor for the new socket is returned. l For open() system call (for files), we also get a file descriptor as the return value. l “Everything is a file” Unix paradigm. The first parameter, family, is also sometimes referred to as “domain”.
Socket(): Family l l A family is a suite of protocols Each family is a subdirectory of linux/net l l IPv 4: PF_INET IPv 6: PF_INET 6. Packet sockets: PF_PACKET l l E. g. , linux/net/ipv 4, linux/net/decnet, linux/net/packet Operate at the device driver layer. pcap library for Linux uses PF_PACKET sockets pcap library is in use by sniffers such as tcpdump. Protocol Family == Address Family l PF_INET == AF_INET (in /include/linux/socket. h)
Address/Protocol Families /* Supported address families. */ #define AF_UNSPEC 0 #define AF_UNIX 1 /* #define AF_LOCAL 1 /* #define AF_INET 2 /* #define AF_AX 25 3 /* #define AF_IPX 4 /* #define AF_APPLETALK 5 /* #define AF_NETROM 6 /* #define AF_BRIDGE 7 /* #define AF_ATMPVC 8 /* #define AF_X 25 9 /* #define AF_INET 6 10 /* #define AF_ROSE 11 /* #define AF_DECnet 12 /* #define AF_NETBEUI 13 /* #define AF_SECURITY 14 /* #define AF_KEY 15 /*. . #define AF_ISDN 34 /* #define AF_PHONET 35 /* #define AF_IEEE 802154 36 /* #define AF_MAX 37 /* Unix domain sockets */ POSIX name for AF_UNIX */ Internet IP Protocol */ Amateur Radio AX. 25 */ Novell IPX */ Apple. Talk DDP */ Amateur Radio NET/ROM */ Multiprotocol bridge */ ATM PVCs */ Reserved for X. 25 project */ IP version 6 */ Amateur Radio X. 25 PLP */ Reserved for DECnet project */ Reserved for 802. 2 LLC project*/ Security callback pseudo AF */ PF_KEY key management API */ m. ISDN sockets Phonet sockets IEEE 802154 sockets For now. . */ */ include/linux/socket. h
Socket(): Type l SOCK_STREAM and SOCK_DGRAM are the mostly used types. l l SOCK_STREAM for TCP, SCTP SOCK_DGRAM for UDP. SOCK_RAW for RAW sockets. There are cases where protocol can be either SOCK_STREAM or SOCK_DGRAM; for example, Unix domain socket (AF_UNIX).
Socket(): Protocol l l Protocol is protocol number within a family. Internet protocols are assigned by IANA l l For AF_INET, it’s usually 0. l l http: //www. iana. org/assignments/protocol-numbers/ IPPROTO_IP is 0, see: include/linux/in. h. For SCTP: l protocol is IPPROTO_SCTP (132) sockfd = socket(AF_INET, SOCK_STREAM, IPPROTO_SCTP); l For UDP-Lite: l protocol is IPPROTO_UDPLITE (136)
Socket Layer Architecture PF_INET SOCK_ STREAM TCP SOCK_ DGRAM UDP Application User BSD Socket Layer Socket Interface PF_PACKET SOCK _RAW PF_UNIX …. SOCK_ DGRAM PF_IPX Protocol Layers IPV 4 Kernel Network Device Layer Ethernet Intel E 1000 Token Ring PPP SLIP FDDI Device Layer Hardware
Key Concepts l Function pointer tables (“ops”) l l In-kernel interfaces for socket functions l Binding between BSD sockets and AF_XXX families l Binding between AF_INET and transports (TCP, UDP) Socket data structures l l struct socket (BSD socket) struct sock (protocol family socket, network state) l struct packet_sock (PF_PACKET) l struct inet_sock (PF_INET) § § struct udp_sock struct tcp_sock
Socket Data Structures l l For every socket which is created by a user space application, there is a corresponding struct socket and struct sock in the kernel. These are confusing. struct socket: include/linux/net. h l Data common to the BSD socket layer l Has only 8 members l Any variable “sock” always refers to a struct socket struct sock : include/net/sock/h l Data common to the Network Protocol layer (i. e. , AF_INET) l has more than 30 members, and is one of the biggest structures in the networking stack. l Any variable “sk” always refers to a struct sock.
struct socket { socket_state short unsigned long struct fasync_struct wait_queue_head_t struct file struct sock const struct proto_ops }; state; // SS_CONNECTING etc. type; // SOCK_STREAM etc. flags; *fasync_list; wait; // tasks waiting *file; // back ptr to inode *sk; // AF specific state *ops; // AF specific operations include/linux/net. h
Socket State typedef enum { SS_FREE = 0, SS_UNCONNECTED, SS_CONNECTING, SS_CONNECTED, SS_DISCONNECTING } socket_state; l /* /* /* not allocated unconnected to an socket in process of connecting connected to socket in process of disconnecting */ */ */ These states are not layer 4 states (like TCP_ESTABLISHED or TCP_CLOSE). include/linux/net. h
Socket Types enum sock_type { SOCK_STREAM SOCK_DGRAM SOCK_RAW SOCK_RDM SOCK_SEQPACKET SOCK_DCCP SOCK_PACKET }; = = = = 1, 2, 3, 4, 5, 6, 10, include/linux/net. h
Comment in include/net/sock. h /* * This structure really needs to be cleaned up. * Most of it is for TCP, and not used by any of * the other protocols. */
struct sock_common /* minimal network layer representation of sockets */ struct sock_common { /* * first fields are not copied in sock_copy() */ union { struct hlist_node skc_node; // main hash linkage for lookup struct hlist_nulls_node skc_nulls_node; // main hash for TCP/UDP }; atomic_t skc_refcnt; int skc_tx_queue_mapping; // tx queue for this connection union { unsigned int skc_hash; // hash value for lookup __u 16 skc_u 16 hashes[2]; }; unsigned short skc_family; // network address family volatile unsigned char skc_state; // Connection state unsigned char skc_reuse; // SO_REUSEADDR setting int skc_bound_dev_if; // bound if !=0 union { struct hlist_node skc_bind_node; // bind hash linkage struct hlist_nulls_node skc_portaddr_node; // bind hash for UDP/Lite }; struct proto *skc_prot; // protocol handlers in a net family }; include/net/sock. h
Outline l l l Sockets API Refresher Linux Sockets Architecture Interface between BSD sockets and AF_INET Interface between AF_INET and TCP/UDP Receive Path Send Path
BSD Socket AF Interface l Main data structures l l l struct net_proto_family struct proto_ops Key function sock_register(struct net_proto_family *ops) l Each address family: l l l Implements the struct net _proto_family. Calls the function sock_register( ) when the protocol family is initialized. Implement the struct proto_ops for binding the BSD socket layer and protocol family layer.
BSD Socket Layer net_proto_family l AF Socket Layer Describes each of the supported protocol families struct net_proto_family { int family; int (*create)(struct net *net, struct socket *sock, int protocol, int kern); struct module *owner; } l Specifies the handler for socket creation l create() function is called whenever a new socket of this type is created
BSD Socket Layer AF Socket Layer INET and PACKET proto_family static const struct net_proto_family inet_family_ops = {. family = PF_INET, . create = inet_create, . owner = THIS_MODULE, /* af_inet. c */ }; static const struct net_proto_family packet_family_ops = {. family = PF_PACKET, . create = packet_create, . owner = THIS_MODULE, /* af_packet. c */ };
BSD Socket Layer proto_ops l l l AF Socket Layer Defines the binding between the BSD socket layer and address family (AF_*) layer. The proto_ops tables contain function exported by the AF socket layer to the BSD socket layer It consists of the address family type and a set of pointers to socket operation routines specific to a particular address family.
BSD Socket Layer struct proto_ops { int struct module int int int unsigned int int int ssize_t }; AF Socket Layer family; *owner; (*release); (*bind); (*connect); (*socketpair); (*accept); (*getname); (*poll); (*ioctl); (*compat_ioctl); (*listen); (*shutdown); (*setsockopt); (*getsockopt); (*compat_setsockopt); (*compat_getsockopt); (*sendmsg); (*recvmsg); (*mmap); (*sendpage); (*splice_read); include/linux/net. h

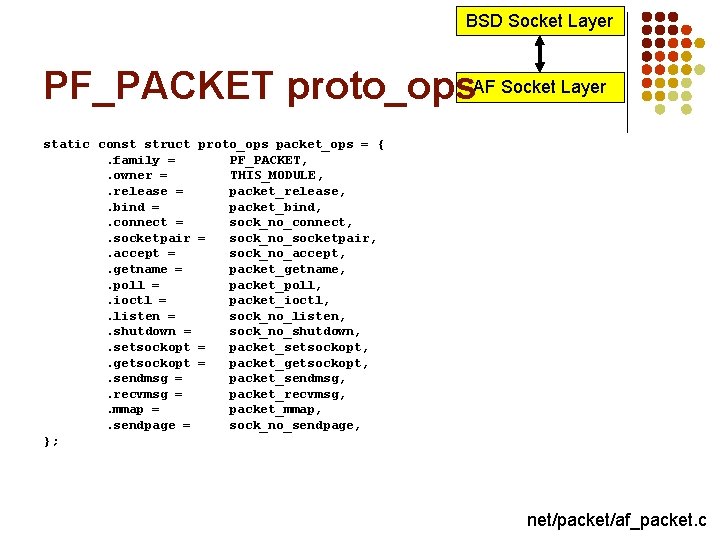

BSD Socket Layer PF_PACKET proto_ops. AF Socket Layer static const struct. family =. owner =. release =. bind =. connect =. socketpair. accept =. getname =. poll =. ioctl =. listen =. shutdown =. setsockopt. getsockopt. sendmsg =. recvmsg =. mmap =. sendpage = }; proto_ops packet_ops = { PF_PACKET, THIS_MODULE, packet_release, packet_bind, sock_no_connect, = sock_no_socketpair, sock_no_accept, packet_getname, packet_poll, packet_ioctl, sock_no_listen, sock_no_shutdown, = packet_setsockopt, = packet_getsockopt, packet_sendmsg, packet_recvmsg, packet_mmap, sock_no_sendpage, net/packet/af_packet. c
BSD Socket Layer PF_INET proto_ops AF Socket Layer inet_stream_ops (TCP) inet_dgram_ops (UDP) inet_sockraw_ops (RAW) . family PF_INET . owner THIS_MODULE . release inet_release . bind inet_bind . connect inet_stream_connect inet_dgram_connect . socketpair sock_no_socketpair . accept inet_accept sock_no_accept . getname inet_getname . poll tcp_poll udp_poll datagram_poll . ioctl inet_ioctl . listen inet_listen sock_no_listen . shutdown inet_shutdown . setsockopt sock_common_setsockopt . getsockopt sock_common_getsockop . sendmsg tcp_sendmsg inet_sendmsg . recvmsg sock_common_recvmsg . mmap sock_no_mmap . sendpage tcp_sendpage inet_sendpage . splice_read tcp_splice_read -- -- net/ipv 4/af_inet. c
Outline l l Sockets API Refresher Linux Sockets Architecture Interface between BSD sockets and AF_INET Interface between AF_INET and TCP/UDP l l Binding between IP and TCP/UDP (upcall) Binding between AF_INET and TCP (downcall) Receive Path Send Path
AF_INET Layer AF_INET Transport APILayer l l l struct inet_protos l Interface between IP and the transport layer l Is the upcall binding from IP to transport l Method for demultiplexing IP packets to proper transport struct proto l Defines interface for individual protocols (TCP, UDP, etc) l Is the downcall binding for AF_INET to transport l Transport-specific functions for socket API struct inet_protosw l Describes the PF_INET protocols l Defines the different SOCK types for PF_INET l SOCK_STREAM (TCP), SOCK_DGRAM (UDP), SOCK_RAW
BSD Socket Layer Recall IP’s inet_protos AF Socket Layer inet_protos[MAX_INET_PROTOS] 0 net_protocol handler l udp_rcv() udp_err() err_handler gso_send_check l gso_segment gro_receive gro_complete 1 net_protocol handler err_handler gso_send_check gso_segment gro_receive gro_complete MAX_INET_ PROTOS net_protocol igmp_rcv() Null Receive binding from the IP layer to the transport layer. init_inet( ) calls inet_add_protocol (p) to add each protocol to the hash queues.
BSD Socket Layer struct proto AF Socket Layer /* Networking protocol blocks we attach to sockets. * socket layer -> transport layer interface */ struct proto { void (*close); int (*connect); int (*disconnect); struct sock * (*accept); int (*ioctl); int (*init); void (*destroy); void (*shutdown); int (*setsockopt); int (*getsockopt); int (*sendmsg); int (*recvmsg); int (*sendpage); int (*bind); int (*backlog_rcv); void (*hash); void (*unhash); int (*get_port); } include/linux/net. h
BSD Socket Layer udp_prot struct proto udp_prot = {. name. owner. close. connect. disconnect. ioctl. destroy. setsockopt. getsockopt. sendmsg. recvmsg. sendpage. backlog_rcv. hash. unhash. get_port. memory_allocated. sysctl_mem. sysctl_wmem. sysctl_rmem. obj_size. slab_flags. h. udp_table #ifdef CONFIG_COMPAT. compat_setsockopt. compat_getsockopt #endif }; AF Socket Layer = = = = = = "UDP", THIS_MODULE, udp_lib_close, ip 4_datagram_connect, udp_disconnect, udp_ioctl, udp_destroy_sock, udp_setsockopt, udp_getsockopt, udp_sendmsg, udp_recvmsg, udp_sendpage, __udp_queue_rcv_skb, udp_lib_hash, udp_lib_unhash, udp_v 4_get_port, &udp_memory_allocated, sysctl_udp_mem, &sysctl_udp_wmem_min, &sysctl_udp_rmem_min, sizeof(struct udp_sock), SLAB_DESTROY_BY_RCU, &udp_table, = compat_udp_setsockopt, = compat_udp_getsockopt, net/ipv 4/af_inet. c
BSD Socket Layer inet_protosw static struct inet_protosw inetsw_array[] = { { l. type = SOCK_STREAM, . protocol = IPPROTO_TCP, . prot = &tcp_prot, . ops = & inet_stream_ops, . no_check = 0, . flags = INET_PROTOSW_PERMANENT | INET_PROTOSW_ICSK, }, l {. type = SOCK_DGRAM, . protocol = IPPROTO_UDP, . prot = &udp_prot, l. ops = & inet_dgram_ops, . no_check = UDP_CSUM_DEFAULT, . flags = INET_PROTOSW_PERMANENT, }, {. type = SOCK_RAW, . protocol = IPPROTO_IP, /* wild card */. prot = &raw_prot, . ops = & inet_sockraw_ops, . no_check = UDP_CSUM_DEFAULT, . flags = INET_PROTOSW_REUSE, } }; AF Socket Layer On startup (inet_init()), TCP, UDP, and Raw socket protocols are inserted into the inetsw_array[]. Other protocols call inet_register_protosw() inet_unregister_protosw() will not remove protocols with PERMANENT set. net/ipv 4/af_inet. c
Relationships struct socket state type flags fasync_list wait file sk proto_ops struct sock sk_common sk_lock sk_backlog. . . (*sk_prot_creator) sk_socket sk_send_head. . . struct proto_ops PF_INET af_inet. c inet_release inet_bind inet_accept. . . struct sock_common skc_node skc_refcnt skc_hash. . . skc_proto skc_net struct proto udp_lib_close ipv 4_dgram_connect udp_sendmsg udp_recvmsg. . .
Example: inet_accept() int inet_accept(struct socket *sock, struct socket *newsock, int flags) { struct sock *sk 1 = sock->sk; int err = -EINVAL; struct sock *sk 2 = sk 1 ->sk_prot->accept(sk 1, flags, &err); if (!sk 2) goto do_err; lock_sock(sk 2); WARN_ON(!((1 << sk 2 ->sk_state) & (TCPF_ESTABLISHED | TCPF_CLOSE_WAIT | TCPF_CLOSE))); sock_graft(sk 2, newsock); newsock->state = SS_CONNECTED; err = 0; release_sock(sk 2); do_err: return err; }
Backup
