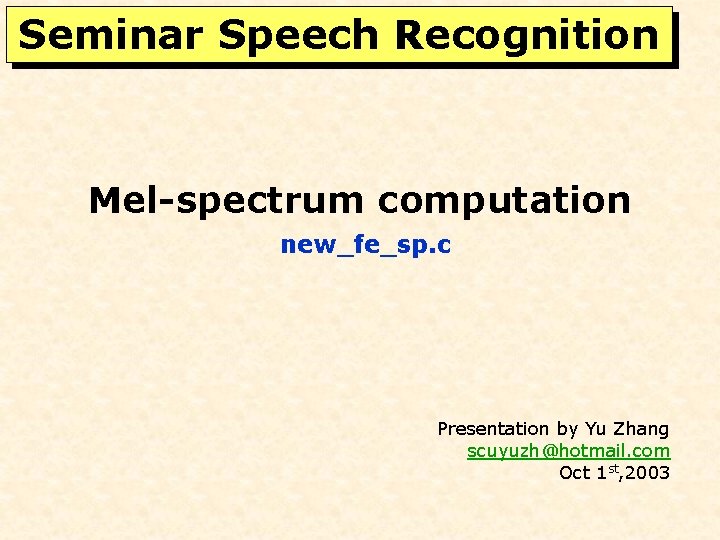

Seminar Speech Recognition Mel-spectrum computation new_fe_sp. c Presentation by Yu Zhang scuyuzh@hotmail. com Oct 1 st, 2003

Mel-frequency Wrapping We know that human ears, for frequencies lower than 1 k. Hz, hears tones with a linear scale instead of logarithmic scale for the frequencies higher that 1 k. Hz. The mel-frequency scale is a linear frequency spacing below 1000 Hz and a logarithmic spacing above 1000 Hz. The voice signals have most of their energy in the low frequencies. It is also very natural to use a mel-spaced filter bank showing the above characteristics.

Mel-frequency Wrapping Use the following approximate formula to compute the mels for a given frequency f in Hz: line 165 of new_fe_sp. c float 32 fe_mel(float 32 x) { return( 2595. 0 * ( float 32 ) log 10 (1. 0 + x / 700. 0 ) ); } float 32 fe_melinv(float 32 x) { return( 700. 0 * ( ( float 32 ) pow (10. 0 , x / 2595. 0 ) - 1. 0 ) ); }

The mel-frequency scale is a linear frequency spacing below 1000 Hz and a logarithmic spacing above 1000 Hz. For each tone with an actual frequency, f, measured in Hz, a subjective pitch is measured on a scale called the ‘mel’ scale. The pitch of a 1 k. Hz tone, 40 d. B above the perceptual hearing threshold, is defined as 1000 mels.

Mel-frequency Wrapping Figure 1 Figure 2 Figure 1: Power Spectrum without Mel-frequency Wrapping Figure 2: Mel-frequency Wrapping of Power Spectrum Considering the full image with the mel frequency wrapping set, there is less imformation than the one without the mel frequency. But instead if we looking in details, we see that the image with the mel frequency wrapping keeps the low frequences and removes some informaiton. To summarize, the Mel Frequency wrapping set allows us to keep only the part of useful information.

Mel spectrum The Mel spectrum is computed by multiplying the Power Spectrum by each of the Triangular Mel Weighting filters and integrating the result. = 0, 1, …, L-1 S[k] is the power spectrum N is the length of the Discrete Fourier Transform L is total number of Triangular Mel weighting filters.

Building the Triangular Mel Weighting filters line 62 in new_fe_sp. c int 32 fe_build_melfilters(melfb_t *MEL_FB) { //estimate filter coefficients MEL_FB->filter_coeffs = (float 32 **)fe_create_2 d(MEL_FB->num_filters, MEL_FB->fft_size, sizeof(float 32)); MEL_FB->left_apex = (float 32 *) calloc(MEL_FB->num_filters, sizeof(float 32)); MEL_FB->width = (int 32 *) calloc(MEL_FB->num_filters, sizeof(int 32)); filt_edge = (float 32 *) calloc(MEL_FB->num_filters+2, sizeof(float 32)); … melmax = fe_mel(MEL_FB->upper_filt_freq); melmin = fe_mel(MEL_FB->lower_filt_freq); for (i=0; i<=MEL_FB->num_filters+1; ++i){ filt_edge[i] = fe_melinv(i*dmelbw + melmin); } … for (whichfilt=0; whichfilt<MEL_FB->num_filters; ++whichfilt) { //Building the triangular mel weighting filters … }

Building the Mel spectrum line 156 in new_fe_sp. c void fe_mel_spec(fe_t *FE, float 64 *spec, float 64 *mfspec) { int 32 whichfilt, start, i; float 32 dfreq; dfreq = FE->SAMPLING_RATE/(float 32)FE->FFT_SIZE; for (whichfilt = 0; whichfilt<FE->MEL_FB->num_filters; whichfilt++){ start = (int 32)(FE->MEL_FB->left_apex[whichfilt]/dfreq) + 1; mfspec[whichfilt] = 0; for (i=0; i< FE->MEL_FB->width[whichfilt]; i++) mfspec[whichfilt] +=FE->MEL_FB->filter_coeffs[whichfilt][i]*spec[start+i]; } } /* *FE is the triangular mel weighting filter *spec is the power spectrum l=0, 1, …L-1 *mfspec is the mel spectrum variables marked in red are coefficients of mel weighting filter */

REFERENCES (1)SPHINX III Signal Processing Front End Specification 31 August 1999, Michael Seltzer (mseltzer@cs. cmu. edu) CMU Speech Group (2) Digital Signal Processing Mini-Project “An Automatic Speaker Recognition System” Minh N. Do, Audio Visual Communications Laboratory Swiss Federal Institute of Technology, Lausanne, Switzerland (3) Project of Digital Signal Processing - AN AUTOMATIC SPEAKER RECOGNITION SYSTEM Swati Rastogi (DSC) swati. rastogi@epfl. ch David Mayor (DSC) david. mayor@epfl. ch
