8 -Speech Recognition � Speech Recognition Concepts � Speech Recognition Approaches � Recognition Theories � Bayse Rule � Simple Language Model � P(A|W) Network Types 1

7 -Speech Recognition (Cont’d) � HMM Calculating Approaches � Neural Components � Three Basic HMM Problems � Viterbi Algorithm � State Duration Modeling � Training In HMM 2

Recognition Tasks Isolated Word Recognition (IWR) Connected Word (CW) , And Continuous Speech Recognition (CSR) � Speaker Dependent, Multiple Speaker, And Speaker Independent � Vocabulary Size � �Small <20 �Medium >100 , <1000 �Large >1000, <10000 �Very Large >10000 3

Speech Recognition Concepts Speech recognition is inverse of Speech Synthesis Text Speech Phone Processing Sequence NLP Speech Processing Text Speech Understanding Speech Recognition 4

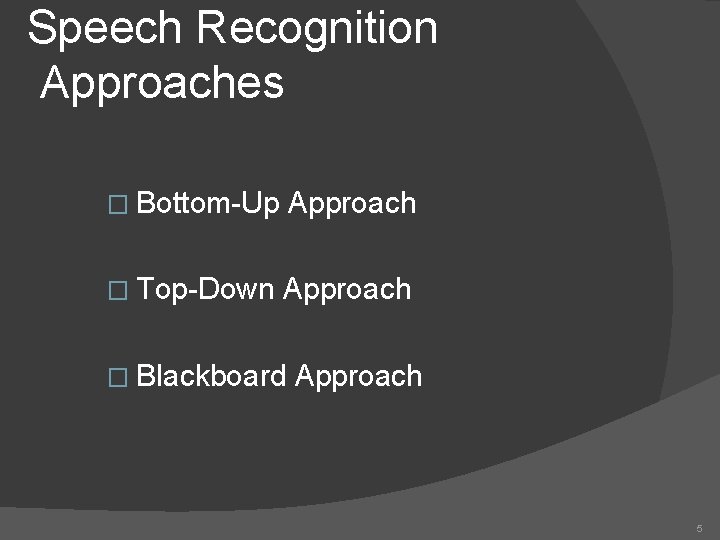

Speech Recognition Approaches � Bottom-Up Approach � Top-Down Approach � Blackboard Approach 5

Bottom-Up Approach Signal Processing Knowledge Sources Feature Extraction Voiced/Unvoiced/Silence Segmentation Signal Processing Sound Classification Rules Feature Extraction Phonotactic Rules Segmentation Lexical Access Language Model Segmentation Recognized Utterance 6

Top-Down Approach Inventory Word of speech Dictionary Grammar recognition units Feature Analysis Syntactic Hypo thesis Unit Matching System Lexical Hypo thesis Utterance Verifier/ Matcher Recognized Utterance Task Model Semantic Hypo thesis 7

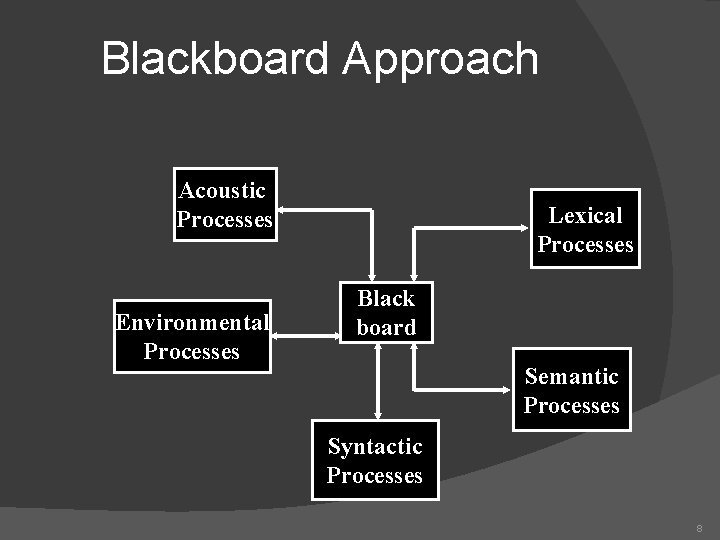

Blackboard Approach Acoustic Processes Environmental Processes Lexical Processes Black board Semantic Processes Syntactic Processes 8

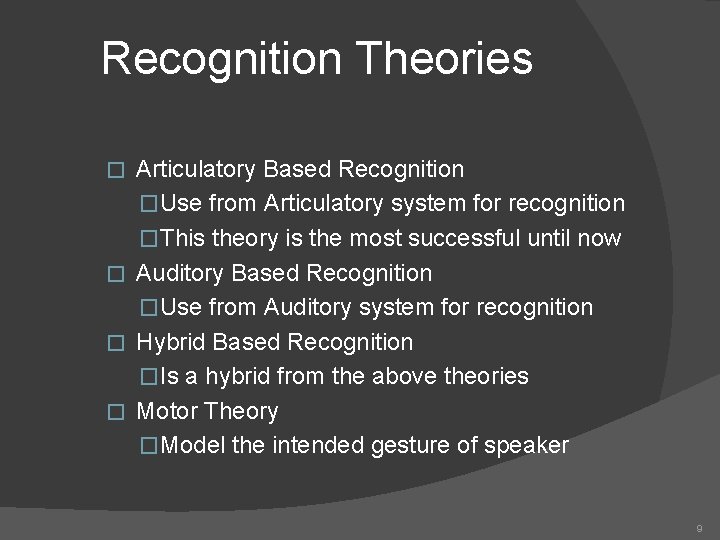

Recognition Theories Articulatory Based Recognition �Use from Articulatory system for recognition �This theory is the most successful until now � Auditory Based Recognition �Use from Auditory system for recognition � Hybrid Based Recognition �Is a hybrid from the above theories � Motor Theory �Model the intended gesture of speaker � 9

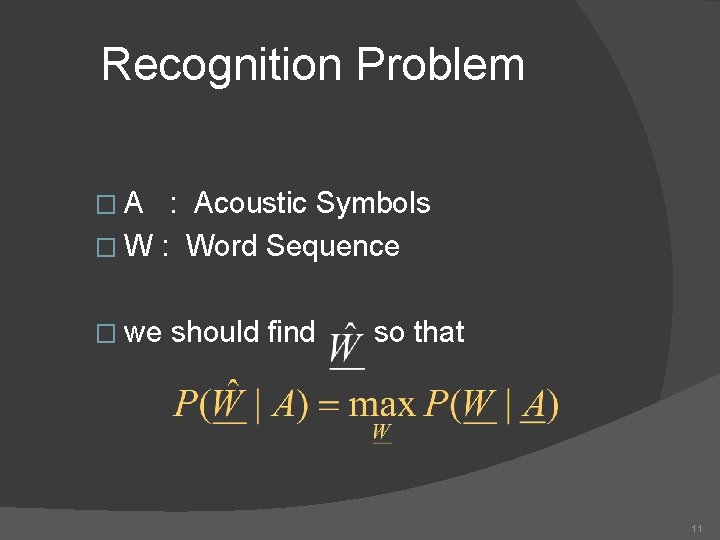

Recognition Problem � We have the sequence of acoustic symbols and we want to find the words that expressed by speaker � Solution : Finding the most probable of word sequence by having Acoustic symbols 10

Recognition Problem �A : Acoustic Symbols � W : Word Sequence � we should find so that 11

Bayse Rule 12

Bayse Rule (Cont’d) 13

Simple Language Model Computing this probability is very difficult and we need a very big database. So we use from Trigram and Bigram models. 14

Simple Language Model (Cont’d) Trigram : Bigram : Monogram : 15

Simple Language Model (Cont’d) Computing Method : Number of happening W 3 after W 1 W 2 Total number of happening W 1 W 2 Ad. Hoc Method : 16

Error Production Factor � Prosody (Recognition should be Prosody Independent) � Noise (Noise should be prevented) � Spontaneous Speech 17

P(A|W) Computing Approaches � Dynamic � Hidden Markov Model (HMM) � Artificial � Hybrid Time Warping (DTW) Neural Network (ANN) Systems 18

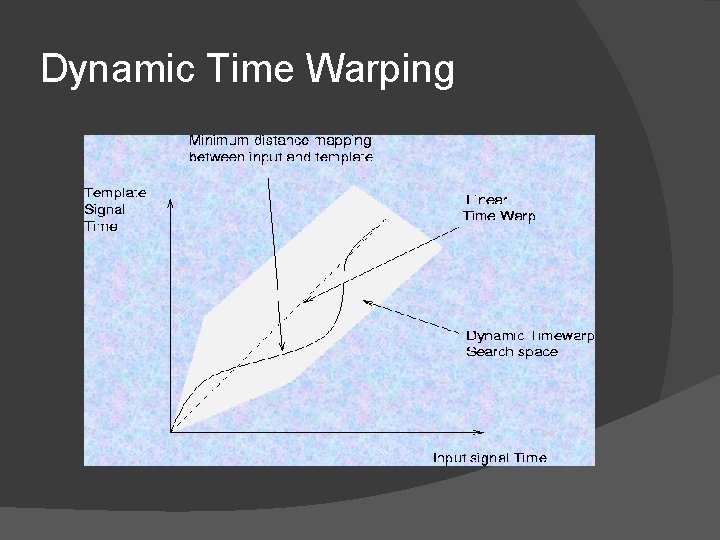

Dynamic Time Warping

Dynamic Time Warping

Dynamic Time Warping

Dynamic Time Warping

Dynamic Time Warping Search Limitation : - First & End Interval - Global Limitation - Local Limitation

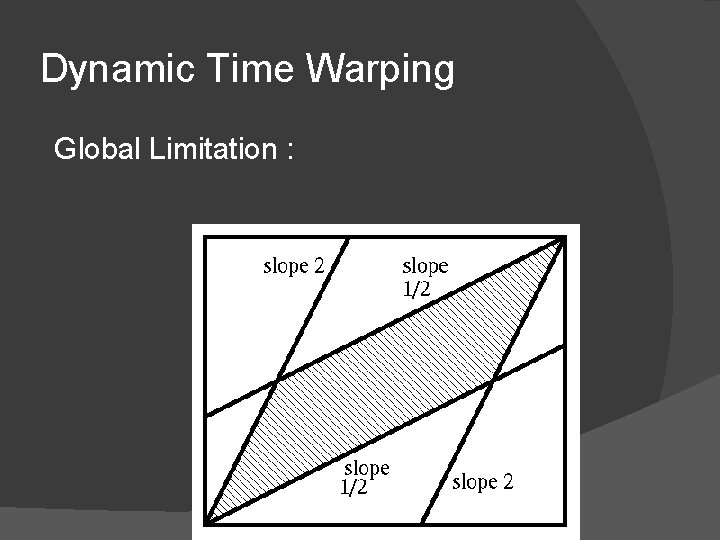

Dynamic Time Warping Global Limitation :

Dynamic Time Warping Local Limitation :

Artificial Neural Network . . . Simple Computation Element of a Neural Network 26

Artificial Neural Network (Cont’d) � Neural Network Types �Perceptron �Time Delay Neural Network Computational Element (TDNN) 27

Artificial Neural Network (Cont’d) Single Layer Perceptron. . . 28

Artificial Neural Network (Cont’d) Three Layer Perceptron. . . 29

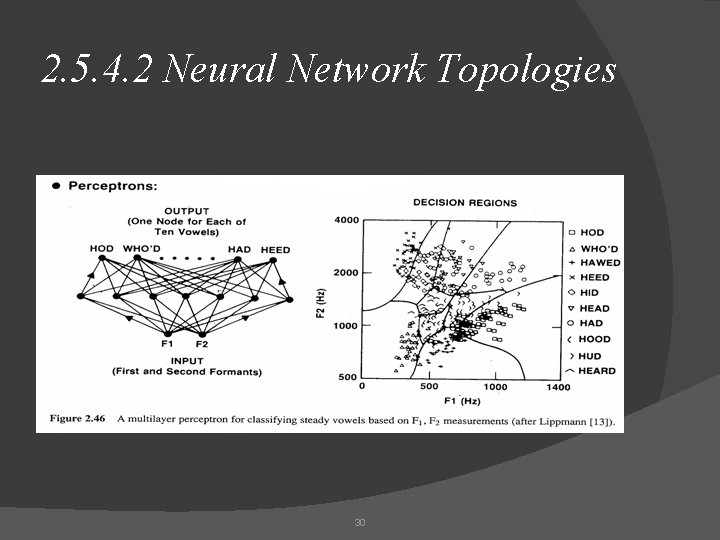

2. 5. 4. 2 Neural Network Topologies 30

TDNN 31

2. 5. 4. 6 Neural Network Structures for Speech Recognition 32

2. 5. 4. 6 Neural Network Structures Speech Recognition 33

Hybrid Methods Hybrid Neural Network and Matched Filter For Recognition Acoustic Output Units Speech Features Delays � PATTERN CLASSIFIER 34

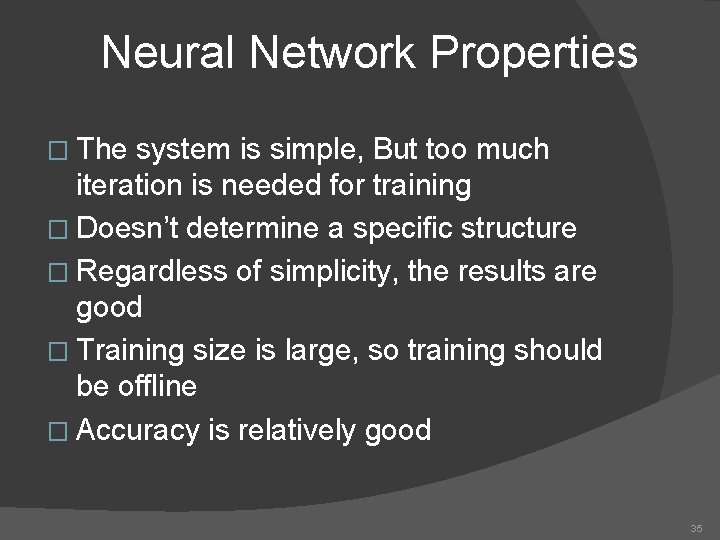

Neural Network Properties � The system is simple, But too much iteration is needed for training � Doesn’t determine a specific structure � Regardless of simplicity, the results are good � Training size is large, so training should be offline � Accuracy is relatively good 35

Pre-processing � Different preprocessing techniques are employed as the front end for speech recognition systems � The choice of preprocessing method is based on the task, the noise level, the modeling tool, etc. 36

38

39

41

42

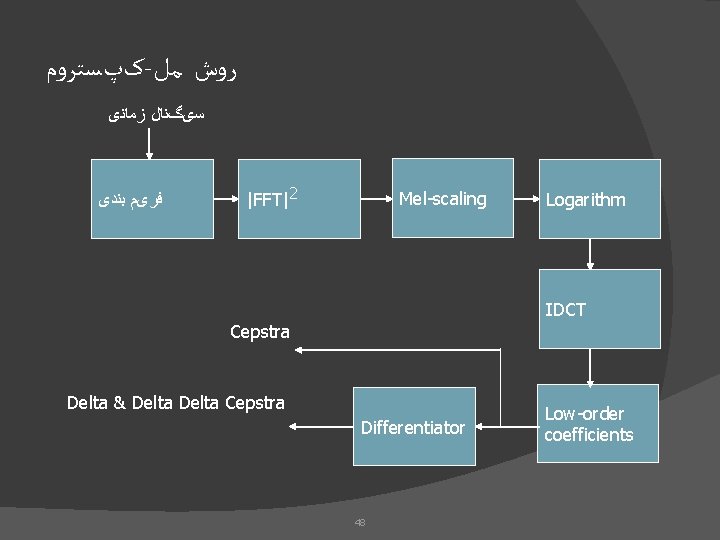

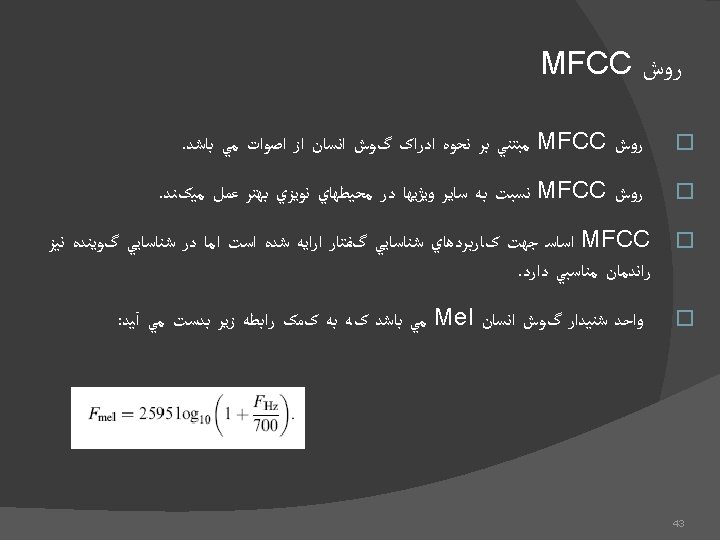

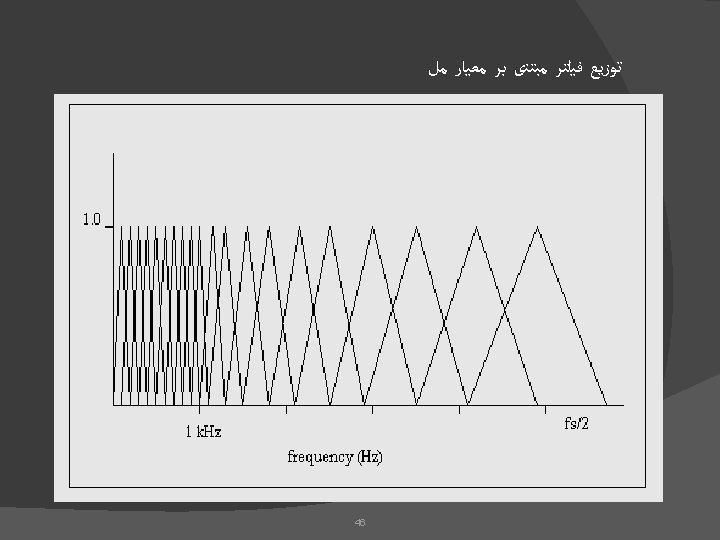

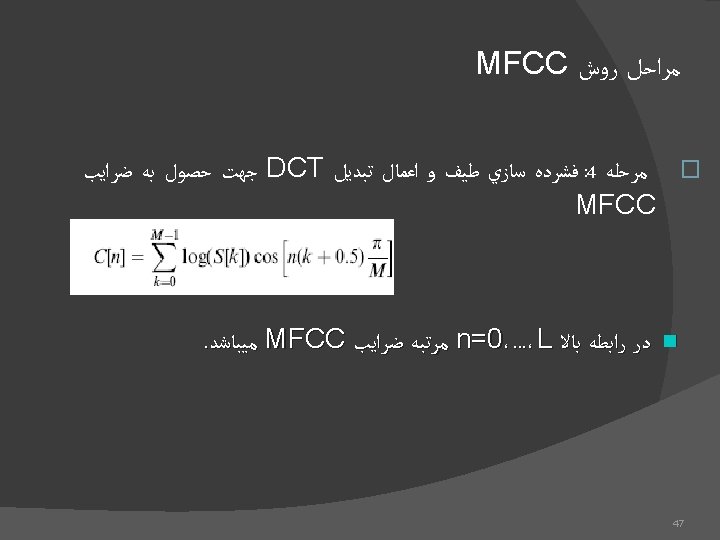

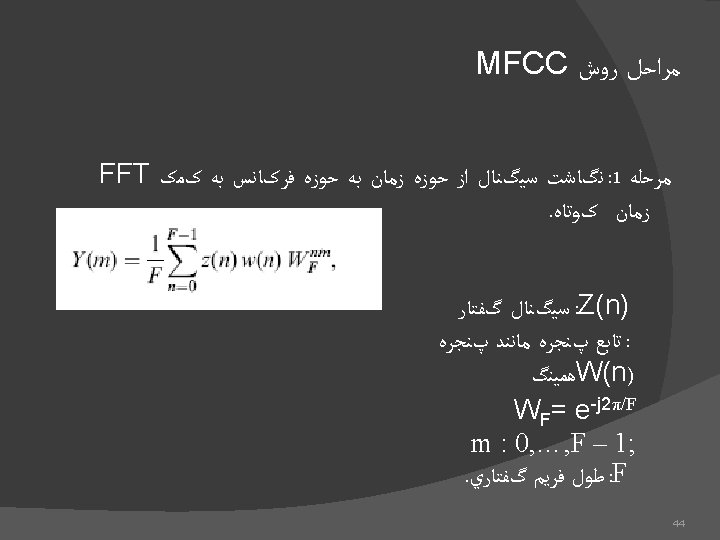

کپﺴﺘﺮﻭﻡ - ﺭﻭﺵ ﻣﻞ ﺳیگﻨﺎﻝ ﺯﻣﺎﻧی ﻓﺮیﻢ ﺑﻨﺪی |FFT|2 Mel-scaling Logarithm IDCT Cepstra Delta & Delta Cepstra Differentiator 48 Low-order coefficients



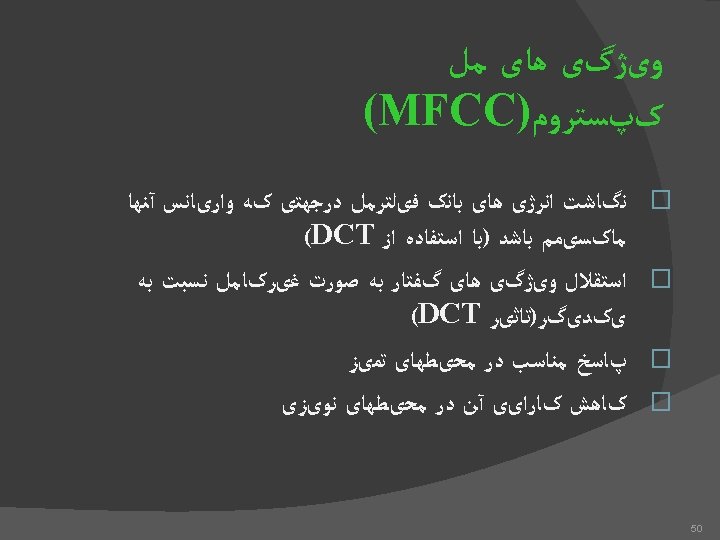

Time-Frequency analysis � Short-term Fourier Transform � Standard way of frequency analysis: decompose the incoming signal into the constituent frequency components. � W(n): windowing function � N: frame length � p: step size 51

Critical band integration � Related to masking phenomenon: the threshold of a sinusoid is elevated when its frequency is close to the center frequency of a narrow-band noise � Frequency components within a critical band are not resolved. Auditory system interprets the signals within a critical band as a whole 52

Bark scale 53

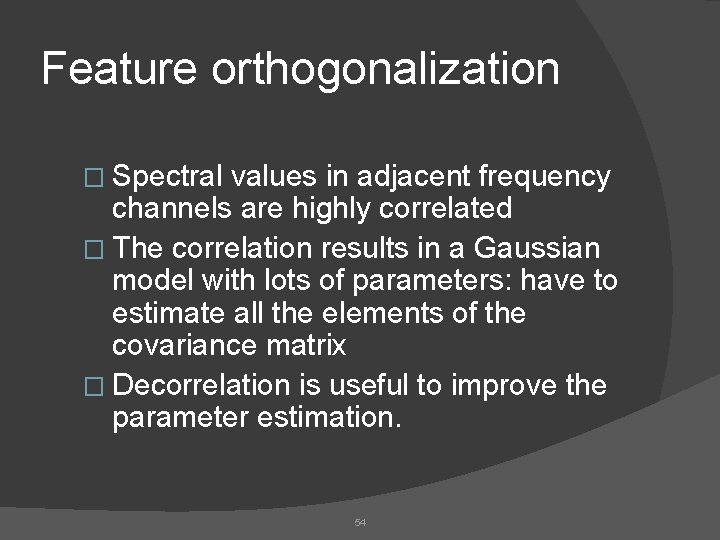

Feature orthogonalization � Spectral values in adjacent frequency channels are highly correlated � The correlation results in a Gaussian model with lots of parameters: have to estimate all the elements of the covariance matrix � Decorrelation is useful to improve the parameter estimation. 54

Language Models for LVCSR Word Pair Model: Specify which word pairs are valid

Statistical Language Modeling

Perplexity of the Language Model Entropy of the Source: First order entropy of the source: If the source is ergodic, meaning its statistical properties can be completely characterized in a sufficiently long sequence that the Source puts out,

We often compute H based on a finite but sufficiently large Q: H is the degree of difficulty that the recognizer encounters, on average, When it is to determine a word from the same source. Using language model, if the N-gram language model PN(W) is used, An estimate of H is: In general: Perplexity is defined as:

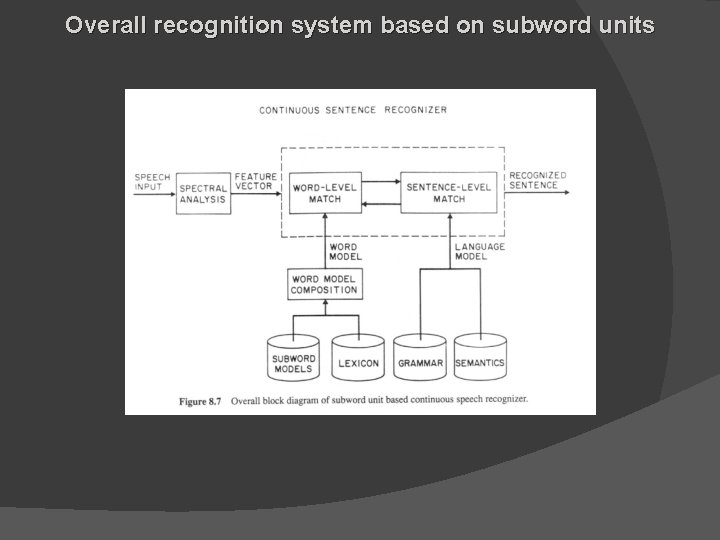

Overall recognition system based on subword units
