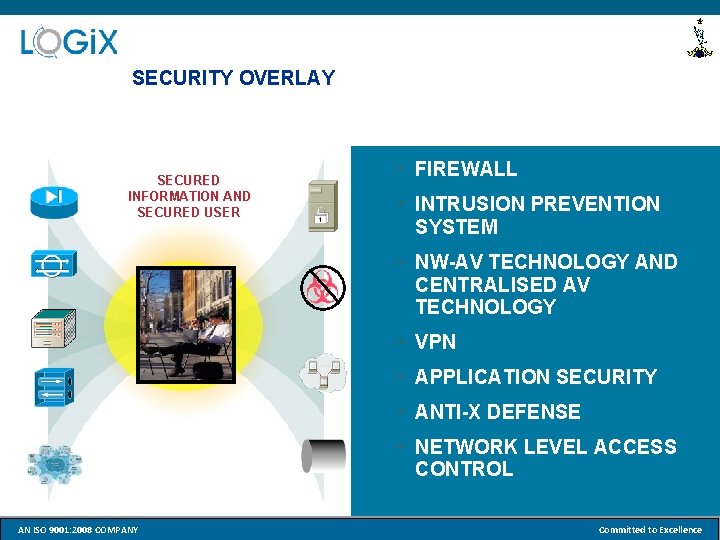

SECURITY OVERLAY SECURED INFORMATION AND SECURED USER • FIREWALL • INTRUSION PREVENTION SYSTEM • NW-AV TECHNOLOGY AND CENTRALISED AV TECHNOLOGY • VPN • APPLICATION SECURITY • ANTI-X DEFENSE • NETWORK LEVEL ACCESS CONTROL AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 8

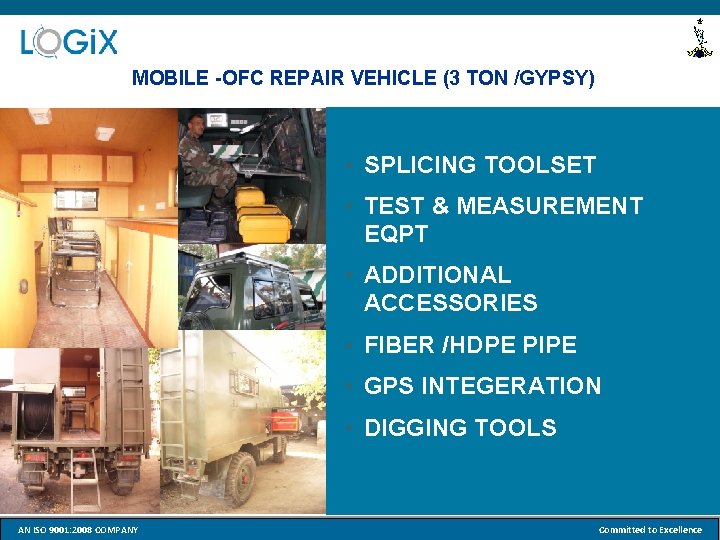

MOBILE -OFC REPAIR VEHICLE (3 TON /GYPSY) • SPLICING TOOLSET • TEST & MEASUREMENT EQPT • ADDITIONAL ACCESSORIES • FIBER /HDPE PIPE • GPS INTEGERATION • DIGGING TOOLS AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 9

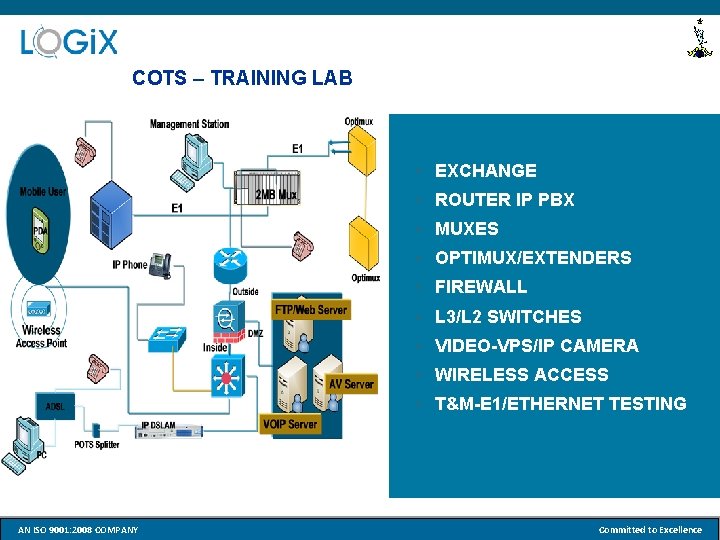

COTS – TRAINING LAB • EXCHANGE • ROUTER IP PBX • MUXES • OPTIMUX/EXTENDERS • FIREWALL • L 3/L 2 SWITCHES • VIDEO-VPS/IP CAMERA • WIRELESS ACCESS • T&M-E 1/ETHERNET TESTING AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 10

TOPIC : - Cisco IP Interoperability and Collaboration System (IPICS) AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 11

The Challenge • To provide value and security to the communities we serve while facing increasing threats and responsibilities AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 12

A Broad-Based Problem Transportation Defense Public Safety State & Local Government “How to Deliver the Right Information in the Right Format to the Right Person at the Right Time” Industry Operations Enterprise Safety & Security Healthcare Retail Financial 13 AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 13

Lack of Communications Interoperability Has Taken Its Toll § Billions of dollars Loss of property and widespread impacts to productivity § Quality of life Can deteriorate quickly during and months after a disaster § Thousands of lives From natural disasters and tragic incidents AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 14

IPICS Solution – Dissolving Communications Silos Devices/Networks PTT Mobile Radios Phones Locations Department Headquarters IP Phones Nextel Phones PC Clients Organizations Cisco IPICS Branch Offices Intelligent Platform— Controls Media and Information Unified Communications ISR Video Surveillance Police Dept. Fire Dept. Enterprises Access Point Applications AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 15

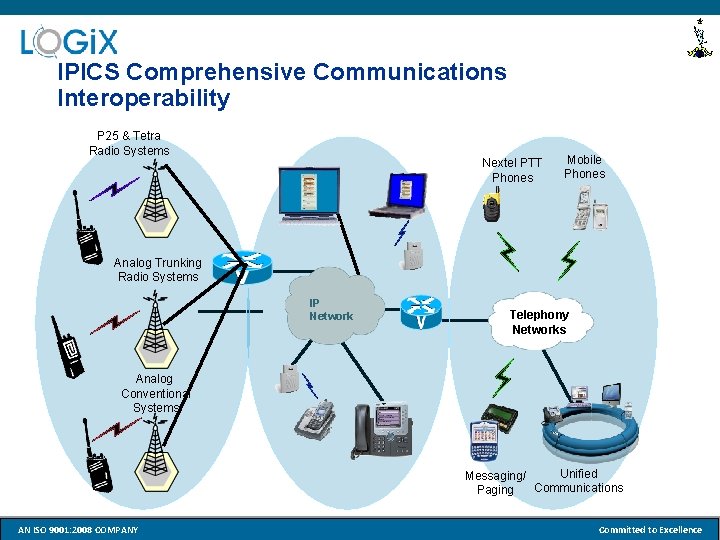

IPICS Comprehensive Communications Interoperability P 25 & Tetra Radio Systems Nextel PTT Phones Mobile Phones Analog Trunking Radio Systems IP Network Telephony Networks Analog Conventional Systems Unified Messaging/ Communications Paging AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 16

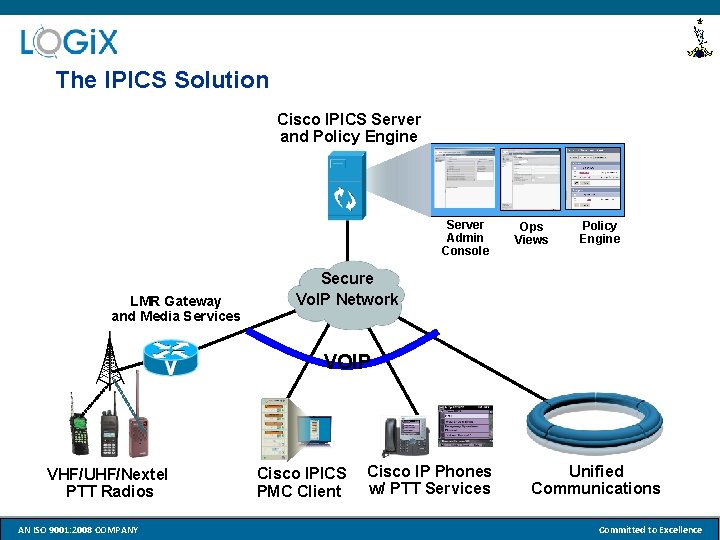

The IPICS Solution Cisco IPICS Server and Policy Engine Server Admin Console LMR Gateway and Media Services Ops Views Policy Engine Secure Vo. IP Network VOIP VHF/UHF/Nextel PTT Radios AN ISO 9001: 2008 CONFIDENDIAL COMPANY Cisco IPICS PMC Client Cisco IP Phones w/ PTT Services Unified Communications Committed to Excellence 17

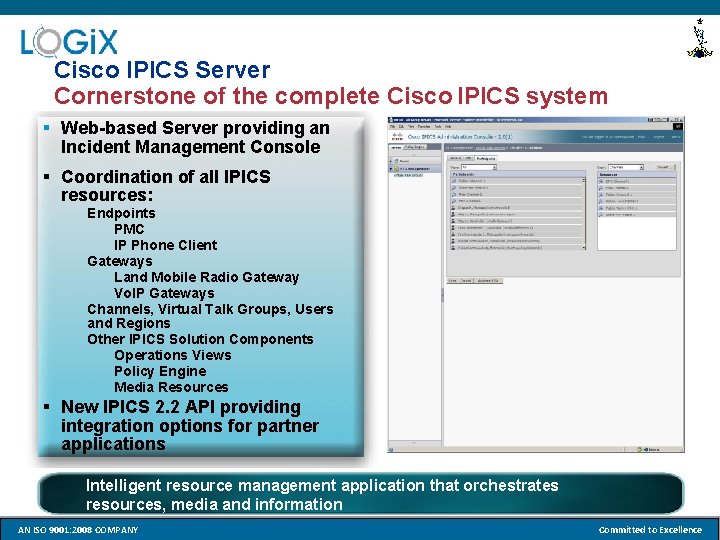

Cisco IPICS Server Cornerstone of the complete Cisco IPICS system § Web-based Server providing an Incident Management Console § Coordination of all IPICS resources: Endpoints PMC IP Phone Client Gateways Land Mobile Radio Gateway Vo. IP Gateways Channels, Virtual Talk Groups, Users and Regions Other IPICS Solution Components Operations Views Policy Engine Media Resources § New IPICS 2. 2 API providing integration options for partner applications Intelligent resource management application that orchestrates resources, media and information AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 18

Cisco IPICS XML IP-Phone Client Push-to-Talk service for Cisco Unified IP Phones • Secure access to radio PTT talkgroups and channels from anywhere in the UC network • Available on a wide range of IP-phones including wireline and Wi. Fi IP-phones • Intuitive user interface with smooth transition between telephony and radio communications Phone users can now respond to incidents or emergencies, boosting responsiveness and operational effectiveness AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 19

Cisco IPICS Push-to-Talk Management Console Radio dispatch client for PC users § Allows PC users to monitor multiple channels simultaneously § Enables PTT communication from the office or a remote site § Provides flexibility through remote tone control, voice replay, multiple user interface options Push-to-Talk Management Center Extends to PC users PTT capabilities previously reserved for radio dispatch consople users AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 20

PMC Features & Benefits §Quick access to various channel types PTT radio channels Virtual talk groups made up of multiple channels Direct 2 -way channels to other PMC users Direct dial channels for dial-out (requires dial ports) Listen only (broadcast) channels Enables virtual radio dispatch and monitoring AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 21

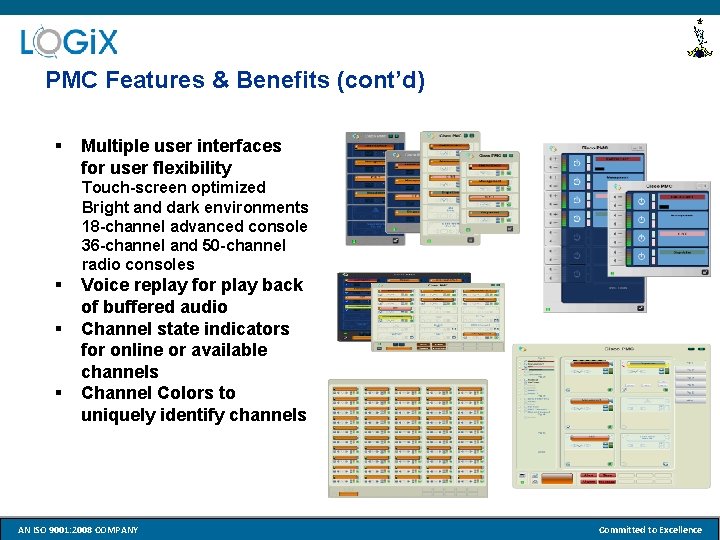

PMC Features & Benefits (cont’d) § Multiple user interfaces for user flexibility Touch-screen optimized Bright and dark environments 18 -channel advanced console 36 -channel and 50 -channel radio consoles § § § Voice replay for play back of buffered audio Channel state indicators for online or available channels Channel Colors to uniquely identify channels AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 22

PMC Features & Benefits (cont’d) Advanced Console § Up to 18 active channels supported § Alert tones for notification over specified channels § Channel select button to select channels for simultaneous transmit § All talk button to simultaneously transmit over multiple channels AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 23

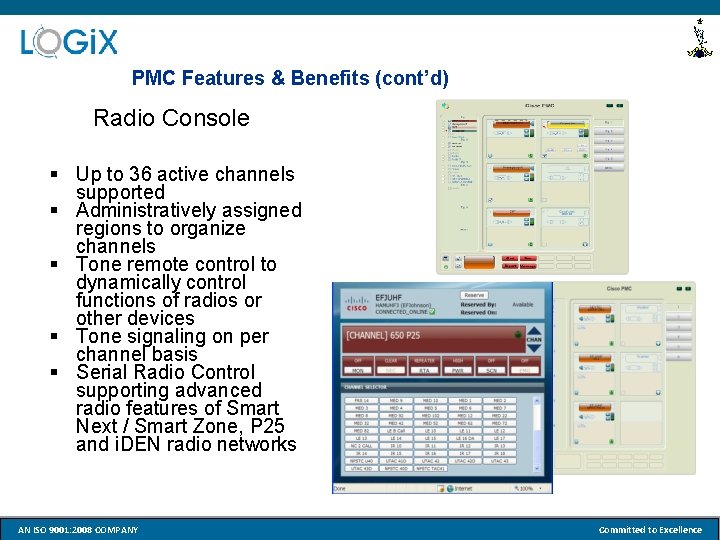

PMC Features & Benefits (cont’d) Radio Console § Up to 36 active channels supported § Administratively assigned regions to organize channels § Tone remote control to dynamically control functions of radios or other devices § Tone signaling on per channel basis § Serial Radio Control supporting advanced radio features of Smart Next / Smart Zone, P 25 and i. DEN radio networks AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 24

Cisco IPICS Operational Views Splits a single IPICS Server into multiple logical secure servers §Logical and secure IPICS segmentation for visibility, access and management of resources based on ownership boundaries §Facilitate the authorized sharing of resources across ownership boundaries §Sharing based upon a Virtual Talk Group Only available from Cisco, only with Cisco IPICS AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 25

Cisco IPICS Policy Engine Enhanced policy-based application platform to streamline operations Create, edit, and manage interoperability and notification policies Allows ad hoc or time-based policy triggers Policies activate a series of actions for example to notify first responders and join them into a push-to talk conference Enables dial-in and dial-out into PTT radio channels (PSTN and cell integration) Enables direct-dial feature for the Cisco IPICS PMC Integrates text messaging and two-way voice notification Customizable by CA Advanced Services or select partners Flexible policy-based applications to automate the most demanding public safety SOPs AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 26

The Policy Engine Drives Advanced Services Triggers Actions CAP Message Dial-In Time Based Direct HTTP Create VTG Notification Dial-Out, Email, SMS Notification IP Phone Text Notification Mass Notification Multicast Notification IPICS Policy Engine Advanced Application Examples • Trigger: Accident w/injuries Ø Action: Activate VTG, add channels and send notification of emergency • Trigger: Security event at a University Ø Action: Priority notification to first responders via phone and radio Ø Action: Notification to second responders via phone, page, text and IM AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 27

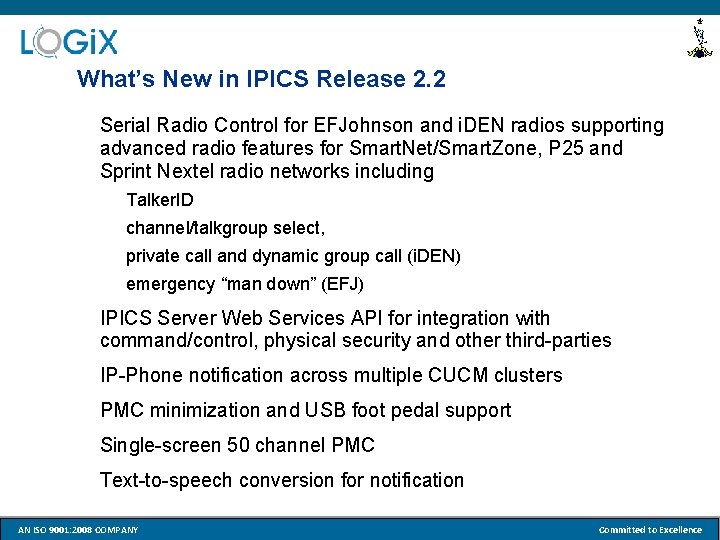

What’s New in IPICS Release 2. 2 Serial Radio Control for EFJohnson and i. DEN radios supporting advanced radio features for Smart. Net/Smart. Zone, P 25 and Sprint Nextel radio networks including Talker. ID channel/talkgroup select, private call and dynamic group call (i. DEN) emergency “man down” (EFJ) IPICS Server Web Services API for integration with command/control, physical security and other third-parties IP-Phone notification across multiple CUCM clusters PMC minimization and USB foot pedal support Single-screen 50 channel PMC Text-to-speech conversion for notification AN ISO 9001: 2008 CONFIDENDIAL COMPANY Committed to Excellence 28

Cisco IPICS • Complements Unified Communications by enabling radio integration and beyond • Leverages legacy radio technology for smooth migration to newer technologies • Takes advantage of newer innovative application technologies • Deployable today Cost effective Supports major radio vendors Low operating costs Flexible Cisco Systems – the network enables it all Connect, Communicate and Collaborate AN ISO 9001: 2008 CONFIDENDIAL COMPANY 29 Committed to Excellence 29
