Dialight Corporation BOSCON Sept 12 th Obstruction Lighting

Dialight Corporation BOS-CON, Sept 12 th Obstruction Lighting Basics Incandescent Strobe LED

Your speaker…. Prior 1984: 1984 -1991: 1991 -1994: 1994 -2000: 2000 -2006: Doug Woehler / Dialight Corporation Living “large” USMC-Camp Pendleton, CA Hali-Brite (Electrical Tech) Concordia University -Crosby, MN H&P/Honeywell (Sales Manager) – Seattle, WA Aircraft (GPS) Landing systems Airport Lighting Obstruction lighting Dialight (Product Development Mgr. ) Obstruction Lighting Hazloc (explosion proof) Rail Lighting

Overview of presentation • • • Purpose of Obstruction Lighting History, Regulations, Specifications Lighting Systems Configurations and Types Lighting Technologies LED Technology Overview LED “Challenges and Concerns” Manufacturer responsibility Controllers & Alarms Recommended maintenance procedures Question and answers

Purpose of Obstruction Lighting

History The Evolution of Tower Lighting - Red Code Beacon (300 mm) and sidelights - White Strobe, High Intensity - White Strobe, Medium Intensity - Red/White Dual Strobe, Medium Intensity - Red LED Sidelight - Red LED Beacon, Medium Intensity

Lighting Regulations / Certifications - FAA Advisory Circular 70/7460 -1 “Obstruction Marking and Lighting” - FAA Advisory Circular 150/5345 -43 “Specification for “Obstruction Lighting Equipment” - FAA Engineering Brief 67 - FCC Part 17 - ICAO Annex 14 - VAP Draft Specification - Transport Canada CAR 621. 19 (formerly TP-382 E) - Secretary Communications-Mexico - IEC Draft

FAA Tower Lighting Configurations Red lighting/paint is an option for any height tower for daytime marking. Medium Intensity white lighting may be used in lieu of paint on structures up to 500’ tall. High Intensity white lighting may be used in lieu of paint on structures over 500’ tall.

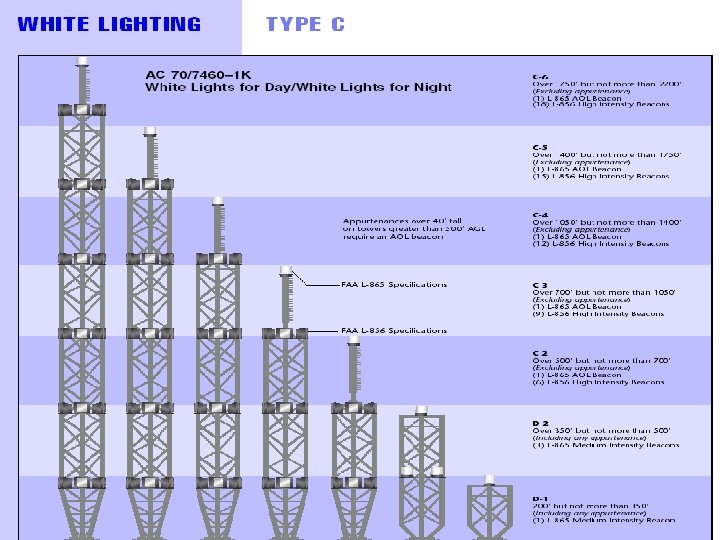

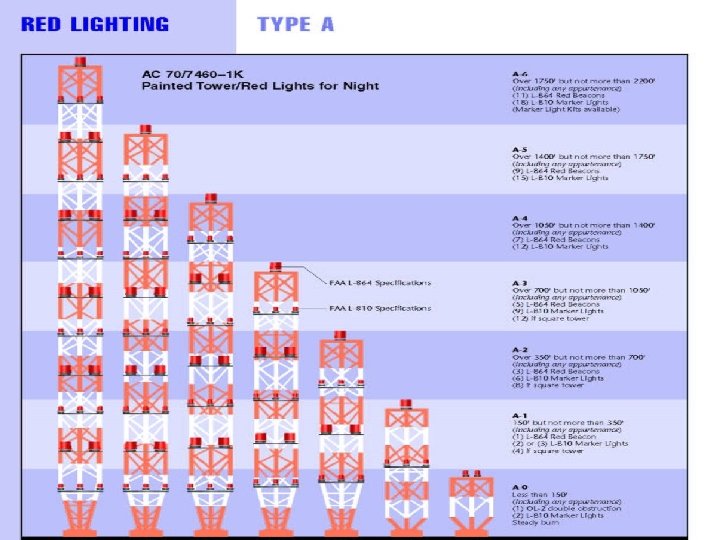

TYPE A Red Lighting System TYPE B High Intensity White TYPE C High Intensity White with AOL’s (on appurtenance) Medium Intensity White TYPE D TYPE E Dual Lighting Red / White Medium Intensity System TYPE F Dual Lighting Red / High Intensity White System Dual RED/White Medium Intensity Beacon on Appurtenance Over 40’ Tall

Red Lighting Systems Day: Aviation orange and white paint Night/Twilight: Flashing red beacons & steady burning obstruction lights (2000 candela and 32 candela) Light Sources: Incandescent, Strobe and LED Advantages: Least complex lighting system Relatively low purchase price Disadvantages: Painting increases life cycle cost

Flashing Red Beacons FAA Designations: L-864 Beacon ICAO Designation: Industry Jargon: Medium Intensity Red Light Red Beacon, 300 mm Beacon, 864

Steady Burning Obstruction Lights FAA Designation: ICAO Designation: Industry Jargon: L-810 Low Intensity Light Sidelight, Steady-Burner, OBs, Marker Light, L-810

Medium Intensity White only Lighting Day/Twilight: 20, 000 candela white Night: 2, 000 candela white -no sidelights required Advantages: No painting required Less expensive than dual lighting Disadvantages: White strobes at night can irritate neighbors, High voltage, High tech components can mean expensive maintenance Light Sources: Xenon gas strobe tubes

Medium Intensity Strobes FAA Designation: ICAO Designation: Industry Jargon: L-865 Medium Intensity White Light Medium Intensity Strobe, White Strobe

Medium Intensity Dual Strobe Systems Day/Twilight: 20, 000 candela white Night: Flashing red strobe & steady burning obstruction lights (2000 candela and 32 candela) Light Sources: Xenon gas strobe tubes Advantages: No painting required, strobes brighter Efficient light source Disadvantages: High voltage, High tech components can mean expensive maintenance

Medium Intensity Dual Strobes FAA Designation: L-864 / L-865 ICAO Designation: Industry Jargon: Medium Intensity Dual Light Dual Strobe

High Intensity Strobe Systems Day: 200, 000 candela white Twilight: 20, 000 candela white Night: 2, 000 candela white Advantages: No painting required Less expensive than dual lighting Disadvantages: White strobe at night can irritate neighbors, very expensive to maintain

High Intensity Strobes FAA Designation: L-856 for tall structures ICAO Designation: High Intensity White Light Industry Jargon: High Intensity Strobe

Light Sources • What are the options & what’s the best? - - Incandescent Strobe LED

Incandescent Light Sources Advantages : Lowest “up front cost” Numerous distribution sources Fairly resilient to lightning Plug and play to most broadcast towers Disadvantage : Short lamp life, high “reoccurring costs” Frequent maintenance Susceptible to vibration damage Extremely inefficient, Consumes lots of power Light Pollution, ground effects!

Strobe / Xenon gas Light Sources Advantages : -Longer life technology than incandescent. -Efficient power consumption -Numerous distribution sources Disadvantage : -Large “upfront” costs -Proprietary replacement technology -New electrical infrastructure -Limited lamp life, depending on design -EMI / RF issues and ozone release -Expensive High Voltage replacement components -Expensive maintenance costs - Light Pollution, ground effects!

Light Emitting Diodes! • LED obstruction lighting – Advantages • Lowest cost of ownership • Plug and play with existing infrastructure, 120 VAC • Solid State, extremely robust ad reliable, impervious to shock/vibration. • Extremely energy efficient power consumption. 48 Watt beacon • Precision optics. Warranted performance! • No EMI created or susceptibility • Not prone to damage from surge/lighting. • Numerous distribution sources – Disadvantages • Reputable manufacturer with extreme knowledge of LED based products is a must!

LED’s (Light emitting diodes) Development timeline -60’s & 70’s calculators and watches -80’s: Interior uses such as panels, PC’s -90’s: Traffic Intersections & Brake lights -2000 Obstruction, railroad, aircraft, -2005 - UL, Class 1 Div 2 area white lighting -Today and beyond: General illumination!

Making the transition…. . • Going from a light bulb to a light engine – Generally, a single LED cannot replace a single light bulb • A “Light Engine” is required

A revolution in lighting…LED’s 150 High Pressure Sodium Luminous Efficiency (lumens/watt) Electrical Discharge Lamps Light Emitting Diodes Metal Halide 100 Fluorescent Mercury Vapor 50 Shaped Reflectors Incandescent Conventional Incandescent 0 1920 Tungsten Halogen 1940 1960 1980 2000 2020

All LEDs are not the Same 5 mm High-Flux LED Chip Plastic Lens Body Cathode Lead Anode Lead Slug

Use the Right Technology for the right job! Snap. LED Through-Hole High Flux Surface Mount Technology Surface Mount

5 mm vs. High Flux performance Comparison

LED performance is influenced by temperature 500 Candelas @ 25 O C 10% 34% 63%

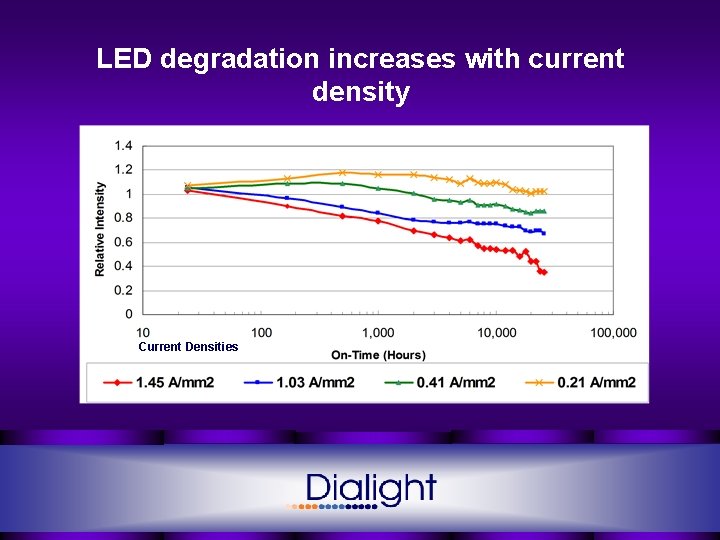

LED degradation increases with current density Current Densities

Concerns and Challenges: Defining End of Life? • What is the difference between the end of life of an LED and that of a halogen or incandescent lamp? – Incandescent/Halogen is catastrophic…whereas a LED light output degrades • The question one should ask is: – What is the USEFUL LIFE or EFFECTIVE LIFE of an LED fixture? • Completely dependent on many variables

Ultimate Solution: Responsible Designs and Manufacturer Warranties Manufacturers must take the lead to ensure that their products meet the minimum operational and intensity requirements at the end of the product’s warranty period!

A side note…. controller and monitoring systems • Dialight DOES NOT manufacture controllers or produce lighting “systems” as our focus is on LED technology. – We focus on upgrading / retrofitting existing lighting systems to LED based fixtures – Installing new LED fixtures with the partnerships with the industry OEM’s. • Please contact the vendor of your choice or visit our website for a list of our existing distributors and OEM partners.

Minimum Maintenance Procedures • All technologies – Clean exterior optical portions of fixture – Inspect and verify controller failure modes by creating a fault – Inspect conduit & wiring for degraded connections • Incandescent – Ensure minimum of 120 VAC at lamp – Inspect Gaskets & Seals around Fresnel lenses • Strobe Tube – Inspect high voltage controller capacitors and trigger cards – Inspect fixture wiring and terminals for corrosion (Ozone) – Re-lamp tubes per manufactures warranty (2 -3 years) • LED – Re-lamp and install new gasket every 10 -12 years – Ensure 85 VAC at lamp

Questions? ? Dialight Corp 1501 Route 34 South Farmingdale, NJ 07727 732 -991 -2837 www. dialight. com
