GENESIS GAS SOLUTIONS PVT LTD Coding the Future

GENESIS GAS SOLUTIONS PVT. LTD. Coding the Future

JOINT VENTURE BETWEEN Coding the Future GENESIS GAS SOLUTIONS PVT. LTD. (New Delhi, India) HANGZHOU BETA METER C 0. , LTD. (Hangzhou, China)

ABOUT US § “Genesis Gas” is a Startup under “Make in India” set up in 2017 , as an integral part of A. P. Securities New Delhi(India). § We are a technology driven group offering products and solutions for a global customer base of Gas Industry. § We are one of the fastest growing Solution provider in India for Smart Gas Metering. § We are into advanced metering infrastructure (AMI) solutions, & can propel your operations to the next level and deliver the service and value your customers demand. § Genesis Gas, India & BETA Metering, China are JV Partners in India for Smart Gas Metering. Coding the Future

OUR PROGRESS Coding the Future

METER MANUFACTURING PLANT @ Hangzhou , China Coding the Future Chemical Lab Temp. Resistance Lab Physical Lab IP Protection Lab

01. NEED OF THE HOUR CGD’S 02. OUR OFFERINGS TO CGD’S 03. MECHANICAL METER INDEX PRESENTATION OUTLINE 04. PREPAID METER AMR 05. PREPAID METER NFC 06. POST-PAID METER AMR 07. GENESIS ENERGY DASH BOARDS 08. DESIGNING & SUPPLY OF RETROFIT MODULES Coding the Future

NEED OF THE HOUR OF CGD’S ▪ A supplier of Gas Meter with AMR as the integrated product. ▪ Software integrated solutions suitable to there existing setup. ▪ A service provider who monitors their product performance on continuous basis and share analysis at any time of the day. ▪ A complete product (Software + Hardware) having sustainable life , compact design & their system should be based on proven records. ▪ ▪ Supplier with varieties of Smart/AMR/prepaid/IOT or high aesthetic meters to serve Tier 2 , Tier 3 & Tier 4 locations as per requirement. Fast-track Meter Supply & Software Implementation. Coding the Future

OFFERINGS TO CGD’S 01 PRODUCT Basic Diaphram type G 1. 6 Mechanical Gas Meter Samrt Gas meters with Lora/GPRS/RF AMR network. Prepaid Gas meters (Cardless/With NFC card) 02 SOFTWARE Managed services software platform to existing Data Dash Boards Providing hardware products and compiling Data Dash Board Management software Customized software developement and mobile App’s for CGD Applications Integration to CGD SAP Server Coding the Future 03 SERVICES Retrofit AMR supply and integrations suitable to existing Gas meters on Domestic & Commercial segment Operation & Maintenance of smart AMR Projects

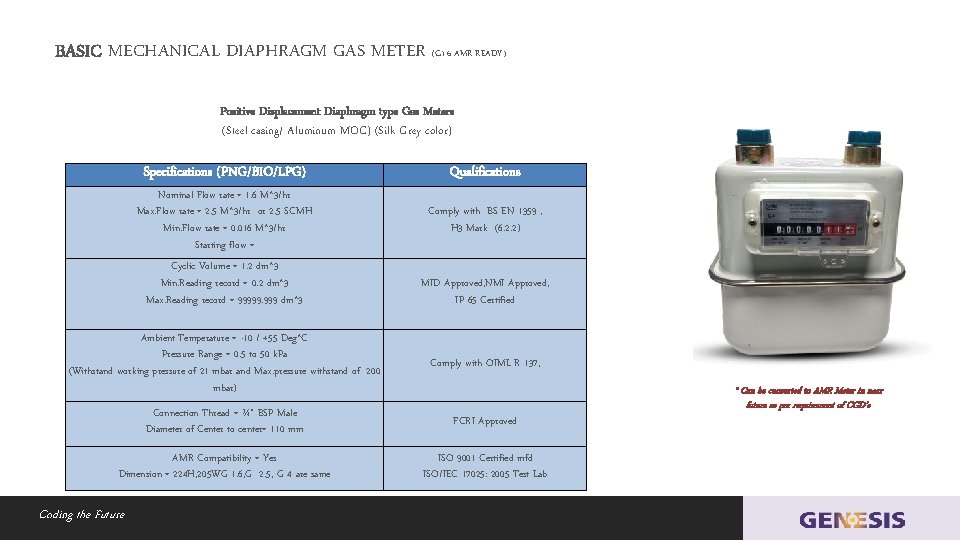

BASIC MECHANICAL DIAPHRAGM GAS METER (G 1. 6 AMR READY) Positive Displacement Diaphragm type Gas Meters (Steel casing/ Aluminum MOC) (Silk Grey color) Specifications (PNG/BIO/LPG) Qualifications Nominal Flow rate = 1. 6 M^3/hr Max. Flow rate = 2. 5 M^3/hr or 2. 5 SCMH Min. Flow rate = 0. 016 M^3/hr Starting flow = Comply with BS EN 1359 , H 3 Mark (6. 2. 2) Cyclic Volume = 1. 2 dm^3 Min. Reading record = 0. 2 dm^3 Max. Reading record = 99999. 999 dm^3 MID Approved, NMI Approved, IP 65 Certified Ambient Temperature = -10 / +55 Deg^C Pressure Range = 0. 5 to 50 k. Pa (Withstand working pressure of 21 mbar and Max. pressure withstand of 200 mbar) Comply with OIML R 137, Connection Thread = ¾” BSP Male Diameter of Center to center= 110 mm FCRI Approved AMR Compatibility = Yes Dimension = 224 H, 205 WG 1. 6, G 2. 5, G 4 are same ISO 9001 Certified mfd ISO/IEC 17025: 2005 Test Lab Coding the Future * Can be converted to AMR Meter in near future as per requirement of CGD’s

WHY SMART GAS METERS? Coding the Future

SMART GAS METER WITH LORA WAN (AMR) (G 1. 6 WITH INBUILT LORA AMR MODULE) Offering Communications Modes Qualifications G 1. 6 Gas meters with LORA -WAN AMR Unit WPC, ATEX, PESO, W&M, EN 1369 G 1. 6 Gas meter with LORA Walk-By AMR Unit EN 1369, , ATEX, PESO, W&M G 1. 6 Gas meter with RF-Walk by AMR with HHU Unit EN 1369, ATEX, PESO, W&M Coding the Future

SYSTEM ARCHITECTURE Coding the Future

DASHBOARD Coding the Future

STATUS PANEL OTHER SECTIONS Coding the Future

• • • Billing system MRO system GSP system DATA SHARING MDM Meter Initialization Module Consumer Survey Consumer Indexing Meter Data Reading Meter Time Update Meter Remote FW Upgrade Magnetic Interference Management Alerts Reports Coding the Future MODULES • • STOCK & SPARES MANAGEMENT Part Creation Issuance Rejection List Re-Order • • BILLING Consumer Bill Generation Payment Gateway for collection Delay Penalty Calculation Customer Termination and Revocation • • • CRM Customer Creation Complaint Registration Allotment of Service Engineer Ticket Generation Complaint Resolution Spares Management

SURVEY APP USED IN THE FIELD - Coding the Future

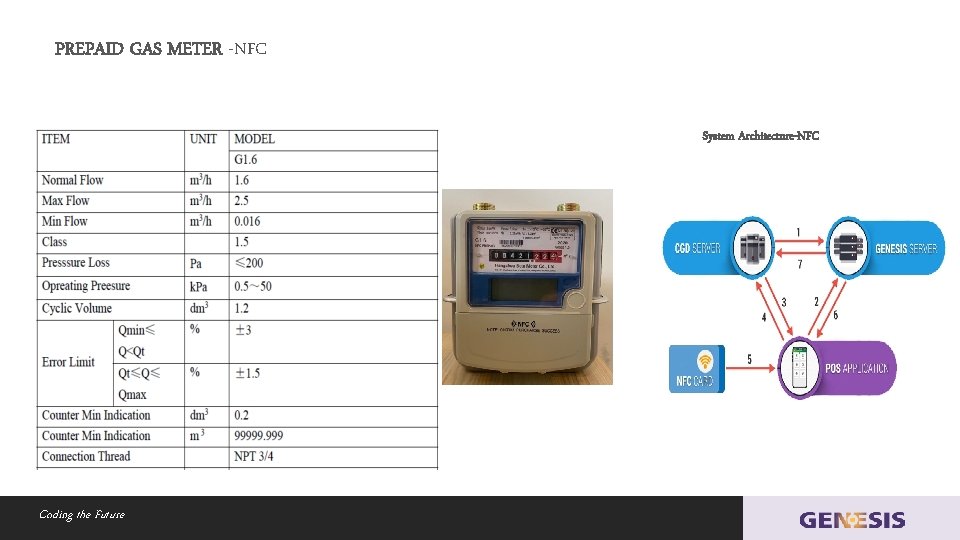

PREPAID GAS METER -NFC System Architecture-NFC Coding the Future

NFC CARD Coding the Future

NFC METER POS APP - Coding the Future

POST PAID METER WITH AMR Meter Functions 1. 2. 3. 4. 5. 6. 7. Coding the Future Counting function Meter reading function RTC function Data freeze function Power monitoring Data storage Control function Optional

POST PAID METER WITH AMR-DASHBOARD Coding the Future

POST PAID METER – STATUS PANEL Coding the Future

POST PAID METER – AMR APP FOR FIELD READING Coding the Future

POST PAID METER – AMR APP FOR FIELD READING Coding the Future

BENEFITS - Coding the Future Parameters Wise Basic Mechanical Meter Network Based Prepaid/Post paid Meter Human Intervention for Meter Reading Required Not Required CGD’s Payment receipt in Advance Not possible Daily Gas Reconciliation view Eliminates House intrusion for Reading collection Prepaid Meter NFC card Handheld Gas Meter with LORA (Post paid) Required Possible Not possible Possible (Post receipt*) Possible (Post receipt *) No Yes Yes Possible (Post receipt *) Reading during House Lock / Lock down No Yes Bill Generation cycle 2 Months or More Prepaid in Advance / Up to 1 Month In Advance Up to 1 month Cost of product Lowest cost, Highest cost if fitted with Retrofit Moderate

GENESIS ENERGY DASH - ▪ ▪ ENERGY DASH HIGHLIGHTS Platform for improved customer service, e. g. timely and accurate readings support billing without need for estimation. Detailed and in-time information of gas usage for identifying opportunities for gas savings. Platform for future integration. Remote connection/disconnection (Smart Meters) of supply. • Covers end-to-end Audit Management Lifecycle • Notifications, Updates to stakeholders / affected teams • Dashboards along with drill-down features • Upload facility for evidences Developed for all Pre-paid, Post-paid meter & Mechanical meters. • Due date reminders and escalations to respective members / teams • Facility to link predefined questionnaire / prepare open question Coding the Future

GENESIS ENERGY DASH - E 2 E MANAGEMENT Coding the Future

GENESIS ENERGY DASH - BENEFITS Online Dashboard is the best way to report Metering Activity and issues. ▪ ▪ ▪ ▪ ▪ Multi-Vendor Dashboard Existing deployed Mechanical and Smart Meters Compatibility of any brand One-time SAP Integration Consolidation and Tracking of Consumer Complaints Cloud Based / Cloud Harvested Ability to connect Stores, Material Issue and other functions as per CGD Requirement Ability to include Pipeline and Transmission Data Incident Reporting App Alerts and Notifications Audit and Communication Coding the Future

DESIGNING & SUPPLY OF RETROFIT MODULES ▪ Supply of RETROFIT AMR Module Units to EXISTING Gas meters deployed at site. ▪ Meter Readings and interfacing with the CGD Server, SAP. ▪ Retrofit jobs as, Design, Supply , Installation , Commissioning , Integration, Synchronization and Interfacing RETROFIT Modules with the CGD’s Server. (REQUIRED: Sharing of INDEX Drawing in CAD Format, MIU Protocols) Coding the Future

THANK YOU Coding the Future
