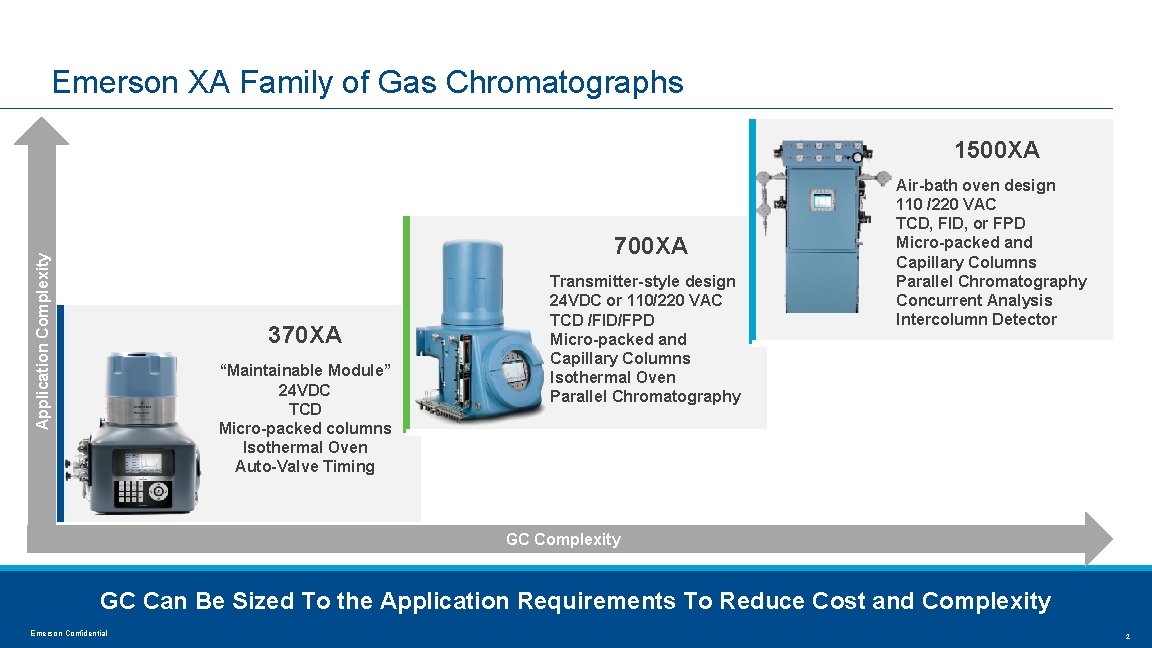

Emerson XA Family of Gas Chromatographs 1500 XA Application Complexity 700 XA 370 XA “Maintainable Module” 24 VDC TCD Micro-packed columns Isothermal Oven Auto-Valve Timing Transmitter-style design 24 VDC or 110/220 VAC TCD /FID/FPD Micro-packed and Capillary Columns Isothermal Oven Parallel Chromatography Air-bath oven design 110 /220 VAC TCD, FID, or FPD Micro-packed and Capillary Columns Parallel Chromatography Concurrent Analysis Intercolumn Detector GC Complexity GC Can Be Sized To the Application Requirements To Reduce Cost and Complexity Emerson Confidential 2

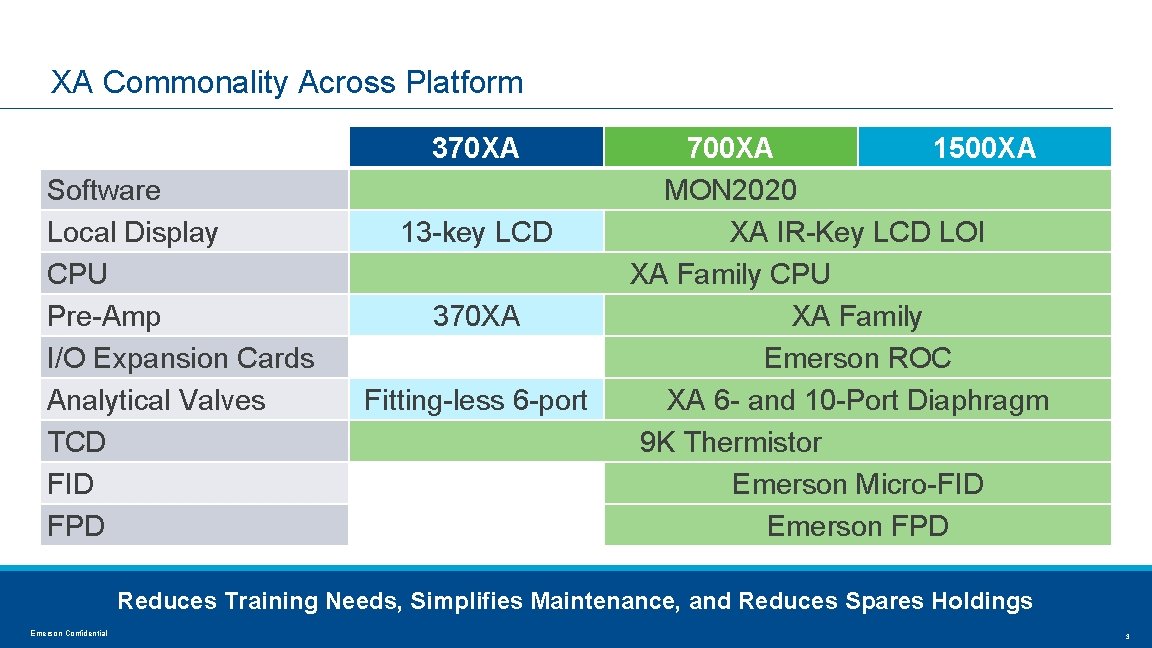

XA Commonality Across Platform 370 XA Software Local Display CPU Pre-Amp I/O Expansion Cards Analytical Valves TCD FID FPD 13 -key LCD 370 XA Fitting-less 6 -port 700 XA 1500 XA MON 2020 XA IR-Key LCD LOI XA Family CPU XA Family Emerson ROC XA 6 - and 10 -Port Diaphragm 9 K Thermistor Emerson Micro-FID Emerson FPD Reduces Training Needs, Simplifies Maintenance, and Reduces Spares Holdings Emerson Confidential 3

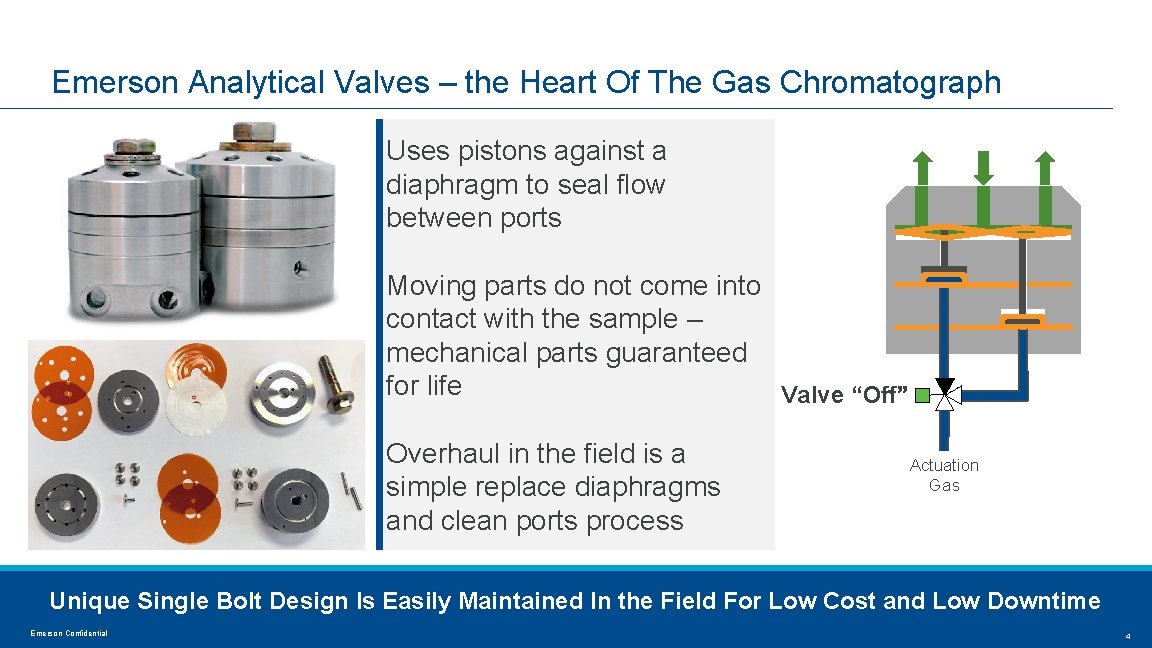

Emerson Analytical Valves – the Heart Of The Gas Chromatograph Uses pistons against a diaphragm to seal flow between ports Moving parts do not come into contact with the sample – mechanical parts guaranteed for life Valve “Off” “On” Overhaul in the field is a simple replace diaphragms and clean ports process Actuation Gas Unique Single Bolt Design Is Easily Maintained In the Field For Low Cost and Low Downtime Emerson Confidential 4

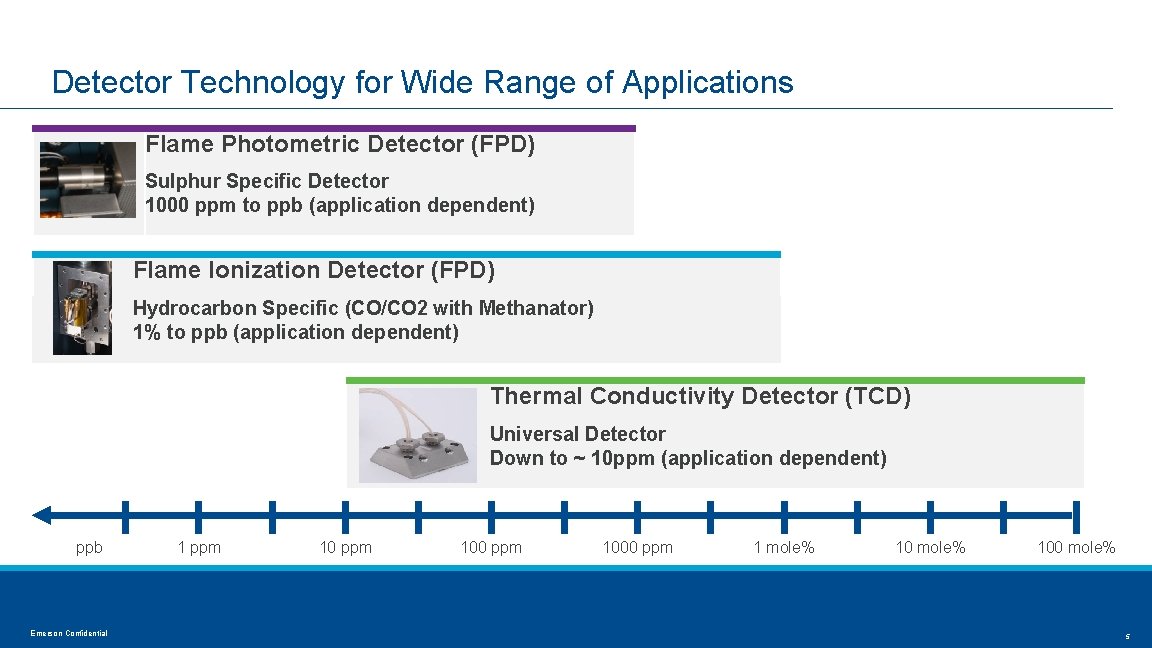

Detector Technology for Wide Range of Applications Flame Photometric Detector (FPD) Sulphur Specific Detector 1000 ppm to ppb (application dependent) Flame Ionization Detector (FPD) Hydrocarbon Specific (CO/CO 2 with Methanator) 1% to ppb (application dependent) Thermal Conductivity Detector (TCD) Universal Detector Down to ~ 10 ppm (application dependent) ppb Emerson Confidential 1 ppm 1000 ppm 1 mole% 100 mole% 5

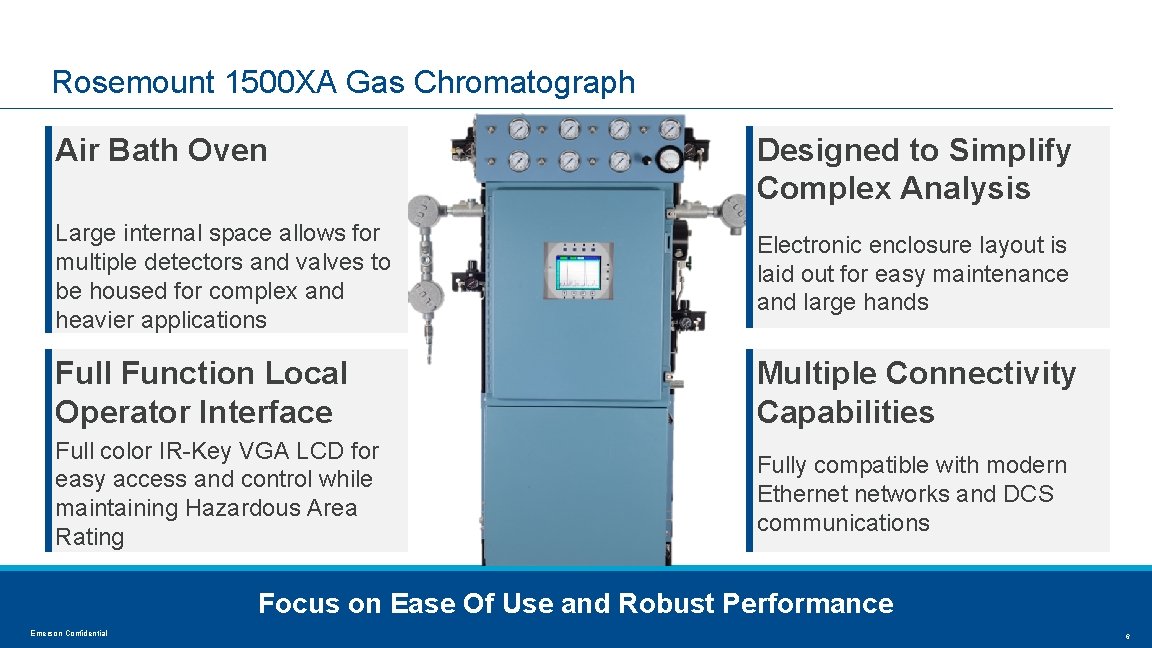

Rosemount 1500 XA Gas Chromatograph Air Bath Oven Designed to Simplify Complex Analysis Large internal space allows for multiple detectors and valves to be housed for complex and heavier applications Electronic enclosure layout is laid out for easy maintenance and large hands Full Function Local Operator Interface Multiple Connectivity Capabilities Full color IR-Key VGA LCD for easy access and control while maintaining Hazardous Area Rating Fully compatible with modern Ethernet networks and DCS communications Focus on Ease Of Use and Robust Performance Emerson Confidential 6

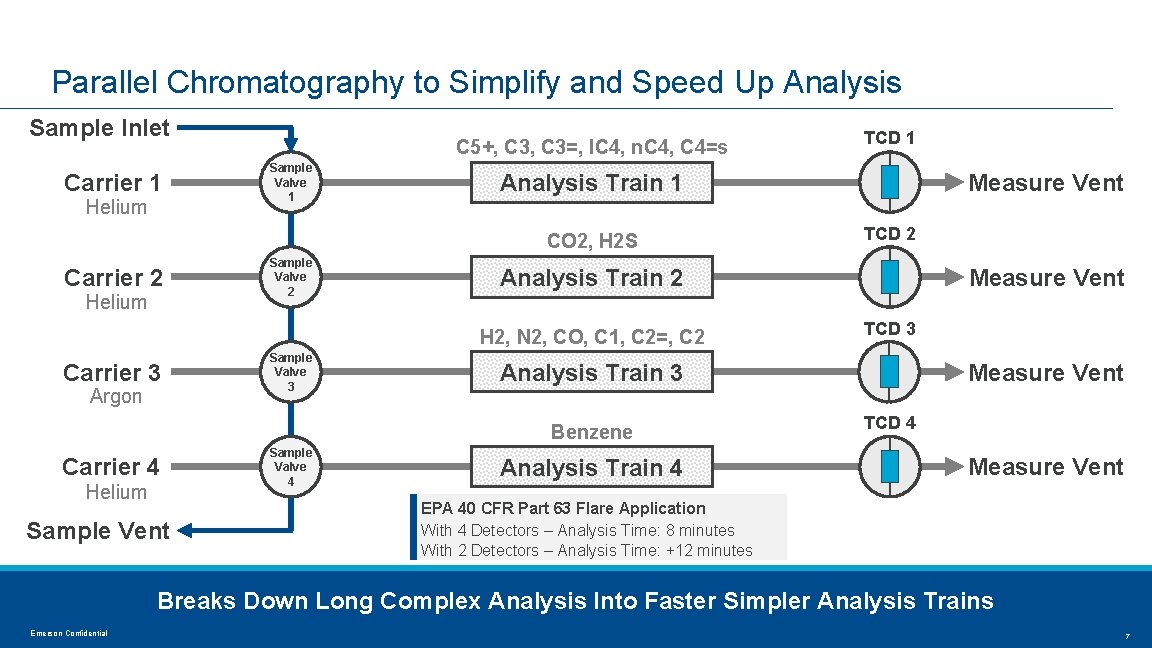

Parallel Chromatography to Simplify and Speed Up Analysis Sample Inlet Carrier 1 Helium C 5+, C 3=, IC 4, n. C 4, C 4=s Sample Valve 1 Carrier 2 Helium Carrier 3 Argon Carrier 4 Helium Sample Vent Measure Vent TCD 3 Measure Vent Analysis Train 3 Benzene Sample Valve 4 TCD 2 Analysis Train 2 H 2, N 2, CO, C 1, C 2=, C 2 Sample Valve 3 Measure Vent Analysis Train 1 CO 2, H 2 S Sample Valve 2 TCD 1 Analysis Train 4 TCD 4 Measure Vent EPA 40 CFR Part 63 Flare Application With 4 Detectors – Analysis Time: 8 minutes With 2 Detectors – Analysis Time: +12 minutes Breaks Down Long Complex Analysis Into Faster Simpler Analysis Trains Emerson Confidential 7

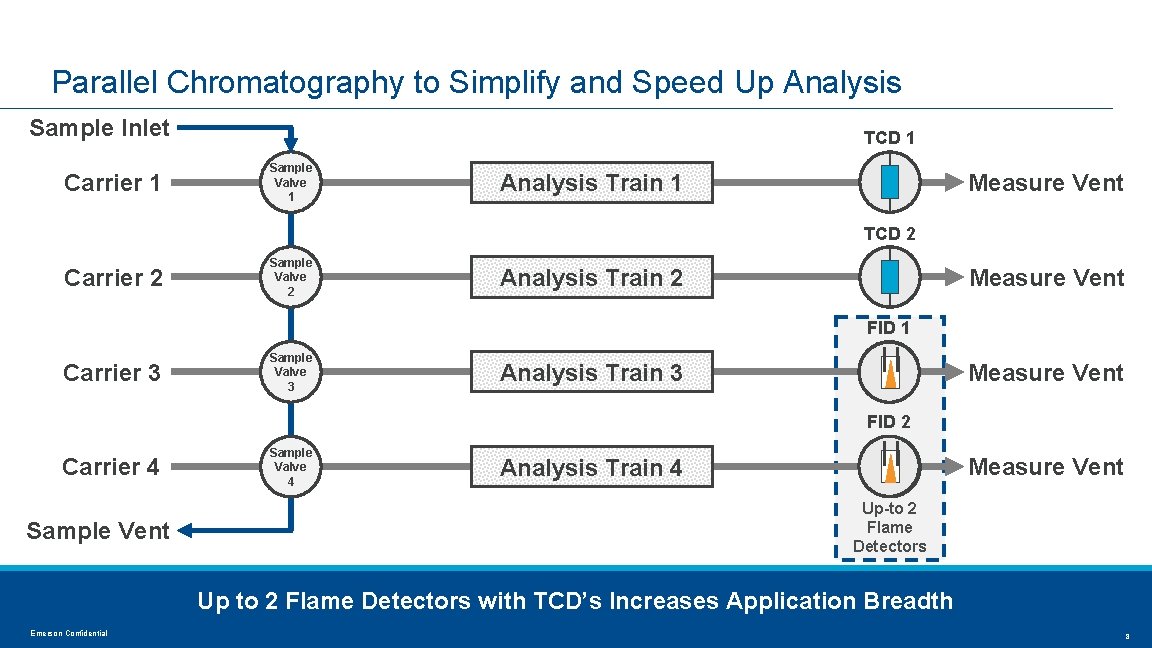

Parallel Chromatography to Simplify and Speed Up Analysis Sample Inlet Carrier 1 TCD 1 Sample Valve 1 Measure Vent Analysis Train 1 TCD 2 Carrier 2 Sample Valve 2 Measure Vent Analysis Train 2 FID 1 Carrier 3 Sample Valve 3 Measure Vent Analysis Train 3 FID 2 Carrier 4 Sample Vent Sample Valve 4 Measure Vent Analysis Train 4 Up-to 2 Flame Detectors Up to 2 Flame Detectors with TCD’s Increases Application Breadth Emerson Confidential 8

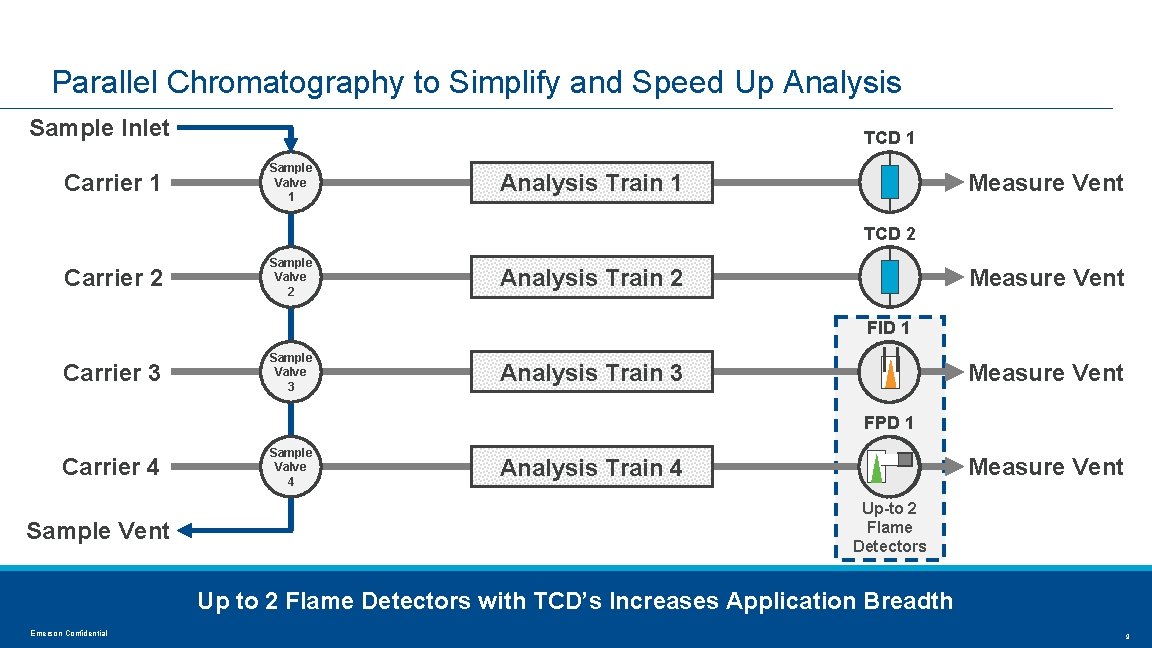

Parallel Chromatography to Simplify and Speed Up Analysis Sample Inlet Carrier 1 TCD 1 Sample Valve 1 Measure Vent Analysis Train 1 TCD 2 Carrier 2 Sample Valve 2 Measure Vent Analysis Train 2 FID 1 Carrier 3 Sample Valve 3 Measure Vent Analysis Train 3 FPD 1 Carrier 4 Sample Vent Sample Valve 4 Measure Vent Analysis Train 4 Up-to 2 Flame Detectors Up to 2 Flame Detectors with TCD’s Increases Application Breadth Emerson Confidential 9

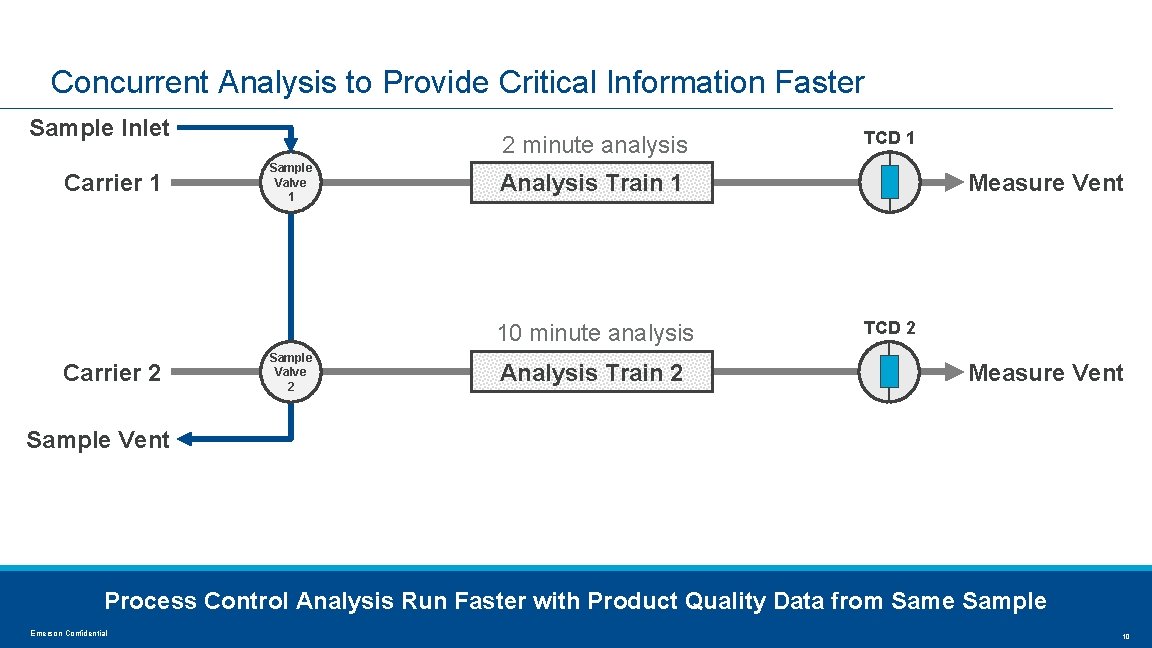

Concurrent Analysis to Provide Critical Information Faster Sample Inlet Carrier 1 2 minute analysis Sample Valve 1 Carrier 2 Measure Vent Analysis Train 1 10 minute analysis Sample Valve 2 TCD 1 Analysis Train 2 TCD 2 Measure Vent Sample Vent Process Control Analysis Run Faster with Product Quality Data from Same Sample Emerson Confidential 10

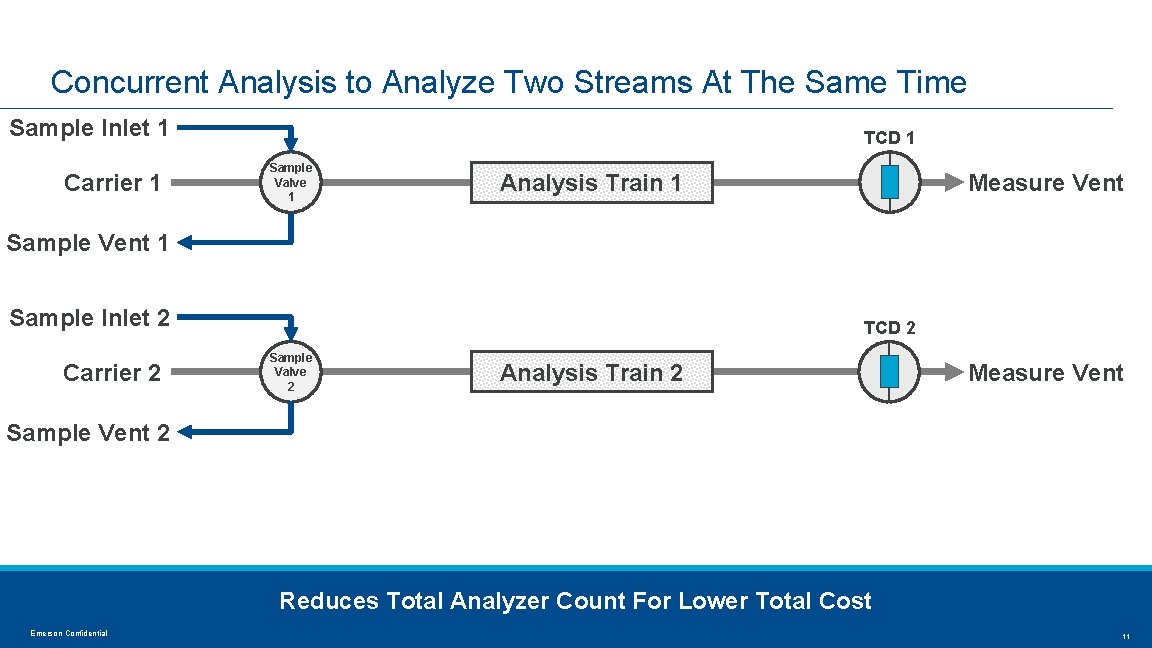

Concurrent Analysis to Analyze Two Streams At The Same Time Sample Inlet 1 Carrier 1 TCD 1 Sample Valve 1 Measure Vent Analysis Train 1 Sample Vent 1 Sample Inlet 2 Carrier 2 TCD 2 Sample Valve 2 Analysis Train 2 Measure Vent Sample Vent 2 Reduces Total Analyzer Count For Lower Total Cost Emerson Confidential 11

Intercolumn Detectors With Heart-Cut Valve (ITCs) 1. Column 1 moves Acetylene peak to back of Ethylene peak 2. Heart-cut valve “cuts” bulk of Ethylene peak to avoid flooding Column 3 3. Column 3 separates Acetylene completely from remaining Ethylene Sample ITC Column 1 Sample Vent Heart-cut Valve Column 3 ~100% Ethylene Product Heartcut Vent Column 2 Sample Valve Carrier Gas Bulk of Ethylene peak Detector Measure Vent 1 ppm Acetylene Ethylene Tail with Acetylene Valve Timing Optimization Is Made Easier With ITC Emerson Confidential 12

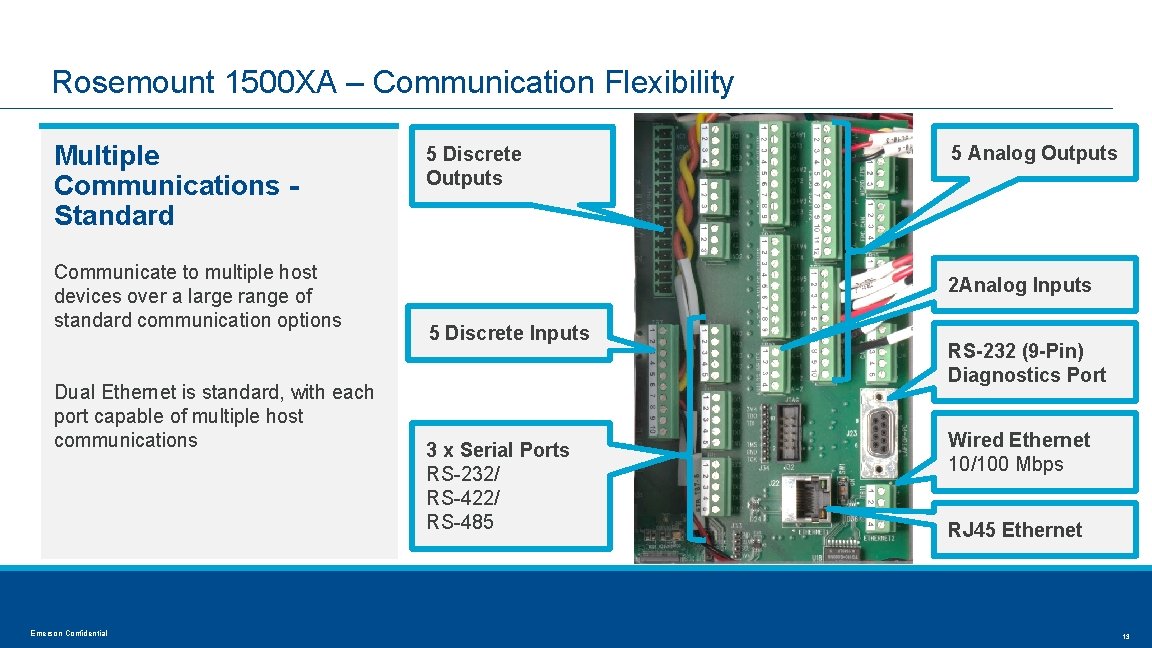

Rosemount 1500 XA – Communication Flexibility Multiple Communications Standard Communicate to multiple host devices over a large range of standard communication options Dual Ethernet is standard, with each port capable of multiple host communications Emerson Confidential 5 Discrete Outputs 5 Analog Outputs 2 Analog Inputs 5 Discrete Inputs 3 x Serial Ports RS-232/ RS-422/ RS-485 RS-232 (9 -Pin) Diagnostics Port Wired Ethernet 10/100 Mbps RJ 45 Ethernet 13

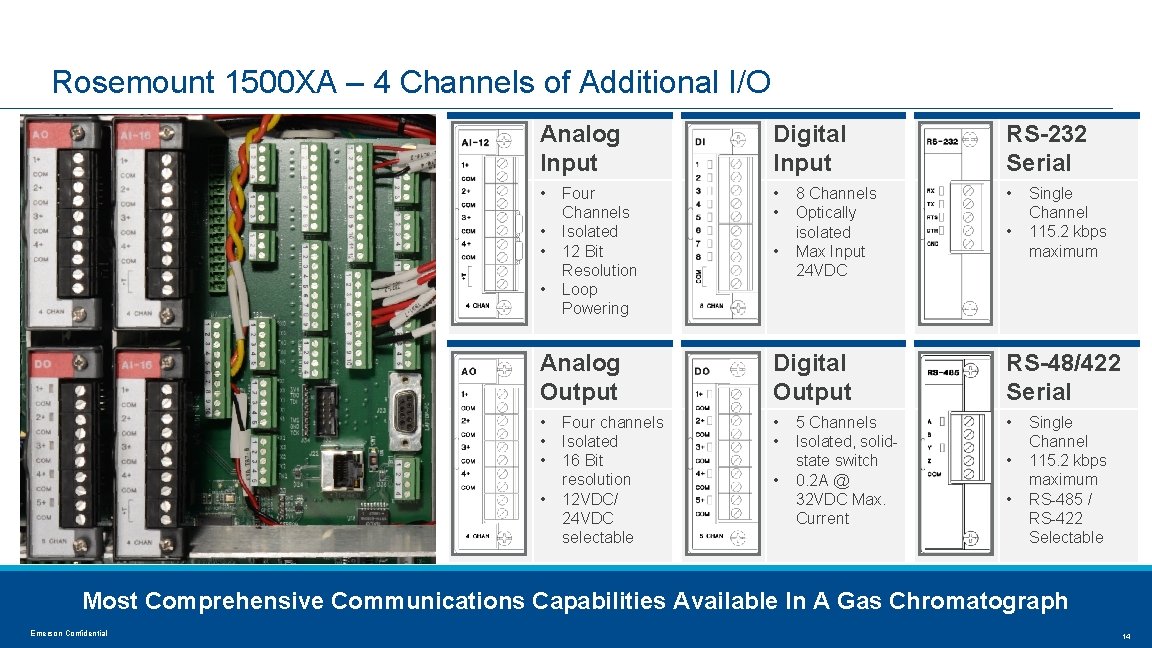

Rosemount 1500 XA – 4 Channels of Additional I/O Analog Input Digital Input RS-232 Serial • • Four Channels Isolated 12 Bit Resolution Loop Powering • 8 Channels Optically isolated Max Input 24 VDC • Single Channel 115. 2 kbps maximum Analog Output Digital Output RS-48/422 Serial • • Four channels Isolated 16 Bit resolution 12 VDC/ 24 VDC selectable • 5 Channels Isolated, solidstate switch 0. 2 A @ 32 VDC Max. Current • • Single Channel 115. 2 kbps maximum RS-485 / RS-422 Selectable Most Comprehensive Communications Capabilities Available In A Gas Chromatograph Emerson Confidential 14

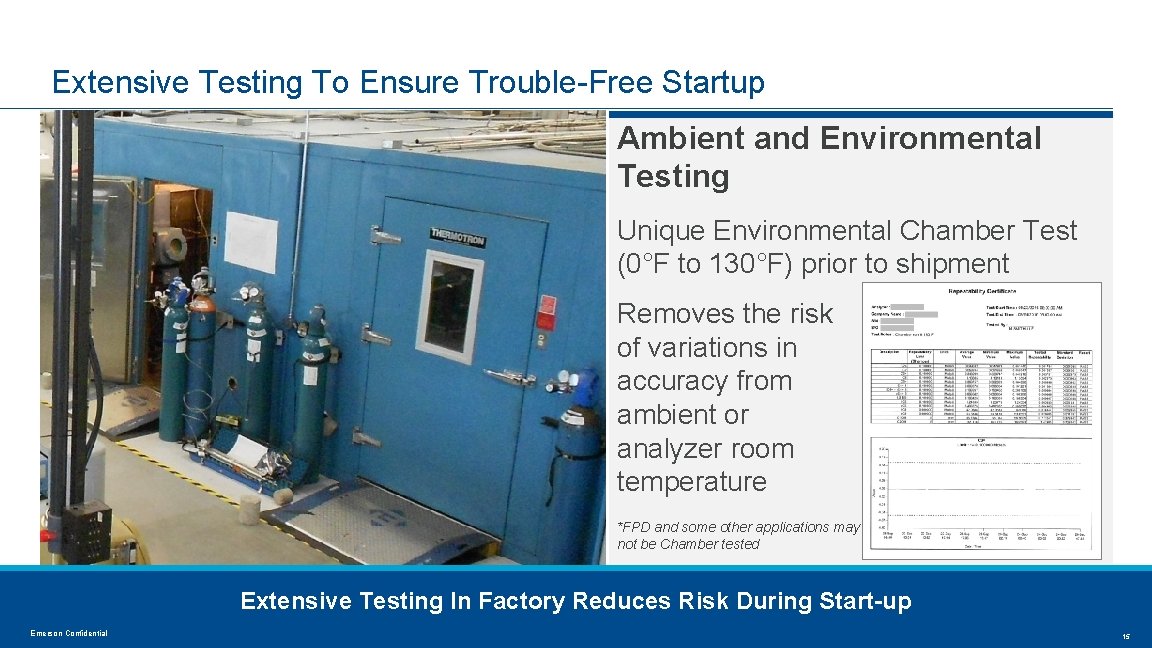

Extensive Testing To Ensure Trouble-Free Startup Ambient and Environmental Testing Unique Environmental Chamber Test (0°F to 130°F) prior to shipment Removes the risk of variations in accuracy from ambient or analyzer room temperature *FPD and some other applications may not be Chamber tested Extensive Testing In Factory Reduces Risk During Start-up Emerson Confidential 15

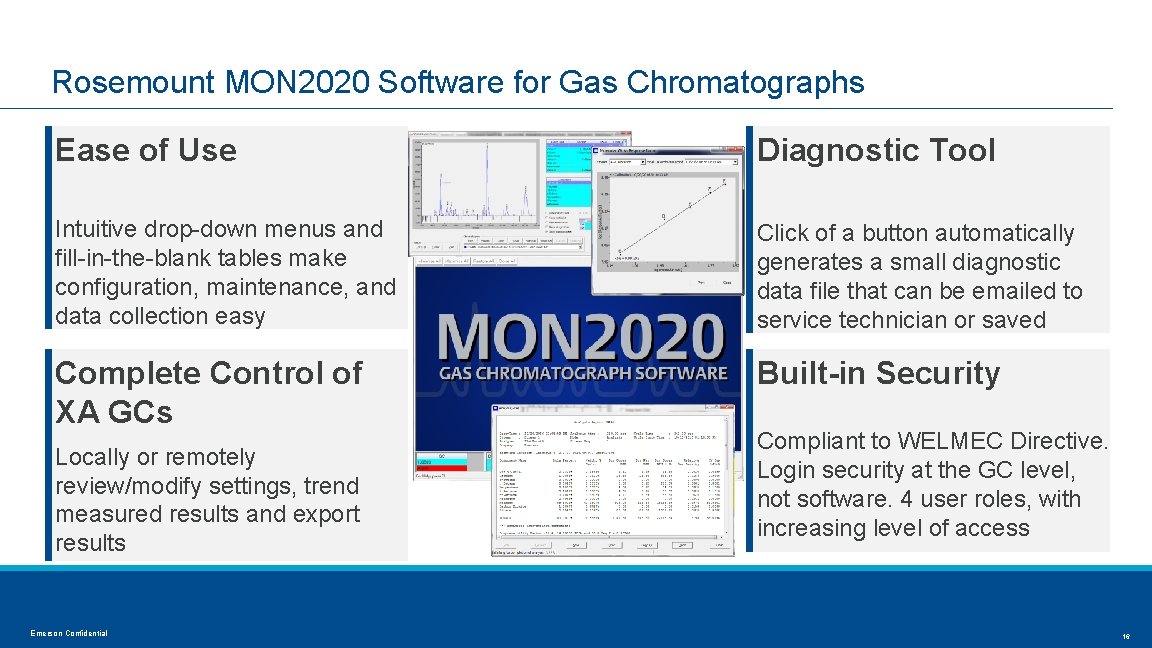

Rosemount MON 2020 Software for Gas Chromatographs Ease of Use Diagnostic Tool Intuitive drop-down menus and fill-in-the-blank tables make configuration, maintenance, and data collection easy Click of a button automatically generates a small diagnostic data file that can be emailed to service technician or saved Complete Control of XA GCs Built-in Security Locally or remotely review/modify settings, trend measured results and export results Emerson Confidential Compliant to WELMEC Directive. Login security at the GC level, not software. 4 user roles, with increasing level of access 16

Diagnostic Tool – Making Troubleshooting and Maintenance Easier Eliminates Miscommunications and Saves Time Constant issue with remote support is getting the right data from onsite personnel Detailed Knowledge of GC and MON 2020 not Required Before the Diagnostic Tool, found merely collecting data assumed a certain level of expertise that onsite personnel did not always had. Removes the Need For Extensive GC Knowledge To Collect Diagnostic Data Emerson Confidential 17

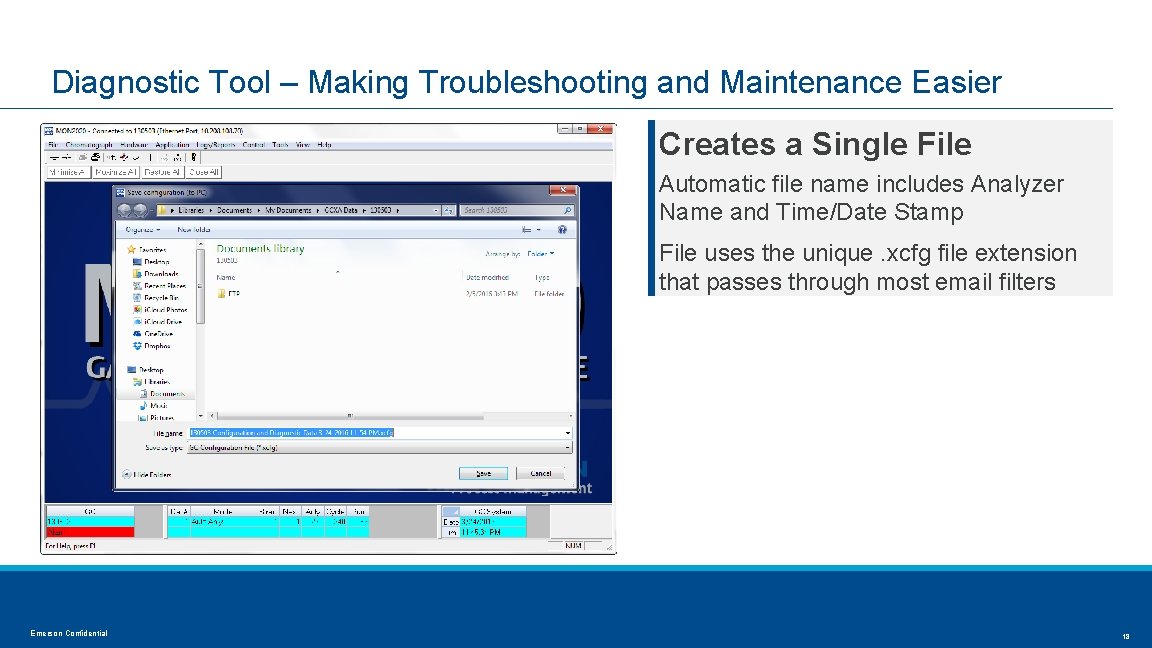

Diagnostic Tool – Making Troubleshooting and Maintenance Easier Creates a Single File Automatic file name includes Analyzer Name and Time/Date Stamp File uses the unique. xcfg file extension that passes through most email filters Emerson Confidential 18

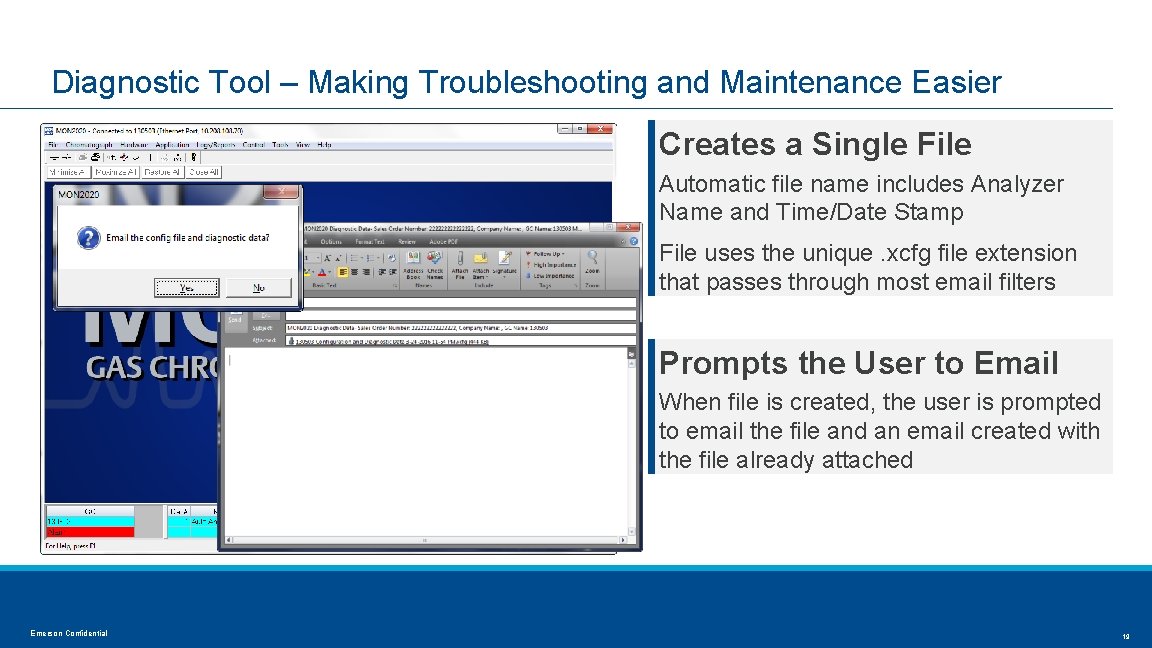

Diagnostic Tool – Making Troubleshooting and Maintenance Easier Creates a Single File Automatic file name includes Analyzer Name and Time/Date Stamp File uses the unique. xcfg file extension that passes through most email filters Prompts the User to Email When file is created, the user is prompted to email the file and an email created with the file already attached Emerson Confidential 19

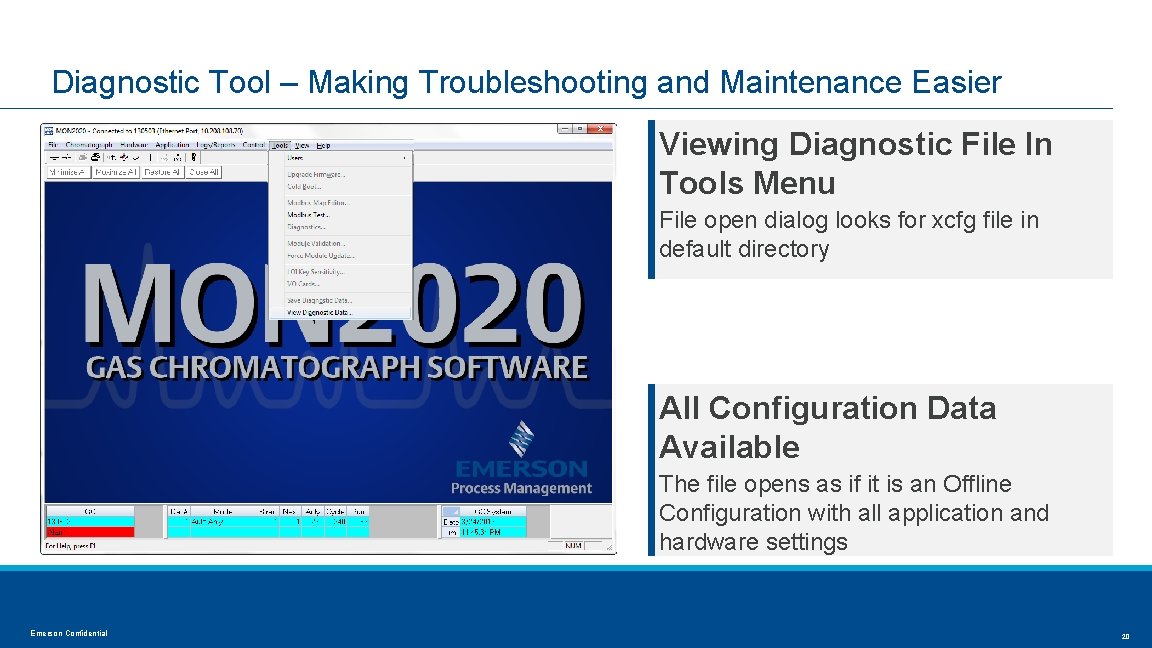

Diagnostic Tool – Making Troubleshooting and Maintenance Easier Viewing Diagnostic File In Tools Menu File open dialog looks for xcfg file in default directory All Configuration Data Available The file opens as if it is an Offline Configuration with all application and hardware settings Emerson Confidential 20

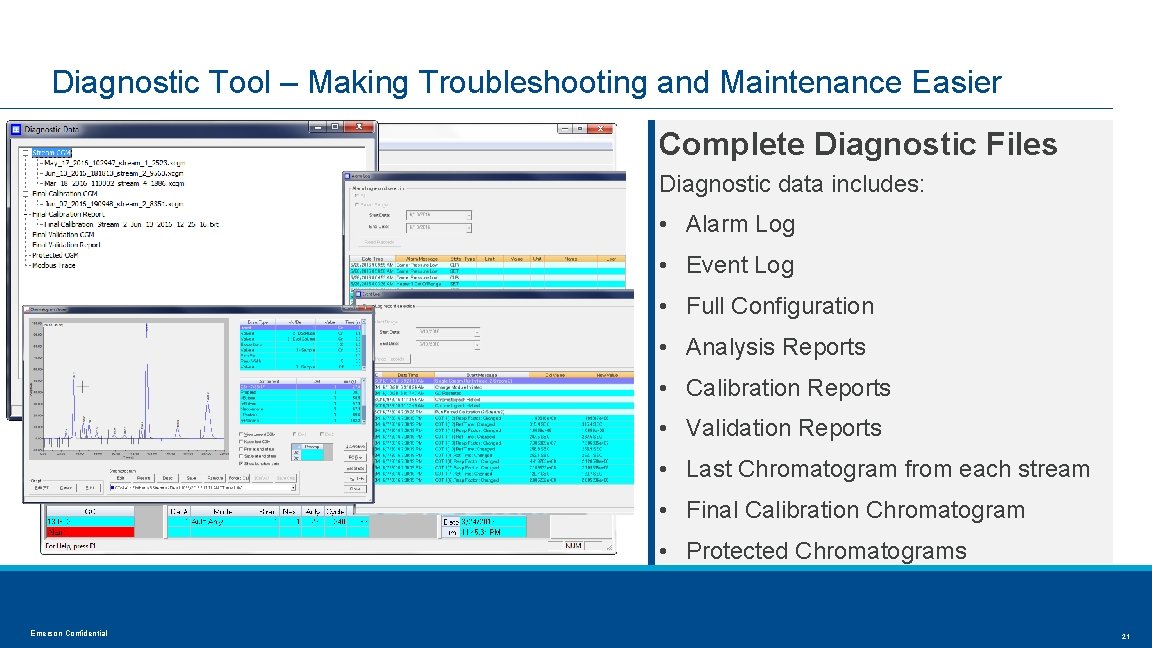

Diagnostic Tool – Making Troubleshooting and Maintenance Easier Complete Diagnostic Files Diagnostic data includes: • Alarm Log • Event Log • Full Configuration • Analysis Reports • Calibration Reports • Validation Reports • Last Chromatogram from each stream • Final Calibration Chromatogram • Protected Chromatograms Emerson Confidential 21

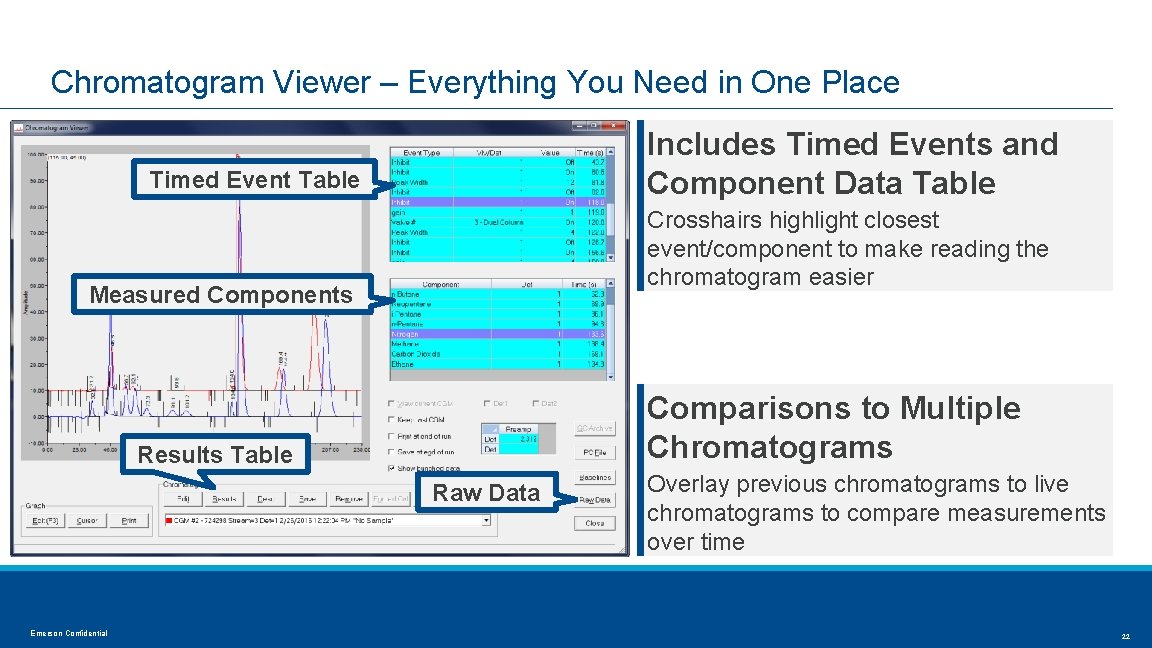

Chromatogram Viewer – Everything You Need in One Place Includes Timed Events and Component Data Table Timed Event Table Crosshairs highlight closest event/component to make reading the chromatogram easier Measured Components Comparisons to Multiple Chromatograms Results Table Raw Data Emerson Confidential Overlay previous chromatograms to live chromatograms to compare measurements over time 22

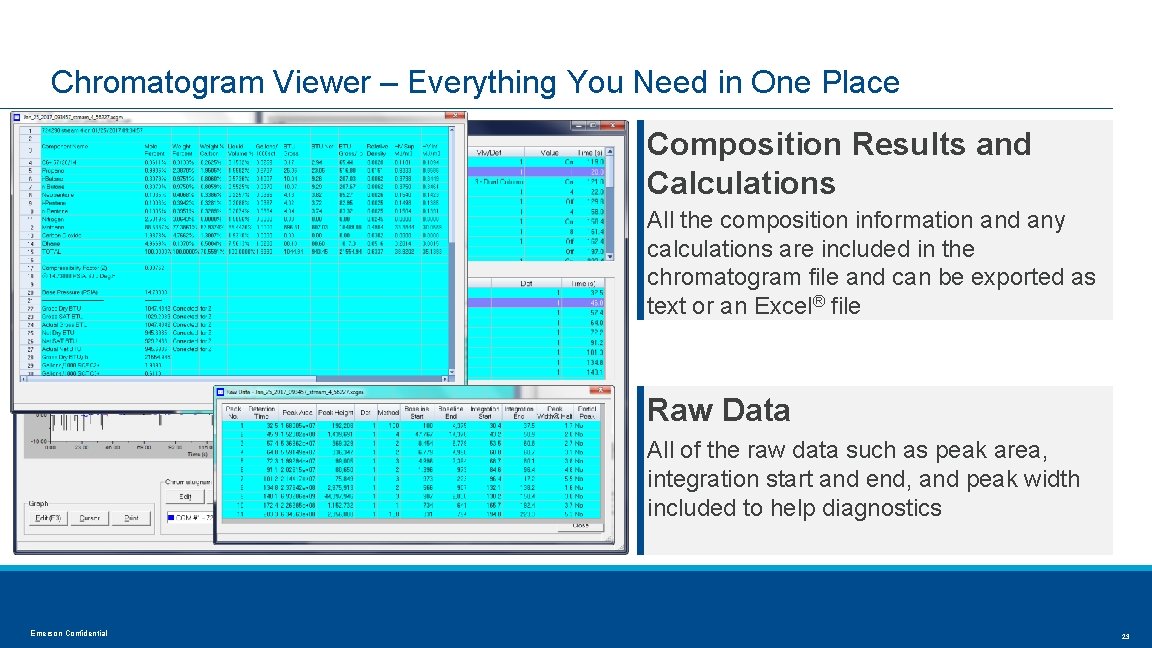

Chromatogram Viewer – Everything You Need in One Place Composition Results and Calculations All the composition information and any calculations are included in the chromatogram file and can be exported as text or an Excel® file Raw Data All of the raw data such as peak area, integration start and end, and peak width included to help diagnostics Emerson Confidential 23

Trend Analysis– Analytics to Help Troubleshoot Selectable Variables & Timeframe Allows one to look at a specific variable(s) and time frame of interest using easy pull-down screens Export Multiple File Types Export table data to Text, Comma Separated, MS Excel, HTML, or XML files Links to Chromatograms Select one or multiple points and open up the associated chromatograms makes troubleshooting easier and quicker Direct Link Between Trend and Chromatograms To Make Troubleshooting Easier Emerson Confidential 24

Rosemount 1500 XA – Design Flexibility Extended Temperature Performance Enables Installation Flexibility Gas Chromatographs can be installed in simple 3 -sided shelter racks or small cabinets Installation flexibility allows analyzer to be mounted closer to the sample point Adding analyzer points to existing locations significantly easier Reduces Sample Lag Time, Reduces Footprint, Reduces Costs Emerson Confidential 25

Rosemount 1500 XA – Design Flexibility 3 – Sided Rackmount Shelter * Application & Location dependent Analyzer House Not Needed For Most Applications Emerson Confidential 26

Rosemount 1500 XA – Design Flexibility Integral Cabinet Cost Effective HVAC Capable Cabinet For Cost Effective Added Protection Emerson Confidential 27
