Rosemount 3051 SMV Built On Commitment To Exceed Customer Expectations Over 50 years of experience and 850, 000 satisfied customers in more than 75 countries Strong History of Customer Recognition Our Commitment: Rosemount products enable unparalleled safety and efficiency in your processes because they are best-in-class, reliable and innovative. Best-in-class [File Name or Event] Slide 2 Emerson Confidential 27 -Jun-01, Slide 2 Reliable Innovative

Rosemount 3051 S Series of Instrumentation – Achieve Unparalleled Efficiency and Productivity 0. 025% Accuracy 10 Yr Stability 12 Yr Warranty Integral Manifolds Wireless Safety Certified Advanced Diagnostics Fieldbus Intuitive User Interfaces Remote Display and Interface Multi. Variable PRESSURE Innovations ADVANCED PLANTWEB Innovations Scalable Super. Module® Platform DP LEVEL Innovations Tuned. Systems™ DP FLOW Innovations Multi. Variable. TM Ultra for Flow Sanitary Quick Connect [File Name or Event] Slide 3 Emerson Confidential 27 -Jun-01, Slide 3 Direct Mounting Rated #1 15 years in a row. Control Engineering Award Integrated DP Flowmeters Flow Control Awards

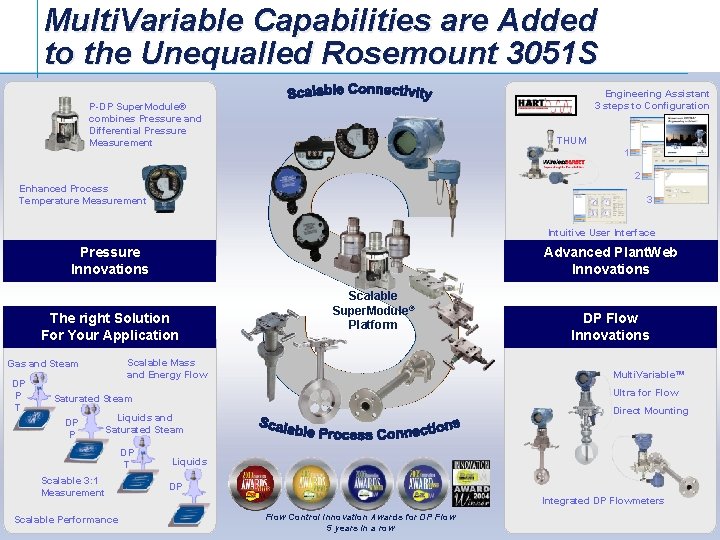

Multi. Variable Capabilities are Added to the Unequalled Rosemount 3051 S Engineering Assistant 3 steps to Configuration P-DP Super. Module® combines Pressure and Differential Pressure Measurement THUM 1 2 Enhanced Process Temperature Measurement 3 Intuitive User Interface Pressure Innovations Advanced Plant. Web Innovations The right Solution For Your Application Gas and Steam DP P T Scalable Super. Module® Platform Scalable Mass and Energy Flow Multi. Variable™ Ultra for Flow Saturated Steam DP P Direct Mounting Liquids and Saturated Steam DP T Scalable 3: 1 Measurement [File Name or Event] Scalable Performance Slide 4 Emerson Confidential 27 -Jun-01, Slide 4 DP Flow Innovations Liquids DP Integrated DP Flowmeters Flow Control Innovation Awards for DP Flow 5 years in a row

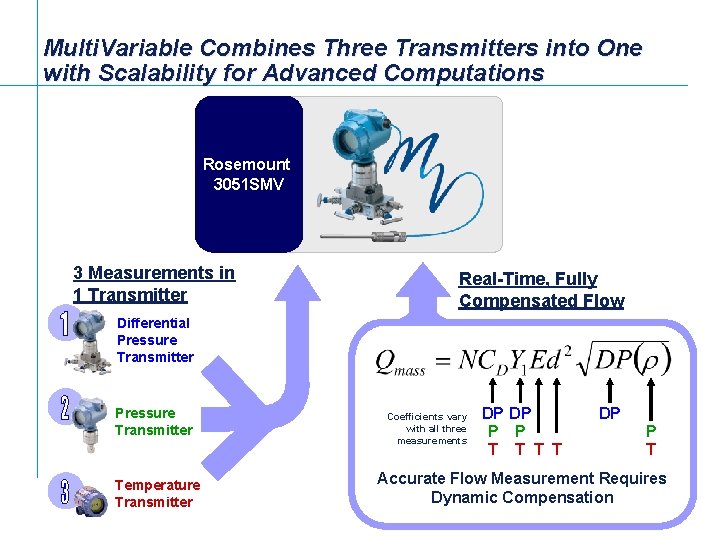

Multi. Variable Combines Three Transmitters into One with Scalability for Advanced Computations Rosemount 3051 SMV 3 Measurements in 1 Transmitter Real-Time, Fully Compensated Flow Differential Pressure Transmitter Temperature Transmitter [File Name or Event] Slide 5 Emerson Confidential 27 -Jun-01, Slide 5 Coefficients vary with all three measurements DP DP P P T T DP P T Accurate Flow Measurement Requires Dynamic Compensation

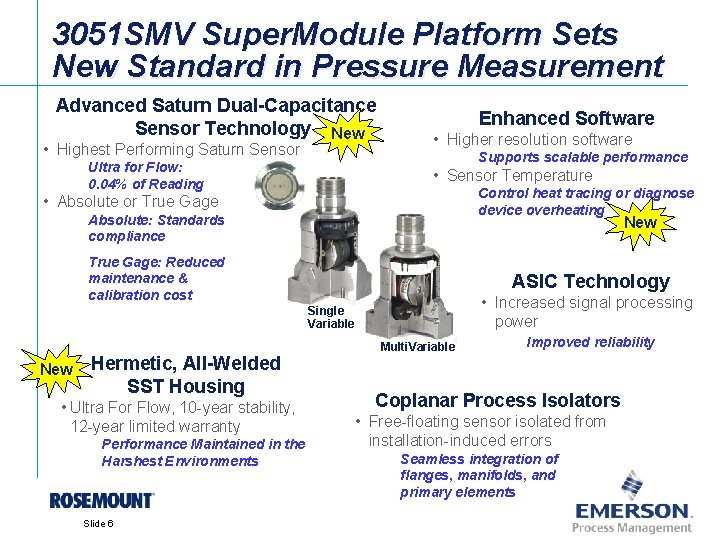

3051 SMV Super. Module Platform Sets New Standard in Pressure Measurement Advanced Saturn Dual-Capacitance Sensor Technology New • Highest Performing Saturn Sensor Enhanced Software • Higher resolution software Supports scalable performance Ultra for Flow: 0. 04% of Reading • Sensor Temperature Control heat tracing or diagnose device overheating • Absolute or True Gage Absolute: Standards compliance New True Gage: Reduced maintenance & calibration cost ASIC Technology • Increased signal processing power Single Variable New Hermetic, All-Welded SST Housing • Ultra For Flow, 10 -year stability, 12 -year limited warranty Performance Maintained in the Harshest Environments [File Name or Event] Slide 6 Emerson Confidential 27 -Jun-01, Slide 6 Multi. Variable Improved reliability Coplanar Process Isolators • Free-floating sensor isolated from installation-induced errors Seamless integration of flanges, manifolds, and primary elements

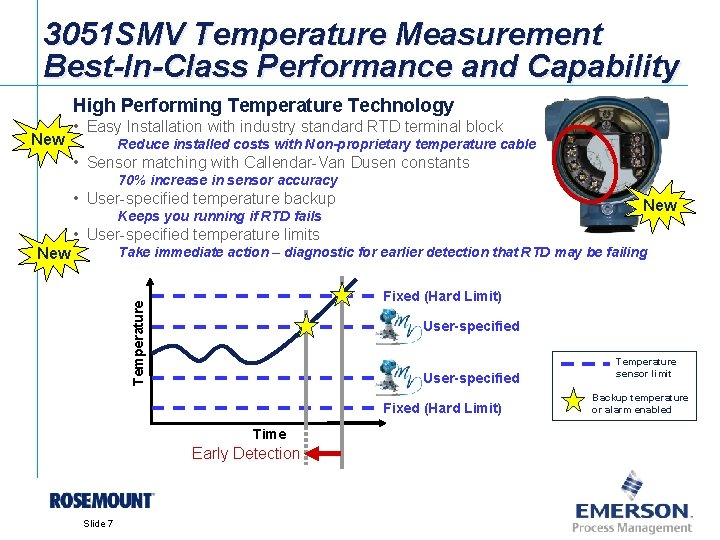

3051 SMV Temperature Measurement Best-In-Class Performance and Capability High Performing Temperature Technology New • Easy Installation with industry standard RTD terminal block Reduce installed costs with Non-proprietary temperature cable • Sensor matching with Callendar-Van Dusen constants 70% increase in sensor accuracy • User-specified temperature backup New Keeps you running if RTD fails • User-specified temperature limits Take immediate action – diagnostic for earlier detection that RTD may be failing Fixed (Hard Limit) Temperature New User-specified Fixed (Hard Limit) Time Early Detection [File Name or Event] Slide 7 Emerson Confidential 27 -Jun-01, Slide 7 Temperature sensor limit Backup temperature or alarm enabled

Real-Time Full Compensation of Mass and Energy Flow Eliminates Error WE CALCULATE: WE MEASURE: • Differential Pressure • Static Pressure • Process Temperature YOU ENTER: • Process Fluid • Primary Element • Line Size • Density • Viscosity • Velocity • Beta Ratio • Enthalpy • Gas Expansion • Discharge Coefficient • Velocity of Approach • Reynolds Number • Compressibility Factor YOU RECEIVE: • Mass Flow New • Energy Flow • Volumetric Flow • Totalized Flow • Process Temperature • Differential Pressure • Static Pressure New Dynamically corrects for all variables – 22 X/second [File Name or Event] Slide 8 Emerson Confidential 27 -Jun-01, Slide 8

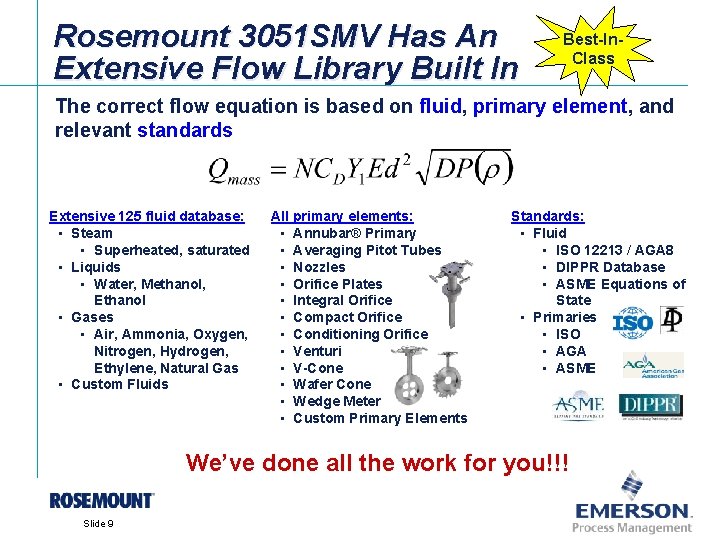

Rosemount 3051 SMV Has An Extensive Flow Library Built In Best-In. Class The correct flow equation is based on fluid, primary element, and relevant standards Extensive 125 fluid database: • Steam • Superheated, saturated • Liquids • Water, Methanol, Ethanol • Gases • Air, Ammonia, Oxygen, Nitrogen, Hydrogen, Ethylene, Natural Gas • Custom Fluids All primary elements: • Annubar® Primary • Averaging Pitot Tubes • Nozzles • Orifice Plates • Integral Orifice • Compact Orifice • Conditioning Orifice • Venturi • V-Cone • Wafer Cone • Wedge Meter • Custom Primary Elements Standards: • Fluid • ISO 12213 / AGA 8 • DIPPR Database • ASME Equations of State • Primaries • ISO • AGA • ASME We’ve done all the work for you!!! [File Name or Event] Slide 9 Emerson Confidential 27 -Jun-01, Slide 9

Rosemount 3051 SMV is Easy to Configure and Easy to Use Engineering Assistant Makes New Configuration Easy Enter three parameters and we do the rest 1 2 3 [File Name or Event] Slide 10 Emerson Confidential 27 -Jun-01, Slide 10 Intuitive Navigation • Windows Explorer • EDDL and AMS • Toolkit New Simplified Start-up • True stand alone • . net Technology Easy to Use New Graphical Interface Improved Information Access Process Variables • Mass Flow New • Energy Flow • Totalized Flow • Differential Pressure • Static Pressure • Process Temperature • Sensor Module Temperature New Process Data • Density, Velocity, Viscosity New • Beta Ratio, Gas Expansion Factor • Discharge Coefficient • Velocity of Approach • Reynolds Number

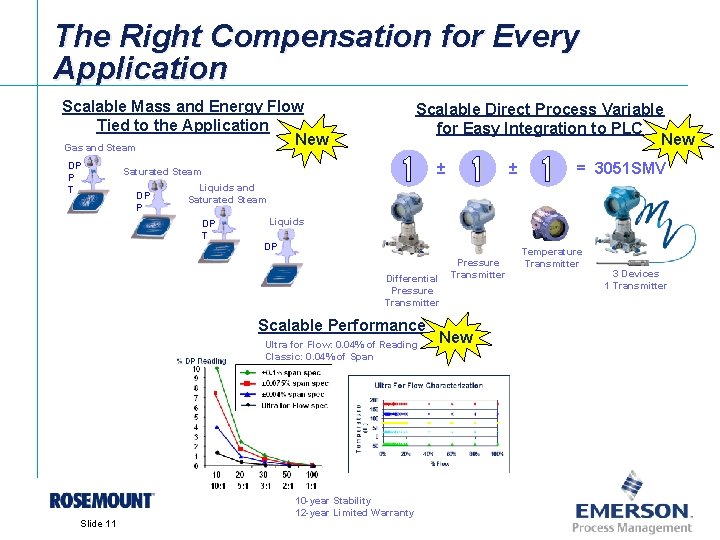

The Right Compensation for Every Application Scalable Mass and Energy Flow Tied to the Application New Gas and Steam DP P T Scalable Direct Process Variable for Easy Integration to PLC New ± Saturated Steam DP P ± Liquids and Saturated Steam DP T Liquids DP Differential Pressure Transmitter Scalable Performance Ultra for Flow: 0. 04% of Reading Classic: 0. 04% of Span [File Name or Event] Slide 11 Emerson Confidential 27 -Jun-01, Slide 11 = 3051 SMV 10 -year Stability 12 -year Limited Warranty Pressure Transmitter New Temperature Transmitter 3 Devices 1 Transmitter

Optimize Your Measurement with Single Model Integrated Flowmeters Best in Class Rosemount Flowmeters Traditional Installation Orifice Plate Temperature Transmitter Flowmeter Benefits l Improve accuracy to better than 1% l Reduce installed costs – Easy to install and maintain – Eliminate installation hardware – Save time and money Impulse Lines Pressure Transmitter l – – DP Transmitter Flow Computer l Local Indicator l l [File Name or Event] Slide 12 Emerson Confidential 27 -Jun-01, Slide 12 Reduce maintenance due to impulse lines Reduce potential leak points Reduce tendency to plug/freeze Remove source of flow error Eliminate measurement inconsistencies Three-fold reduction in weight Minimize pressure loss Reduce piping requirements – Fully configured – Leak tested – Ready to install 3051 SFA Annubar Flowmeter 3051 SFC Compact Flowmeter 3051 SFP Integral Orifice Flowmeter
