Signal Processing Expertise Analog Inputs and Outputs System cabinet – CSI 6500 Marshalling cabinet Hi. CTB 16 -SDC-24 C-SC-RA CBL-SUBD 3 FSHD/SUBD 37 M/1359/15 m Twisted pairs 0, 25 mm² Shielded cable IS bearing vib IS shaft vib IS Speed Case N° 1 Free wiring AI card type : 8 x A 6110 ( 2 CH ) 8 x A 6125 ( 2 CH ) 8 x A 6312 ( 2 CH ) 16 x HIC 2095 INT-322 b-ST CBL-SUBD 37 FSHD/SUBD 37 M/1360/15 m Standard 0, 25 mm² Shielded cable Free wiring AI card type : A 6630 INT-322 b-ST Free wiring Hi. CTB 16 -SDC-44 C-SC-RA Case N° 2 Channel 1 - 8 16 channels ( Output : 2 / 3 / 4 wires RTD per channel ) See datasheet of the HIC 2077 Cable tray Type of connectoion : Free labelled wires INT-322 b-ST IS Temperature RTD : 2 / 3 / 4 wires Channel 9 - 16 AI card type : A 6630 This document is the property of Firelec – No copy without prior written authorization Rev 01 – 27 th February 2019 – FIRELEC 16 x HIC 2077 Page : 2
Signal Processing Expertise Non I. S. Relay Output and Trip Multiplier System cabinet – CSI 6500 Marshalling cabinet INT-322 b-ST 16 channels ( 2 wires per channel ) can be interfaced DO relay card type : 1 x A 6740 ( 16 CH ) INT-322 b DCS Case N° 3 CBL-SUBD 37 MSHD/SUBD 37 M/1326/15 m Cable tray Type of connectoion : Free labelled wires Free wiring DI 24 Vdc Trip Multiplier card type : 8 x A 6110 ( 2 CH ) 8 x A 6125 ( 2 CH ) CBL-SUBD 37 MSHD/SUBD 37 M/1326/15 m Free wiring Case N° 4 INT-322 b-ST 16 channels ( 2 wires per channel ) can be interfaced This document is the property of Firelec – No copy without prior written authorization Rev 01 – 27 th February 2019 – FIRELEC DCS Page : 3
Signal Processing Expertise Non I. S. Analog Inputs and Outputs System cabinet – CSI 6500 Marshalling cabinet INT-322 b-ST 16 channels ( 2 wires per channel ) can be interfaced AI card type : 8 x A 6110 ( 2 CH ) 8 x A 6125 ( 2 CH ) 8 x A 6312 ( 2 CH ) INT-322 b IS bearing vib Case N° 5 IS shaft vib CBL-SUBD 37 MSHD/SUBD 37 M/1361/15 m Twisted pairs - 0, 25 mm² Shielded cable IS Speed Cable tray Type of connectoion : Free labelled wires Free wiring INT-322 b-ST Free wiring AI card type : A 6630 CBL-SUBD 37 MSHD/SUBD 37 M/1326/15 m Case N° 6 INT-322 b IS Temperature RTD : 2 / 3 / 4 wires 8 channels ( 2 / 3 / 4 wires per channel ) can be interfaced This document is the property of Firelec – No copy without prior written authorization Rev 01 – 27 th February 2019 – FIRELEC Page : 4

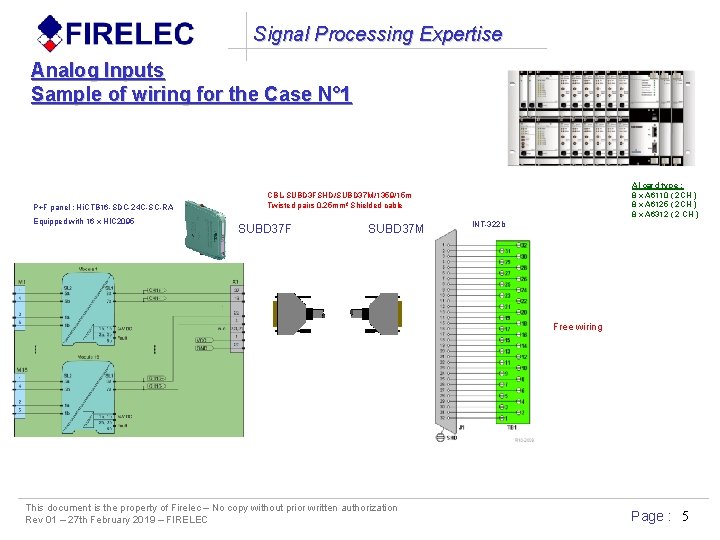

Signal Processing Expertise Analog Inputs Sample of wiring for the Case N° 1 P+F panel : Hi. CTB 16 -SDC-24 C-SC-RA Equipped with 16 x HIC 2095 AI card type : 8 x A 6110 ( 2 CH ) 8 x A 6125 ( 2 CH ) 8 x A 6312 ( 2 CH ) CBL-SUBD 3 FSHD/SUBD 37 M/1359/15 m Twisted pairs 0, 25 mm² Shielded cable SUBD 37 F SUBD 37 M INT-322 b Free wiring This document is the property of Firelec – No copy without prior written authorization Rev 01 – 27 th February 2019 – FIRELEC Page : 5
Signal Processing Expertise Analog Inputs (Temperatures) Sample of wiring for the Case N° 2 2 x CBL-SUBD 37 FSHD/SUBD 37 M/1360/15 m Standard 0, 25 mm² Shielded cable SUBD 37 F AI card type : A 6630 SUBD 37 M INT-322 b P+F panel : Hi. CTB 16 -SDC-44 C-SC-RA Cable N° 1 Equipped with 16 x HIC 2077 Free wiring INT-322 b Cable N° 2 Free wiring This document is the property of Firelec – No copy without prior written authorization Rev 01 – 27 th February 2019 – FIRELEC Page : 6

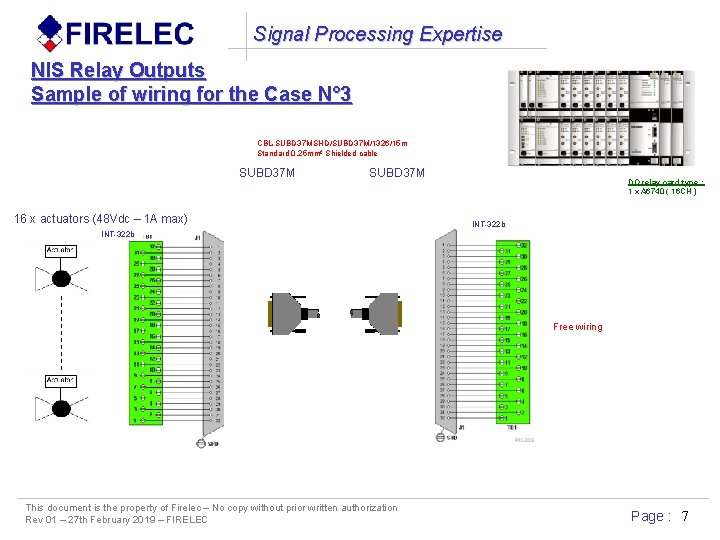

Signal Processing Expertise NIS Relay Outputs Sample of wiring for the Case N° 3 CBL-SUBD 37 MSHD/SUBD 37 M/1326/15 m Standard 0, 25 mm² Shielded cable SUBD 37 M 16 x actuators (48 Vdc – 1 A max) DO relay card type : 1 x A 6740 ( 16 CH ) INT-322 b Free wiring This document is the property of Firelec – No copy without prior written authorization Rev 01 – 27 th February 2019 – FIRELEC Page : 7

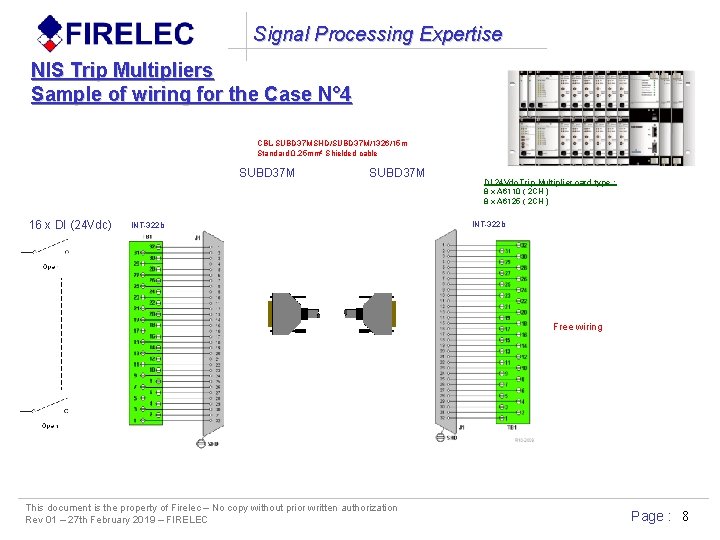

Signal Processing Expertise NIS Trip Multipliers Sample of wiring for the Case N° 4 CBL-SUBD 37 MSHD/SUBD 37 M/1326/15 m Standard 0, 25 mm² Shielded cable SUBD 37 M 16 x DI (24 Vdc) SUBD 37 M INT-322 b DI 24 Vdc Trip Multiplier card type : 8 x A 6110 ( 2 CH ) 8 x A 6125 ( 2 CH ) INT-322 b Free wiring This document is the property of Firelec – No copy without prior written authorization Rev 01 – 27 th February 2019 – FIRELEC Page : 8

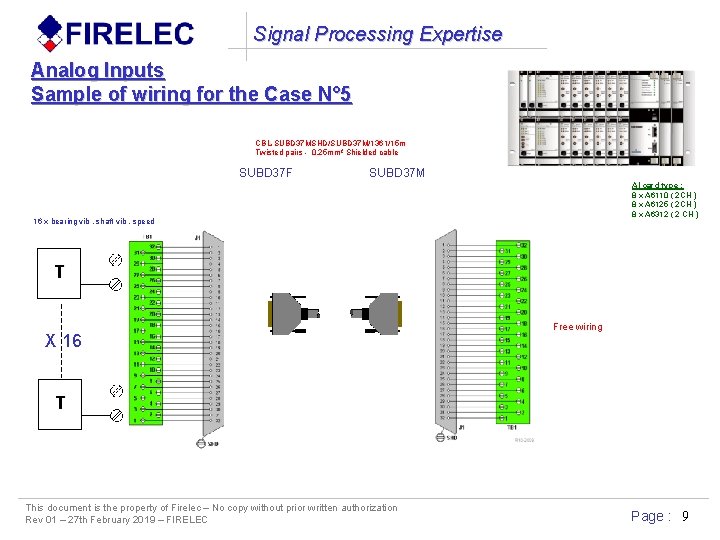

Signal Processing Expertise Analog Inputs Sample of wiring for the Case N° 5 CBL-SUBD 37 MSHD/SUBD 37 M/1361/15 m Twisted pairs - 0, 25 mm² Shielded cable SUBD 37 F SUBD 37 M AI card type : 8 x A 6110 ( 2 CH ) 8 x A 6125 ( 2 CH ) 8 x A 6312 ( 2 CH ) 16 x bearing vib , shaft vib , speed X 16 This document is the property of Firelec – No copy without prior written authorization Rev 01 – 27 th February 2019 – FIRELEC Free wiring Page : 9

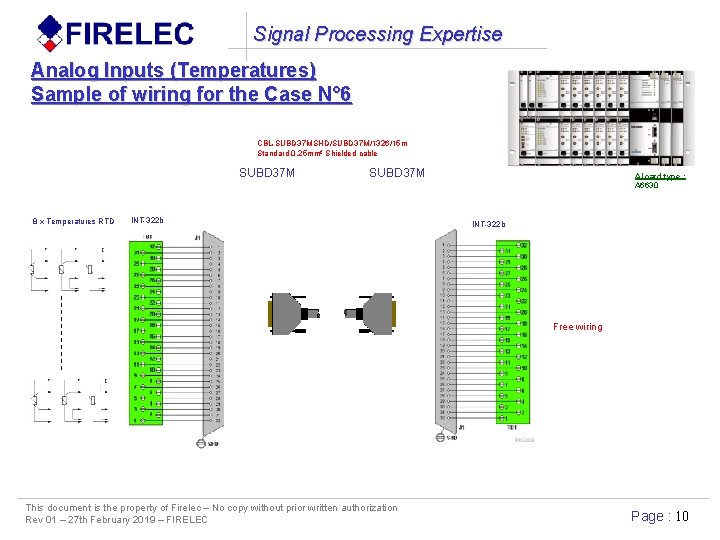

Signal Processing Expertise Analog Inputs (Temperatures) Sample of wiring for the Case N° 6 CBL-SUBD 37 MSHD/SUBD 37 M/1326/15 m Standard 0, 25 mm² Shielded cable SUBD 37 M 8 x Temperatures RTD SUBD 37 M INT-322 b AI card type : A 6630 INT-322 b Free wiring This document is the property of Firelec – No copy without prior written authorization Rev 01 – 27 th February 2019 – FIRELEC Page : 10
